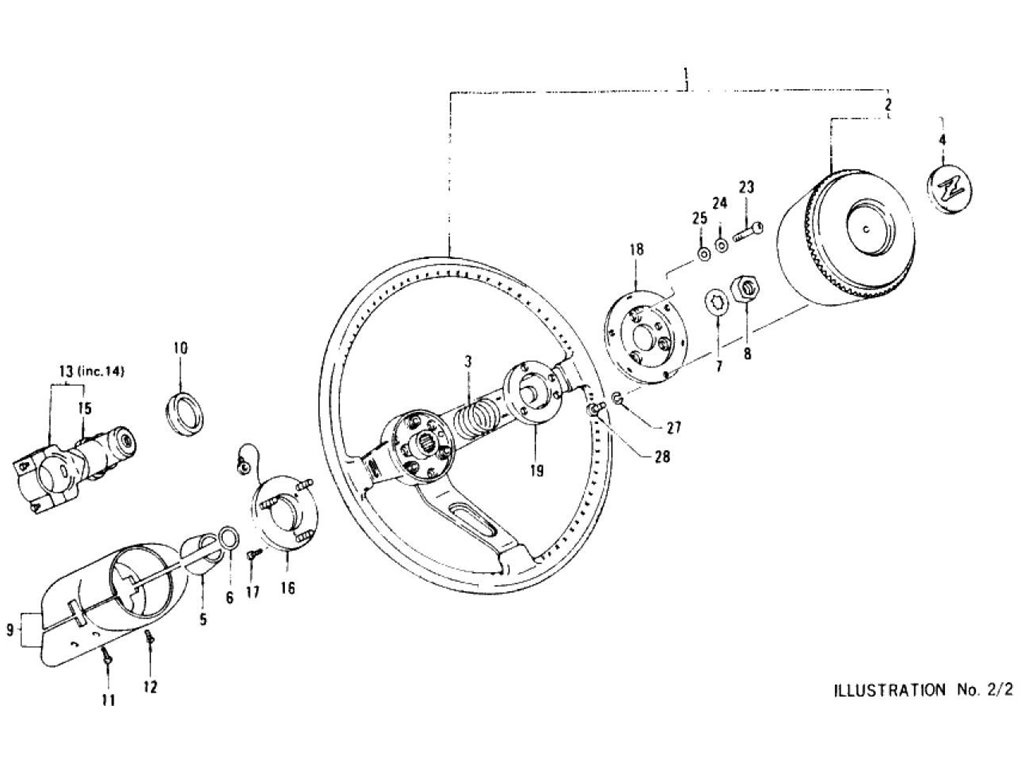

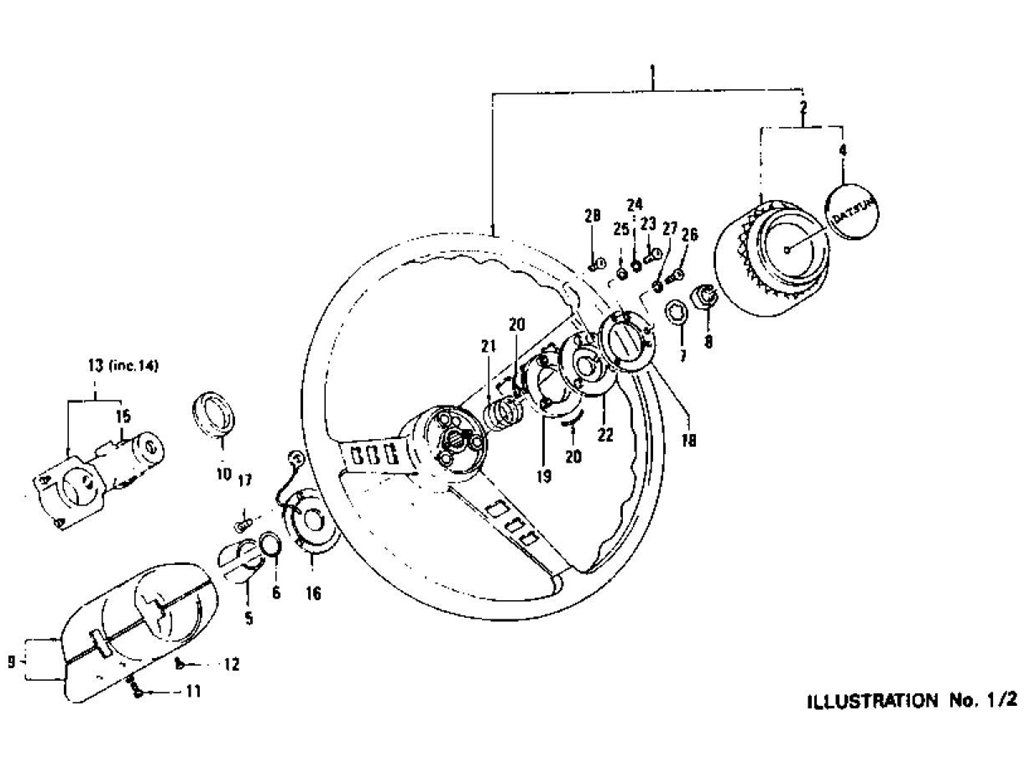

Steering Wheel Steering Wheel
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | ASSY-STEERING WHEEL | 48400-E4600 | | | | 1 | | | |
|
1 | ASSY-STEERING WHEEL | 48400-E8300 | | | 7307 | 1 | Yes | Yes | 48400-E4600 |
|
1 | ASSY-STEERING WHEEL | 48400-N4710 | | 7608 | | 1 | Yes | Yes | 48400-N3500 |
|
1 | ASSY-STEERING WHEEL | 48400-N3500 | 2 SEATER 2+2 SEAT ER | 7308 | 7607 | 1 | No | No | 48400-E8300 |
|
2 | COMP-PAD HORN BUTTON | 48410-E4600 | | | 7307 | 1 | | | |
|
2 | COMP-PAD HORN BUTTON | 48410-N3500 | | 7308 | 7607 | 1 | No | No | 48410-E4600 |
|
2 | COMP-PAD HORN BUTTON | 48410-N4700 | | 7608 | | 1 | No | No | 48410-N3500 |
|
3 | SPRING-HORN BUTTON | 48424-N3500 | 2 SEATER 2+2 SEAT ER | 7308 | | 1 | | | |
|
4 | EMBLEM-PAD HORN BUTT | 48423-E4600 | | | 7307 | 1 | | | |
|
4 | EMBLEM-PAD HORN BUTT | 48423-N3500 | 2 SEATER 2+2 SEAT ER | 7308 | | 1 | No | No | 48423-E4600 |
|
5 | COLLAR-STEERING WHEE | 48418-30800 | | | | 2 | | | |
|
6 | WIRE-COLLAR FIX | 48419-30800 | | | | 1 | | | |
|
7 | WASHER-LOCK INTERNAL | 08916-14610 | | | | 1 | | | |
|
8 | NUT-HEX M6X1.5 | 08911-34610 | | | | 1 | | | |
|
9 | ASSY-SHELL STEERING | 48470-E4601 | | | 7206 | 1 | | | |
|
9 | ASSY-SHELL STEERING | 48470-N3300 | | 7207 | 7307 | 1 | No | No | 48470-E4601 |
|
9 | ASSY-SHELL STEERING | 48470-N4700 | | 7608 | | 1 | No | No | 48470-N3600 |
|
9 | ASSY-SHELL STEERING | 48470-N3600 | 2 SEATER 2+2 SEAT ER | 7308 | 7607 | 1 | No | No | 48470-N3300 |
|
10 | ESCUTCHON-STEERING L | 48479-78801 | | | | 1 | | | |
|
10 | ESCUTCHON-STEERING L | 48479-E4100 | | | 7009 | 1 | Yes | Yes | 48479-78801 |
|
10 | ESCUTCHON-STEERING L | 48479-E8200 | | 7010 | | 1 | No | No | 48479-E4100 |
|
11 | SCREW-MACHINE M3.5X1 | 08310-71614 | | | | 4 | | | |
|
11 | SCREW-TAPPING | 08513-41623 | | 7308 | | 4 | | | |
|
12 | SCREW-TAPPING | 08330-31619 | | | | 1 | | | |
|
12 | SCREW-TAPPING | 08430-31212 | | 7308 | 7607 | 1 | No | No | 08330-31619 |
|
12 | SCREW-TAPPING | 08430-51212 | | 7608 | | 1 | No | No | 08430-31212 |
|
13 | ASSY-LOCK STEERING ( | 48700-E4600 | | | 7009 | 1 | | | |
|
13 | ASSY-LOCK STEERING ( | 48700-E4625 | | | 7307 | 1 | | | |
|
13 | ASSY-LOCK STEERING ( | 48700-E4629 | | | | 1 | Yes | Yes | 48700-E4600 |
|
13 | ASSY-LOCK STEERING ( | 48700-E4700 | | 7010 | | 1 | No | No | 48700-E4600 |
|
13 | ASSY-LOCK STEERING ( | 48700-N3300 | | 7308 | | 1 | | | |
|
14 | ASSY-WARNING SWITCH | 48745-E6600 | | | | 1 | | | |
|
15 | SWITCH-IGNITION | 48750-E7705 | | | | 1 | | | |
|
16 | COMP-RING CONTACT | 48495-E4100 | | | | 1 | | | |
|
17 | SCREW-MACHINE M3X10 | 08310-31012 | | | | 3 | | | |
|
18 | PLATE-CONTACT | 48451-14800 | | | | 1 | | | |
|
19 | INSULATOR-CONTACT CU | 48463-22000 | | | | 1 | | | |
|
20 | SPRING-TAINE LOCK | 48425-22000 | | | | 3 | | | |
|
21 | SPRING-HORN | 48441-22000 | | | | 1 | | | |
|
22 | CUP-CONTACT | 48452-22000 | | | | 1 | | | |
|
23 | SCREW-MACHINE | 00310-61012 | | | | 3 | | | |
|
24 | WASHER-PLAIN | 48441-12905 | | | | 3 | | | |
|
25 | WASHER-SPECIAL | 48466-12905 | | | | 3 | | | |
|
26 | SCREW-MACHINE (WIRE | 08310-60812 | | | | 1 | | | |
|
27 | WASHER-SPRING | 00915-10610 | | | | 1 | | | |
|
28 | SCREW-MACHINE | 08310-31012 | | | | 2 | | | |
