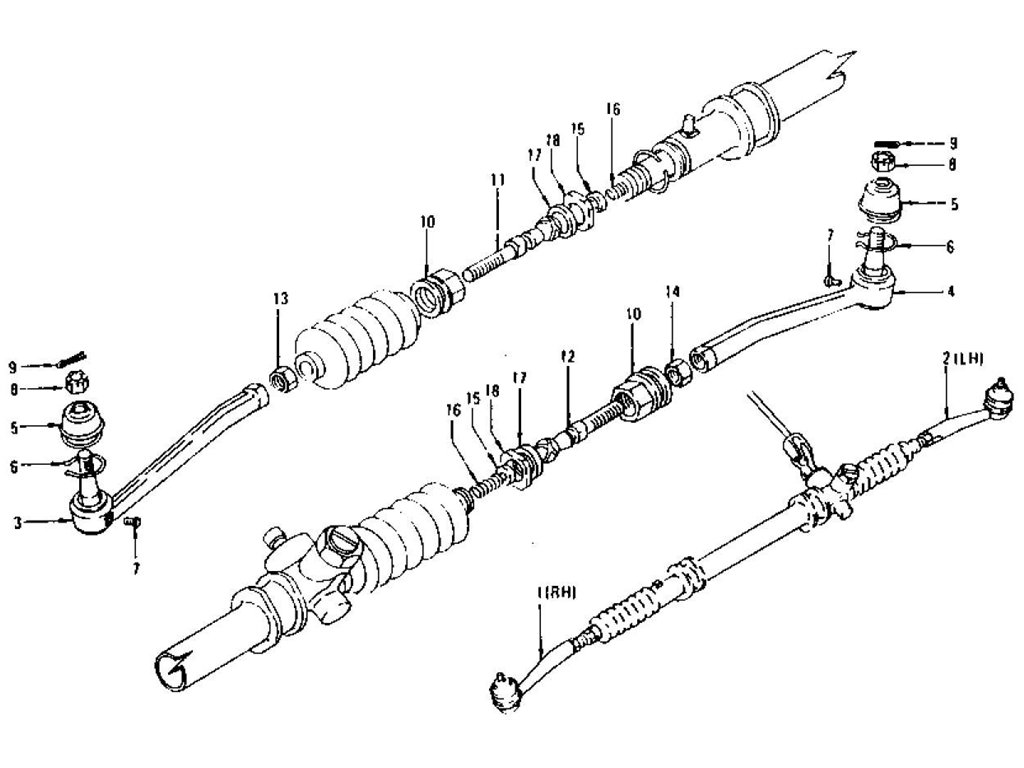

Steering Linkage Steering Linkage
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | ASSY-ROD SIDE RH | 48510-E8700 | | | | 1 | Yes | Yes | 48510-E6000 |
|
1 | ASSY-ROD SIDE RH | 48510-E6000 | | | | 1 | | | |
|
2 | ASSY-ROD SIDE LH | 48630-E6000 | | | | 1 | | | |
|
2 | ASSY-ROD SIDE LH | 48630-E8700 | | | | 1 | Yes | Yes | 48630-E6000 |
|
3 | ASSY-SOCKET SIDE ROD | 48520-78500 | | | | 1 | | | |
|
4 | ASSY-SOCKET SIDE ROD | 48640-78500 | | | | 1 | | | |
|
5 | COVER-DUST SIDE ROD | 48522-21000 | | | | 2 | | | |
|
6 | CLAMP-DUST COVER SID | 48548-18000 | | | | 2 | | | |
|
7 | PLUG-FILLER | 40189-73000 | | | | 2 | | | |
|
8 | NUT-HEX | 01227-00031 | | | | 2 | Yes | Yes | 08911-04210 |
|
8 | NUT-HEX M12X1.25 | 08911-04210 | | | | 2 | | | |
|
9 | PIN-COTTER 3.25X25 | 08921-32510 | | | | 2 | | | |
|
10 | SOCKET-SIDE ROD INNE | 48528-E6000 | | | | 2 | | | |
|
11 | BAR-SIDE ROD RH | 48511-E8725 | | | | 1 | Yes | Yes | 48512-E6025 |
|
11 | BAR-SIDE ROD RH | 48512-E6025 | | | | 1 | | | |
|
12 | BAR-SIDE ROD LH | 48612-E6025 | | | 7110 | 1 | | | |
|
12 | BAR-SIDE ROD LH | 48611-E8725 | | 7111 | | 1 | | | 48612-E6025 |
|
13 | NUT-HEX LOCK M14X1.5 | 01211-00011 | | | | 1 | Yes | Yes | 08911-34410 |
|
13 | NUT-HEX LOCK M14X1.5 | 08911-34410 | | | | 1 | | | |
|
14 | NUT-LOCK SIDE ROD LH | 01211-00021 | | | | 1 | Yes | Yes | 48514-78500 |
|
14 | NUT-LOCK SIDE ROD LH | 48514-78500 | | | | 1 | | | |
|
15 | SEAT-SPRING | 48515-78502 | | | | 2 | | | |
|
16 | SPRING-SIDE ROD INNE | 48518-78500 | | | | 2 | | | |
|
17 | SPACER-LOCK NUT STEE | 48635-E4100 | | | 7307 | 2 | | | |
|
17 | SPACER-LOCK NUT STEE | 48635-N3400 | 2 SEATER | 7308 | | 2 | No | No | 48635-E4100 |
|
18 | NUT-STOPPER STEERING | 48634-78500 | | | 7110 | 2 | | | |
|
18 | NUT-STOPPER STEERING | 48634-E8700 | | 7111 | | 2 | No | No | 48634-78500 |
