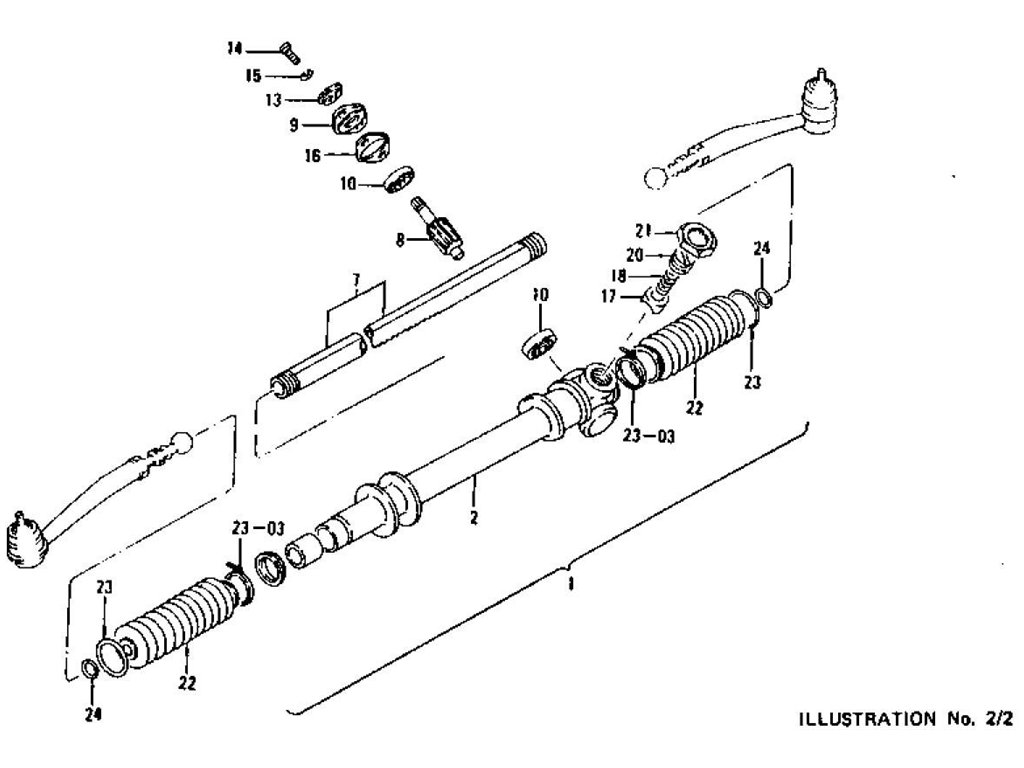

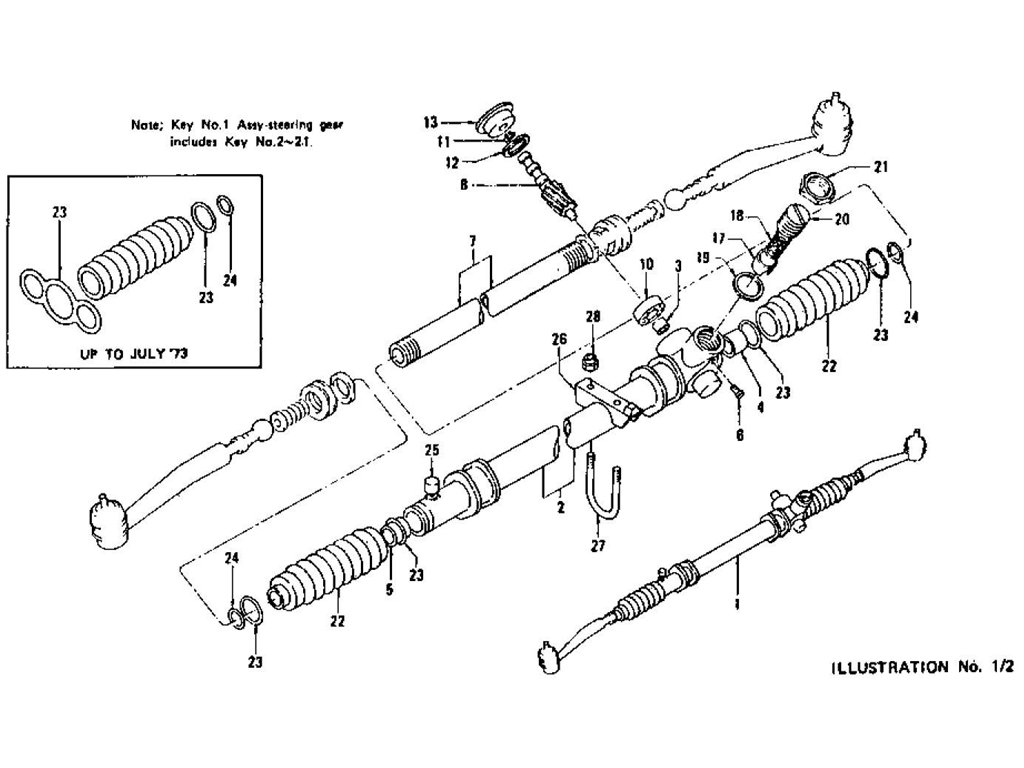

Steering Gear Steering Gear (Rack & Pinion Type)
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | ASSY-STEERING GEAR | 48001-E4451 | | | | 1 | | | |
|
1 | ASSY-STEERING GEAR | 48001-E4452 | | | | 1 | Yes | Yes | 48001-E4451 |
|
1 | ASSY-STEERING GEAR | 48001-E4453 | | | | 1 | Yes | Yes | 48001-E4452 |
|
1 | ASSY-STEERING GEAR | 48001-E8850 | | | 7307 | 1 | Yes | Yes | 48001-E4453 |
|
1 | ASSY-STEERING GEAR | 48001-N3650 | 2 SEATER | 7308 | | 1 | | | |
|
1 | ASSY-STEERING GEAR | 48001-N4150 | 2+2 SETAR | | | 1 | | | |
|
2 | COMP-HOUSING STEERIN | 48011-78902 | | | 7307 | 1 | Yes | Yes | 48011-E4400 |
|
2 | COMP-HOUSING STEERIN | 48011-N3100 | 2 SEATER 2+2 SEAT ER | 7308 | | 1 | No | No | 48011-78902 |
|
2 | COMP-HUSING STEERING | 48011-E4400 | | | | 1 | | | |
|
3 | BUSH-STEERING PINION | 48126-78500 | | | 7307 | 1 | | | |
|
4 | BUSH-STEERING RACK | 48127-78500 | | | | 1 | | | |
|
5 | BUSH-STEERING TUBE | 48128-78500 | | | | 1 | | | |
|
6 | PLUG-FILLER | 40189-73000 | | | 7307 | 1 | | | |
|
7 | RACK-STEERING GEAR | 48100-78900 | | | | 1 | | | |
|
7 | RACK-STEERING GEAR | 48100-N4100 | 2 SEATER | 7308 | | 1 | | | |
|
7 | RACK-STEERING GEAR | 48100-N4100 | 2+2 SEATER EXC.EU ROPE | 7310 | | 1 | | | |
|
8 | PINION-STEERING GEAR | 48023-78901 | | | 7307 | 1 | | | |
|
8 | PINION-STEERING GEAR | 48023-N4100 | 2 SEATER | 7308 | | 1 | | | |
|
8 | PINION-STEERING GEAR | 48023-N4100 | 2+2 SEATER | 7310 | | 1 | | | |
|
9 | COVER-REAR GEAR HOUS | 48124-N3400 | 2 SEATER 2+2 SEAT ER | 7310 | | 1 | | | |
|
10 | BEARING-PINION STEER | 48018-78500 | | | 7107 | 1 | | | |
|
10 | BEARING-PINION STEER | 48018-E8700 | | 7108 | 7307 | 1 | Yes | Yes | 48018-78500 |
|
10 | BEARING-PINION STEER | 48018-N3400 | 2 SEATER 2+2 SEAT ER | 7308 | | 1 | No | No | 48018-E8700 |
|
11 | RING-SNAP PINION BEA | 48265-78500 | | | 7307 | 1 | | | |
|
11 | RING-SNAP PINION BEA | 48266-78500 | | | 7307 | 1 | | | |
|
11 | RING-SNAP PINION BEA | 48267-78500 | | | 7307 | 1 | | | |
|
11 | RING-SNAP PINION BEA | 48268-78500 | | | 7307 | 1 | | | |
|
11 | RING-SNAP PINION BEA | 48269-78500 | | | 7307 | 1 | | | |
|
12 | RING-SNAP PINION BEA | 48271-78500 | | | 7307 | 1 | | | |
|
12 | RING-SNAP PINION BEA | 48272-78500 | | | 7307 | 1 | | | |
|
12 | RING-SNAP PINION BEA | 48273-78500 | | | 7307 | 1 | | | |
|
12 | RING-SNAP PINION BEA | 48274-78500 | | | 7307 | 1 | | | |
|
13 | SEAL-OIL PINION U | 48125-78500 | | | 7309 | 10 | | | |
|
13 | SEAL-OIL PINION U | 48125-N3400 | 2 SEATER 2+2 SEAT ER | 7310 | | 1 | No | No | 48125-78500 |
|
14 | BOLT-HEX | 08130-82010 | 2 SEATER 2+2 SEAT ER | 7310 | | 2 | | | |
|
15 | WASHER-LOCK | 08915-13810 | 2 SEATER 2+2 SEAT ER | 7310 | | 2 | | | |
|
16 | SHIM-ADJUST PINION | 48265-N3400 | 2 SEATER 2+2 SEAT ER | 7310 | | 0 | | | |
|
16 | SHIM-ADJUST PINION | 48265-N3401 | 2 SEATER 2+2 SEAT ER | 7310 | | 0 | | | |
|
16 | SHIM-ADJUST PINION | 48265-N3402 | 2 SEATER 2+2 SEAT ER | 7310 | | 0 | | | |
|
16 | SHIM-ADJUST PINION | 48265-N3403 | 2 SEATER 2+2 SEAT ER | 7310 | | 0 | | | |
|
16 | SHIM-ADJUST PINION | 48265-N3404 | 2 SEATER 2+2 SEAT ER | 7310 | | 0 | | | |
|
17 | RETAINER-STEERING GE | 48236-78500 | | | 7307 | 1 | | | |
|
17 | RETAINER-STEERING GE | 48236-N3400 | 2 SEATER 2+2 SEAT ER | 7308 | | 1 | No | No | 48236-78500 |
|
18 | SPRING-RETAINER | 48237-78500 | | | | 1 | | | |
|
18 | SPRING-RETAINER | 48237-E4100 | | | 7309 | 1 | No | No | 48237-78500 |
|
18 | SPRING-RETAINER | 48237-N3400 | 2 SEATER 2+2 SEAT ER | 7310 | | 1 | No | No | 48237-E4100 |
|
19 | SHIM-ADJUST T=0.25 | 48238-E4102 | | | | 0 | | | |
|
19 | SHIM-ADJUST T=0.5 | 48238-E4101 | | | | 0 | | | |
|
19 | SHIM-ADJUST T=1.0 | 48238-E4100 | | | | 0 | | | |
|
20 | SCREW-ADJUST RETAINE | 48231-78500 | | | 7307 | 1 | | | |
|
20 | SCREW-ADJUST RETAINE | 48231-N3400 | 2 SEATER 2+2 SEAT ER | 7308 | | 1 | No | No | 48231-78500 |
|
21 | NUT-LOCK ADJUST SCRE | 48233-78500 | | | 7307 | 1 | | | |
|
21 | NUT-LOCK ADJUST SCRE | 48233-N3400 | 2 SEATER 2+2 SEAT ER | 7308 | | 1 | No | No | 48233-78500 |
|
22 | BOOT-STEERING GEAR | 48203-78500 | | | 7110 | 2 | | | |
|
22 | BOOT-STEERING GEAR | 48203-E8700 | | 7111 | 7304 | 2 | No | No | 48203-78500 |
|
22 | BOOT-STEERING GEAR | 48203-N3000 | | 7305 | 7307 | 2 | Yes | Yes | 48203-E8700 |
|
22 | BOOT-STEERING GEAR | 48203-N3400 | 2 SEATER 2+2 SEAT ER | 7308 | | 2 | No | No | 48203-N3000 |
|
23 | CLAMP-BOOT STEERING | 48055-N3400 | 2 SEATER 2+2 SEAT ER | 7308 | | 2 | No | No | 48055-E8700 |
|
23 | CLAMP-DUST COVER UPP | 40146-16500 | | | | 4 | | | |
|
23 | CLAMP-DUST COVER UPP | 48055-E8700 | | | 7307 | 2 | Yes | Yes | 40146-16500 |
|
24 | CLAMP-BOOT STEERING | 48054-78500 | | | | 2 | | | |
|
26 | ASSY-STOPPER RACK | 54441-E4100 | | | 7307 | 1 | | | |
|
27 | U BOLT-STOPPER RACK | 54442-E4100 | | | 7307 | 1 | | | |
|
28 | NUT-LOCK U BOLT | 08912-80810 | | | 7307 | 2 | | | |
