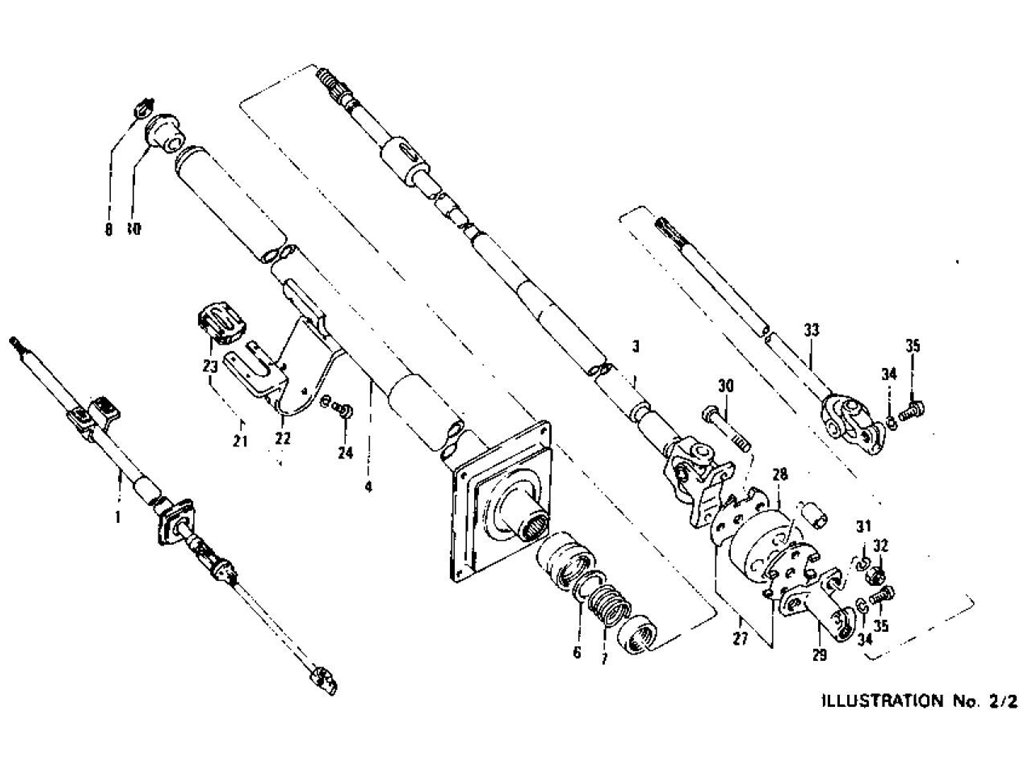

Steering Column (Collapsible Type)

Steering Column
Steering Column (Collapsible Type)Steering Column (Collapsible Type)
Parts List
Key Part Name Part Number Model From To Qty Newer Former Superceded
  1 ASSY-STEERING COLUMN 48805-E4450 1
  1 ASSY-STEERING COLUMN 48805-E4455 7307 1 Yes Yes 48805-E4450
  1 ASSY-STEERING COLUMN 48810-N3601 2 SEATER 2+2 SEAT ER 7308 1
  2 ASSY-STEERING COLUMN 48810-E4400 7307 1
  3 ASSY-SHAFT STEERING 48820-E4200 7307 1
  3 ASSY-SHAFT STEERING 48820-N3125 2 SEATER 2+2 SEAT ER 1 Yes Yes 48820-N3100
  3 ASSY-SHAFT STEERING 48820-N3100 2 SEATER 2+2 SEAT ER 7308 1 No No 48820-E4200
  3 ASSY-SHAFT STEERING 48820-N3125 2 SEATER 2+2 SEAT ER 7308 1 Yes Yes 48820-N3100
  4 ASSY-JACKET TUBE 48860-N3625 2 SEATER 2+2 SEAT ER 7308 1 No No 48860-E4400
  4 ASSY-JACKET TUBE UPP 48860-E4400 7307 1
  5 ASSY-BEARING STEERIN 48910-23100 2
  6 WASHER-PLAIN COLUMN 48931-23100 2
  7 SPRING-STEERING COLU 48934-23101 7307 1
  7 SPRING-STEERING COLU 48933-N3100 2 SEATER 2+2 SEAT ER 7308 1 No No 48934-23101
  8 RING-SNAP 00922-11700 2 SEATER 2+2 SEAT ER 7308 1 No No 00922-12800
  8 RING-SNAP C TYPE 00922-12800 7307 1
  9 COVER-OUST STEERING 48892-N3101 2 SEATER 2+2 SEAT ER 7310 1
  10 COLLAR-STEERING UPPE 48826-N3101 2 SEATER 2+2 SEAT ER 7310 1
  11 ASSY-JACKET TUBE LOW 48870-E4400 7307 1
  12 ASSY-BEARING STEERIN 48915-79012 7307 1
  13 SEAL-OIL STEERING CL 48924-79012 7307 1
  14 COVER-CLUMN BEARING 48919-79012 7307 1
  15 SHEET-RUBBER 48954-E4200 7307 1
  16 SCREW-MACHINE M4X0.7 48891-23100 7307 3
  17 ASSY-STEERING CLUMN 48830-E4200 1
  17 ASSY-STEERING CLUMN 48830-E4205 1 Yes Yes 48830-E4200
  17 ASSY-STEERING CLUMN 48830-E4255 7307 1 Yes Yes 48830-E4205
  17 ASSY-STEERING CLUMN 48830-N3050 7307 1 Yes Yes 48830-E4255
  18 BOLT-HEX M6X1.0 08120-61610 7307 4
  19 WASHE-PLAIN 08915-43610 7307 4
  20 WASHER-LOCK 08915-13610 7307 4
  21 ASSY-CLAMP STEERING 48960-E4200 7307 1
  21 ASSY-CLAMP STEERING 48960-N3100 2 SEATER 2+2 SEAT ER 7308 1 No No 48960-E4200
  22 CLAMP-TUBE STEERING 48963-E4200 7307 1
  22 CLAMP-TUBE STEERING 48963-N3100 2 SEATER 2+2 SEAT ER 7308 1 No No 48963-E4200
  23 PACKING-STEERING 48964-23100 7307 2
  23 SERVICE FILE PLATE COATING 48964-U0500 2 SEATER 2+2 SEAT ER 7308 2
  24 BOLT-HEX M6X12 08360-61291 2 SEATER 2+2 SEAT ER 7308 4
  24 BOLT-HEX M8X1.25 08110-82510 4
  24 BOLT-HEX M8X1.25 32055-47600 7307 4 Yes Yes 08110-82510
  25 WASHER-LOCK 08915-13810 7307 4
  26 WASHER-PLAIN 08915-43810 7307 4
  27 PLATE-COUPLING STEER 48075-78506 2 Yes Yes 48075-E4100
  27 PLATE-COUPLING STEER 48075-E4100 2
  28 COUPLING-RUBBER STEE 48073-78500 1
  29 FLANGE-COUPLIGN STEE 48074-N3101 7611 1 48074-N3100
  29 FLANGE-COUPLING STEE 48074-78505 7307 1
  29 FLANGE-COUPLING STEE 48074-N3100 2 SEATER 2+2 SEAT ER 7308 7610 1 No No 48074-78505
  30 BOLT-STEERING COUPLI 48078-78506 4
  31 WASHER-SPRING 08915-13810 4
  32 NUT-HEX M8X1.25 08911-30810 7307 4
  32 NUT-HEX M8X1.25 08912-30810 2 SEATER 2+2 SEAT ER 7308 4 No No 08911-30810
  33 ASSY-JOINT STEERING 48080-E4150 1
  33 ASSY-JOINT STEERING 48080-E4155 7307 1 Yes Yes 48080-E4150
  33 ASSY-JOINT STEERING 48080-N3151 7611 1 48080-N3150
  33 ASSY-JOINT STEERING 48080-N3150 2 SEATER 2+2 SEAT ER 7308 7610 1 No No 48080-E4155
  34 WASHER-SPRING 08915-14010 2
  35 BOLT-HEX M10X1.25X28 08134-02810 2
