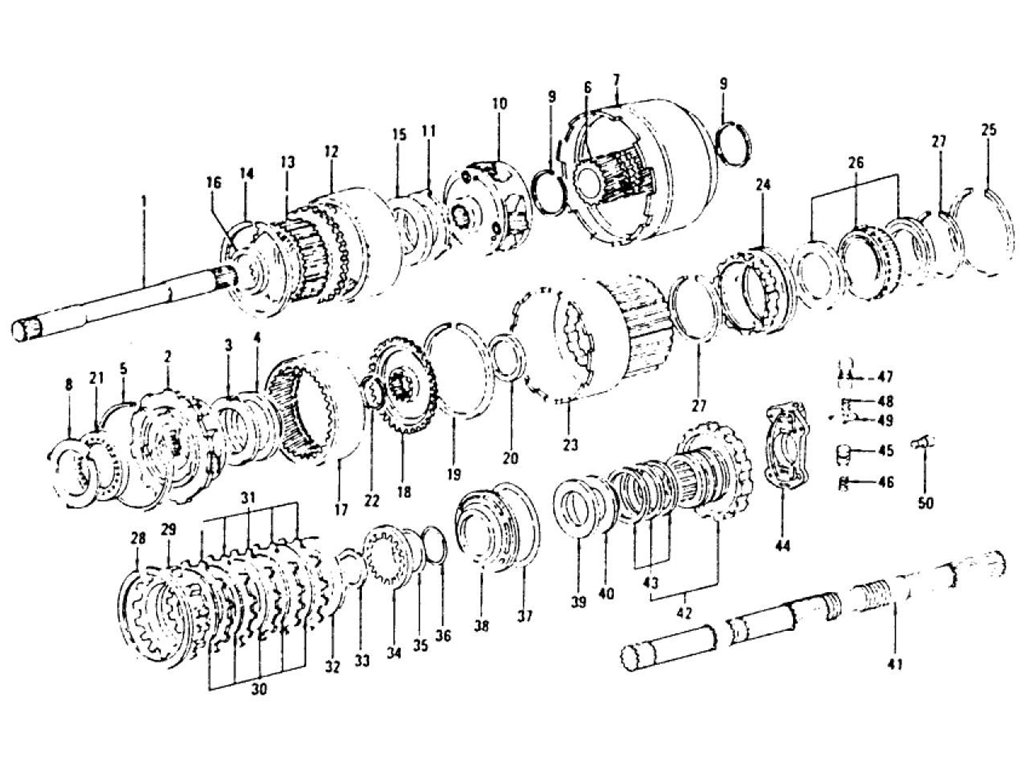

Transmission Gear (Automatic-3N71B) (From Apr.-'71)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SHAFT-INPUT | 31411-X0100 | AUTOMATIC | 1 | |||||
| 2 | ASSY-CARRIER REAR PL | 31440-X0100 | AUTOMATIC | 1 | |||||
| 3 | RACE-BEARING NEEDLE | 31436-X0100 | AUTOMATIC | 1 | |||||
| 4 | BEARING-NEEDLE THRUS | 31435-X0100 | AUTOMATIC | 1 | |||||
| 5 | RING-SNAP (116B) | 31477-X0100 | AUTOMATIC | 1 | |||||
| 6 | ASSY-GEAR SUN | 31460-X0100 | AUTOMATIC | 1 | |||||
| 7 | SHELL-CONNECTING | 31465-X0100 | AUTOMATIC | 1 | |||||
| 8 | RACE-BEARING CONNECT | 31466-X0100 | AUTOMATIC | 1 | |||||
| 9 | RING-SNAP (47S) | 31467-X0100 | AUTOMATIC | 2 | |||||
| 10 | ASSY-CARRIER FRONT P | 31420-X0100 | AUTOMATIC | 1 | |||||
| 11 | RACE-BEARING PLANET | 31436-X0100 | AUTOMATIC | 1 | |||||
| 12 | GEAR-INTERNAL | 31431-X0100 | AUTOMATIC | 1 | |||||
| 13 | HUB-REAR CLUTCH | 31553-X0100 | AUTOMATIC | 1 | |||||
| 14 | RING-SNAP (99B)U | 31433-X0100 | AUTOMATIC | 5 | |||||
| 15 | BEARING-NEEDLE THRUS | 31435-X0100 | AUTOMATIC | 1 | |||||
| 16 | BEARING-NEEDLE THRUS | 31438-X0100 | AUTOMATIC | 1 | |||||
| 17 | GEAR-INTERNAL | 31431-X0100 | AUTOMATIC | 1 | |||||
| 18 | FLANGE-INTERNAL DRIV | 31452-X0100 | AUTOMATIC | 1 | |||||
| 19 | RING-SNAP (99B) | 31433-X0100 | AUTOMATIC | 1 | |||||
| 20 | BEARING-NEEDLE THRUS | 31428-X0100 | AUTOMATIC | 1 | |||||
| 21 | BEARING-NEEDLE THRUS | 31435-X0100 | AUTOMATIC | 1 | |||||
| 22 | RING-SNAP (28) | 00922-12800 | AUTOMATIC | 1 | |||||
| 23 | DRUM-CONNECTING | 31471-X0100 | AUTOMATIC | 1 | |||||
| 24 | RACE-OUTER ONE WAY C | 31475-X0100 | AUTOMATIC | 1 | |||||
| 25 | RING-SNAP (92B) | 31476-X0100 | AUTOMATIC | 1 | |||||
| 26 | ASSY-CLUTCH ONE WAY | 31473-X0100 | AUTOMATIC | 1 | |||||
| 27 | RING-SNAP (71B) | 31479-X0100 | AUTOMATIC | 2 | |||||
| 28 | RING-SNAP (134) | 31376-X0100 | AUTOMATIC | 1 | |||||
| 29 | PLATE-RETAINING T=7. | 31667-X0500 | AUTOMATIC | 1 | |||||
| 29 | PLATE-RETAINING T=8. | 31667-X0501 | AUTOMATIC | 1 | |||||
| 29 | PLATE-RETAINING T=8. | 31667-X0502 | AUTOMATIC | 1 | |||||
| 29 | PLATE-RETAINING T=8. | 31667-X0503 | AUTOMATIC | 1 | |||||
| 29 | PLATE-RETAINING T=8. | 31667-X0504 | AUTOMATIC | 1 | |||||
| 29 | PLATE-RETAINING T=8. | 31667-X0505 | AUTOMATIC | 1 | |||||
| 30 | ASSY-PLATE DRIVE | 31662-X0100 | AUTOMATIC | 5 | |||||
| 30 | ASSY-PLATE DRIVE | 31662-X0101 | AUTOMATIC | 5 | Yes | Yes | 31662-X0100 | ||
| 31 | PLATE-DRIVEN (130) | 31666-X0100 | AUTOMATIC | 5 | |||||
| 32 | PLATE-DISHED (130) | 31668-X0100 | AUTOMATIC | 1 | |||||
| 33 | WASHER | 31652-X0101 | AUTOMATIC | 1 | |||||
| 34 | SPRING-PISTON RETURN | 31651-X0100 | AUTOMATIC | 1 | |||||
| 34 | SPRING-PISTON RETURN | 31651-X0101 | AUTOMATIC | 1 | Yes | Yes | 31651-X0100 | ||
| 35 | RING-THRUST SPRING | 31648-X0100 | AUTOMATIC | 1 | |||||
| 36 | SEAL-O RING (56D) | 31647-X0100 | AUTOMATIC | 1 | |||||
| 37 | SEAL-LATHE CUT RING | 31646-X0100 | AUTOMATIC | 1 | |||||
| 38 | PISTON-LOW & REVERSE | 31645-X0100 | AUTOMATIC | 1 | |||||
| 39 | BEARING-NEEDLE THRUS | 31438-X0100 | AUTOMATIC | 1 | |||||
| 40 | RACE-BEARING OIL DIS | 31489-X0100 | AUTOMATIC | 1 | |||||
| 40 | RACE-BEARING OIL DIS | 31489-X0101 | AUTOMATIC | 1 | Yes | Yes | 31489-X0100 | ||
| 41 | ASSY-SHAFT OUTPUT | 31480-X0300 | AUTOMATIC | 1 | |||||
| 42 | ASSY-DISTRIBUTOR OIL | 31486-X0100 | AUTOMATIC | 1 | |||||
| 43 | RING-SEAL (D=62) | 31487-X0100 | AUTOMATIC | 3 | |||||
| 44 | ASSY-GOVERNOR (33) | 31860-X0100 | AUTOMATIC | 1 | |||||
| 44 | ASSY-GOVERNOR (M33) | 31860-X2710 | AUTOMATIC | 7412 | 1 | No | No | 31860-X0100 | |
| 45 | VALUE-PRIMARY GOVERN | 31862-X0100 | AUTOMATIC | 1 | |||||
| 46 | SPRING-PRIMARY GOVER | 31863-X0100 | AUTOMATIC | 1 | |||||
| 47 | VALVE-SECONDARY GOVE | 31872-X0100 | AUTOMATIC | 1 | |||||
| 47 | VAVLE-SECONDARY GOVE | 31872-X2800 | AUTOMATIC | 7412 | 1 | No | No | 31872-X0100 | |
| 48 | SPRING-SECONDARY GOV | 31873-X0100 | AUTOMATIC | 1 | |||||
| 48 | SPRING-SECONDARY GOV | 31873-X0800 | AUTOMATIC | 7412 | 1 | No | No | 31873-X0100 | |
| 49 | PLATE-RETAINING GOVE | 31864-X0100 | AUTOMATIC | 3 | |||||
| 50 | BOLT | 08160-61610 | AUTOMATIC | 4 |
