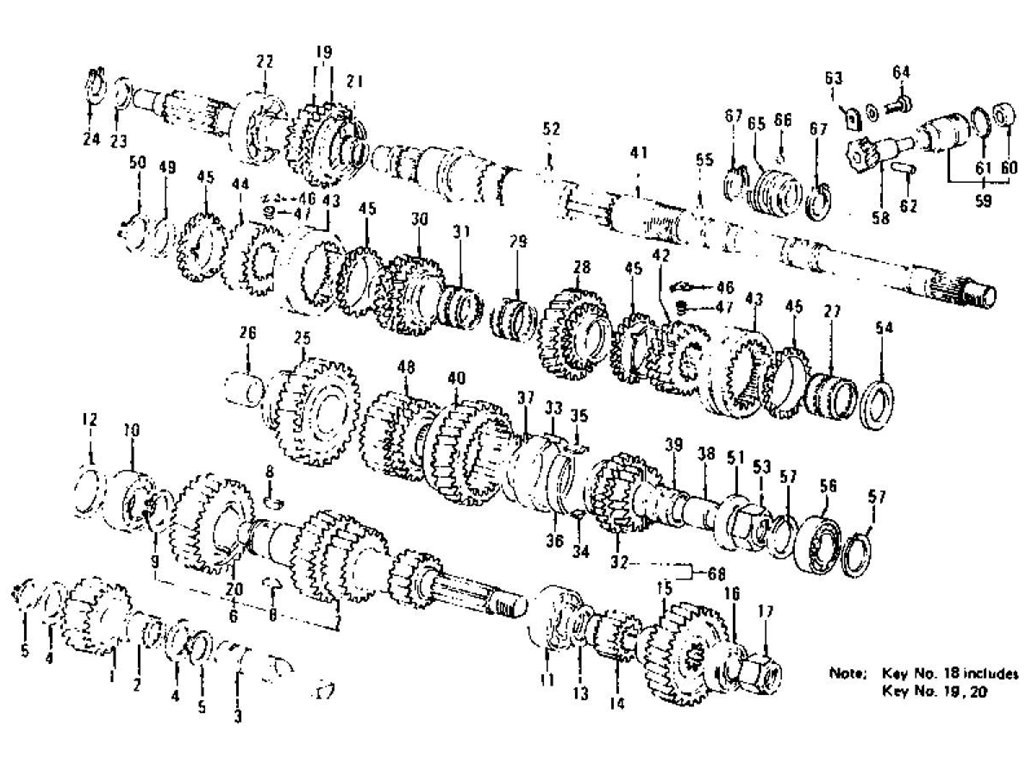

Transmission Gears, Speedometer Pinion (5 Speed-FS5W71B) (From Aug.-'76)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | GEAR-REVERSE IDLER | 32282-E9000 | 5 SPEED | 1 | |||||
| 2 | BEARING-NEEDLE | 32272-36900 | 5 SPEED | 2 | |||||
| 3 | SHAFT-REVERSE IDLER | 32281-E9500 | 5 SPEED | 1 | |||||
| 3 | SHAFT-REVERSE IDLER | 32281-E9508 | 5 SPEED | 7704 | 1 | Yes | Yes | 32281-E9500 | |
| 4 | WASHER-THRUST | 32284-E9000 | 5 SPEED | 2 | |||||
| 5 | RING-SNAP | 32285-20100 | 5 SPEED | 2 | |||||
| 6 | ASSY-GEAR COUNTER | 32210-E9507 | 5 SPEED | 1 | |||||
| 7 | GEAR-COUNTER | 32212-E9507 | 5 SPEED | 1 | |||||
| 8 | KEY-WOODRUFF | 32214-E9000 | 5 SPEED | 2 | |||||
| 9 | RING-SNAP(1.4T) | 32215-E9000 | 5 SPEED | 1 | |||||
| 9 | RING-SNAP(1.5T) | 32215-E9001 | 5 SPEED | 1 | |||||
| 9 | RING-SNAP-(1.6T) | 32215-E9002 | 5 SPEED | 1 | |||||
| 10 | BEARING-COUNTER | 32219-E9000 | 5 SPEED | 1 | |||||
| 11 | BEARING-COUNTER | 32203-18000 | 5 SPEED | 1 | |||||
| 12 | SHIM-BEARING(0.1T) | 32218-E9000 | 5 SPEED | 1 | |||||
| 12 | SHIM-BEARING(0.2T) | 32218-E9001 | 5 SPEED | 1 | |||||
| 12 | SHIM-BEARING(0.3T) | 32218-E9002 | 5 SPEED | 1 | |||||
| 12 | SHIM-BEARING(0.4T) | 32218-E9003 | 5 SPEED | 1 | |||||
| 12 | SHIM-BEARING(0.5T) | 32218-E9004 | 5 SPEED | 1 | |||||
| 12 | SHIM-BEARING(0.6T) | 32218-E9005 | 5 SPEED | 1 | |||||
| 13 | SPACER-COUNTER REVER | 32221-E9500 | 5 SPEED | 1 | |||||
| 14 | GEAR-REVERSE COUNTER | 32220-E9200 | 5 SPEED | 1 | |||||
| 15 | GEAR-COUNTER OVER DR | 32310-E9500 | 5 SPEED | 1 | |||||
| 16 | BEARING-COUNTER OVER | 21030-15760 | 5 SPEED | 1 | |||||
| 16 | BEARING-COUNTER OVER | 32319-N4800 | 5 SPEED | 7705 | 1 | Yes | Yes | 21030-15760 | |
| 17 | NUT | 32236-E9500 | 5 SPEED | 1 | |||||
| 18 | SET-GER MAIN & COUNT | 32200-E9450 | 5 SPEED | 1 | |||||
| 19 | ASSY-GEAR MAIN DRIVE | 32200-E9400 | 5 SPEED | 1 | |||||
| 20 | GEAR-COUNTER DRIVE | 32217-E9500 | 5 SPEED | 1 | |||||
| 21 | BEARING-PILOT MAIN S | 32272-36900 | 5 SPEED | 1 | |||||
| 22 | BEARING-MAIN DRIVE | 32273-N4800 | 5 SPEED | 1 | |||||
| 23 | SPACER-BEARING MAIN | 32205-78000 | 5 SPEED | 1 | |||||
| 24 | RING-SNAP MAIN DRIVE | 32204-78000 | 5 SPEED | 1 | |||||
| 24 | RING-SNAP MAIN DRIVE | 32204-78001 | 5 SPEED | 1 | |||||
| 24 | RING-SNAP MAIN DRIVE | 32204-78002 | 5 SPEED | 1 | |||||
| 24 | RING-SNAP MAIN DRIVE | 32204-78003 | 5 SPEED | 1 | |||||
| 24 | RING-SNAP MAIN DRIVE | 32204-78004 | 5 SPEED | 1 | |||||
| 24 | RING-SNAP MAIN DRIVE | 32204-78005 | 5 SPEED | 1 | |||||
| 25 | ASSY-GEAR 1ST MAIN S | 32242-E9200 | 5 SPEED | 1 | |||||
| 26 | BUSH-1ST GEAR | 32253-14600 | 5 SPEED | 1 | |||||
| 27 | BEARING-NEEDLE | 32264-14600 | 5 SPEED | 1 | |||||
| 28 | ASSY-GEAR 2ND MAIN S | 32250-E9200 | 5 SPEED | 1 | |||||
| 29 | BEARING-NEEDLE | 32264-14600 | 5 SPEED | 1 | |||||
| 30 | ASSY-GEAR | 32260-E9200 | 5 SPEED | 1 | |||||
| 31 | BEARING-NEEDLE | 32264-14600 | 5 SPEED | 1 | |||||
| 32 | ASSY-GEAR OVER DRIVE | 32340-E9500 | 5 SPEED | 1 | |||||
| 33 | RING-AYNCHRO | 32361-20100 | 5 SPEED | 1 | |||||
| 34 | BLOCK-THRUST | 32362-20100 | 5 SPEED | 1 | |||||
| 35 | BLOCK-ANCHOR | 32363-20100 | 5 SPEED | 1 | |||||
| 36 | BAND-BRAKE | 32364-20100 | 5 SPEED | 1 | |||||
| 37 | CIR-CLIP | 32366-20100 | 5 SPEED | 1 | |||||
| 38 | BUSH-OVER DRIVE GEAR | 32349-25500 | 5 SPEED | 1 | |||||
| 39 | BEARING-NEEDLE | 32350-25500 | 5 SPEED | 1 | |||||
| 40 | GEAR-REVERSE MAIN SH | 32245-E9501 | 5 SPEED | 1 | |||||
| 40 | GEAR-REVERSE MAIN SH | 32245-E9525 | 5 SPEED | 1 | Yes | Yes | 32245-E9501 | ||
| 41 | SHAFT-MAIN (SLEEVE T | 32241-E9400 | 5 SPEED | 1 | |||||
| 42 | HUB-SYNCHRO 1.2 | 32601-E9200 | 5 SPEED | 1 | |||||
| 43 | SLEEVE-COUPLING | 32606-E9000 | 5 SPEED | 1 | |||||
| 43 | SLEEVE-COUPLING | 32606-E9001 | 5 SPEED | 7708 | 1 | Yes | Yes | 32606-E9000 | |
| 44 | HUB-SYNCHRO 2.3 | 32605-E9000 | 5 SPEED | 1 | |||||
| 45 | RING-BAULK | 32604-P0100 | 5 SPEED | 5 | |||||
| 46 | INSERT-SHIFTING | 32609-E9000 | 5 SPEED | 5 | |||||
| 47 | SPRING-SHIFTING INSE | 32602-32200 | 5 SPEED | 5 | |||||
| 48 | HUB-SYNCHRO | 32258-E9501 | 5 SPEED | 1 | |||||
| 49 | WASHER-THRUST HUB | 32207-E9000 | 5 SPEED | 1 | |||||
| 50 | RING-SNAP (1.4T) | 32263-E9000 | 5 SPEED | 1 | |||||
| 50 | RING-SNAP(1.5T) | 32263-E9001 | 5 SPEED | 1 | |||||
| 50 | RING-SNAP(1.6T) | 32263-E9002 | 5 SPEED | 1 | |||||
| 51 | WASHER-THRUST | 32352-E9500 | 5 SPEED | 1 | |||||
| 51 | WASHER-THRUST | 32352-N4800 | 5 SPEED | 7705 | 1 | Yes | Yes | 32352-E9500 | |
| 52 | BALL-STEEL | 32720-14600 | 5 SPEED | 1 | |||||
| 53 | NUT | 32354-A7400 | 5 SPEED | 1 | |||||
| 54 | WASHER-THRUST | 32246-E9200 | 5 SPEED | 1 | |||||
| 55 | BALL-STEEL | 32720-14600 | 5 SPEED | 1 | |||||
| 56 | BEARING | 32203-14360 | 5 SPEED | 1 | |||||
| 57 | RING-SNAP 0/0 BEARIN | 32228-20100 | 5 SPEED | 1 | |||||
| 57 | RING-SNAP 0/0 BEARIN | 32228-20103 | 5 SPEED | 1 | |||||
| 57 | RINT-SNAP 0/0 BEARIN | 32228-20101 | 5 SPEED | 1 | |||||
| 57 | RINT-SNAP 3/0 BEARIN | 32228-20102 | 5 SPEED | 1 | |||||
| 58 | ASSY-PINION SPEEDOME | 32703-78101 | 5 SPEED | 7608 | 1 | ||||
| 59 | ASSY-SLEEVE SPEEDOME | 32707-78000 | 5 SPEED | 1 | |||||
| 60 | SEAL-OIL | 32709-14600 | 5 SPEED | 1 | |||||
| 61 | RING-"0" | 32710-14600 | 5 SPEED | 1 | |||||
| 62 | PIN-RETAINING | 32873-14600 | 5 SPEED | 1 | |||||
| 63 | PLATE-LOCK | 32718-14600 | 5 SPEED | 1 | |||||
| 64 | BOLT | 08110-61262 | 5 SPEED | 1 | |||||
| 65 | GEAR-DRIVE(6T) | 32701-66005 | 5 SPEED | 1 | |||||
| 66 | BALL(1/4) | 32720-36900 | 5 SPEED | 1 | |||||
| 67 | RING-SNAP | 32228-20101 | 5 SPEED | 2 | |||||
| 68 | SET-GEAR OVER DRIVE | 32310-E9550 | 5 SPEED | 1 |
