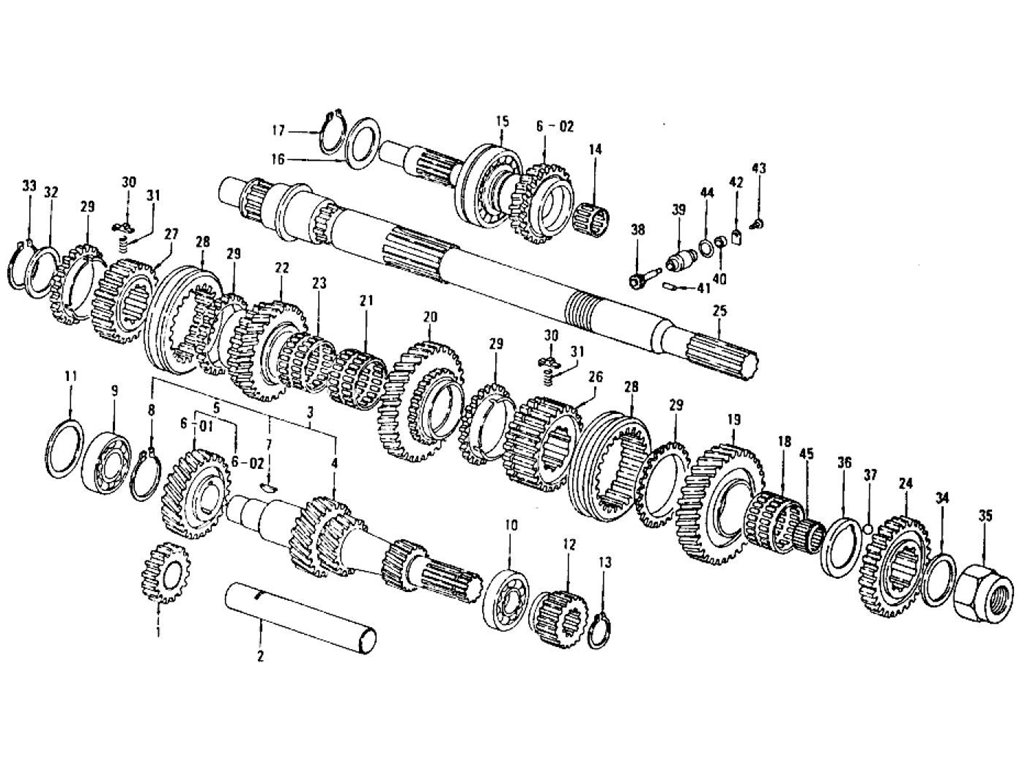

1 | GEAR-REVERSE IDLER | 32280-E9200 | 4 SPEED | | 7411 | 1 | | | |
|
1 | GEAR-REVERSE IDLER | 32280-E9201 | 4 SPEED | 7412 | | 1 | No | No | 32280-E9200 |
|
1 | SERVICE FILE GEAR REVERSE | 32280-E9226 | 4 SPEED | | | 1 | Yes | Yes | 32280-E9201 |
|
2 | SHAFT-REVERSE IDLER | 32281-E9200 | 4 SPEED | | | 1 | | | |
|
3 | ASSY-GEAR | 32210-E9201 | 4 SPEED | | 7411 | 1 | | | |
|
3 | ASSY-GEAR | 32210-E9202 | 4 SPEED | 7412 | | 1 | No | No | 32210-E9201 |
|
4 | GEAR-COUNTER | 32212-E9201 | 4 SPEED | | | 1 | | | |
|
5 | SET-GEAR MAIN & COUN | 32200-E9450 | 4 SPEED | 7412 | | 1 | No | No | 32200-E9051 |
|
5 | SET-GEAR MAIN&COUNTO | 32200-E9051 | 4 SPEED | | 7411 | 1 | Yes | Yes | 32200-E9050 |
|
5 | SET-GEAR | 32200-E9050 | 4 SPEED | | | 1 | | | |
|
6 | GEAR-COUNTER DRIVE | 32217-E9001 | 4 SPEED | | | 1 | | | |
|
6 | GEAR-MAIN DRIVE | 32200-E9001 | 4 SPEED | | | 1 | | | |
|
6 | GEAR-MAIN DRIVE | 32200-E9400 | 4 SPEED | 7412 | | 1 | | | |
|
7 | KEY-WOODRUFF | 32214-E9000 | 4 SPEED | | | 2 | | | |
|
8 | RING-SNAP(1.4T) | 32215-E9000 | 4 SPEED | | | 1 | | | |
|
8 | RING-SNAP(1.5T) | 32215-E9001 | 4 SPEED | | | 1 | | | |
|
8 | RING-SNAP(1.6T) | 32215-E9002 | 4 SPEED | | | 1 | | | |
|
9 | BEARING-COUNTER SHAF | 32219-E9000 | 4 SPEED | | | 1 | | | |
|
10 | BEARING-COUNTER SHAF | 32203-18000 | 4 SPEED | | | 1 | | | |
|
11 | SHIM-BEARING COUNTER | 32218-E9000 | 4 SPEED | | | 1 | | | |
|
11 | SHIM-BEARING COUNTER | 32218-E9001 | 4 SPEED | | | 1 | | | |
|
11 | SHIM-BEARING COUNTER | 32218-E9002 | 4 SPEED | | | 1 | | | |
|
11 | SHIM-BEARING COUNTER | 32218-E9003 | 4 SPEED | | | 1 | | | |
|
11 | SHIM-BEARING COUNTER | 32218-E9004 | 4 SPEED | | | 1 | | | |
|
11 | SHIM-BEARING COUNTER | 32218-E9005 | 4 SPEED | | | 1 | | | |
|
12 | GEAR-REVERSE COUNTER | 32220-E9200 | 4 SPEED | | 7411 | 1 | | | |
|
12 | GEAR-REVERSE COUNTER | 32220-E9201 | 4 SPEED | 7412 | | 1 | | | 32220-E9200 |
|
12 | SERVICE FILE GEAR REVERSE | 32280-E9226 | 4 SPEED | | | 1 | Yes | Yes | 32220-E9201 |
|
13 | RING-SNAP(1.4T) | 32228-E9200 | 4 SPEED | | | 1 | | | |
|
13 | RING-SNAP(1.5T) | 32228-E9201 | 4 SPEED | | | 1 | | | |
|
13 | RING-SNAP(1.6T) | 32228-E9202 | 4 SPEED | | | 1 | | | |
|
14 | BEARING-PILOT | 32272-36900 | 4 SPEED | | | 1 | | | |
|
15 | BEARING-MAIN DRIVE | 32273-04100 | 4 SPEED | | | 1 | | | |
|
16 | SPACER-BEARING MAIN | 32205-78000 | 4 SPEED | | | 1 | | | |
|
17 | RING-SNAP (1.73) | 32204-78005 | 4 SPEED | | | 1 | | | |
|
17 | RING-SNAP(1.80T) | 32204-78000 | 4 SPEED | | | 1 | | | |
|
17 | RING-SNAP(1.87T) | 32204-78001 | 4 SPEED | | | 1 | | | |
|
17 | RING-SNAP(1.94T) | 32204-78002 | 4 SPEED | | | 1 | | | |
|
17 | RING-SNAP(2.01T) | 32204-78003 | 4 SPEED | | | 1 | | | |
|
17 | RING-SNAP(2.08T) | 32204-78004 | 4 SPEED | | | 1 | | | |
|
18 | BEARING-NEEDLE | 32264-14600 | 4 SPEED | | | 1 | | | |
|
19 | ASSY-GEAR | 32242-E9200 | 4 SPEED | | | 1 | | | |
|
20 | ASSY-GEAR | 32250-E9200 | 4 SPEED | | | 1 | | | |
|
21 | BEARING-NEEDLE | 32264-14600 | 4 SPEED | | | 1 | | | |
|
22 | ASSY-GEAR | 32260-E9200 | 4 SPEED | | | 1 | | | |
|
23 | BEARING-NEEDLE | 32264-14600 | 4 SPEED | | | 1 | | | |
|
24 | GEAR-REVERSE MAIN SH | 32245-E9200 | 4 SPEED | | 7411 | 1 | | | |
|
24 | GEAR-REVERSE MAIN SH | 32245-E9201 | 4 SPEED | 7412 | | 1 | | | 32245-E9200 |
|
24 | SERVICE FILE GEAR REVERSE | 32280-E9226 | 4 SPEED | | | 1 | Yes | Yes | 32245-E9201 |
|
25 | SHAFT-MAIN | 32241-E9000 | 4 SPEED | | | 1 | | | |
|
26 | HUB-SYNCHRONIZER | 32601-E9200 | 4 SPEED | | | 1 | | | |
|
27 | HUB-SYNCHRONIZER | 32605-E9000 | 4 SPEED | | | 1 | | | |
|
28 | SLEEVE-COUPLING | 32606-E9000 | 4 SPEED | | | 2 | | | |
|
28 | SLEEVE-COUPLING | 32606-E9001 | 4 SPEED | 7708 | | 2 | Yes | Yes | 32606-E9000 |
|
29 | RING-BAULK | 32604-P0100 | 4 SPEED | | | 4 | | | |
|
30 | INSERT-SHIFTING | 32609-E9000 | 4 SPEED | | | 6 | | | |
|
31 | SPRING-SHIFTING INSE | 32602-32200 | 4 SPEED | | | 6 | | | |
|
32 | WASHER-THRUST SYNCHR | 32207-E9000 | 4 SPEED | | | 1 | | | |
|
33 | RING-SNAP(1.4T) | 32263-E9000 | 4 SPEED | | | 1 | | | |
|
33 | RING-SNAP(1.5T) | 32263-E9001 | 4 SPEED | | | 1 | | | |
|
33 | RING-SNAP(1.6T) | 32263-E9002 | 4 SPEED | | | 1 | | | |
|
34 | WASHER-PLAIN | 32353-E9000 | 4 SPEED | | | 1 | | | |
|
35 | NUT | 32354-E9000 | 4 SPEED | | | 1 | | | |
|
36 | WASHER-THRUST | 32246-E9200 | 4 SPEED | | | 1 | | | |
|
37 | BALL-STEEL | 32720-14600 | 4 STEEL | | | 1 | | | |
|
38 | ASSY-PINION SPEEDOME | 32703-P2617 | 4 SPEED | | 7110 | 1 | | | |
|
38 | ASSY-PINION SPEEDOME | 32703-P2616 | 4 SPEED | 7111 | 7411 | 1 | No | No | 32703-P2617 |
|
38 | ASSY-PINION SPEEDOME | 32703-P2617 | 4 SPEED | 7412 | | 1 | No | No | 32703-P2616 |
|
39 | ASSY-SLEEVE SPEEDOME | 32707-66300 | 4 SPEED | | | 1 | | | |
|
40 | SEAL-OIL | 32709-14600 | 4 SPEED | | | 1 | | | |
|
41 | PIN-RETAINING | 32873-14600 | 4 SPEED | | | 1 | | | |
|
42 | PLATE-LOCK | 32718-14600 | 4 SPEED | | | 1 | | | |
|
43 | BOLT-HEX | 08110-61262 | 4 SPEED | | | 1 | | | |
|
44 | RING-"O" | 32710-14600 | 4 SPEED | | | 1 | | | |
|
45 | BUSHING 1ST GEAR | 32253-14600 | 4 SPEED | | | 1 | | | |
