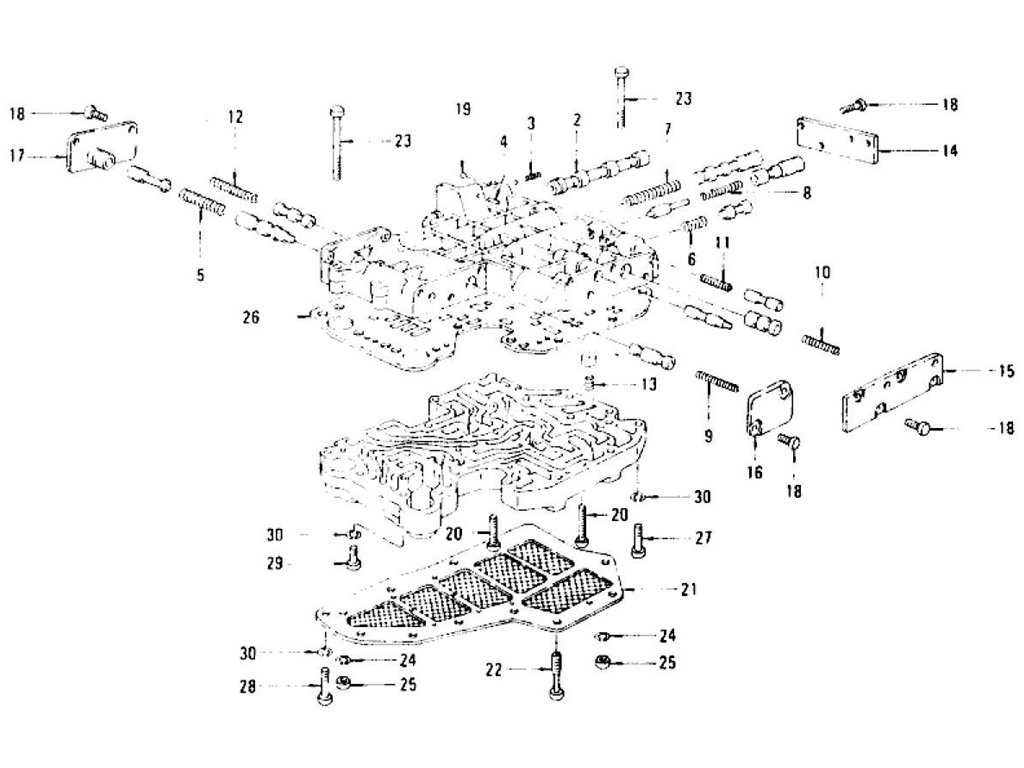

Valve (To Mar.-'71) Transmission Control Valve (Automatic-3N71A) (To Mar.-'71)
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | ASSY-VALVE MAIN AUTO | 31705-A4001 | AUTOMATIC | | | 1 | | | |
|
1 | ASSY-VAVLE MAIN AUTO | 31705-X0410 | AUTOMATIC | | | 1 | Yes | Yes | 31705-A4001 |
|
2 | VALVE-MANUAL | 31731-H0100 | AUTOMATIC | | | 1 | | | |
|
2 | VALVE-MANUAL | 31731-X0100 | AUTOMATIC | | | 1 | Yes | Yes | 31731-H0100 |
|
3 | SPRING-DETENT | 31733-H0101 | AUTOMATIC | | | 1 | | | |
|
3 | SPRING-DETENT | 31733-X0100 | AUTOMATIC | | | 1 | Yes | Yes | 31733-H0101 |
|
4 | PIN-SEAT DETENT SPRI | 31734-20300 | AUTOMATIC | | | 1 | | | |
|
4 | PIN-SEAT DETENT SPRI | 31734-X0100 | AUTOMATIC | | | 1 | Yes | Yes | 31734-20300 |
|
5 | SPRING-PRESSURE REGU | 31742-H0100 | AUTOMATIC | | | 1 | | | |
|
5 | SPRING-PRESSURE REGU | 31742-X0100 | AUTOMATIC | | | 1 | Yes | Yes | 31742-H0100 |
|
6 | SPRING-OUT BACK VALV | 31752-H0100 | AUTOMATIC | | | 1 | | | |
|
6 | SPRING-OUT BACK VALV | 31752-X0100 | AUTOMATIC | | | 1 | Yes | Yes | 31752-H0100 |
|
7 | SPRING-VALVE 1ST TO | 31762-20300 | AUTOMATIC | | | 1 | | | |
|
7 | SPRING-VALVE 1ST TO | 31762-X0100 | AUTOMATIC | | | 1 | Yes | Yes | 31762-20300 |
|
8 | SPRING-VALVE THROTTL | 31772-X0100 | AUTOMATIC | | | 1 | Yes | Yes | 31772-H0100 |
|
8 | SPRING-VAVLE THROTTL | 31772-H0100 | AUTOMATIC | | | 1 | | | |
|
9 | SPRING-VALVE 2ND TO | 31782-H0100 | AUTOMATIC | | | 1 | | | |
|
9 | SPRING-VALVE 2ND TO | 31782-X0100 | AUTOMATIC | | | 1 | Yes | Yes | 31782-H0100 |
|
10 | SPRING-THROTTLE BACK | 31809-H0101 | AUTOMATIC | | | 1 | | | |
|
10 | SPRING-THROTTLE BACK | 31809-X0100 | AUTOMATIC | | | 1 | Yes | Yes | 31809-H0101 |
|
11 | SPRING-VALVE DOWN SH | 31817-20300 | AUTOMATIC | | | 1 | | | |
|
11 | SPRING-VALVE DOWN SH | 31817-X0100 | AUTOMATIC | | | 1 | Yes | Yes | 31817-20300 |
|
12 | SPRING-2ND LOCK | 31826-H0102 | AUTOMATIC | | | 1 | | | |
|
12 | SPRING-2ND LOCK | 31826-X0100 | AUTOMATIC | | | 1 | Yes | Yes | 31826-H0102 |
|
13 | SPRING-VALVE ORIFICE | 31822-H0100 | AUTOMATIC | | | 1 | | | |
|
14 | PLATE-SIDE A | 31721-H0100 | AUTOMATIC | | | 1 | | | |
|
15 | PLATE-SIDE B | 31722-H0100 | AUTOMATIC | | | 1 | | | |
|
16 | PLATE-SIDE C | 31723-F0600 | AUTOMATIC | | | 1 | | | |
|
17 | PLATE-SIDE D | 31724-20300 | AUTOMATIC | | | 1 | | | |
|
18 | SCREW-FIXING SIDE PL | 08360-51012 | AUTOMATIC | | | 13 | | | |
|
19 | BALL-STEEL | 32829-26760 | AUTOMATIC | | | 1 | | | |
|
20 | SCREW | 08360-52512 | AUTOMATIC | | | 7 | | | |
|
21 | ASSY-STRAINER OIL | 31728-20301 | AUTOMATIC | | | 1 | | | |
|
22 | SCREW | 08360-54012 | AUTOMATIC | | | 10 | | | |
|
23 | BOLT | 31716-20300 | AUTOMATIC | | | 2 | | | |
|
24 | WASHER-LOCK | 08915-13610 | AUTOMATIC | | | 2 | | | |
|
25 | NUT | 08911-10610 | AUTOMATIC | | | 2 | | | |
|
26 | PLATE-SEPARATOR | 31715-A4000 | AUTOMATIC | | | 1 | | | |
|
27 | BOLT FIXING VALVE BO | 08120-62810 | AUTOMATIC | | | 4 | | | |
|
28 | BOLT FIXING VALVE BO | 08120-63510 | AUTOMATIC | | | 2 | | | |
|
29 | BOLT FIXING VALVE BO | 08120-63810 | AUTOMATIC | | | 2 | | | |
|
30 | WASHER-LOCK FIXING V | 08915-13610 | AUTOMATIC | | | 8 | | | |
