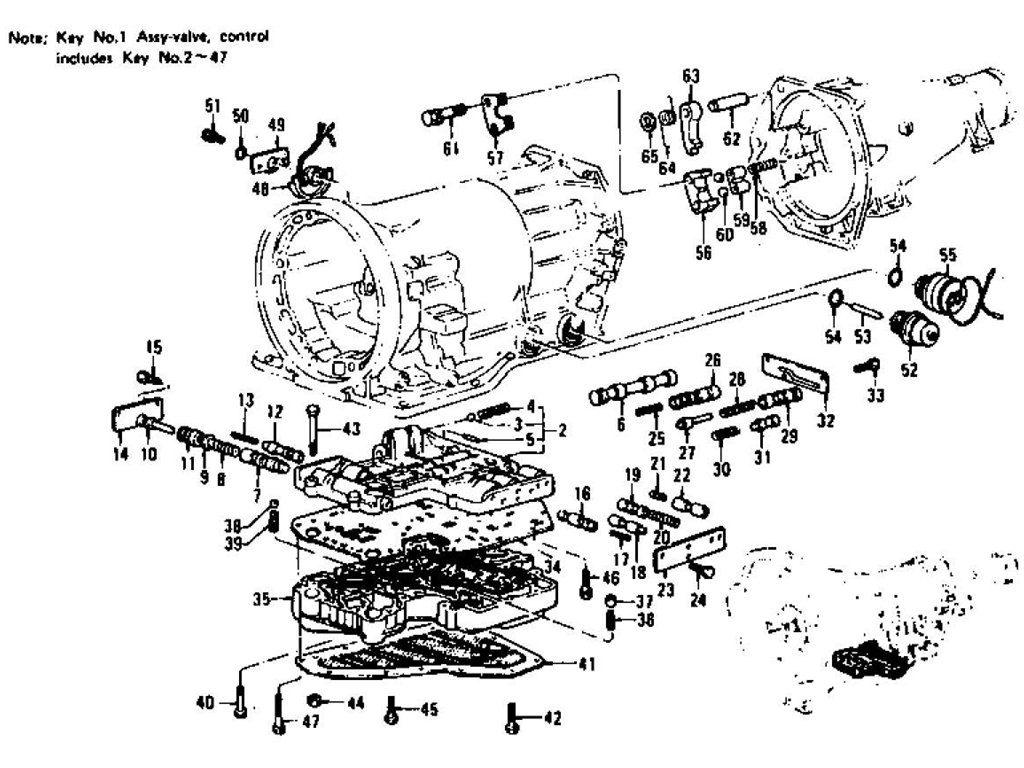

Transmission Control Valve (Automatic-3N71B) (From Apr.-'71)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-VALVE CONTROL | 31705-X0710 | AUTOMATIC | 1 | |||||
| 1 | ASSY-VALVE CONTROL | 31705-X2700 | AUTOMATIC | 201 | 407 | 1 | No | No | 31705-X0710 |
| 2 | BODY-UPPER CONTROL V | 31710-X0410 | AUTOMATIC | 1 | |||||
| 3 | BALL-STEEL (7.938) | 32829-26760 | AUTOMATIC | 1 | |||||
| 4 | SPRING-DETENT MANUAL | 31733-X0100 | AUTOMATIC | 1 | |||||
| 5 | PIN-SEAT DETENT SPRI | 31734-X0100 | AUTOMATIC | 1 | |||||
| 6 | VALVE-MANUAL | 31731-X0100 | AUTOMATIC | 1 | |||||
| 7 | VALVE-PRESSURE REGUL | 31741-X0100 | AUTOMATIC | 1 | |||||
| 8 | SPRING-PRESSURE REGU | 31742-X0100 | AUTOMATIC | 1 | |||||
| 9 | SEAT-SPRING PRESSURE | 31743-X0100 | AUTOMATIC | 1 | |||||
| 10 | PLUG-PRESSURE REGULA | 31746-X0100 | AUTOMATIC | 1 | |||||
| 10 | PLUG-PRESSURE REGULA | 31746-Y1110 | AUTOMATIC | 7412 | 1 | No | No | 31746-X0100 | |
| 11 | SLEEVE-PLUG PRESSURE | 31747-X0101 | AUTOMATIC | 1 | |||||
| 11 | SLEEVE-PLUG PRESSURE | 31747-Y1110 | AUTOMATIC | 7412 | 1 | No | No | 31747-X0101 | |
| 12 | VALVE-2ND LOCK | 31825-X0100 | AUTOMATIC | 1 | |||||
| 13 | SPRING-2ND LOCK | 31826-X0100 | AUTOMATIC | 1 | |||||
| 14 | PLATE-SIDE D | 31724-X0100 | AUTOMATIC | 7609 | 1 | ||||
| 14 | PLATE-SIDE D | 31724-X3101 | AUTOMATIC | 7610 | 1 | Yes | Yes | 31724-X0100 | |
| 15 | SCREW | 08360-51012 | AUTOMATIC | 3 | |||||
| 16 | VALVE-2 | 31781-X0100 | AUTOMATIC | 1 | |||||
| 17 | SPRING-2 | 31782-X0100 | AUTOMATIC | 1 | |||||
| 18 | VALVE-THROTTLE VACUU | 31801-X0100 | AUTOMATIC | 7507 | 1 | ||||
| 18 | VALVE-THROTTLE VACUU | 31801-X0101 | AUTOMATIC | 7508 | 1 | 31801-X0100 | |||
| 19 | VALVE-THROTTLE BACK | 31808-X0100 | AUTOMATIC | 1 | |||||
| 20 | SPRING-THROTTLE BACK | 31809-X0100 | AUTOMATIC | 1 | |||||
| 21 | SPRING-SOLENOID DOWN | 31817-X0100 | AUTOMATIC | 1 | |||||
| 22 | VALVE-SOLENOID DOWN | 31816-X0100 | AUTOMATIC | 1 | |||||
| 23 | PLATE-SIDE B | 31722-X0100 | AUTOMATIC | 7507 | 1 | ||||
| 23 | PLATE-SIDE B | 31722-X0101 | AUTOMATIC | 7508 | 1 | 31722-X0100 | |||
| 24 | SCREW | 08360-51012 | AUTOMATIC | 3 | |||||
| 25 | SPRING-1 | 31762-X0100 | AUTOMATIC | 1 | |||||
| 26 | VALVE-1 | 31761-X0100 | AUTOMATIC | 1 | |||||
| 27 | PLUG-2 | 31771-X0410 | AUTOMATIC | 1 | |||||
| 28 | SPRING-2 | 31772-X0100 | AUTOMATIC | 1 | |||||
| 29 | VALVE-2 | 31766-X0100 | AUTOMATIC | 1 | |||||
| 30 | SPRING-PRESSURE MODI | 31752-X0100 | AUTOMATIC | 1 | |||||
| 31 | VALVE-PRESSURE MODIF | 31751-X0100 | AUTOMATIC | 1 | |||||
| 32 | PLATE-SIDE A | 31721-X0101 | AUTOMATIC | 1 | |||||
| 33 | SCREW | 08360-51012 | AUTOMATIC | 3 | |||||
| 34 | PLATE-SEPARATOR | 31715-X0100 | AUTOMATIC | 1 | |||||
| 34 | PLATE-SEPARATOR | 31715-X0800 | AUTOMATIC | 1 | Yes | Yes | 31715-X0100 | ||
| 34 | PLATE-SEPARATOR | 31715-X2700 | AUTOMATIC | 7412 | 1 | No | No | 31715-X0800 | |
| 35 | BODY-LOWER CONTROL V | 31713-X0100 | AUTOMATIC | 1 | |||||
| 36 | SPRING-ORIFICE CHECK | 31822-X0100 | AUTOMATIC | 1 | |||||
| 36 | SPRING-ORIFICE CHECK | 31822-X0101 | AUTOMATIC | 7412 | 1 | Yes | Yes | 31822-X0100 | |
| 37 | VALVE-ORIFICE CHECK | 31823-X0100 | AUTOMATIC | 1 | |||||
| 37 | VALVE-ORIFICE CHECK | 31823-X1200 | AUTOMATIC | 7412 | 1 | No | No | 31823-X0100 | |
| 38 | BALL-STEEL (6.35) | 32720-36900 | AUTOMATIC | 1 | |||||
| 39 | SPRING-THROTTLE RELI | 31802-X0100 | AUTOMATIC | 1 | |||||
| 40 | SCREW | 08360-62512 | AUTOMATIC | 7 | |||||
| 41 | ASSY-STRAINER OIL | 31728-X0100 | AUTOMATIC | 1 | |||||
| 42 | SCREW | 08360-54012 | AUTOMATIC | 10 | |||||
| 43 | BOLT | 31716-X0100 | AUTOMATIC | 2 | |||||
| 44 | NUT | 08911-10610 | AUTOMATIC | 2 | |||||
| 45 | BOLT | 08160-62510 | AUTOMATIC | 3 | |||||
| 46 | BOLT | 08160-63510 | AUTOMATIC | 2 | |||||
| 47 | BOLT | 08160-64010 | AUTOMATIC | 2 | |||||
| 48 | ASSY-SWITCH INHIBITO | 31918-H0100 | AUTOMATIC | 7112 | 1 | ||||
| 48 | ASSY-SWITCH INHIBITO | 31918-H0101 | AUTOMATIC | 7201 | 7302 | 1 | 31918-H0100 | ||
| 48 | ASSY-SWITCH INHIBITO | 31918-X0101 | AUTOMATIC | 7303 | 1 | 31918-H0101 | |||
| 49 | GASKET-INHIBITOR SWI | 31919-X0101 | AUTOMATIC | 7302 | 1 | ||||
| 50 | SEAL-O RING (165) | 31916-X0100 | AUTOMATIC | 1 | |||||
| 51 | BOLT | 08160-61610 | AUTOMATIC | 7112 | 2 | ||||
| 51 | BOLT | 08160-62010 | AUTOMATIC | 7201 | 2 | Yes | Yes | 08160-61610 | |
| 52 | ASSY-DIAPHRAGM VAC | 31931-X0110 | AUTOMATIC | 7708 | 1 | No | No | 31931-X0102 | |
| 52 | ASSY-DIAPHRAGM VACUU | 31931-H0101 | AUTOMATIC | 1 | Yes | Yes | 31931-X0100 | ||
| 52 | ASSY-DIAPHRAGM VACUU | 31931-X0100 | AUTOMATIC | 1 | |||||
| 52 | ASSY-DIAPHRAGM VACUU | 31931-X0101 | AUTOMATIC | 7409 | 7411 | 1 | Yes | Yes | 31931-H0101 |
| 52 | ASSY-DIAPHRAGM VACUU | 31931-X0102 | AUTOMATIC | 7412 | 7707 | 1 | Yes | Yes | 31931-X0101 |
| 53 | ROD-DIAPHRAGM L=29 | 31932-X0103 | AUTOMATIC | 1 | |||||
| 53 | ROD-DIAPHRAGM L=29.5 | 31932-X0104 | AUTOMATIC | 1 | |||||
| 53 | ROD-DIAPHRAGM L=30 | 31932-X0100 | AUTOMATIC | 1 | |||||
| 53 | ROD-DIAPHRAGM L=30.5 | 31932-X0102 | AUTOMATIC | 1 | |||||
| 53 | ROD-DIAPHRAGM L=31 | 31932-X0101 | AUTOMATIC | 1 | |||||
| 54 | SEAL-O RING (26S) | 31933-X0100 | AUTOMATIC | 2 | |||||
| 55 | ASSY-SOLENOID DOWN S | 31941-X0101 | AUTOMATIC | 1 | |||||
| 55 | ASSY-SOLENOID DOWN S | 31941-X0102 | AUTOMATIC | 1 | Yes | Yes | 31941-X0101 | ||
| 55 | ASSY-SOLENOID DOWN S | 31941-X0103 | AUTOMATIC | 7406 | 1 | Yes | Yes | 31941-X0102 | |
| 56 | SUPPORT-PARKING ACTU | 31981-E8000 | AUTOMATIC | 7407 | 1 | ||||
| 56 | SUPPORT-PARKING ACTU | 31981-X0100 | AUTOMATIC | 7408 | 1 | 31981-E8000 | |||
| 57 | PLATE-RETAINING PARK | 31983-E8000 | AUTOMATIC | 7407 | 1 | ||||
| 57 | PLATE-RETAINING PARK | 31983-X0100 | AUTOMATIC | 7408 | 1 | 31983-E8000 | |||
| 58 | SPRING-BALL PARKING | 31985-E8000 | AUTOMATIC | 2 | |||||
| 59 | RETAINER-SPRING PARK | 31984-E8000 | AUTOMATIC | 1 | |||||
| 60 | BALL-STEEL (8.731) | 31357-20300 | AUTOMATIC | 2 | |||||
| 61 | BOLT | 01125-00021 | AUTOMATIC | 2 | |||||
| 62 | SHAFT-PARKING PAWL | 31986-20300 | AUTOMATIC | 1 | |||||
| 63 | PAWL-PARKING | 31991-E8000 | AUTOMATIC | 1 | |||||
| 64 | SPRING-RETURN PAWL | 31988-E8000 | AUTOMATIC | 1 | |||||
| 64 | SPRING-RETURN PAWL P | 31988-X0100 | AUTOMATIC | 7211 | 1 | Yes | Yes | 31988-E8000 | |
| 65 | SPACER-PARKING PAWL | 31987-E8000 | AUTOMATIC | 1 | |||||
| 65 | SPACER-PARKING PAWL | 31987-X0100 | AUTOMATIC | 7204 | 1 | Yes | Yes | 31987-E8000 |
