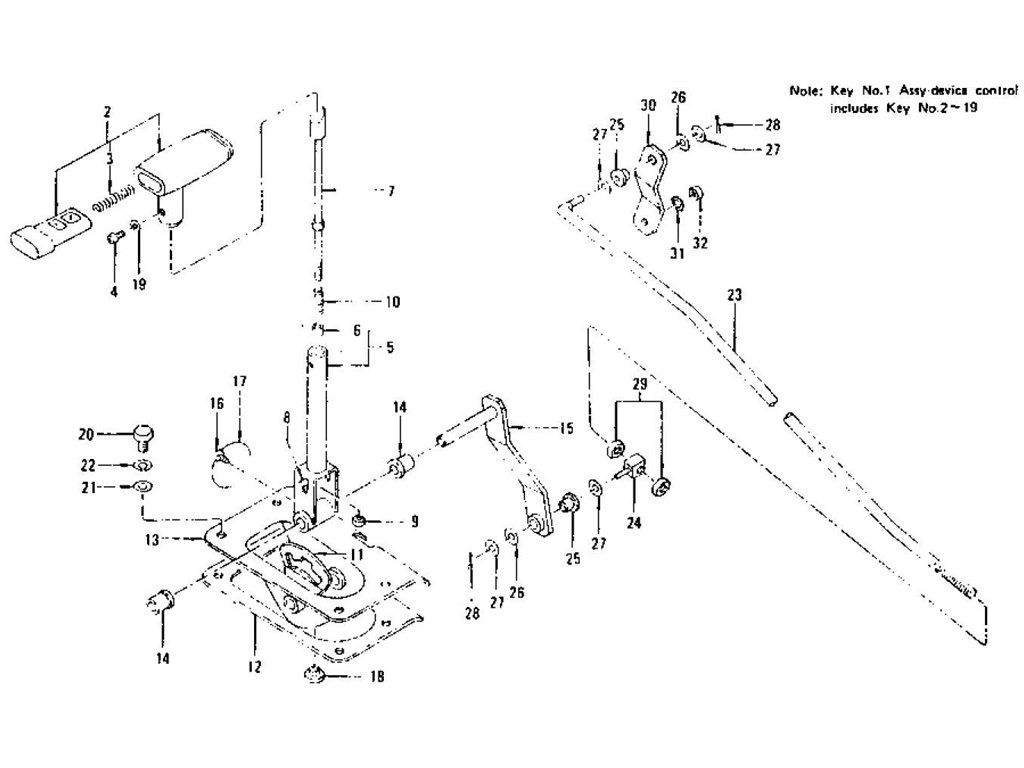

Control Device Transmission Control Device (Automatic-3N71A & 3N71B)
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | ASSY-DEVICE CONTROL | 34902-E4701 | AUTOMATIC | | 7307 | 1 | | | |
|
1 | ASSY-DEVICE CONTROL | 34902-N3600 | AUTOMATIC | 7308 | 7408 | 1 | No | No | 34902-E4701 |
|
1 | ASSY-DEVICE CONTROL | 34902-N4200 | AUTOMATIC | 7409 | | 1 | No | No | 34902-N3600 |
|
2 | SET-KNOB CONTROL LEV | 34920-A7927 | AUTOMATIC | | | 1 | | | |
|
2 | SET-KNOB CONTROL LEV | 34920-P2725 | AUTOMATIC | | | 1 | | | |
|
2 | SET-KNOB CONTROL LEV | 34920-P2726 | AUTOMATIC | | | 1 | Yes | Yes | 34920-P2725 |
|
2 | SET-KNOB CONTROL LEV | 34920-P4925 | AUTOMATIC | | 7307 | 1 | Yes | Yes | 34920-P2726 |
|
2 | SET-KNOB CONTROL LEV | 34920-P4926 | AUTOMATIC | | 7307 | 1 | Yes | Yes | 34920-P4925 |
|
2 | SET-KNOB CONTROL LEV | 34920-P4900 | AUTOMATIC | 7308 | | 1 | No | No | 34920-P4926 |
|
3 | SPRING-RETURN BUTTON | 34922-P2700 | AUTOMATIC | | | 1 | | | |
|
4 | SCREW-FIX | 34925-A7905 | AUTOMATIC | | | 2 | | | |
|
4 | SCREW-FIX | 34925-P4900 | AUTOMATIC | | | 2 | Yes | Yes | 34925-A7905 |
|
5 | ASSY-CONTROL LEVER | 34903-E4701 | AUTOMATIC | | 7307 | 1 | | | |
|
5 | ASSY-CONTROL LEVER | 34903-N3400 | AUTOMATIC | 7308 | | 1 | No | No | 34903-E4701 |
|
6 | BUSH-CONTROL TUBE | 34927-A7905 | AUTOMATIC | | | 1 | | | |
|
7 | COMP-ROD COMPRESSION | 34912-E4701 | AUTOMATIC | | | 1 | | | |
|
8 | PIN-POSITION PLATE | 34917-A7901 | AUTOMATIC | | | 1 | | | |
|
9 | NUT-HEX | 08911-30610 | AUTOMATIC | | | 1 | | | |
|
10 | SPRING-RETURN | 34926-A7905 | AUTOMATIC | | | 1 | | | |
|
11 | ASSY-SUPPORT LEVERSH | 34925-E4701 | AUTOMATIC | | | 1 | | | |
|
12 | RUBBER-SEALING | 34928-E4700 | AUTOMATIC | | | 1 | | | |
|
13 | BRACKET-POSITION PLA | 34930-E4701 | AUTOMATIC | | | 1 | | | |
|
14 | BUSH-LEVER SHAFT | 34530-73000 | AUTOMATIC | | | 2 | | | |
|
14 | BUSH-LEVER SHAFT | 34530-73001 | AUTOMATIC | | | 2 | Yes | Yes | 34530-73000 |
|
15 | ASSY-LEVER SHAFT | 34915-E4701 | AUTOMATIC | | 7307 | 1 | | | |
|
15 | ASSY-LEVER SHAFT | 34915-N3400 | AUTOMATIC | 7308 | 7408 | 1 | No | No | 34915-E4701 |
|
15 | ASSY-LEVER SHAFT | 34915-N4500 | AUTOMATIC | 7409 | | 1 | No | No | 34915-N3400 |
|
16 | SCREW-LOCKING | 34929-E4700 | AUTOMATIC | | 7307 | 1 | | | |
|
16 | SCREW-LOCKING | 34929-N3400 | AUTOMATIC | 7308 | | 1 | No | No | 34929-E4700 |
|
17 | WIRE-LOCKING SCREW | 34473-30000 | AUTOMATIC | | | 1 | | | |
|
18 | PLUG | 66208-65000 | AUTOMATIC | | | 1 | | | |
|
19 | WASHER-TOOTH LOCK MS | 08916-13510 | AUTOMATIC | | | 2 | | | |
|
20 | BOLT-HEX | 08110-81610 | AUTOMATIC | | | 4 | | | |
|
20 | BOLT-HEX W/SPRING WA | 08110-82525 | AUTOMATIC | | | 4 | | | |
|
21 | WASHER-PLAIN | 08915-43810 | AUTOMATIC | | | 4 | | | |
|
22 | WASHER-SPRING | 08915-13810 | AUTOMATIC | | | 4 | | | |
|
23 | ROD-SELECT | 34935-E4701 | AUTOMATIC | | 7307 | 1 | | | |
|
23 | ROD-SELECT | 34935-N3400 | AUTOMATIC | 7308 | 7408 | 1 | No | No | 34935-E4701 |
|
23 | ROD-SELECT | 34935-N4500 | AUTOMATIC | 7409 | | 1 | No | No | 34935-N3400 |
|
24 | TRUNNION-JOINT | 34482-73700 | AUTOMATIC | | 7307 | 1 | | | |
|
24 | TRUNNION-ROD | 34410-F1700 | AUTOMATIC | 7308 | | 1 | No | No | 34482-73700 |
|
25 | INSULATOR | 34481-73700 | AUTOMATIC | | 7307 | 2 | | | |
|
25 | INSULATOR | 34552-89900 | AUTOMATIC | 7308 | | 2 | No | No | 34481-73700 |
|
26 | WASHER-SPRING | 34483-73700 | AUTOMATIC | | 7307 | 2 | | | |
|
26 | WASHER-SPRING | 34419-04100 | AUTOMATIC | 7308 | | 2 | No | No | 34483-73700 |
|
27 | WASHER-PLAIN | 34484-73700 | AUTOMATIC | | 7307 | 4 | | | |
|
27 | WASHER-PLAIN | 36522-68200 | AUTOMATIC | 7308 | | 3 | No | No | 34484-73700 |
|
28 | PIN-SPLIT COTTER | 00921-11210 | AUTOMATIC | | 7307 | 2 | | | |
|
28 | PIN-SPLIT COTTER | 00921-22010 | AUTOMATIC | 7308 | | 2 | No | No | 00921-11210 |
|
29 | NUT-HEX | 08911-30810 | AUTOMATIC | | | 4 | | | |
|
30 | LEVER-SELECTOR RANGE | 31913-E4701 | AUTOMATIC | | 7307 | 1 | | | |
|
30 | LEVER-SELECTOR RANGE | 31913-N3400 | AUTOMATIC | 7308 | 7408 | 1 | No | No | 31913-E4701 |
|
30 | LEVER-SELECTOR RANGE | 31913-N4500 | AUTOMATIC | 7409 | | 1 | No | No | 31913-N3400 |
|
31 | WASHER-SPRING | 08916-34410 | AUTOMATIC | | | 1 | | | |
|
32 | NUT-HEX | 01211-00011 | AUTOMATIC | | | 1 | Yes | Yes | 08911-34410 |
|
32 | NUT-HEX | 08911-34410 | AUTOMATIC | | | 1 | | | |
