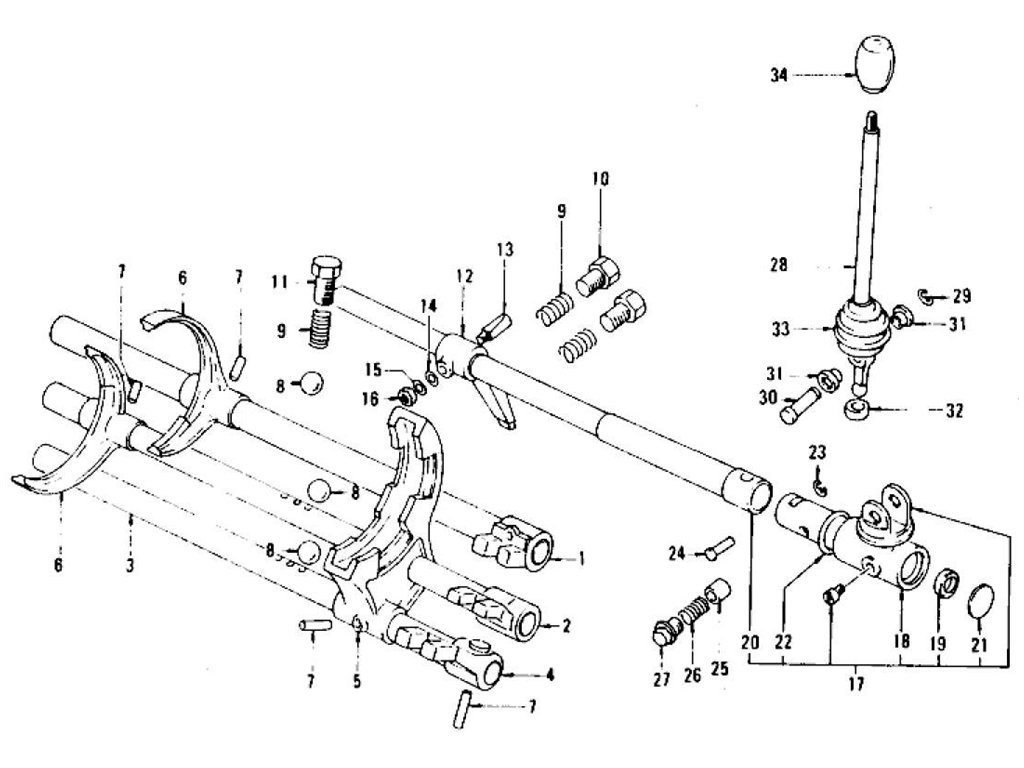

5 Speed Transmission Control Lever & Fork (5 Speed-FS5W71B) (From Aug.-'76)
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | ASSY-ROD FORK 1ST & | 32800-E9400 | 5 SPEED | | 7608 | 1 | | | |
|
1 | ASSY-ROD FORK 1ST & | 32800-E9401 | 5 SPEED | 7609 | | 1 | No | No | 32800-E9400 |
|
2 | ASSY-ROD FORK 3RD & | 32808-E9400 | 5 SPEED | | 7608 | 1 | | | |
|
2 | ASSY-ROD FORK 3RD & | 32808-E9402 | 5 SPEED | 7609 | | 1 | No | No | 32808-E9400 |
|
3 | ROD-FORK REVERSE & 0 | 32816-E9502 | 5 SPEED | | 7608 | 1 | | | |
|
3 | ROD-FORK REVERSE & 0 | 32816-E9505 | 5 SPEED | 7609 | | 1 | No | No | 32816-E9502 |
|
4 | BRACKET-REVERSE & 0/ | 32382-E9500 | 5 SPEED | | | 1 | | | |
|
5 | FORK-REVERSE & 0/D | 32819-E9500 | 5 SPEED | | 7608 | 1 | | | |
|
5 | FORK-REVERSE & 0/D | 32819-E9501 | 5 SPEED | 7609 | | 1 | No | No | 32819-E9500 |
|
6 | FORK-1ST & 2ND | 32805-E9000 | 5 SPEED | | 7608 | 2 | | | |
|
6 | FORK-1ST & 2ND | 32805-E9001 | 5 SPEED | 7609 | | 2 | No | No | 32805-E9000 |
|
7 | PIN-RETAINING | 32292-14600 | 5 SPEED | | 7608 | 4 | | | |
|
7 | PIN-RETAINING | 32292-14601 | 5 SPEED | 7609 | | 4 | No | No | 32292-14600 |
|
8 | BALL-CHECK | 32829-26760 | 5 SPEED | | | 7 | | | |
|
9 | SPRING-POPET | 32830-20100 | 5 SPEED | | | 3 | | | |
|
10 | PLUG-CHECKING BALL | 32835-78000 | 5 SPEED | | | 2 | | | |
|
11 | PLUG-CHECKING BALL | 32834-E9000 | 5 SPEED | | | 1 | | | |
|
12 | LEVER-STRIKING | 32896-E9500 | 5 SPEED | | | 1 | | | |
|
13 | PIN-LOCK | 32917-E9301 | 5 SPEED | 7201 | | 1 | Yes | Yes | 32917-E9309 |
|
13 | PIN-LOCK | 32917-E9309 | 5 SPEED | 7201 | | 1 | Yes | Yes | 32917-E9300 |
|
14 | WASHER-PLAIN | 08915-53610 | 5 SPEED | | | 1 | | | |
|
15 | WASHER-LOCK | 08915-13610 | 5 SPEED | | | 1 | | | |
|
16 | NUT | 08911-20610 | 5 SPEED | | | 1 | | | |
|
17 | COMP-GUIDE STRIKING | 32850-E9554 | 5 SPEED | | 7712 | 1 | | | |
|
17 | COMP-GUIDE STRIKING | 32850-E9555 | 5 SPEED | 7801 | | 1 | | | 32850-E9554 |
|
18 | GUIDE-STRIKING ROD | 32850-E9500 | 5 SPEED | | 7712 | 1 | | | |
|
18 | GUIDE-STRIKING ROD | 32850-E9501 | 5 SPEED | 7801 | | 1 | | | 32850-E9500 |
|
19 | SEAL-OIL STRIKING RO | 32858-U6700 | 5 SPEED | | | 1 | | | |
|
20 | ROD-STRIKING | 32892-E9510 | 5 SPEED | | | 1 | | | |
|
21 | PLUG-EXPANSION | 00933-33000 | 5 SPEED | | | 1 | | | |
|
22 | RING-"0" | 32710-14600 | 5 SPEED | | | 1 | | | |
|
23 | RING-SNAP | 32846-24900 | 5 SPEED | | | 1 | | | |
|
24 | PIN-STOPPER GUIDE | 32847-24901 | 5 SPEED | | | 1 | | | |
|
25 | PLUNGER-RETURN | 32851-N9000 | 5 SPEED | | | 1 | | | |
|
26 | SPRING-RETURN | 32852-24901 | 5 SPEED | | | 1 | | | |
|
27 | PLUG-RETURN SPRING | 32853-E9300 | 5 SPEED | | | 1 | | | |
|
27 | PLUG-RETURN SPRING | 32853-E9310 | 5 SPEED | | | 1 | | | |
|
28 | LEVER-CONTROL | 32841-N3101 | 5 SPEED | | 7712 | 1 | | | |
|
28 | LEVER-CONTROL | 32841-N3102 | 5 SPEED | 7801 | | 1 | | | 32841-N3101 |
|
29 | RING-SNAP | 32854-24900 | 5 SPEED | | | 1 | | | |
|
30 | RING-CONTROL ARM | 32849-H1010 | 5 SPEED | | | 1 | | | |
|
31 | BUSH-CONTROL LEVER | 32855-H1010 | 5 SPEED | | | 2 | | | |
|
32 | BU-SH-CONTROL LEVER | 32861-N4200 | 5 SPEED | | | 1 | | | |
|
33 | BOOT-CONTROL LEVER | 32862-E9300 | 5 SPEED | | | 1 | | | |
|
34 | KNOB-CONTROL LEVER | 32865-U4100 | 5 SPEED | | 7712 | 1 | | | |
|
34 | KNOB-CONTROL LEVER | 32865-U4200 | 5 SPEED | 7801 | | 1 | Yes | Yes | 32865-U4100 |
