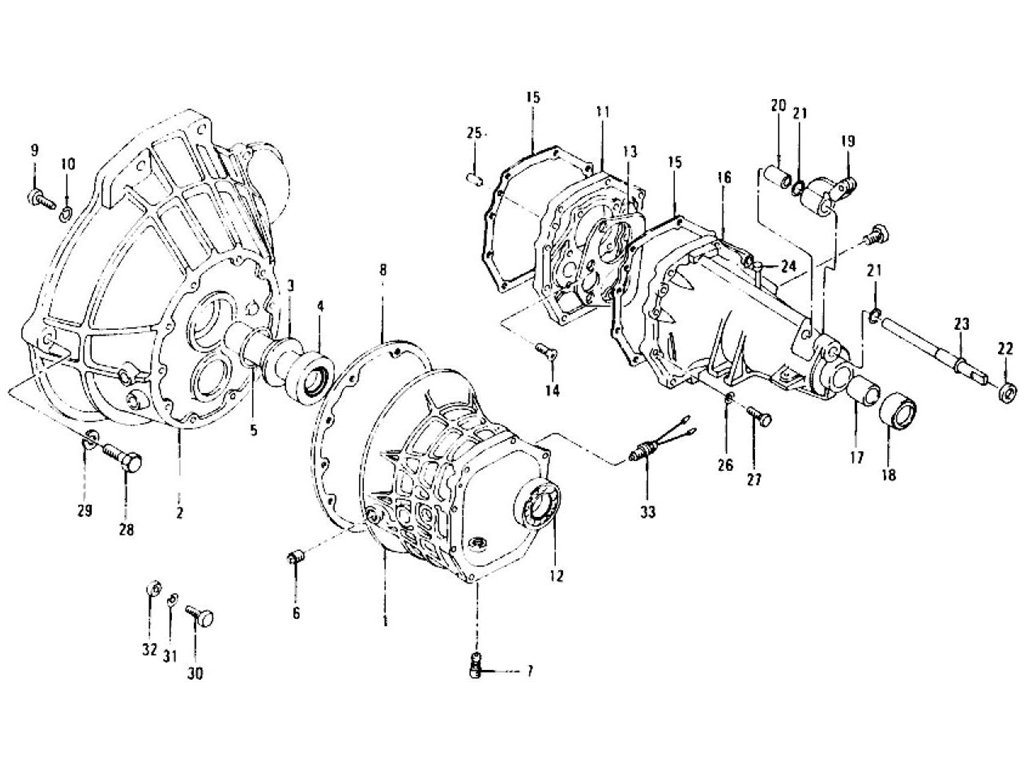

Transmission Case, Rear Extension & Breather (4 Speed-F4W71A) (To Aug.-'71)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | CASE-TRANSMISSION | 32101-78312 | 4 SPEED | 1 | |||||
| 1 | CASE-TRANSMISSION | 32101-P0701 | 4 SPEED | 1 | Yes | Yes | 32101-78312 | ||
| 2 | HOUSING-CLUTCH | 30401-22010 | 4 SPEED | 1 | |||||
| 3 | ASSY-FRONT COVER TRA | 32110-78000 | 4 SPEED | 1 | |||||
| 4 | SEAL-OIL FRONT COVER | 32114-20100 | 4 SPEED | 1 | |||||
| 4 | SEAL-OIL FRONT COVER | 32114-Y4000 | 4 SPEED | 1 | Yes | Yes | 32114-20100 | ||
| 5 | RING-"0" FRONT COVER | 32115-20100 | 4 SPEED | 1 | |||||
| 6 | PLUG-LEVEL & FILLER | 00931-11210 | 4 SPEED | 1 | |||||
| 7 | ASSY-PLUG DRAIN | 32103-14600 | 4 SPEED | 1 | |||||
| 7 | ASSY-PLUG DRAIN | 32103-U8400 | 4 SPEED | 1 | Yes | Yes | 32103-14600 | ||
| 8 | GASKET-TRANSMISSION | 32118-78000 | 4 SPEED | 1 | |||||
| 9 | BOLT-CASE TO CLUTCH | 08120-83210 | 4 SPEED | 10 | |||||
| 10 | WASHER-SPRING | 08915-23810 | 4 SPEED | 10 | |||||
| 11 | PLATE-ADAPTER | 32138-78000 | 4 SPEED | 1 | |||||
| 11 | PLATE-ADAPTER | 32138-E3200 | 4 SPEED | 1 | 32138-78000 | ||||
| 12 | BEARING-MAIN SHAFT | 32273-04100 | 4 SPEED | 1 | |||||
| 13 | RETAINER-MAIN SHAFT | 32139-20100 | 4 SPEED | 1 | |||||
| 14 | SCREW-MACHINE M8X1.2 | 08320-82010 | 4 SPEED | 6 | |||||
| 14 | SCREW-MACHINE M8X1.2 | 08320-82012 | 4 SPEED | 6 | Yes | Yes | 08320-82010 | ||
| 15 | GASKET-REAR EXTENSIO | 32134-78000 | 4 SPEED | 1 | |||||
| 16 | COMP-EXTENSION REAR | 32130-E4600 | 4 SPEED | 1 | |||||
| 17 | BUSH-REAR EXTENSION | 32132-78000 | 4 SPEED | 1 | |||||
| 18 | SEAL-OIL REAR EXTENS | 32136-07200 | 4 SPEED | 1 | |||||
| 18 | SEAL-OIL REAR EXTENS | 32136-E0100 | 4 SPEED | 1 | Yes | Yes | 32136-07200 | ||
| 18 | SEAL-OIL REAR EXTENS | 32136-U0100 | 4 SPEED | 1 | Yes | Yes | 32136-E0100 | ||
| 19 | ARM-CONTROL | 32844-18800 | 4 SPEED | 1 | |||||
| 20 | BUSH-STRIKING ROD | 32887-18800 | 4 SPEED | 1 | |||||
| 21 | RING-"0" CONTROL ARM | 32845-18800 | 4 SPEED | 2 | |||||
| 22 | CAP-"0" RING | 32857-14600 | 4 SPEED | 1 | |||||
| 23 | RING-"0" STRIKING RO | 32858-14600 | 4 SPEED | 1 | |||||
| 24 | ASSY-BREATHER TRANSM | 38322-78000 | 4 SPEED | 1 | |||||
| 25 | DOWEL-TRANSMISSION A | 32106-20100 | 4 SPEED | 2 | |||||
| 26 | WASHER-SPRING | 08915-23810 | 4 SPEED | 8 | |||||
| 27 | BOLT-EXTENSION TO TR | 08120-85010 | 4 SPEED | 8 | |||||
| 28 | BOLT-TRANSMISSION TO | 08131-06010 | 4 SPEED | 4 | |||||
| 29 | WASHER-SPRING | 08915-24010 | 4 SPEED | 4 | |||||
| 30 | BOLT-HEX M8X1.25 | 08110-82510 | 4 SPEED | 2 | |||||
| 30 | BOLT-HEX M8X1.25 | 32055-47600 | 4 SPEED | 2 | Yes | Yes | 08110-82510 | ||
| 31 | WASHE-SPRING | 08915-13810 | 4 SPEED | 2 | |||||
| 32 | NUT-M8X1.25 | 08911-10810 | 4 SPEED | 2 | |||||
| 33 | COMP-REVERSE LAMP SW | 32005-21000 | 4 SPEED | 1 | |||||
| 33 | COMP-REVERSE LAMP SW | 32005-K1000 | 4 SPEED | 1 |
