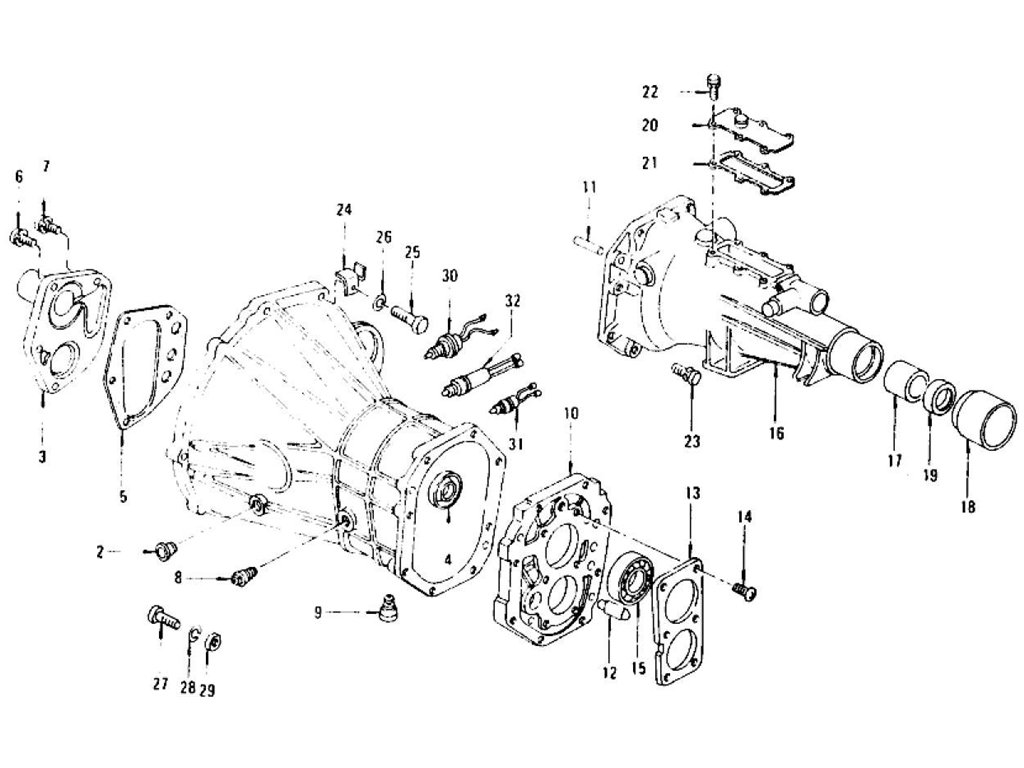

Transmission Case, Rear Extension & Breather (4 Speed-F4W71B) (From Sep.-'71)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | CASE-TRANSMISSIION | 32101-E9017 | 4 SPEED CAL. | 7412 | 7607 | 1 | No | No | 32101-E9015 |
| 1 | CASE-TRANSMISSION | 32101-E9015 | 4 SPEED | 7411 | 1 | ||||
| 1 | CASE-TRANSMISSION | 32101-E9017 | 4 SPEED | 7608 | 1 | ||||
| 1 | CASE-TRANSMISSION | 32101-E9215 | 4 SPEED FED | 7412 | 7607 | 1 | No | No | 32101-E9015 |
| 2 | BEARING-CROSS SHAFT | 34465-P0100 | 4 SPEED | 1 | |||||
| 3 | ASSY-COVER | 32111-E9000 | 4 SPEED | 7406 | 1 | ||||
| 3 | ASSY-COVER | 32111-E9011 | 4 SPEED | 1 | Yes | Yes | 32111-E9001 | ||
| 3 | ASSY-COVER | 32111-E9013 | 4 SPEED | 1 | Yes | Yes | 32111-E9011 | ||
| 3 | ASSY-COVER | 32111-E9001 | 4 SPEED | 7407 | 1 | Yes | Yes | 32111-E9000 | |
| 4 | SEAL-OIL | 32114-20100 | 4 SPEED | 1 | Yes | Yes | 32114-E9000 | ||
| 4 | SEAL-OIL | 32114-E9000 | 4 SPEED | 1 | |||||
| 4 | SEAL-OIL | 32114-Y4000 | 4 SPEED | 1 | Yes | Yes | 32114-20100 | ||
| 5 | GASKET-COVER | 32112-E9000 | 4 SPEED | 1 | |||||
| 5 | GASKET-COVER | 32112-E9001 | 4 SPEED | 1 | Yes | Yes | 32112-E9000 | ||
| 6 | BOLT-WITH WASHER LOC | 08120-83028 | 4 SPEED | 4 | |||||
| 7 | BOLT-WITH WASHER LOC | 08120-83528 | 4 SPEED | 1 | |||||
| 8 | PLUG | 00931-11210 | 4 SPEED | 7607 | 1 | ||||
| 8 | PLUG | 01642-00011 | 4 SPEED | 7608 | 7703 | 1 | |||
| 8 | PLUG | 01642-00021 | 4 SPEED | 7704 | 1 | Yes | Yes | 01642-00011 | |
| 9 | ASSY-PLUG | 32103-14600 | 4 SPEED | 7607 | 1 | ||||
| 9 | ASSY-PLUG | 32103-14601 | 4 SPEED | 7608 | 7703 | 1 | Yes | Yes | 32103-14600 |
| 9 | ASSY-PLUG | 32103-N4600 | 4 SPEED | 7704 | 7709 | 1 | Yes | Yes | 32103-14601 |
| 9 | ASSY-PLUG | 32103-U8400 | 4 SPEED | 7710 | 1 | Yes | Yes | 32103-N4600 | |
| 10 | PLATE-ADAPTER | 32138-E9000 | 4 SPEED | 1 | |||||
| 11 | DOWEL-PIN | 32106-20100 | 4 SPEED | 2 | |||||
| 12 | GUTTER-OIL ADAPTER | 32137-E9000 | 4 SPEED | 1 | |||||
| 13 | RETAINER-MAIN SHAFT | 32139-E9000 | 4 SPEED | 1 | |||||
| 14 | SCREW | 08320-82012 | 4 SPEED | 6 | |||||
| 15 | BEARING-MAIN SHAFT | 32273-36900 | 4 SPEED | 1 | |||||
| 16 | ASSY-EXTENSION | 32130-E9300 | 7503 | 1 | No | No | 32130-E9302 | ||
| 16 | ASSY-EXTENSION | 32130-E9301 | 4 SPEED | 7411 | 1 | ||||
| 16 | ASSY-EXTENSIONKREAR | 32130-E9302 | 4 SPEED | 7412 | 7502 | 1 | No | No | 32130-E9301 |
| 17 | BUSH-EXTENSION REAR | 32132-78000 | 4 SPEED | 1 | |||||
| 18 | COVER-DUST | 32135-28600 | 4 SPEED | 1 | |||||
| 19 | SEAL-OIL | 32136-E0100 | 4 SPEED | 7410 | 1 | ||||
| 19 | SEAL-OIL | 32136-U0100 | 4 SPEED | 7411 | 1 | Yes | Yes | 32136-E0100 | |
| 20 | COVER-UPPER | 32142-E9000 | 4 SPEED | 1 | |||||
| 21 | GASKET | 32143-E9000 | 4 SPEED | 1 | |||||
| 21 | GASKET-UPPER | 32143-E9001 | 4 SPEED | 1 | Yes | Yes | 32143-E9000 | ||
| 22 | BOLT-WITH LOCK WASHE | 08110-61262 | 4 SPEED | 6 | |||||
| 23 | BOLT-WITH LOCK WASHE | 08120-85028 | 4 SPEED | 8 | |||||
| 24 | CLAMP | 24210-89922 | 4 SPEED | 7412 | 7502 | 1 | |||
| 24 | CLAMP | 24210-89957 | 4 SPEED | 7412 | 7502 | 1 | Yes | Yes | 24210-89922 |
| 25 | BOLT-FIXING T/M TO E | 08131-06010 | 4 SPEED | 3 | |||||
| 25 | BOLT-FIXING T/M TO E | 08131-06010 | 4 SPEED | 4 | |||||
| 25 | BOLT-FIXING T/M TO E | 08131-06510 | 4 SPEED | 1 | |||||
| 26 | WASHER-LOCK | 08915-24010 | 4 SPEED | 4 | |||||
| 27 | BOLT-FIXING T/M CASE | 08110-83010 | 4 SPEED | 2 | |||||
| 27 | BOLT-HEX M8X1.25 | 08110-82510 | 4 SPEED | 2 | |||||
| 28 | WASHER-LOCK | 08915-13810 | 4 SPEED | 2 | |||||
| 29 | NUT-FIXING T/M CASE | 08911-10810 | 4 SPEED | 2 | |||||
| 30 | ASSY-SWITCH | 32005-21000 | 4 SPEED | 7206 | 1 | ||||
| 30 | ASSY-SWITCH | 32005-K1000 | 4 SPEED | 7207 | 1 | No | No | 32005-21000 | |
| 31 | SWITCH-NEUTRAL LAMP | 32006-K2000 | 4 SPEED | 7207 | 7502 | 1 | No | No | 32006-A7700 |
| 31 | SWITCH-NEWTRAL LAMP | 32006-A7700 | 4 SPEED | 7206 | 1 | ||||
| 32 | COMP-SWITCH 4TH | 32006-K2400 | 4 SPEED FED. | 7412 | 7607 | 1 |
