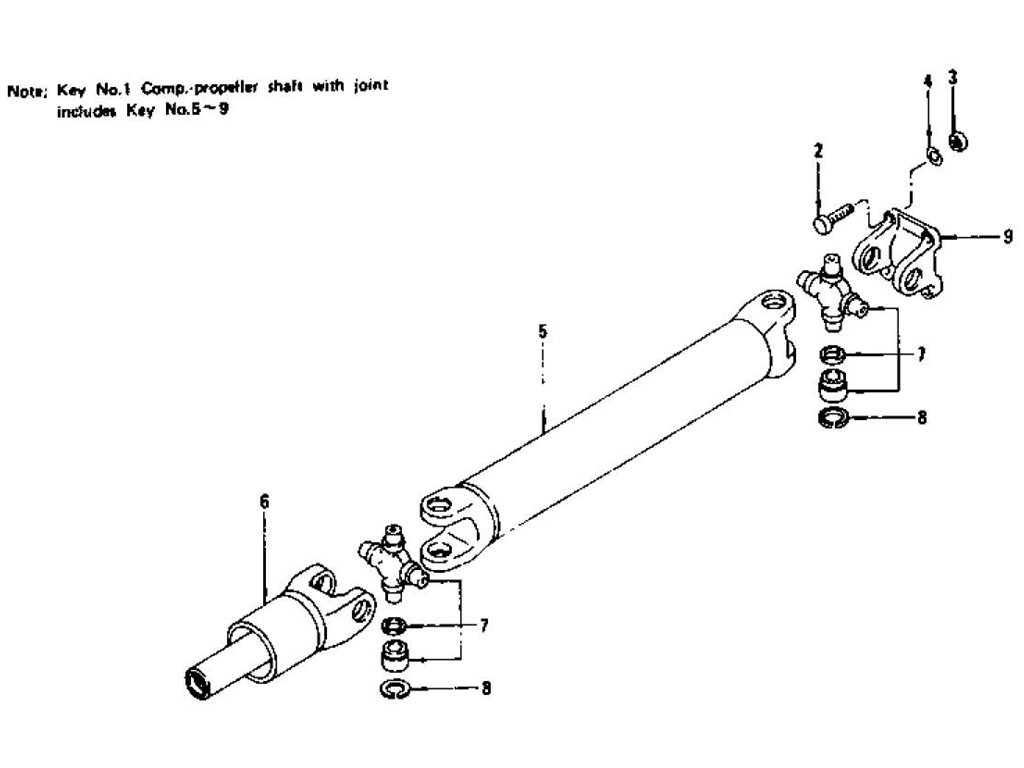

Propeller Shaft Propeller Shaft
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | COMP-PROPELLER SHAFT | 37000-E4200 | | | 7108 | 1 | | | |
|
1 | COMP-PROPELLER SHAFT | 37000-E8800 | | 7109 | 7206 | 1 | No | No | 37000-E4200 |
|
1 | COMP-PROPELLER SHAFT | 37000-N3000 | | 7207 | | 1 | Yes | Yes | 37000-E8800 |
|
1 | COMP-PROPELLER SHAFT | 37000-N4200 | 2 SEATER | 7412 | 7507 | 1 | | | |
|
1 | COMP-PROPELLER SHAFT | 37000-N4210 | 2 SEATER | 7508 | | 1 | No | No | 37000-N4200 |
|
1 | COMP-PROPELLER SHAFT | 37000-N3700 | 2+2 SEATER | 7310 | | 1 | | | |
|
1 | COMP-PROPELLER SHAFT | 37000-N4300 | 2+2 SEATER | 7412 | 7507 | 1 | | | |
|
1 | COMP-PROPELLER SHAFT | 37000-N4310 | 2+2 SEATER | 7508 | | 1 | No | No | 37000-N4300 |
|
2 | BOLT-PROPELLER SHAFT | 01111-00051 | | | | 4 | | | |
|
2 | BOLT-PROPELLER SHAFT | 01111-00281 | AUTOMATIC | | | 4 | Yes | Yes | 01111-00051 |
|
3 | NUT-HEX M8X1.25 | 01223-00041 | | | | 4 | Yes | Yes | 08911-20810 |
|
3 | NUT-HEX M8X1.25 | 08911-20810 | | | | 4 | | | |
|
4 | WASHER-LOCK | 08915-13810 | | | | 4 | | | |
|
5 | ASSY-PROPELLER SHAFT | 37210-E4200 | | | 7411 | 1 | | | |
|
6 | ASSY-YOKE SLEEVE | 37111-14600 | | | 7411 | 1 | | | |
|
7 | KIT-JOURNAL WITH BEA | 37125-14627 | | | 7411 | 2 | | | |
|
8 | RING-SNAP T=2.00 | 37146-14600 | | | 7411 | 8 | | | |
|
8 | RING-SNAP T=2.02 | 37147-14600 | | | 7411 | 8 | | | |
|
8 | RING-SNAP T=2.04 | 37148-14600 | | | 7411 | 8 | | | |
|
8 | RING-SNAP T=2.06 | 37149-14600 | | | 7411 | 8 | | | |
|
9 | YOKE-FLANGE | 37117-14601 | | | 7411 | 2 | | | |
