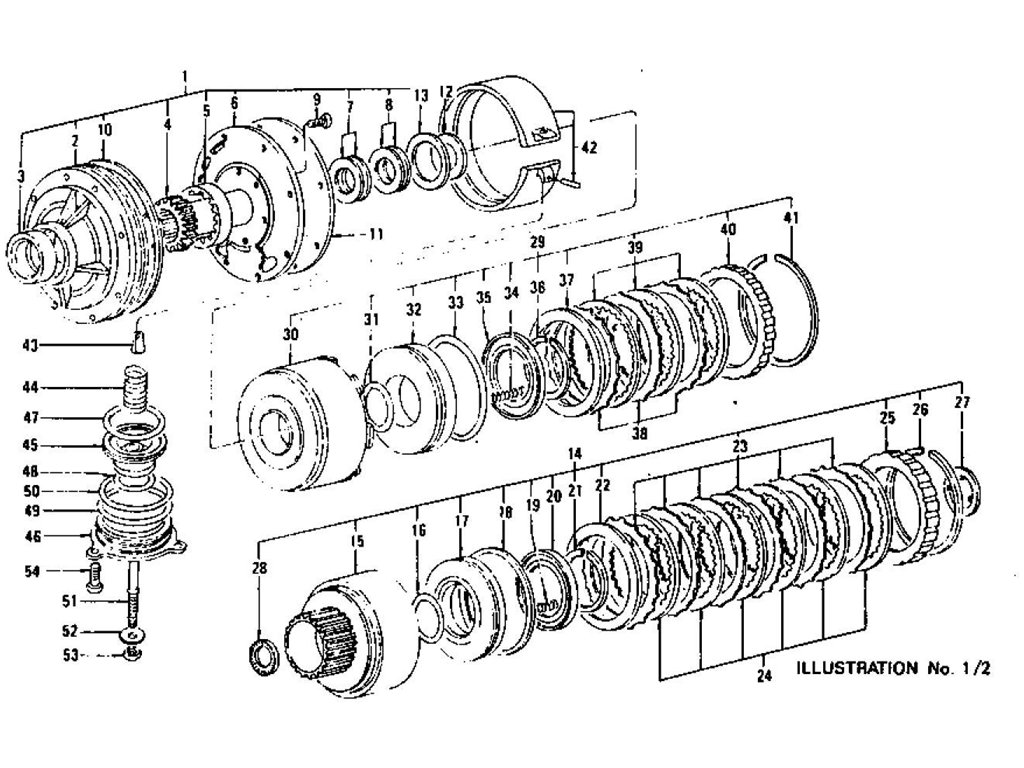

Oil Pump Clutch & Brake Oil Pump Clutch & Brake (Automatic-3N71B) (From Apr.-'71)
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | ASSY-PUMP OIL | 31340-X0100 | AUTOMATIC | | | 1 | | | |
|
1 | ASSY-PUMP OIL | 31340-X0101 | AUTOMATIC | | | 1 | Yes | Yes | 31340-X0100 |
|
2 | ASSY-HOUSING OIL PUM | 31341-X0100 | AUTOMATIC | | | 1 | | | |
|
3 | SEAL-HOUSING | 31344-X0100 | AUTOMATIC | | | 1 | | | |
|
3 | SEAL-HOUSING | 31344-X0101 | AUTOMATIC | | | 1 | Yes | Yes | 31344-X0100 |
|
4 | GEAR-INNER OIL PUMP | 31346-X0100 | AUTOMATIC | | | 1 | | | |
|
4 | GEAR-INNER OIL PUMP | 31346-X0101 | AUTOMATIC | | | 1 | | | |
|
4 | GEAR-INNER OIL PUMP | 31346-X0102 | AUTOMATIC | | | 1 | | | |
|
5 | GEAR-OUTER OIL PUMP | 31347-X0100 | AUTOMATIC | | | 1 | | | |
|
5 | GEAR-OUTER OIL PUMP | 31347-X0101 | AUTOMATIC | | | 1 | | | |
|
5 | GEAR-OUTER OIL PUMP | 31347-X0102 | AUTOMATIC | | | 1 | | | |
|
6 | ASSY-COVER OIL PUMP | 31350-X0100 | AUTOMATIC | | | 1 | | | |
|
6 | ASSY-COVER OIL PUMP | 31350-X0101 | AUTOMATIC | | | 1 | Yes | Yes | 31350-X0100 |
|
7 | RING-SEAL (44) | 31361-X0100 | AUTOMATIC | | | 2 | | | |
|
8 | RING-SEAL (43) | 31362-X0100 | AUTOMATIC | | | 2 | | | |
|
9 | BOLT | 08120-61810 | AUTOMATIC | | | 5 | | | |
|
10 | SEAL-LATHE CUT RING | 31363-X0100 | AUTOMATIC | | | 1 | | | |
|
11 | GASKET-OIL PUMP | 31366-X0100 | AUTOMATIC | | | 1 | | | |
|
11 | GASKET-OIL PUMP | 31366-X0101 | AUTOMATIC | | | 1 | Yes | Yes | 31366-X0100 |
|
12 | RACE-BEARING PUMP CO | 31556-X0100 | AUTOMATIC | | | 1 | | | |
|
12 | RACE-BEARING PUMP CO | 31556-X0101 | AUTOMATIC | | | 1 | | | |
|
12 | RACE-BEARING PUMP CO | 31556-X0102 | AUTOMATIC | | | 1 | | | |
|
12 | RACE-BEARING PUMP CO | 31556-X0103 | AUTOMATIC | | | 1 | | | |
|
12 | RACE-BEARING PUMP CO | 31556-X0104 | AUTOMATIC | | | 1 | | | |
|
12 | RACE-BEARING PUMP CO | 31556-X0105 | AUTOMATIC | | | 1 | | | |
|
13 | WASHER-THRUST T=1.5 | 31528-X0106 | AUTOMATIC | | | 1 | | | |
|
13 | WASHER-THRUST T=1.7 | 31528-X0105 | AUTOMATIC | | | 1 | | | |
|
13 | WASHER-THRUST T=1.9 | 31528-X0100 | AUTOMATIC | | | 1 | | | |
|
13 | WASHER-THRUST T=2.1 | 31528-X0101 | AUTOMATIC | | | 1 | | | |
|
13 | WASHER-THRUST T=2.3 | 31528-X0102 | AUTOMATIC | | | 1 | | | |
|
13 | WASHER-THRUST T=2.5 | 31528-X0103 | AUTOMATIC | | | 1 | | | |
|
13 | WASHER-THRUST T=2.7 | 31528-X0104 | AUTOMATIC | | | 1 | | | |
|
14 | ASSY-CLUTCH REAR (6) | 31540-X0500 | AUTOMATIC | | | 1 | | | |
|
15 | DRUM-REAR CLUTCH | 31542-X0500 | AUTOMATIC | | | 1 | | | |
|
16 | SEAL-O RING (54D) | 31517-X0100 | AUTOMATIC | | | 1 | | | |
|
17 | ASSY-PISTON CLUTCH | 31514-X0101 | AUTOMATIC | | 7211 | 1 | | | |
|
17 | ASSY-PISTON CLUTCH | 31514-X0102 | AUTOMATIC | 7212 | 7406 | 1 | Yes | Yes | 31514-X0101 |
|
17 | ASSY-PISTON CLUTCH | 31514-X0103 | AUTOMATIC | 7407 | | 1 | Yes | Yes | 31514-X0102 |
|
18 | SEAL-LATHE CUT RING | 31516-X0100 | AUTOMATIC | | | 1 | | | |
|
19 | SPRING-PISTON RETURN | 31521-X0100 | AUTOMATIC | | | 10 | | | |
|
20 | RETAINER-SPRING | 31552-X0100 | AUTOMATIC | | 7211 | 1 | | | |
|
20 | RETAINER-SPRING | 31552-X0102 | AUTOMATIC | 7212 | | 1 | Yes | Yes | 31552-X0100 |
|
21 | RING-SNAP (54S) | 31523-X0100 | AUTOMATIC | | | 1 | | | |
|
22 | PLATE-DISHED (115) | 31529-X0100 | AUTOMATIC | | | 1 | | | |
|
23 | PLATE-DRIVEN (115) | 31536-X0100 | AUTOMATIC | | | 5 | | | |
|
24 | ASSY-PLATE DRIVE (11 | 31532-X0100 | AUTOMATIC | | 7702 | 6 | | | |
|
24 | ASSY-PLATE DRIVE (11 | 31532-X0101 | AUTOMATIC | 7703 | | 1 | Yes | Yes | 31532-X0100 |
|
25 | partNumber | PLATE-RETAINING (115 | | | | | | | |
|
25 | partNumber | 31567-X0300 | AUTOMATIC | | | 1 | | | |
|
26 | RING-SNAP (118) | 31538-X0100 | AUTOMATIC | | | 1 | | | |
|
27 | RACE-BEARING REAR CL | 31439-X0100 | AUTOMATIC | | | 1 | | | |
|
27 | RACE-BEARING REAR CL | 31489-X0101 | AUTOMATIC | 7705 | | 1 | Yes | Yes | 31439-X0100 |
|
28 | BEARING-NEEDLE THRUS | 31555-X0100 | AUTOMATIC | | | 1 | | | |
|
29 | ASSY-CLUTCH FRONT | 31510-X0100 | AUTOMATIC | | | 1 | | | |
|
30 | ASSY-DRUMFRONT CLUTC | 31511-X0100 | AUTOMATIC | | | 1 | | | |
|
31 | SEAL-O RING (540) | 31517-X0100 | AUTOMATIC | | | 1 | | | |
|
32 | ASSY-PISTON CLUTCH | 31514-X0101 | AUTOMATIC | | 7211 | 1 | | | |
|
32 | ASSY-PISTON CLUTCH | 31514-X0102 | AUTOMATIC | 7212 | 7406 | 1 | Yes | Yes | 31514-X0101 |
|
32 | ASSY-PISTON CLUTCH | 31514-X0103 | AUTOMATIC | 7407 | | 1 | Yes | Yes | 31514-X0102 |
|
33 | SEAL-LATHE CUT RING | 31516-X0100 | AUTOMATIC | | | 1 | | | |
|
34 | SPRING-PISTON RETURN | 31521-X0100 | AUTOMATIC | | | 10 | | | |
|
35 | RETAINER-SPRING | 31552-X0100 | AUTOMATIC | | 7211 | 1 | | | |
|
35 | RETIANER-SPRING | 31552-X0102 | AUTOMATIC | 7212 | | 1 | Yes | Yes | 31552-X0100 |
|
36 | RING-SNAP (54S) | 31523-X0100 | AUTOMATIC | | | 1 | | | |
|
37 | PLATE-DISHED | 31529-X0100 | AUTOMATIC | | | 1 | | | |
|
38 | PLATE-DRIVEN (115) | 31536-X0100 | AUTOMATIC | | | 6 | | | |
|
39 | ASSY-PLATE DRIVE (11 | 31532-X0100 | AUTOMATIC | | 7702 | 6 | | | |
|
39 | ASSY-PLATE DRIVE (11 | 31532-X0101 | AUTOMATIC | 7703 | | 1 | Yes | Yes | 31532-X0100 |
|
40 | PLATE-RETAINING T=10 | 31537-X0100 | AUTOMATIC | | | 1 | | | |
|
40 | PLATE-RETAINING T=10 | 31537-X0101 | AUTOMATIC | | | 1 | | | |
|
40 | PLATE-RETAINING T=11 | 31537-X0102 | AUTOMATIC | | | 1 | | | |
|
40 | PLATE-RETAINING T=11 | 31537-X0103 | AUTOMATIC | | | 1 | | | |
|
40 | PLATE-RETAINING T=11 | 31537-X0104 | AUTOMATIC | | | 1 | | | |
|
40 | PLATE-RETAINING T=11 | 31537-X0105 | AUTOMATIC | | | 1 | | | |
|
41 | RING-SNAP (118) | 31538-X0100 | AUTOMATIC | | | 1 | | | |
|
42 | ASSY-BAND BRAKE | 31630-X0100 | AUTOMATIC | | | 1 | | | |
|
42 | ASSY-BAND BRAKE | 31630-X0102 | AUTOMATIC | | | 1 | Yes | Yes | 31630-X0100 |
|
43 | STRUT-BAND | 31624-X0100 | AUTOMATIC | | | 1 | | | |
|
44 | SPRING-PISTON RETURN | 31621-X0100 | AUTOMATIC | | | 1 | | | |
|
45 | PISTON-BAND SERVO | 31615-X0500 | AUTOMATIC | | | 1 | | | |
|
46 | RETAINER-SERVO | 31611-X0500 | AUTOMATIC | | | 1 | | | |
|
47 | SEAL-LATHE CUT RING | 31616-X0300 | AUTOMATIC | | | 1 | | | |
|
48 | SEAL-LATHE CUT RING | 31617-X0300 | AUTOMATIC | | | 1 | | | |
|
49 | SEAL-O RING (82S) | 31628-X0100 | AUTOMATIC | | | 1 | | | |
|
50 | SEAL-LATHE CUT RING | 31612-X0100 | AUTOMATIC | | | 1 | | | |
|
51 | STEM-BAND SERVO PIST | 31618-X0100 | AUTOMATIC | | 7112 | 1 | | | |
|
51 | STEM-BAND SERVO PIST | 31618-X0101 | AUTOMATIC | 7201 | | 1 | Yes | Yes | 31618-X0100 |
|
52 | WASHER-PLAIN | 08915-44210 | AUTOMATIC | | 7112 | 1 | | | |
|
52 | WASHER-PLAIN | 31619-X0100 | AUTOMATIC | 7201 | | 1 | Yes | Yes | 08915-44210 |
|
53 | NUT | 08911-34210 | AUTOMATIC | | | 1 | | | |
|
54 | BOLT | 08160-61610 | AUTOMATIC | | | 3 | | | |
|

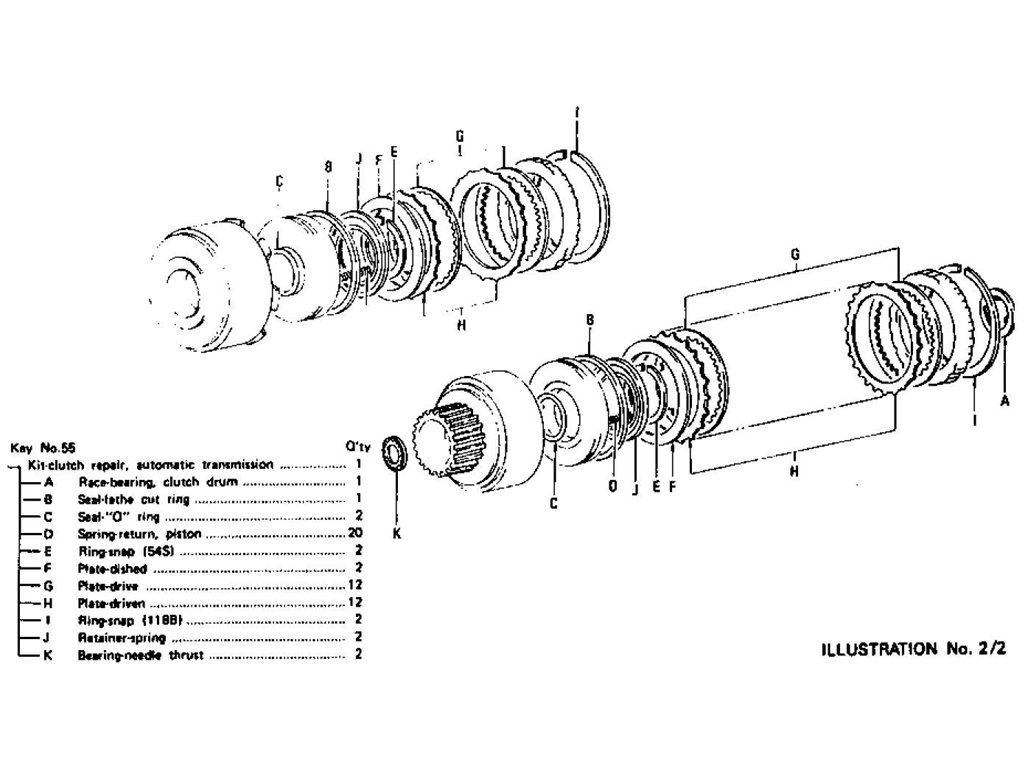

55 | KIT-REPAIR CLUTCH | 31532-X0925 | AUTOMATIC | 7305 | | 1 | | | |
