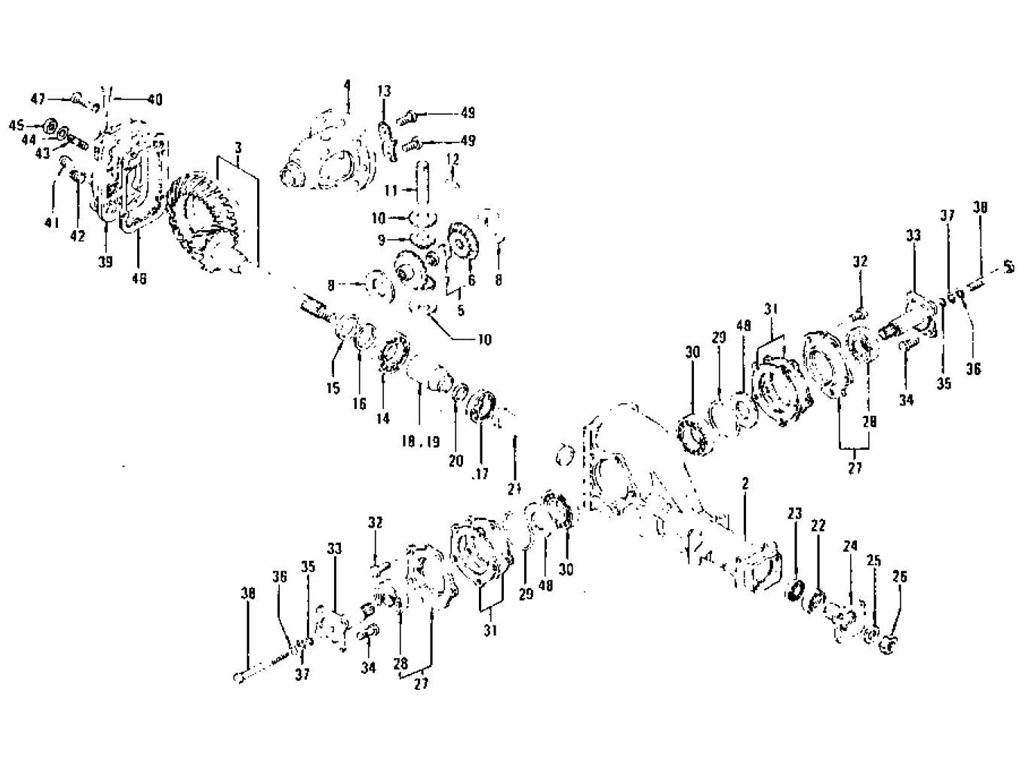

R180 Differential Gear, Pinion & Cover (R180)
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | ASSY-FINAL DRIVE 39/ | 38300-78701 | AUTOMATIC | | | 1 | | | |
|
1 | ASSY-FINAL DRIVE 39/ | 38300-U3100 | AUTOMATIC | | 7607 | 1 | Yes | Yes | 38300-78701 |
|
1 | ASSY-FINAL DRIVE 39/ | 38300-U3105 | AUTOMATIC | 7608 | | 1 | Yes | Yes | 38300-U3100 |
|
1 | ASSY-FINAL DRIVE 39/ | 38300-E4601 | MANUAL | | | 1 | | | |
|
1 | ASSY-FINAL DRIVE 39/ | 38300-U3000 | MANUAL | | | 1 | Yes | Yes | 38300-E4601 |
|
2 | HOUSING-FINAL DRIVE | 38311-78600 | | | 7607 | 1 | | | |
|
2 | HOUSING-FINAL DRIVE | 38311-E4600 | | | | 1 | | | |
|
2 | HOUSING-FINAL DRIVE | 38311-U3000 | AUTOMATIC | 7608 | | 1 | Yes | Yes | 38311-78600 |
|
3 | SET-HYPOID GEAR & PI | 38100-78700 | AUTOMATIC | | 7607 | 1 | | | |
|
3 | SET-HYPOID GEAR & PI | 38100-U3100 | AUTOMATIC | 7608 | | 1 | No | No | 38100-78700 |
|
3 | SET-HYPOID GEAR & PI | 38100-E4600 | MANUAL | | | 1 | | | |
|
4 | CASE-DIFFERENTIAL | 38421-U3000 | AUTOMATIC | 7608 | | 1 | No | No | 38421-78500 |
|
4 | CASE-DIFFRENTIAL | 38421-78500 | | | 7607 | 1 | | | |
|
5 | ASSY-GEAR SIDE DIFFE | 38422-78501 | | | 7607 | 1 | | | |
|
5 | ASSY-GEAR SIDE DIFFE | 38422-U3000 | AUTOMATIC | 7608 | | 1 | No | No | 38422-78501 |
|
6 | GEAR-SIDE DIFFERENTI | 38422-78501 | | | | 2 | Yes | Yes | 38423-78501 |
|
6 | GEAR-SIDE DIFFERENTI | 38422-U3000 | | | | 2 | No | No | 38422-78501 |
|
6 | GEAR-SIDE DIFFERENTI | 38423-78501 | | | | 2 | | | |
|
7 | NUT-LOCK SIDE FLANGE | 38227-21000 | | | | 2 | | | |
|
8 | WASHER-THRUST SIDE G | 38424-21000 | | | 7607 | 2 | | | |
|
8 | WASHER-THRUST SIDE G | 38424-21001 | | | 7607 | 2 | | | |
|
8 | WASHER-THRUST SIDE G | 38424-21002 | | | 7607 | 2 | | | |
|
8 | WASHER-THRUST SIDE G | 38424-U3000 | AUTOMATIC | 7608 | | 2 | No | No | 38424-21000 |
|
8 | WASHER-THRUST SIDE G | 38424-U3001 | AUTOMATIC | 7608 | | 2 | No | No | 38424-21001 |
|
8 | WASHER-THRUST SIDE G | 38424-U3002 | AUTOMATIC | 7608 | | 2 | No | No | 38424-21002 |
|
9 | MATE-PINION DIFFEREN | 38425-78501 | | | 7607 | 2 | | | |
|
9 | MATE-PINION DIFFEREN | 38425-U3000 | AUTOMATIC | 7608 | | 2 | No | No | 38425-78501 |
|
10 | WASHER-THRUST PINION | 38426-78500 | | | 7607 | 2 | | | |
|
10 | WASHER-THRUST PINION | 38426-U3000 | AUTOMATIC | 7608 | | 2 | No | No | 38426-78500 |
|
11 | SHAFT-PINION MATE | 38427-78500 | | | 7607 | 1 | | | |
|
11 | SHAFT-PINION MATE | 38427-U3000 | | 7608 | | 1 | No | No | 38427-78500 |
|
12 | PIN-LOCK PINION SHAF | 38428-25660 | | | | 1 | | | |
|
12 | PIN-LOCK PINION SHAF | 38428-P0100 | | | | 1 | Yes | Yes | 38428-25660 |
|
13 | STRAP-LOCK BOLT | 38103-78500 | | | 7607 | 4 | | | |
|
13 | STRAP-LOCK BOLT | 38103-U3000 | AUTOMATIC | 7608 | | 4 | No | No | 38103-78500 |
|
14 | ASSY-BEARING PINION | 38120-61000 | | | | 1 | | | |
|
15 | WASHER-ADJUST DRIV | 38153-78500 | | | 7107 | 1 | | | |
|
15 | WASHER-ADJUST DRIVE | 38151-78500 | | | 7107 | 1 | | | |
|
15 | WASHER-ADJUST DRIVE | 38152-78500 | | | 7107 | 1 | | | |
|
15 | WASHER-ADJUST DRIVE | 38154-B4017 | | 7108 | | 0 | | | |
|
15 | WASHER-ADJUST DRIVE | 38154-B4018 | | 7108 | | 0 | | | |
|
15 | WASHER-ADJUST DRIVE | 38154-B4019 | | 7108 | | 0 | | | |
|
15 | WASHER-ADJUST DRIVE | 38154-B4020 | | 7108 | | 0 | | | |
|
15 | WASHER-ADJUST DRIVE | 38154-E4600 | | 7108 | | 0 | | | |
|
15 | WASHER-ADJUST DRIVE | 38154-E4601 | | 7108 | | 0 | | | |
|
15 | WASHER-ADJUST DRIVE | 38154-E4602 | | 7108 | | 0 | | | |
|
15 | WASHER-ADJUST DRIVE | 38154-E4603 | | 7108 | | 0 | | | |
|
15 | WASHER-ADJUST DRIVE | 38154-E4604 | | 7108 | | 0 | | | |
|
15 | WASHER-ADJUST DRIVE | 38154-E4605 | | 7108 | | 0 | | | |
|
15 | WASHER-ADJUST DRIVE | 38154-E4606 | | 7108 | | 0 | | | |
|
15 | WASHER-ADJUST DRIVE | 38154-E4607 | | 7108 | | 0 | | | |
|
15 | WASHER-ADJUST DRIVE | 38154-E4608 | | 7108 | | 0 | | | |
|
15 | WASHER-ADJUST DRIVE | 38154-E4609 | | 7108 | | 0 | | | |
|
15 | WASHER-ADJUST DRIVE | 38154-E4610 | | 7108 | | 0 | | | |
|
15 | WASHER-ADJUST DRIVE | 38154-E4611 | | 7108 | | 0 | | | |
|
15 | WASHER-ADJUST DRIVE | 38154-E4612 | | 7108 | | 0 | | | |
|
15 | WASHER-ADJUST DRIVE | 38154-E4613 | | 7108 | | 0 | | | |
|
15 | WASHER-ADJUST DRIVE | 38154-E4614 | | 7108 | | 0 | | | |
|
15 | WASHER-ADJUST DRIVE | 38154-E4615 | | 7108 | | 0 | | | |
|
16 | SHIM-ADJUST DRIVE PI | 38154-78500 | | | 7107 | 1 | | | |
|
16 | SHIM-ADJUST DRIVE PI | 38154-78501 | | | 7107 | 1 | | | |
|
16 | SHIM-ADJUST DRIVE PI | 38154-78502 | | | 7107 | 1 | | | |
|
16 | SHIM-ADJUST DRIVE PI | 38154-78503 | | | 7107 | 1 | | | |
|
16 | SHIM-ADJUST DRIVE PI | 38154-78504 | | | 7107 | 1 | | | |
|
16 | SHIM-ADJUST DRIVE PI | 38154-78505 | | | 7107 | 1 | | | |
|
16 | SHIM-ADJUST DRIVE PI | 38154-78506 | | | 7107 | 1 | | | |
|
16 | SHIM-ADJUST DRIVE PI | 38154-78507 | | | 7107 | 1 | | | |
|
16 | SHIM-ADJUST DRIVE PI | 38154-78508 | | | 7107 | 1 | | | |
|
16 | SHIM-ADJUST DRIVE PI | 38154-78509 | | | 7107 | 1 | | | |
|
17 | ASSY-BEARING PINION | 38140-13201 | | | | 1 | | | |
|
18 | SPACER-BEARING DRIVE | 38130-78500 | | | | 1 | | | |
|
19 | SPACER-BEARING DRIVE | 38131-78500 | | | | 1 | | | |
|
19 | SPACER-BEARING DRIVE | 38132-78500 | | | | 1 | | | |
|
19 | SPACER-BEARING DRIVE | 38133-78500 | | | | 1 | | | |
|
19 | SPACER-BEARING DRIVE | 38134-78500 | | | | 1 | | | |
|
19 | SPACER-BEARING DRIVE | 38135-78500 | | | | 1 | | | |
|
20 | WASHER-ADJUST PINION | 38127-09400 | | | | 1 | | | |
|
20 | WASHER-ADJUST PINION | 38128-09400 | | | | 1 | | | |
|
20 | WASHER-ADJUST PINION | 38129-09400 | | | | 1 | | | |
|
20 | WASHER-ADJUST PINION | 38130-09400 | | | | 1 | | | |
|
20 | WASHER-ADJUST PINION | 38131-09400 | | | | 1 | | | |
|
20 | WASHER-ADJUST PINION | 38132-09400 | | | | 1 | | | |
|
20 | WASHER-ADJUST PINION | 38133-09400 | | | | 1 | | | |
|
20 | WASHER-ADJUST PINION | 38134-09400 | | | | 1 | | | |
|
20 | WASHER-ADJUST PINION | 38135-09400 | | | | 1 | | | |
|
20 | WASHER-ADJUST PINION | 38136-09400 | | | | 1 | | | |
|
20 | WASHER-ADJUST PINION | 38137-09400 | | | | 1 | | | |
|
20 | WASHER-ADJUST PINION | 38138-09400 | | | | 1 | | | |
|
20 | WASHER-ADJUST PINION | 38139-09400 | | | | 1 | | | |
|
20 | WASHER-ADJUST PINION | 38140-09400 | | | | 1 | | | |
|
20 | WASHER-ADJUST PINION | 38141-09400 | | | | 1 | | | |
|
21 | SPACER-BEARING FRONT | 38169-78600 | | | | 1 | | | |
|
22 | SEAL-OIL DRIVE PINIO | 38332-21100 | | | 7609 | 1 | | | |
|
22 | SEAL-OIL DRIVE PINIO | 38189-U3000 | | 7610 | | 1 | Yes | Yes | 38332-21100 |
|
23 | BEARING-BALL | 38335-21100 | | | | 1 | | | |
|
24 | ASSY-FLANGE COMPANIO | 38210-21100 | | | | 1 | | | |
|
24 | ASSY-FLANGE COMPANIO | 38210-E7401 | | | | 1 | Yes | Yes | 38210-21100 |
|
25 | WASHER-DRIVE PINION | 38215-21000 | | | 7204 | 1 | | | |
|
26 | NUT-DRIVE PINION | 38216-21000 | | | 7204 | 1 | | | |
|
26 | NUT-DRIVE PINION (SE | 38216-U1500 | | 7205 | | 1 | Yes | Yes | 38216-21000 |
|
26 | NUT-DRIVE PINION (SE | 38216-U3000 | | 7805 | | 1 | Yes | Yes | 38216-U1500 |
|
27 | ASSY-RETAINER SIDE B | 38340-21000 | | | | 2 | | | |
|
28 | SEAL-OIL SIDE BEARIN | 38342-21000 | | | | 2 | | | |
|
29 | RING-"O" SIDE RETAIN | 38343-21000 | | | | 2 | | | |
|
30 | ASSY-BEARING DEFFERN | 40210-85000 | | | | 2 | Yes | Yes | 38440-25660 |
|
30 | ASSY-BEARING DIFFERE | 38440-25660 | | | | 2 | | | |
|
31 | SHIM-ADJUST SIDE BEA | 38453-21001 | | | | 0 | | | |
|
31 | SHIM-ADJUST SIDE BEA | 38453-21002 | | | | 0 | | | |
|
31 | SHIM-ADJUST SIDE BEA | 38453-21003 | | | | 0 | | | |
|
31 | SHIM-ADJUST SIDE BEA | 38453-21004 | | | | 0 | | | |
|
31 | SHIM-ADJUST SIDE BEA | 38453-21005 | | | | 0 | | | |
|
31 | SHIM-ADJUST SIDE BEA | 38453-21006 | | | | 0 | | | |
|
31 | SHIM-ADJUST SIDE BEA | 38453-21007 | | | | 0 | | | |
|
31 | SHIM-ADJUST SIDE BEA | 38453-21008 | | | | 0 | | | |
|
31 | SHIM-ADJUST SIDE BEA | 38453-21100 | | | | 0 | Yes | Yes | 38453-21001 |
|
31 | SHIM-ADJUST SIDE BEA | 38453-21101 | | | | 0 | | | |
|
31 | SHIM-ADJUST SIDE BEA | 38453-21102 | | | | 0 | Yes | Yes | 38453-21006 |
|
31 | SHIM-ADJUST SIDE BEA | 38453-21103 | | | | 0 | Yes | Yes | 38453-21007 |
|
31 | SHIM-ADJUST SIDE BEA | 38453-21104 | | | | 0 | Yes | Yes | 38453-21008 |
|
32 | BOLT-HEX M8X1.25 | 08110-82014 | | | | 10 | | | |
|
32 | BOLT-HEX M8X1.25 | 08110-82062 | | | | 10 | Yes | Yes | 08110-82014 |
|
33 | ASSY-FLANGE SIDE | 38220-78501 | | | | 2 | | | |
|
34 | BOLT-FIX DRIVE SHAFT | 38228-21000 | | | | 8 | | | |
|
35 | RING-"O" SIDE FLANGE | 38223-21000 | | | | 2 | | | |
|
36 | WASHER-PLAIN | 08915-44010 | | | | 2 | | | |
|
37 | WASHER-SPRING | 08915-24000 | | | | 2 | | | |
|
37 | WASHER-SPRING | 08915-24010 | | | | 2 | Yes | Yes | 08915-24000 |
|
38 | BOLT-FIX SIDE FLANGE | 38226-21000 | | | | 2 | | | |
|
39 | COVER-REAR FINAL DRI | 38351-78500 | | | | 1 | | | |
|
40 | BREATHER | 38352-78500 | | | | 1 | | | |
|
40 | BREATHER | 38352-78600 | | | | 1 | Yes | Yes | 38352-78500 |
|
41 | PLUG-FILLER FINAL DR | 00931-11210 | | | | 1 | | | |
|
41 | PLUG-FILLER FINAL DR | 38357-E4600 | | | | 1 | Yes | Yes | 00931-11210 |
|
42 | ASSY-PLUG DRAIN | 32103-E4600 | | | 7201 | 1 | | | |
|
42 | ASSY-PLUG DRAIN | 32103-U8400 | | | | 1 | Yes | Yes | 32103-14600 |
|
42 | ASSY-PLUG DRAIN | 32103-14600 | | 7202 | | 1 | Yes | Yes | 32103-E4600 |
|
43 | STUD | 08229-22810 | | | | 2 | | | |
|
44 | WASHER-SPECIAL | 54474-E4100 | | | | 2 | | | |
|
45 | NUT-HEX SELF LOCK S | 08912-84210 | | | | 2 | | | |
|
46 | PACKING-REAR COVER | 38353-78500 | | | | 1 | | | |
|
47 | BOLT-HEX M10X1.25 | 08114-03010 | | | | 8 | | | |
|
48 | WASHER-REAR AXLE BEA | 43211-A7100 | | | | 2 | Yes | Yes | 43211-E4100 |
|
48 | WASHER-REAR AXLE BEA | 43211-E4100 | | | | 2 | | | |
|
49 | BOLT-DRIVE GEAR | 38102-22900 | | | | 8 | | | |
|
49 | BOLT-DRIVE GEAR | 38102-P0100 | | | | 8 | Yes | Yes | 38102-22900 |
