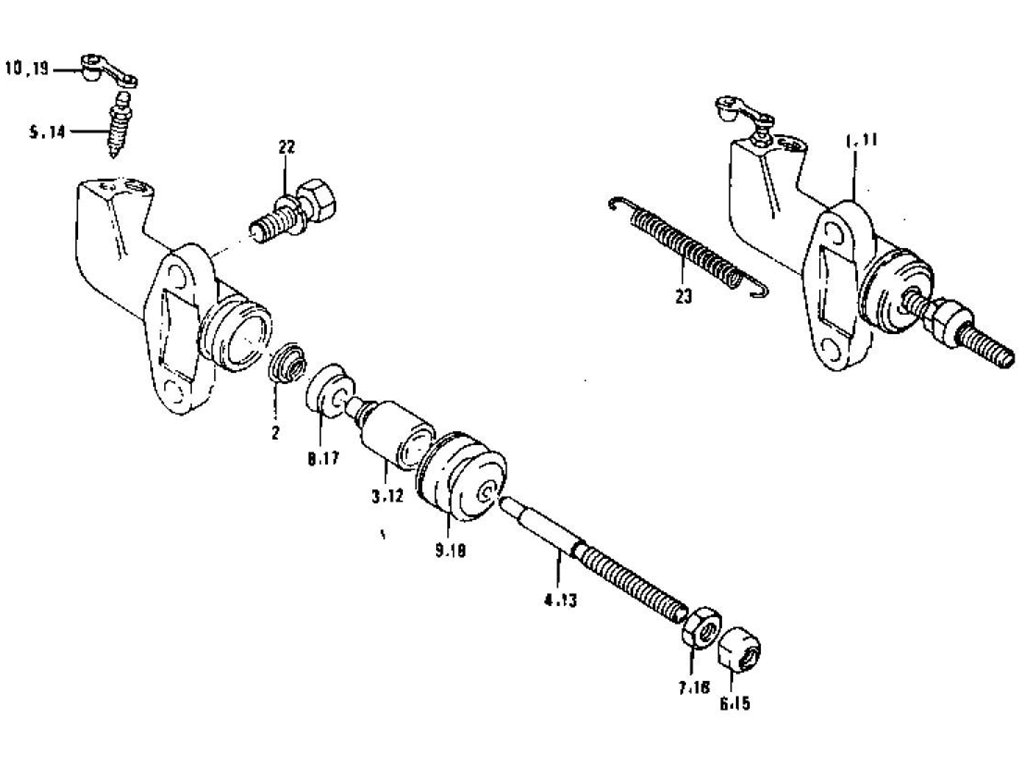

Clutch Operating Cylinder Clutch Operating Cylinder & Repair Kit
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | ASSY-CYLINDER CLUTCH | 30620-28502 | MANUAL | | 7206 | 1 | | | |
|
1 | ASSY-CYLINDER CLUTCH | 30620-S0100 | MANUAL | 7207 | 7505 | 1 | No | No | 30620-28502 |
|
1 | ASSY-CYLINDER CLUTCH | 30620-U7000 | MANUAL | 7506 | | 1 | Yes | Yes | 30620-S0100 |
|
2 | SPRING-PISTON | 30622-E3400 | MANUAL | 7207 | | 1 | | | |
|
3 | PISTON | 30625-28500 | MANUAL | | 7206 | 1 | | | |
|
3 | PISTON | 30625-27260 | MANUAL | 7207 | 7505 | 1 | No | No | 30625-28500 |
|
3 | PISTON | 30625-U7000 | MANUAL | 7506 | | 1 | No | No | 30625-27260 |
|
4 | ROD-PUSH | 30628-21001 | MANUAL | | 7206 | 1 | | | |
|
4 | ROD-PUSH | 30628-S0100 | MANUAL | 7207 | | 1 | No | No | 30628-21001 |
|
4 | ROD-PUSH | 30628-S0110 | MANUAL | 7207 | | 1 | Yes | Yes | 30628-S0100 |
|
5 | BLEEDER | 41128-18000 | MANUAL | | | 1 | | | |
|
6 | NUT-PUSH WITH DRAWAL | 30547-78001 | MANUAL | | | 1 | | | |
|
7 | NUT | 08911-30810 | MANUAL | | | 1 | | | |
|
8 | CUP-PISTON | 30624-28500 | MANUAL | | 7206 | 1 | | | |
|
8 | CUP-PISTON | 30624-21000 | MANUAL | 7207 | | 1 | No | No | 30624-28500 |
|
9 | COVER-DUST | 30627-76000 | MANUAL | | 7206 | 1 | | | |
|
9 | COVER-DUST | 30627-E3400 | MANUAL | 7207 | | 1 | No | No | 30627-76000 |
|
10 | CAP-BLEEDER | 41129-30001 | MANUAL | | | 1 | | | |
|
10 | CAP-BLEEDER | 41129-A2410 | MANUAL | | | 1 | Yes | Yes | 41129-30001 |
|
11 | 30620-28S13 | 30620-S0100 | MANUAL | 7207 | 7506 | 1 | No | No | 30620-28513 |
|
11 | 30620-28S13 | 30620-U7000 | MANUAL | 7507 | | 1 | Yes | Yes | 30620-S0100 |
|
12 | PISTON | 30625-86400 | MANUAL | | | 1 | | | |
|
13 | ROD-PUSH | 30628-28510 | MANUAL | | | 1 | | | |
|
13 | ROD-PUSH | 30628-28511 | MANUAL | | | 1 | Yes | Yes | 30628-28510 |
|
14 | BLEEDER | 41128-21010 | MANUAL | | | 1 | | | |
|
15 | NUT-PUSH WITH DRAWAL | 30547-78001 | MANUAL | | | 1 | | | |
|
16 | NUT | 08911-30810 | MANUAL | | | 1 | | | |
|
17 | CUP-PISTON | 30624-86400 | MANUAL | | | 1 | | | |
|
18 | COVER-DUST | 30627-21010 | MANUAL | | | 1 | | | |
|
19 | CAP-BLEEDER | 41129-30001 | MANUAL | | | 1 | | | |
|
19 | CAP-BLEEDER | 41129-A2410 | MANUAL | | | 1 | Yes | Yes | 41129-30001 |
|
20 | CUP KIT-CLUTCH OPERA | 30622-28525 | MANUAL | | 7206 | 1 | Yes | Yes | 30620-28525 |
|
20 | CUP KIT-CLUTCH OPERA | 30622-J2025 | MANUAL | 7207 | | 1 | Yes | Yes | 30620-S0125 |
|
20 | KIT-REPAIR CLUTCH OP | 30620-28525 | MANUAL | | 7206 | 1 | | | |
|
20 | KIT-REPAIR CLUTCH OP | 30620-S0125 | MANUAL | 7207 | | 1 | No | No | 30620-28525 |
|
20 | PISTON KIT-CLUTCH OP | 30621-U7025 | MANUAL | 7507 | | 1 | | | |
|
21 | CUP KIT-CLUTCH OPERA | 30622-28526 | MANUAL | | | 1 | Yes | Yes | 30620-28527 |
|
21 | KIT-REPAIR CLUTCH OP | 30620-28527 | MANUAL | | | 1 | | | |
|
21 | PISTON KIT-CLUTCH OP | 30621-28526 | MANUAL | 7206 | | 1 | | | |
|
21 | PISTON KIT-CLUTCH OP | 30621-U0126 | MANUAL | 7207 | 7506 | 1 | Yes | Yes | 30621-28526 |
|
21 | PISTON KIT-CLUTCH OP | 30621-U7026 | MANUAL | 7507 | | 1 | Yes | Yes | 30621-U0126 |
|
22 | BOLT-HEX WITH WASHER | 08121-03069 | MANUAL | | | 2 | | | |
|
23 | SPRING-RETURN WITH D | 30533-21010 | MANUAL | | | 1 | | | |
