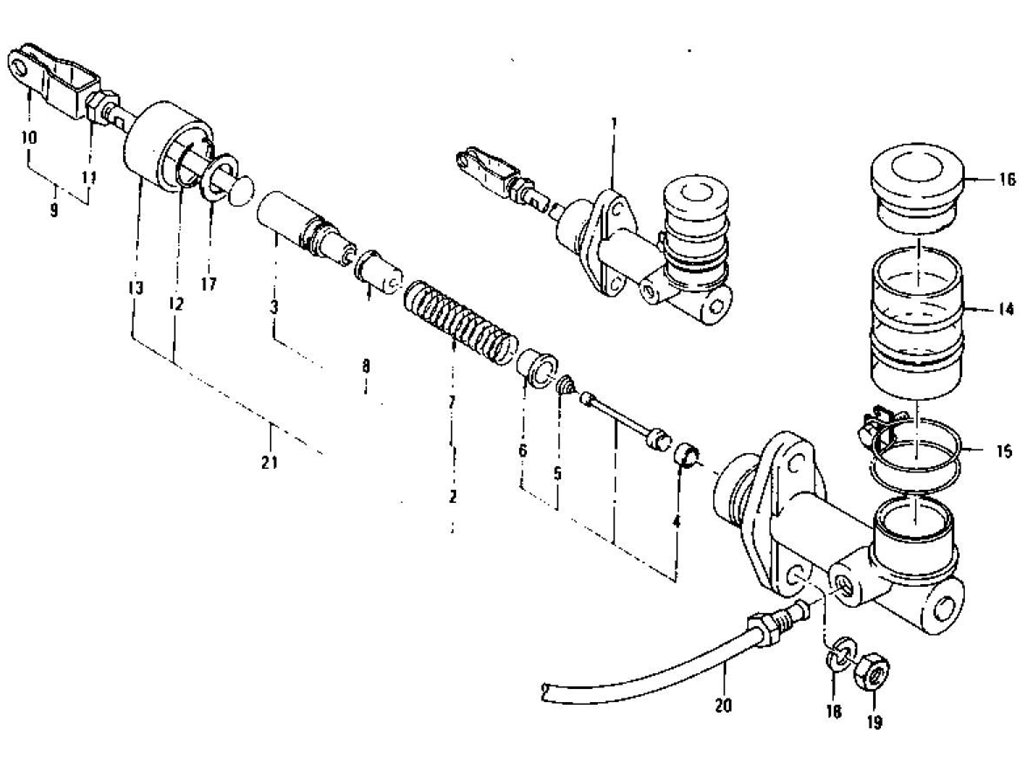

To May-'75 Clutch Master Cylinder (To May-'75)
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | ASSY-CYLINDER CLUTCH | 30610-E4100 | MANUAL | | | 1 | | | |
|
1 | ASSY-CYLINDER CLUTCH | 30610-E4101 | MANUAL | | | 1 | Yes | Yes | 30610-E4100 |
|
1 | ASSY-CYLINDER CLUTCH | 30610-E4200 | MANUAL | | | 1 | Yes | Yes | 30610-E4101 |
|
1 | ASSY-CYLINDER CLUTCH | 30610-E4201 | MANUAL | | 7408 | 1 | Yes | Yes | 30610-E4200 |
|
1 | ASSY-CYLINDER CLUTCH | 30610-N4001 | MANUAL | | | 1 | Yes | Yes | 30610-N4000 |
|
1 | ASSY-CYLINDER CLUTCH | 30610-N4200 | MANUAL | 7409 | 7503 | 1 | | | |
|
1 | ASSY-CYLINDER CLUTCH | 30610-E4301 | MANUAL | 7504 | 7505 | 1 | | | 30610-N4200 |
|
1 | ASSY-CYLINDER CLUTCH | 30610-N4000 | MANUAL | 7506 | | 1 | No | No | 30610-E4301 |
|
2 | ASSY-PISTON | 30625-21000 | MANUAL | | 6911 | 1 | | | |
|
2 | ASSY-PISTON | 30625-N0100 | MANUAL | | | 1 | Yes | Yes | 46077-21000 |
|
2 | ASSY-PISTON | 30625-N0127 | MANUAL | | | 1 | Yes | Yes | 30625-N0100 |
|
2 | ASSY-PISTON | 46077-21000 | MANUAL | 6912 | | 1 | No | No | 30625-21000 |
|
3 | CUP-PISTON | 30624-21000 | MANUAL | | 6911 | 1 | | | |
|
3 | CUP-PISTON | 46065-21000 | MANUAL | 6912 | | 1 | No | No | 30624-21000 |
|
4 | VALVE-SEAT | 46074-30800 | MANUAL | | | 1 | | | |
|
5 | SPRING-VALVE | 30622-21000 | MANUAL | | | 1 | | | |
|
6 | SEAT-SPRING | 30623-21000 | MANUAL | | | 1 | | | |
|
7 | SPRING-RETURN PISTON | 46061-30000 | MANUAL | | | 1 | | | |
|
8 | SEAT-SPRING | 30623-21001 | MANUAL | | | 1 | | | |
|
9 | ASSY-ROD PUSH | 30631-E4100 | MANUAL | | | 1 | | | |
|
9 | ASSY-ROD PUSH | 30631-E4101 | MANUAL | | 7408 | 1 | Yes | Yes | 30631-E4100 |
|
9 | ASSY-ROD PUSH | 30631-N4200 | MANUAL | 7409 | | 1 | No | No | 30631-E4101 |
|
10 | HEAD-PUSH ROD | 30629-21000 | MANUAL | | | 1 | | | |
|
11 | NUT-LOCK | 46103-21000 | MANUAL | | 6911 | 1 | | | |
|
11 | NUT-LOCK | 46103-E4101 | MANUAL | 6912 | | 1 | No | No | 46103-21000 |
|
12 | RING-STOPPER | 46070-27260 | MANUAL | | | 1 | | | |
|
13 | COVER-DUST | 46100-27260 | MANUAL | | | 1 | | | |
|
14 | RESERVOIR-OIL | 46090-21000 | MANUAL | | | 1 | | | |
|
15 | BAND-RESERVOIR | 46016-12200 | MANUAL | | | 1 | Yes | Yes | 46016-14600 |
|
15 | BAND-RESERVOIR | 46016-14600 | MANUAL | | | 1 | | | |
|
16 | CAP-RESERVOIR | 46020-28600 | MANUAL | | | 1 | | | |
|
16 | CAP-RESERVOIR | 46020-E0300 | MANUAL | | | 1 | Yes | Yes | 46020-28600 |
|
17 | STOPPER-PISTON | 46082-35200 | MANUAL | | | 1 | | | |
|
18 | WASHER-LOCK M8 | 08915-23810 | MANUAL | | | 2 | | | |
|
19 | NUT-HEX M8X1.25 | 08911-10810 | MANUAL | | | 2 | | | |
|
20 | ASSY-TUBE CLUTCH MAS | 30650-E4601 | MANUAL | | 7206 | 1 | | | |
|
20 | ASSY-TUBE CLUTCH MAS | 30650-N3300 | MANUAL | 7207 | 7307 | 1 | Yes | Yes | 30650-E4601 |
|
20 | ASSY-TUBE CLUTCH MAS | 30650-N3600 | MANUAL | 7308 | 7408 | 1 | No | No | 30650-N3300 |
|
20 | ASSY-TUBE CLUTCH MAS | 30650-N4200 | MANUAL | 7409 | 7503 | 1 | No | No | 30650-N3600 |
|
20 | ASSY-TUBE CLUTCH MAS | 30650-N4201 | MANUAL | 7504 | 7607 | 1 | | | 30650-N4200 |
|
20 | ASSY-TUBE CLUTCH MAS | 30650-N4202 | MANUAL | 7608 | | 1 | Yes | Yes | 30650-N4201 |
|
21 | KIT-REPAIR CLUTCH MA | 30610-N0127 | MANUAL | | 7408 | 1 | | | |
|
21 | KIT-REPAIR CLUTCH MA | 30611-N0125 | MANUAL | | 7408 | 1 | Yes | Yes | 30610-N0125 |
|
21 | KIT-REPAIR CLUTCH MA | 30611-N0125 | MANUAL | | 7408 | 1 | Yes | Yes | 30610-N0127 |
|
21 | KIT-REPAIR CLUTCH MA | 30610-N6025 | MANUAL | 7409 | | 1 | No | No | 30610-N0127 |
|
21 | KIT-REPAIR CLUTCH MA | 30611-N6025 | MANUAL | 7409 | | 1 | Yes | Yes | 30610-N6025 |
