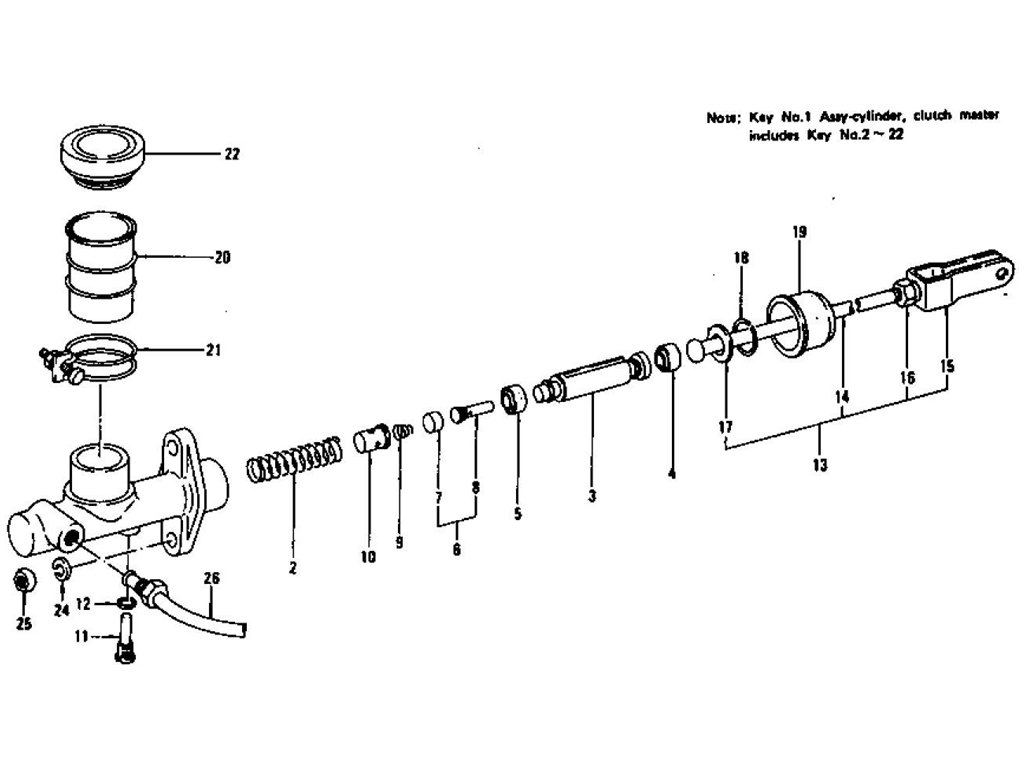

From Jun.-'75 Clutch Master Cylinder (From Jun.-'75)
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | ASSY-CYLINDER CLUTCH | 30610-N4000 | MANUAL | 7506 | 7509 | 1 | | | |
|
1 | ASSY-CYLINDER CLUTCH | 30610-N4001 | MANUAL | 7510 | | 1 | Yes | Yes | 30610-N4000 |
|
2 | SPRING-RETURN | 46061-30000 | MANUAL | 7506 | | 1 | | | |
|
3 | PISTON | 46077-08700 | MANUAL | 7506 | | 1 | | | |
|
4 | CUP-SECONDARY | 46046-H5800 | MANUAL | 7506 | | 1 | Yes | Yes | 46065-15800 |
|
4 | CUP-SECONDARY | 46065-15800 | MANUAL | 7506 | | 1 | | | |
|
5 | CUP-PRIMARY | 46064-30002 | MANUAL | 7506 | | 1 | | | |
|
6 | COMP-VALVE SUPPLY | 46073-30800 | MANUAL | 7506 | | 1 | | | |
|
7 | VALVE-SUPPLY | 46074-30800 | MANUAL | 7506 | | 1 | | | |
|
8 | ROD-VALVE SUPPLY | 46059-30800 | MANUAL | 7506 | | 1 | | | |
|
9 | SPRING-VALVE | 46056-A1100 | MANUAL | 7506 | | 1 | | | |
|
10 | SEAT-SPRING | 46076-30800 | MANUAL | 7506 | | 1 | | | |
|
11 | STOPPER-VALVE SUPPLY | 46032-27260 | MANUAL | 7506 | | 1 | | | |
|
12 | GASKET | 46079-27260 | MANUAL | 7506 | | 1 | | | |
|
13 | COMP-ROD PUSH | 30631-N4000 | MANUAL | 7506 | | 1 | | | |
|
14 | ROD-PUSH | 30628-H2500 | MANUAL | 7506 | | 1 | | | |
|
15 | HEAD-ROD PUSH | 30629-M1000 | MANUAL | 7506 | | 1 | | | |
|
16 | NUT-LOCK | 46103-E4101 | MANUAL | 7506 | | 1 | | | |
|
17 | PLATE-PISTON STOP | 46082-35200 | MANUAL | 7506 | | 1 | | | |
|
18 | RING-PISTON STOP | 46070-27260 | MANUAL | 7506 | | 1 | | | |
|
19 | BOOT | 46100-28600 | MANUAL | 7506 | | 1 | | | |
|
20 | RESERVOIR-OIL | 46090-21000 | MANUAL | 7506 | | 1 | | | |
|
21 | BAND-RESERVOIR | 46016-12200 | MANUAL | 7506 | | 1 | | | |
|
22 | CAP-RESERVOIR | 46020-R0100 | MANUAL | 7506 | 7509 | 1 | | | |
|
22 | CAP-RESERVOIR | 46020-N6000 | MANUAL | 7510 | | 1 | Yes | Yes | 46020-R0100 |
|
23 | KIT-REPAIR CLUTCH MA | 30611-N4027 | MANUAL | | | 1 | Yes | Yes | 30611-N4025 |
|
23 | KIT-REPAIR CLUTCH MA | 30610-N4025 | MANUAL | 7506 | | 1 | | | |
|
23 | KIT-REPAIR CLUTCH MA | 30611-N4025 | MANUAL | 7506 | | 1 | Yes | Yes | 30610-N4025 |
|
24 | WASHER-LOCK M8 | 08915-23810 | MANUAL | 7506 | | 2 | | | |
|
25 | NUT-HEX M8X1.25 | 08911-10810 | MANUAL | 7506 | | 2 | | | |
|
26 | ASSY-TUBE CLUTCH MAS | 30650-N4201 | MANUAL | 7506 | 7607 | 1 | | | |
|
26 | ASSY-TUBE CLUTCH MAS | 30650-N4202 | MANUAL | 7608 | | 1 | Yes | Yes | 30650-N4201 |
