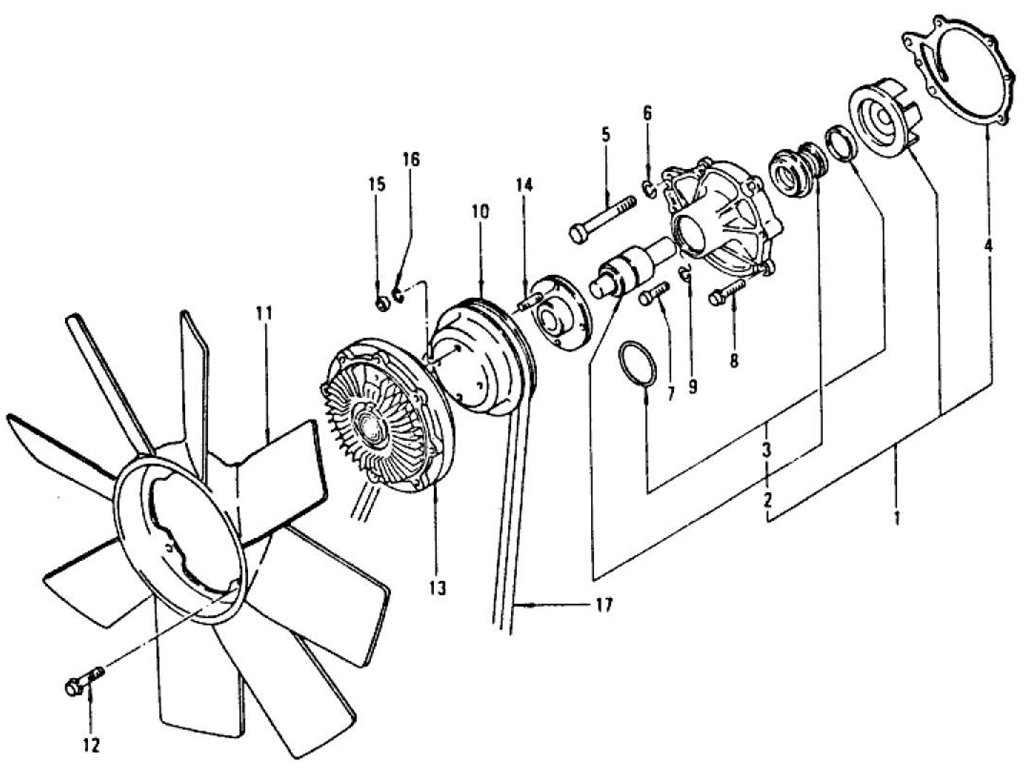

Water Pump & Fan Water Pump & Fan Belt L28E
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | SET PUMP WATER | 21010-E3027 | | | 7611 | 1 | | | |
|
1 | SET PUMP WATER | 21010-P7525 | | | | 1 | Yes | Yes | 21010-Y7025 |
|
1 | SET PUMP WATER | 21010-Y7025 | | | | 1 | Yes | Yes | 21010-E3028 |
|
1 | SET PUMP WATER | 21010-E3028 | | 7612 | | 1 | | | 21010-E3027 |
|
2 | SET BEARING & SEAL | 21046-E3000 | | | | 1 | | | |
|
2 | SET BEARING & SEAL | 21046-Y7000 | | | | 1 | Yes | Yes | 21046-E3000 |
|
3 | SET SEAL & WIRE | 21047-A0100 | | | | 1 | | | |
|
3 | SET SEAL & WIRE | 21047-Y7000 | | | | 1 | Yes | Yes | 21047-A0100 |
|
4 | GASKET WAER PUMP | 21014-21000 | | | | 1 | | | |
|
5 | BOLT HEX M8 | 08110-88510 | | | | 2 | | | |
|
7 | BOLT HEX M6 | 21079-21002 | | | | 1 | | | |
|
8 | BOLT HEX M6 | 08120-62262 | | | | 2 | | | |
|
9 | WASHER SPRING M6 | 08915-13610 | | | | 1 | | | |
|
10 | PULLEY FAN AND WATER | 21051-E3201 | | | | 1 | | | |
|
10 | PULLEY FAN AND WATER | 21051-E3202 | | | | 1 | Yes | Yes | 21051-E3201 |
|
11 | FAN COOLING 410X8PP | 21060-N3600 | | | | 1 | | | |
|
12 | BOLT HEX M6 | 08130-62062 | | | | 4 | | | |
|
13 | ASSY COUPLING FAN | 21082-N3600 | | | 7501 | 1 | | | |
|
13 | ASSY COUPLING FAN | 21082-Y4100 | | 7502 | | 1 | Yes | Yes | 21082-N3600 |
|
14 | STUD M6 | 08226-61410 | | | | 4 | | | |
|
15 | NUT HEX M6X1.0 | 08911-10610 | | | | 4 | | | |
|
16 | WASHER SPRING M6 | 08915-13610 | | | | 4 | | | |
|
17 | partNumber | BELT FAN L885 | | | | | | | |
|
17 | partNumber | 11720-Y4005 | | | | 1 | | | |
