Search Item: Key: Part Name: Part Number:

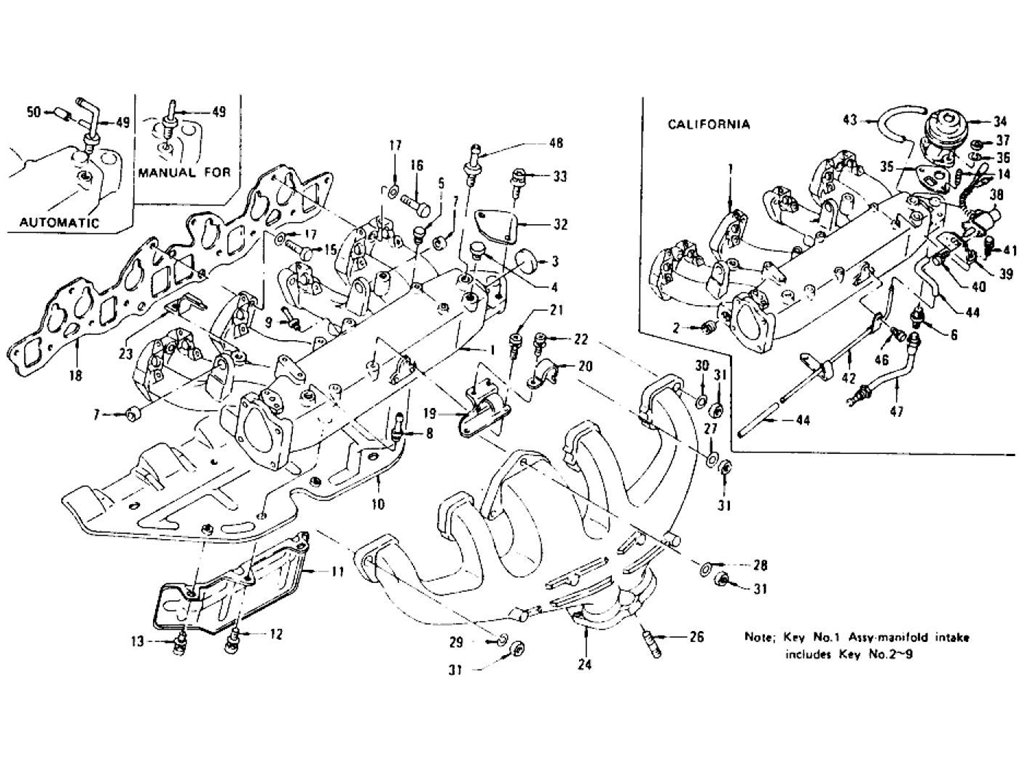

Manifold, Egr. L28E (To Jul.-'76)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-MANIFOLD INTAKE | 14002-N4301 | CAL | 7507 | 1 | ||||
| 1 | ASSY-MANIFOLD INTAKE | 14002-N4302 | CAL | 7508 | 1 | No | No | 14002-N4301 | |
| 1 | ASSY-MANIFOLD INTAKE | 14003-N4302 | CAL | 7508 | 1 | Yes | Yes | 14002-N4302 | |
| 1 | ASSY-MANIFOLD INTAKE | 14002-N4201 | FED | 7507 | 1 | ||||
| 1 | ASSY-MANIFOLD INTAKE | 14002-N4202 | FED | 7508 | 1 | No | No | 14002-N4201 | |
| 1 | ASSY-MANIFOLD INTAKE | 14003-N4202 | FED | 7508 | 1 | Yes | Yes | 14002-N4202 | |
| 2 | PLUG-BLIND | 11048-14604 | CAL | 1 | |||||
| 3 | PLUG-WELCH 35 | 00933-13500 | 1 | ||||||
| 3 | PLUG-WELCH 35 | 01648-00084 | 1 | Yes | Yes | 00933-13500 | |||
| 4 | PLUG-TAPER 1/4 PT | 08931-30410 | 1 | ||||||
| 5 | PLUG-TAPER 1/8 PT | 08931-30210 | 1 | ||||||
| 6 | CONNECTOR-STRAIGHT | 08712-14600 | CAL | 1 | |||||
| 7 | BUSH | 14016-14600 | 2 | ||||||
| 8 | CONNECTOR-STRAIGHT | 14042-44200 | 1 | ||||||
| 9 | CONNECTOR-STRAIGHT | 14875-A3000 | 1 | ||||||
| 10 | PLATE-HEAT SHIELD | 14330-N4201 | 1 | ||||||
| 11 | PLATE-HEAT SUB | 14331-N4200 | 7501 | 1 | |||||
| 11 | PLATE-HEAT SUB | 14331-N4201 | 7502 | 1 | Yes | Yes | 14331-N4200 | ||
| 12 | BOLT-WITH WASHER | 08110-81625 | 6 | ||||||
| 13 | SCREW-WITH WASHER | 08360-61226 | 2 | ||||||
| 14 | STUD | 08213-82210 | CAL | 2 | |||||
| 15 | BOLT-HEX. | 08134-04010 | 7501 | 2 | |||||
| 15 | BOLT-HEX. | 08134-03010 | 7502 | 2 | No | No | 08134-04010 | ||
| 16 | BOLT-HEX. | 08134-04510 | 2 | ||||||
| 17 | WASHER-MANIFOLD BOLT | 11058-21001 | 4 | ||||||
| 18 | GASKET-MANIFOLD | 14035-N3200 | 7507 | 1 | |||||
| 18 | GASKET-MANIFOLD | 14035-N3500 | 1 | Yes | Yes | 14035-Y4100 | |||
| 18 | GASKET-MANIFOLD | 14035-Y4100 | 7508 | 1 | No | No | 14035-N3200 | ||
| 19 | SUPPORT-EGI HARNESS | 24136-N4201 | 1 | ||||||
| 20 | HOLDER-EGI HARNESS | 24018-N4201 | 1 | ||||||
| 21 | SCREW-WITH WASHER | 08360-61214 | 2 | ||||||
| 22 | SCREW-WITH WASHER | 08360-51414 | 1 | ||||||
| 23 | CLAMP-EGI HARNESS | 24210-N4201 | 7507 | 1 | |||||
| 23 | CLAMP-EGI HARNESS | 24210-U9800 | 7508 | 1 | No | No | 24210-N4201 | ||
| 24 | MANIFOLD-EXHAUST | 14004-N4300 | CAL | 1 | |||||
| 24 | MANIFOLD-EXHAUST | 14004-N4200 | FED | 1 | |||||
| 24 | MANIFOLD-EXHAUST | 14004-N4300 | FED | 1 | Yes | Yes | 14004-N4200 | ||
| 25 | PLUG-BLIND | 14121-N4200 | FED | 1 | |||||
| 26 | STUD-EXHAUST TUBE FI | 14064-N4200 | 3 | ||||||
| 27 | YOKE-MANIFOLD | 14037-N3600 | 6 | ||||||
| 28 | WASHER-PLAIN | 08915-43810 | 3 | ||||||
| 29 | WASHER-SPRING | 08915-13810 | 1 | ||||||
| 30 | WASHER-PLAIN | 01311-00131 | 1 | Yes | Yes | 14037-E3000 | |||
| 30 | WASHER-PLAIN | 14037-E3000 | 1 | ||||||
| 31 | NUT-HEX. | 08911-10810 | 11 | ||||||
| 32 | PLATE-BLIND EGR HOLE | 14712-N4200 | FED | 1 | |||||
| 33 | BOLT-HEX. | 08110-81662 | FED | 2 | |||||
| 34 | ASSY VALVE EGR CONTR | 14710-N4311 | CAL AUTOMATIC | 1 | |||||
| 34 | ASSY-VALVE EGR CONTR | 14710-N4301 | CAL MANUAL | 1 | |||||
| 35 | GASKET-EGR C/V | 14719-N3301 | CAL | 1 | |||||
| 36 | WASHER-SPRING | 08915-13810 | CAL | 2 | |||||
| 37 | NUT-HEX. | 08911-10810 | CAL | 2 | |||||
| 38 | VALVE-VACUUM SWITCH | 14956-U6700 | CAL | 1 | |||||
| 38 | VALVE-VACUUM SWITCH | 14956-U6701 | CAL | 1 | Yes | Yes | 14956-U6700 | ||
| 38 | VALVE-VACUUM SWITCH | 14956-U6705 | CAL | 1 | |||||
| 39 | BRACKET-VACUUM SWITC | 14957-N4300 | CAL | 1 | |||||
| 40 | SCREW-WITH WASHER | 08360-51014 | CAL | 2 | |||||
| 41 | SCREW-WITH WASHER | 08110-61262 | CAL | 2 | |||||
| 42 | ASSY-TUBE VACUUM | 14732-N4300 | CAL | 7507 | 1 | ||||
| 42 | ASSY-TUBE VACUUM | 14732-Y6400 | CAL | 7508 | 1 | Yes | Yes | 14732-N4300 | |
| 43 | partNumber | TUBE-VACUUM L=120 | |||||||
| 43 | partNumber | 22320-U9800 | CAL | 7508 | 1 | ||||
| 43 | partNumber | TUBE-VACUUM L=140 | |||||||
| 43 | partNumber | 22320-N4203 | CAL | 7507 | 1 | ||||
| 44 | partNumber | TUBE-VACUUM L=100 | |||||||
| 44 | partNumber | 22320-N4202 | CAL | 2 | |||||
| 45 | TUBE-VACUUM L=55 | 14731-F2000 | CAL | 1 | |||||
| 46 | BOLT-WITH WASHER | 08110-81662 | CAL | 1 | |||||
| 47 | ASSY-TUBE EGR | 14120-N4301 | CAL | 1 | |||||
| 48 | CONNECTOR-PLUG | 47475-E4101 | 1 | ||||||
| 49 | ASSY-CONNECTOR VAC T | 31062-N4200 | AUTOMATIC | 1 | |||||
| 49 | CONNECTOR-PLUG | 27614-78200 | OP.MANUAL | 1 | |||||
| 50 | CAP-CONNECTOR | 47479-U0500 | AUTOMATIC | 1 | |||||
| 51 | TUBE-VACUUM (5) | B2320-Y4000 | 0 |
