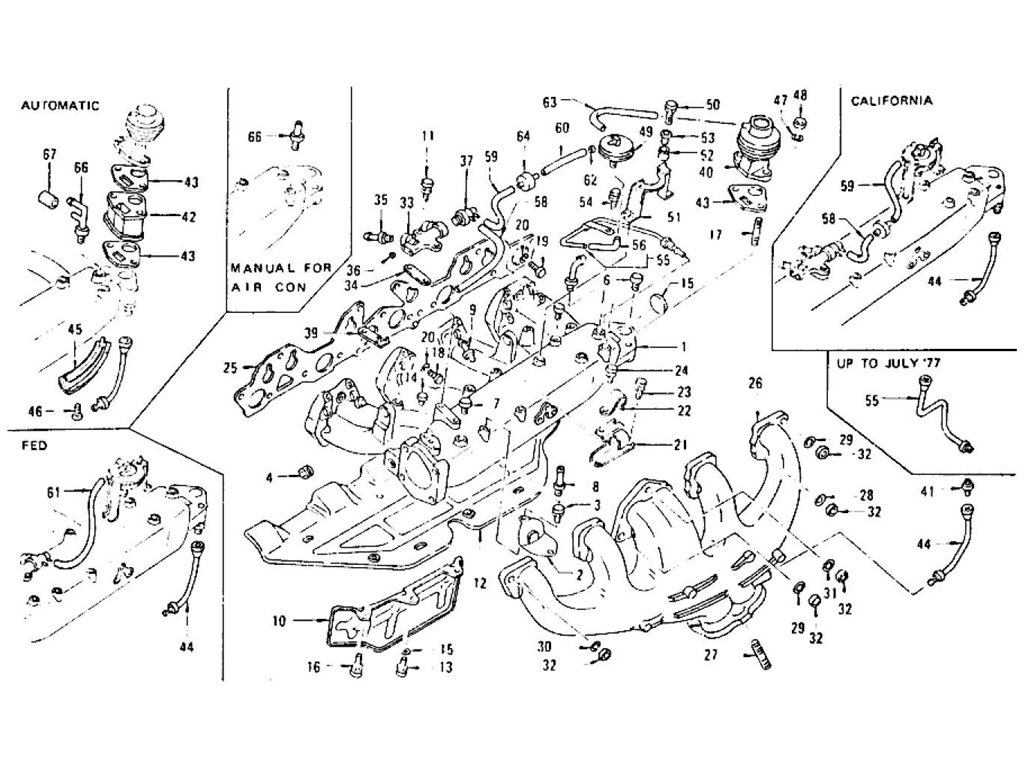

Manifold, Egr. L28E (From Aug.-'76)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MANIFOLD-INTAKE | 14003-N4700 | 1 | ||||||
| 1 | MANIFOLD-INTAKE | 14003-N4710 | 7708 | 1 | Yes | Yes | 14003-N4700 | ||
| 2 | PLATE-BLIND | 14332-N4710 | USA | 7708 | 1 | ||||
| 3 | ═CREW-MACHINE WITH W | 08310-51026 | USA | 7708 | 2 | ||||
| 4 | PLUG-BLIND | 11048-14604 | 8 | ||||||
| 5 | PLUG-WELCH 35 | 00933-13500 | 1 | ||||||
| 5 | PLUG-WELCH 35 | 01648-00084 | 1 | Yes | Yes | 00933-13500 | |||
| 6 | PLUG-TAPER 1/4 PT | 08931-30410 | 2 | ||||||
| 7 | PLUG-TAPER 1/8 PT | 08931-30210 | 1 | ||||||
| 8 | CONNECTOR-STRAIGHT | 14875-A3000 | 1 | ||||||
| 9 | CONNECTOR-STRAIGHT | 01691-00041 | 1 | ||||||
| 10 | PLATE-HEAT SUB | 14331-N4700 | 7612 | 1 | |||||
| 10 | PLATE-HEAT SUB | 14331-U8760 | 7612 | 1 | Yes | Yes | 14331-N4700 | ||
| 10 | PLATE-HEAT SUB | 14331-N4201 | 7701 | 1 | No | No | 14331-N4700 | ||
| 11 | SCREW-WITH WASHER | 08360-61226 | 2 | ||||||
| 12 | PLATE-HEAT SHIELD | 14330-U8700 | 1 | ||||||
| 13 | BOLT-HEX | 08110-81210 | 6 | ||||||
| 14 | PLUG-TAPER 3/8 PT | 08931-30610 | 1 | ||||||
| 16 | SCREW-WITH WASHER | 08360-61226 | 2 | ||||||
| 17 | STUC | 08214-86010 | 2 | ||||||
| 18 | BOLT-HEX | 08134-03210 | 2 | ||||||
| 19 | BOLT-HEX | 08134-04510 | 2 | ||||||
| 20 | WASHER-MANIFOLD BOLT | 11058-21001 | 4 | ||||||
| 21 | SUPPORT-EGI HARNESS | 24136-N4201 | 7704 | 1 | |||||
| 22 | HOLDER-EGI HARNESS | 24018-N4201 | 1 | ||||||
| 23 | SCREW-MACHINE | 08360-61214 | 2 | ||||||
| 24 | SCREW-WITH WASHER | 08360-51414 | 1 | ||||||
| 25 | GASKET-MANIFOLD | 14035-N4700 | 7806 | 1 | |||||
| 25 | GASKET-MANIFOLD | 14035-P7100 | 7807 | 1 | 14035-N4700 | ||||
| 26 | MANIFOLD-EXHAUST | 14004-N4700 | 7804 | 1 | |||||
| 26 | MANIFOLD-EXHAUST | 14004-N4710 | 7805 | 7806 | 1 | Yes | Yes | 14004-N4700 | |
| 26 | MANIFOLD-EXHAUST | 14004-P7100 | 7807 | 1 | 14004-N4710 | ||||
| 27 | STUD-EXHAUST TUBE FI | 14064-N4200 | 3 | ||||||
| 28 | YOKE-MANIFOLD | 14037-N3600 | 6 | ||||||
| 29 | WASHER-PLAIN | 08915-53810 | 2 | ||||||
| 30 | WASHER-SPRING | 08915-13810 | 1 | ||||||
| 31 | WASHER-PLAIN | 01311-00131 | 1 | Yes | Yes | 14037-E3000 | |||
| 31 | WASHER-PLAIN | 14037-E3000 | 1 | ||||||
| 32 | NUT-HEX. | 08911-10810 | 11 | ||||||
| 33 | ASSY-HOUSING | 14062-U7800 | 1 | ||||||
| 33 | HOUSING ASSY HEATER | 14062-N4700 | 7706 | 1 | No | No | 14062-U7800 | ||
| 34 | GASKET-HEATER HOUSIN | 14064-U9800 | 1 | ||||||
| 35 | CONNECTOR-STRIGHT | 14875-A8600 | 2 | ||||||
| 36 | PLUG-WELCH | 32139-18000 | 2 | ||||||
| 37 | THERMAL VACUUM VALVE | 14890-U7800 | 1 | ||||||
| 37 | VALVE ASSY THERMAL V | 14890-U8700 | 7706 | 1 | 14890-U7800 | ||||
| 38 | NUT-HEX. | 08931-30210 | 1 | ||||||
| 39 | CLAMP-EGI HARNESS | 24210-U9800 | 1 | ||||||
| 40 | ASSY-VALVE EGR CONTR | 14710-N4705 | 7707 | 1 | |||||
| 40 | ASSY-VALVE EGR CONTR | 14710-N7600 | 7708 | 1 | |||||
| 41 | CONNECTOR-STRAIGHT | 14123-N5800 | 1 | ||||||
| 42 | SPACER-EGR VALVE | 14717-N4700 | AUTOMATIC | 1 | |||||
| 43 | GASKET-EGR C/V | 14719-N3301 | 1 | ||||||
| 43 | GASKET-EGR C/V | 14719-N3301 | AUTOMATIC | 2 | |||||
| 44 | ASSY-TUBE EGR | 14120-N4702 | CAL | 1 | |||||
| 44 | ASSY-TUBE EGR | 14120-N4701 | FED | 1 | |||||
| 45 | ASSY-COVER EGR TUBE | 14125-N4700 | AUTOMATIC | 1 | |||||
| 46 | SCREW-MACHINE | 08310-62012 | AUTOMATIC | 1 | |||||
| 47 | WASHER-SPRING | 08915-13810 | 2 | ||||||
| 48 | HUT-HEX. | 08911-10810 | 2 | ||||||
| 49 | ASSY-BPT VALVE | 14741-U8710 | 7708 | 1 | 14741-H8216 | ||||
| 49 | ASSY-BPT VALVE (ATSU | 14741-H8211 | 7707 | 1 | |||||
| 49 | ASSY-BPT VALVE (HITA | 14741-H8206 | 7707 | 1 | |||||
| 49 | ASSY-BPT VALVE (HITA | 14741-H8216 | 7707 | 1 | Yes | Yes | 14741-H8206 | ||
| 50 | SCREW | 08360-52014 | 2 | ||||||
| 51 | BRACKET-BPT VALVE | 14745-Y6400 | 1 | ||||||
| 52 | RUBBER-MOUNTING | 14746-H8201 | 2 | ||||||
| 53 | COLLOR-MOUNTING RUBB | 14747-H8200 | 2 | ||||||
| 54 | SCREW-WITH SPRING WA | 08360-61214 | 2 | ||||||
| 55 | ASSY-TUBE BPT | 14751-U7801 | 7707 | 1 | |||||
| 55 | ASSY-TUBE BPT | 14750-N7600 | 7708 | 1 | 14751-U7801 | ||||
| 56 | HOSE | 14754-N7601 | 7708 | 1 | |||||
| 57 | ASSY-HEAT SHIELD PLA | 14718-N4700 | 1 | ||||||
| 58 | partNumber | TUBE-VACUUM L=320 | TV | ||||||
| 58 | 02141-332W0 | TUBE-VACUUM L=350 | TV | ||||||
| 58 | 02141-332W0 | 22311-U8700 | 7706 | 1 | No | No | 02141-332W0 | ||
| 59 | partNumber | TUBE VACCUM L=130 | |||||||
| 59 | partNumber | 22311-N4703 | CAL | 7701 | 1 | No | No | 22311-N4700 | |
| 59 | partNumber | TUBE-VACUUM L=135 | TV | ||||||
| 59 | partNumber | 22318-U9610 | CAL | 7612 | 1 | ||||
| 59 | partNumber | TUBE-VACUUM L=180 | TV | ||||||
| 59 | partNumber | 22311-N4700 | CAL | 7612 | 1 | No | No | 22311-U9610 | |
| 60 | TUBE-VACUUM L=70 | 22315-B8001 | CAL | 1 | |||||
| 61 | partNumber | TUBE-VACUUM L=230 | TV | ||||||
| 61 | partNumber | 22314-H7400 | FED | 1 | |||||
| 61 | partNumber | 22311-N4702 | FED | 7612 | 1 | Yes | Yes | 22318-N4700 | |
| 61 | partNumber | 22318-N4700 | FED | 7612 | 1 | No | No | 22314-H7400 | |
| 62 | partNumber | ORIFICE = 100 | |||||||
| 62 | partNumber | 16335-H8200 | 1 | ||||||
| 63 | partNumber | TUBE-VACUUM L=170 | B | ||||||
| 63 | partNumber | 22311-N4700 | 1 | ||||||
| 64 | VACUUM DELAY VALVE | 14958-U6700 | 1 | ||||||
| 65 | partNumber | TUBE-VACUUM L=5000 | |||||||
| 65 | partNumber | B2318-73002 | 0 | ||||||
| 66 | ASSY-CONNECTOR VAC T | 31062-N4200 | AUTOMATIC | 1 | |||||
| 66 | CONNECTOR-PLUG | 27614-78200 | OP.MANUAL | 1 | |||||
| 67 | CAP-CONNECTOR | 47479-U0500 | AUTOMATIC | 1 |
