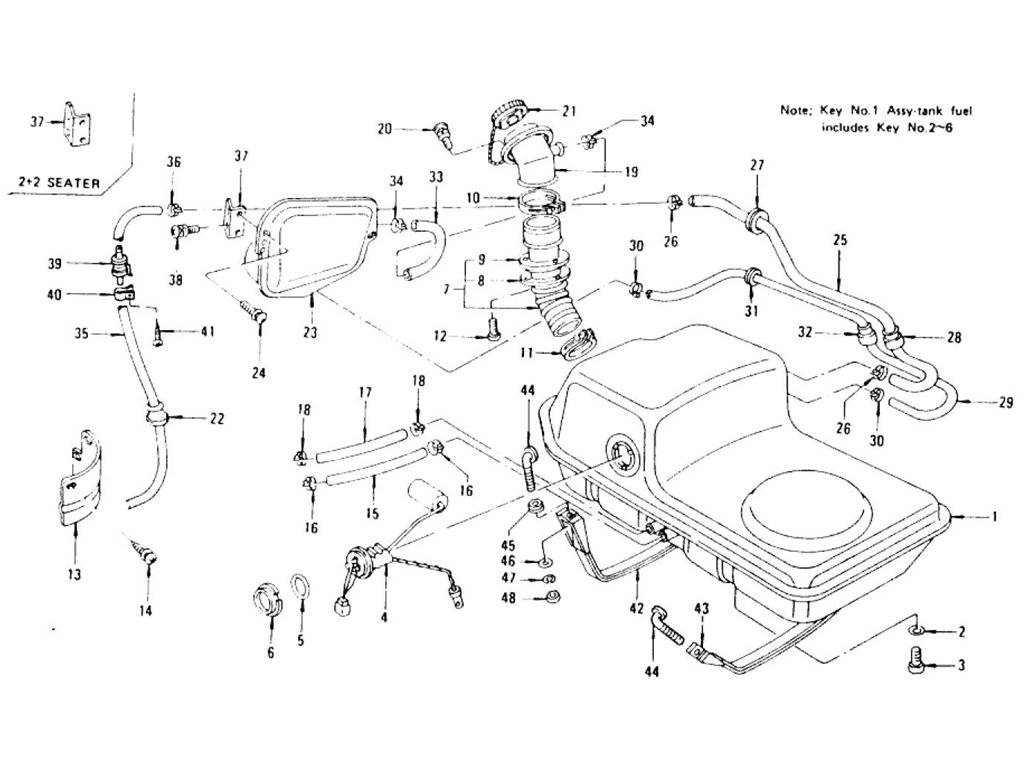

To Jul.-'76 Fuel Tank L28E (To Jul.-'76)
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | ASSY-TANK | 17201-N4200 | | | 7507 | 1 | | | |
|
1 | ASSY-TANK | 17201-N4201 | | 7508 | | 1 | Yes | Yes | 17201-N4200 |
|
2 | PACKING-DRAIN | 17312-H1000 | | | | 1 | | | |
|
3 | PLUG-DRAIN | 17310-H1000 | | | | 1 | | | |
|
4 | UNIT-GAUGE FUEL TAN | 25060-N4201 | | | 7507 | 1 | | | |
|
4 | UNIT-GAUGE FUEL TAN | 25060-N4202 | | 7508 | | 1 | Yes | Yes | 25060-N4201 |
|
5 | RING-"O" | 17342-18000 | | | | 1 | | | |
|
6 | PLATE-LOCK GAUGE | 17343-14800 | | | | 1 | | | |
|
6 | PLATE-LOCK GAUGE | 17343-14801 | | | | 1 | Yes | Yes | 17343-14800 |
|
7 | ASSY-HOSE | 17208-N4500 | | | | 1 | | | |
|
8 | PLATE-FILLER HOSE GR | 17311-E8700 | | | | 1 | | | |
|
9 | GROMMET-FILLER HOSE | 17312-E8700 | | | | 1 | | | |
|
10 | CLAMP-HOSE | 01557-00013 | | | | 1 | | | |
|
11 | CLAMP-HOSE | 08723-17200 | | | | 1 | | | |
|
12 | SCREW-MACHINE | 01431-00043 | | | | 3 | | | |
|
13 | PROTECTOR-FILLER HOS | 17270-N3400 | | | | 1 | | | |
|
14 | SCREW-TAPPING | 08510-41223 | | | | 4 | | | |
|
15 | HOSE-FUEL RETURN | 08742-20030 | | | 7608 | 1 | | | |
|
15 | HOSE-FUEL RETURN | 17548-N4206 | | 7609 | | 1 | Yes | Yes | 08742-20030 |
|
16 | CLAMP-HSOE | 08723-11600 | | | | 2 | | | |
|
17 | HOSE-FUEL TANK TO PU | 17545-N4200 | | | 7608 | 1 | | | |
|
17 | HOSE-FUEL TANK TO PU | 17545-N4201 | | 7609 | | 1 | Yes | Yes | 17545-N4200 |
|
18 | CLAMP-HOSE | 08723-12200 | | | | 2 | | | |
|
19 | ASSY-TUBE FILLER UPP | 17220-N4300 | CAL 2 SEATER | | | 1 | | | |
|
19 | ASSY-TUBE FILLER UPP | 17220-N4301 | CAL 2+2 SEATER | | | 1 | | | |
|
19 | ASSY-TUBE FILLER UPP | 17220-N4500 | FED 2 SEATER | | | 1 | | | |
|
19 | ASSY-TUBE FILLER UPP | 17220-N4520 | FED 2+2 SEATER | | | 1 | | | |
|
20 | SCREW-MACHINE | 08313-61626 | | | | 4 | | | |
|
21 | ASSY-CAP FILLER | 17251-N4500 | | | | 1 | | | |
|
21 | ASSY-CAP FILLER | 17251-N4501 | | | | 1 | Yes | Yes | 17251-N4500 |
|
22 | GROMMET | 17384-N3700 | | | | 1 | | | |
|
23 | ASSY-TANK RESERVOIR | 17350-N4500 | | | | 1 | | | |
|
24 | SCREW-MACHINE | 01431-00093 | | | | 3 | | | |
|
25 | HOSE-BREATHER F/T TO | 17236-N4500 | | | | 1 | | | |
|
25 | HOSE-BREATHER F/T TO | 17236-N4501 | | | | 1 | Yes | Yes | 17236-N4500 |
|
26 | CLAMP-HOSE | 08723-12400 | | | | 2 | | | |
|
27 | 44808-6501P | 17386-N4220 | 2+2 SEATER | | | 1 | | | |
|
28 | GROMMET-FLOOR | 17241-E4100 | | | | 1 | | | |
|
29 | HOSE-BREATHER F/T TO | 17237-N4500 | | | | 1 | | | |
|
30 | CLAMP-HOSE | 08723-11400 | | | | 2 | | | |
|
31 | 06111-1800P | 17385-N4220 | 2+2 SEATER | | | 1 | | | |
|
32 | GROMMET-FLOOR | 17241-N4500 | | | | 1 | | | |
|
33 | HOSE-BREATHER NECK T | 17235-N4500 | | | | 1 | | | |
|
33 | HOSE-BREATHER NECK T | 17235-N4501 | | | | 1 | | | |
|
34 | CLAMP-HOSE | 08723-12400 | | | | 2 | | | |
|
35 | HOSE-EVAPO | 08742-20020 | | | | 1 | | | |
|
36 | CLAMP-HOSE | 08723-11400 | | | | 2 | | | |
|
37 | ASSY-BRACKET R/T MTG | 78124-N4500 | 2 SEATER | | | 1 | | | |
|
37 | ASSY-BRACKET R/T MTG | 78124-N4520 | 2+2 SEATER | | | 1 | | | |
|
38 | SCREW-MACHINE | 08313-61626 | | | | 2 | | | |
|
39 | ASSY-UNIT | 17331-N4200 | | 7508 | | 1 | | | |
|
40 | CLIP-HOSE | 17333-N4200 | | 7508 | | 1 | | | |
|
41 | SCREW-MACHINE | 08360-61414 | | 7508 | | 2 | | | |
|
42 | ASSY-BAND FUEL TANK | 17410-N4500 | | | | 1 | | | |
|
43 | ASSY-BAND FUEL TANK | 17405-N4500 | | | | 1 | | | |
|
44 | BOLT-FUEL TANK MTG | 17415-N3400 | | | | 2 | | | |
|
45 | NUT-FLANGE | 01221-00053 | | | | 2 | | | |
|
46 | WASHER-PLAIN | 08915-54010 | | | | 2 | | | |
|
47 | WASHER-SPRING | 08915-14010 | | | | 2 | | | |
|
48 | NUT | 08911-24010 | | | | 2 | | | |
