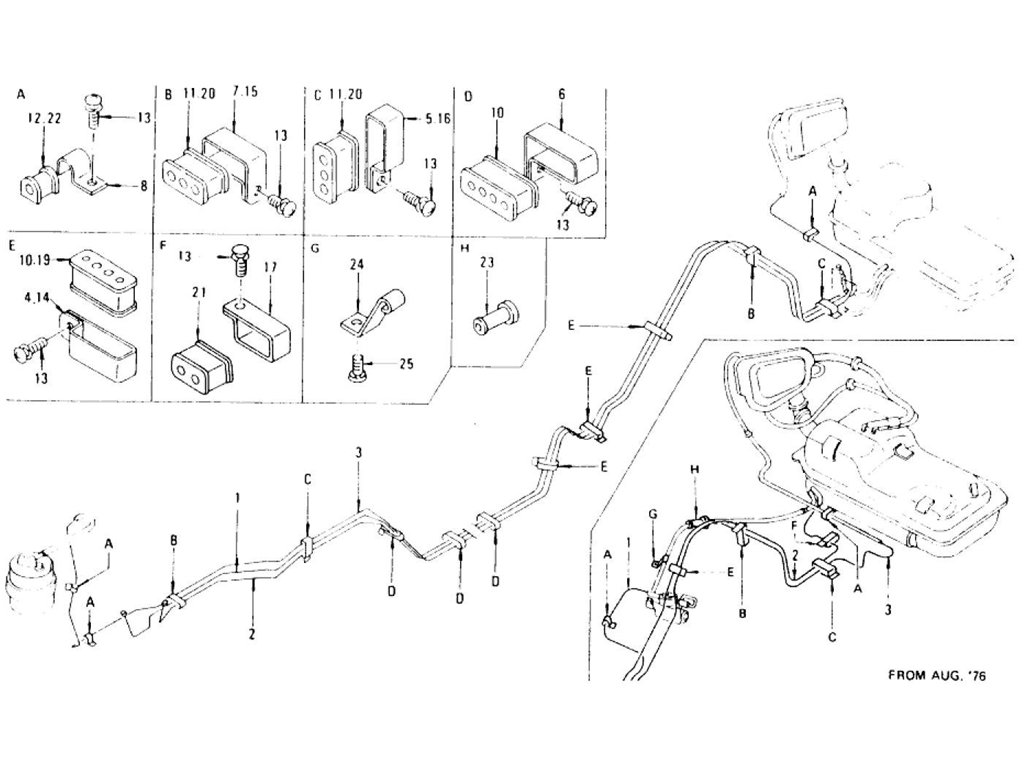

Fuel Piping Fuel Piping L28E
Parts List Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
1 | TUBE-FUEL | 17501-N4500 | 2 SEATER | | 7507 | 1 | | | |
1 | TUBE-FUEL | 17501-N4501 | 2 SEATER | 7508 | 7607 | 1 | No | No | 17501-N4500 |
1 | TUBE-FUEL | 17501-N4702 | 2 SEATER | 7608 | 7612 | 1 | No | No | 17501-N4501 |
1 | TUBE-FUEL | 17501-N4703 | 2 SEATER | 7701 | | 1 | No | No | 17501-N4702 |
1 | TUBE-FUEL | 17501-N4520 | 2+2 SEATER | | 7507 | 1 | | | |
1 | TUBE-FUEL | 17501-N4521 | 2+2 SEATER | 7508 | 7607 | 1 | No | No | 17501-N4520 |
1 | TUBE-FUEL | 17501-N4712 | 2+2 SEATER | 7608 | 7612 | 1 | No | No | 17501-N4521 |
1 | TUBE-FUEL | 17501-N4713 | 2+2 SEATER | 7701 | | 1 | No | No | 17501-N4712 |
2 | TUBE-FUEL RETURN | 17510-N4500 | 2 SEATER | | 7507 | 1 | | | |
2 | TUBE-FUEL RETURN | 17510-N4501 | 2 SEATER | 7508 | 7607 | 1 | No | No | 17510-N4500 |
2 | TUBE-FUEL RETURN | 17510-N4702 | 2 SEATER | 7608 | 7612 | 1 | No | No | 17510-N4501 |
2 | TUBE-FUEL RETURN | 17510-N4703 | 2 SEATER | 7701 | | 1 | No | No | 17510-N4702 |
2 | TUBE-FUEL RETURN | 17510-N4520 | 2+2 SEATER | | 7507 | 1 | | | |
2 | TUBE-FUEL RETURN | 17510-N4521 | 2+2 SEATER | 7508 | 7607 | 1 | No | No | 17510-N4520 |
2 | TUBE-FUEL RETURN | 17510-N4712 | 2+2 SEATER | 7608 | 7612 | 1 | No | No | 17510-N4521 |
2 | TUBE-FUEL RETURN | 17510-N4713 | 2+2 SEATER | 7701 | | 1 | No | No | 17510-N4712 |
3 | TUBE-EVAPO | 17361-N4500 | 2 SEATER | | 7507 | 1 | | | |
3 | TUBE-EVAPO | 17361-N4205 | 2 SEATER | 7508 | 7607 | 1 | No | No | 17361-N4500 |
3 | TUBE-EVAPO | 17361-N4702 | 2 SEATER | 7608 | | 1 | No | No | 17361-N4205 |
3 | TUBE-EVAPO | 17361-N4520 | 2+2 SEATER | | 7507 | 1 | | | |
3 | TUBE-EVAPO | 17361-N4225 | 2+2 SEATER | 7508 | 7607 | 1 | No | No | 17361-N4520 |
3 | TUBE-EVAPO | 17361-N4712 | 2+2 SEATER | 7608 | | 1 | No | No | 17361-N4225 |
4 | CLAMP-TUBE | 17551-N4500 | | | | 2 | | | |
5 | CLAMP TUBE | 17552-N4500 | | | | 2 | | | |
6 | CLAMP TUBE | 17553-N4500 | | | | 5 | | | |
7 | CLAMP TUBE | 17554-N4500 | | | | 2 | | | |
8 | CLAMP TUBE | 46352-N4500 | | | | 3 | | | |
9 | ASSY CLAMP TUBE | 17558-N4500 | | | | 1 | | | |
10 | RUBBER CLAMP TUBE | 17561-N4500 | | | | 8 | | | |
11 | RUBBER CLAMP TUBE | 17563-N4500 | | | | 4 | | | |
12 | RUBBER CLAMP TUBE | 46361-E4600 | | | | 3 | | | |
13 | SCREW MACHINE | 08360-61414 | | | | 15 | | | |
14 | CLAMP TUBE | 17551-N4701 | | 7608 | | 1 | | | |
15 | CLAMP TUBE | 17571-U6801 | | 7608 | | 1 | | | |
16 | CLAMP TUBE | 17571-U6800 | | 7608 | | 1 | | | |
17 | CLAMP TUBE | 17554-N4701 | | 7608 | | 1 | | | |
18 | CLIP | 17571-U8600 | | 7608 | | 1 | | | |
19 | RUBBER CLAMP TUBE | 17561-N4702 | | 7608 | | 1 | | | |
20 | RUBBER CLAMP TUBE | 17562-N4702 | | 7608 | | 1 | | | |
21 | INSULATOR BRAKE TUBE | 17545-P0600 | | 7608 | | 1 | | | |
22 | GROMMET FUEL HOSE | 17286-N4700 | | 7608 | | 1 | | | |
23 | CLAMP FUEL HOSE | 17557-N4700 | | 7608 | | 1 | | | |
24 | SCRFEW MACHINE | 08360-62014 | | 7608 | | 1 | | | |
