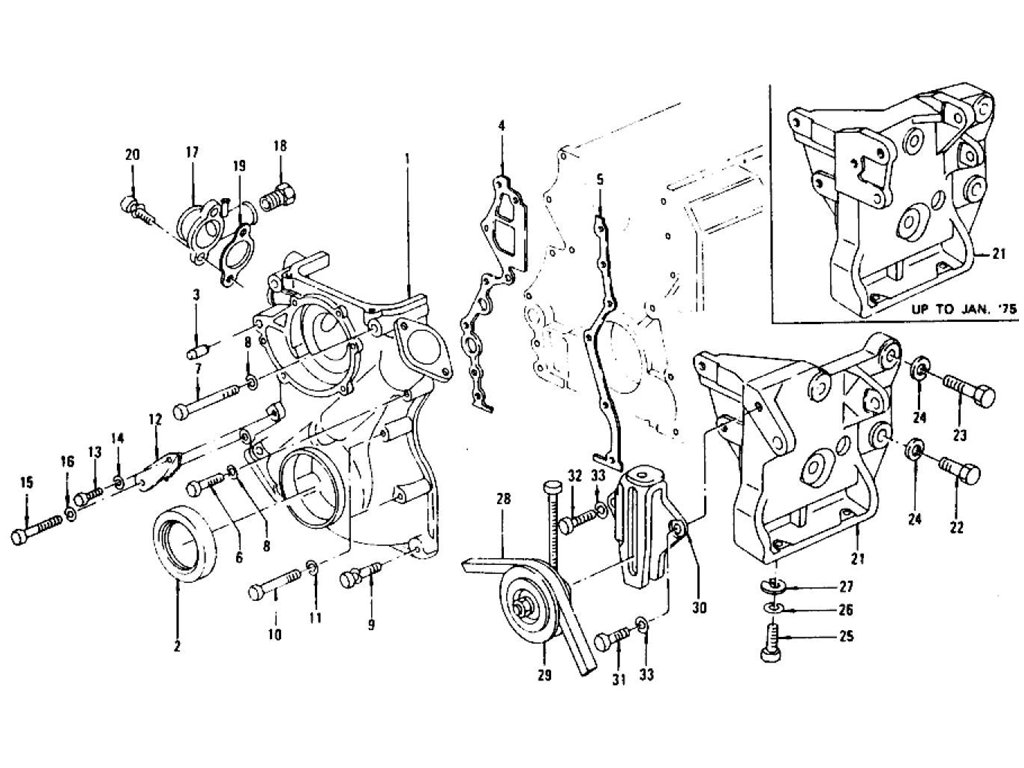

Front Cover & Compressor Mounting Front Cover & Compressor Mounting L28E
Parts List Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
1 | COVER-ENGINE FRONT | 13501-A8600 | | | | 1 | | | |
2 | SEAL-OIL CRANK SHAFT | 13042-A8600 | | | | 1 | | | |
3 | DOWEL-CYLINDER HEAD | 11046-73402 | | | | 2 | | | |
4 | GASKET-FRONT COVER R | 13520-P0100 | | | | 1 | | | |
5 | GASKET-FRONT COVER L | 13521-P0100 | | | | 1 | | | |
6 | BOLT-HEX MB L=45 | 08110-84510 | | | | 1 | | | |
7 | BOLT-HEX MB L=78 | 13540-21001 | | | | 2 | | | |
8 | WASHER-SPRING LOCK M | 08915-13810 | | | | 3 | | | |
9 | BOLT-HEX WITH WASHER | 08110-62062 | | | | 2 | | | |
10 | BOLT-HEX | 08110-64210 | | | | 3 | | | |
11 | WASHER-SPRING | 08915-13610 | | | | 3 | | | |
12 | INDICATOR-TIMING | 13502-N3600 | | | | 1 | | | |
13 | SCREW-HEX | 08360-60812 | | | | 1 | | | |
14 | WASHER-SPRING | 08915-13610 | | | | 1 | | | |
15 | BOLT-TEX | 08010-87510 | | | | 1 | | | |
16 | WASHER-SPRING | 08915-13810 | | | | 1 | | | |
17 | INLET-WATER | 13049-U0100 | | | | 1 | | | |
17 | INLET-WATER | 13049-Y4000 | | | 7605 | 1 | Yes | Yes | 13049-U0100 |
17 | INLET-WATER | 13048-Y4005 | | 7606 | | 1 | | | 13049-Y4000 |
18 | CONNECTOR-INLET | 01691-00091 | | 7606 | | 1 | | | |
19 | GASKET-WATER INLET | 13050-21000 | | | | 1 | | | |
20 | BOLT-HEX | 08110-82862 | | | | 2 | | | |
21 | BRACKET-COMPRESSOR | 11910-N3601 | OP.FOR AIR CON | | 7501 | 1 | | | |
21 | BRACKET-COMPRESSOR | 11910-N4200 | OP.FOR AIR CON | 7502 | | 1 | No | No | 11910-N3601 |
22 | BOLT-HEX M10X1.5 | 08131-03810 | OP.FOR AIR CON | | | 2 | | | |
23 | BOLT-HEX. M10X1.5 | 08131-05010 | OP.FOR AIR CON | | | 2 | | | |
24 | WASHER-SPRING M10 | 08915-14010 | OP.FOR AIR CON | | | 4 | | | |
25 | BOLT-HEX M10X1.5 | 08131-03010 | OP.FOR AIR CON | | | 4 | | | |
26 | WASHER-SPRING M10 | 08915-14010 | OP.FOR AIR CON | | | 4 | | | |
27 | SHIM-ALTERNATOR | 11713-U0500 | OP.FOR AIR CON | | | 0 | | | |
27 | SHIM-ALTERNATOR | 11713-U0501 | OP.FOR AIR CON | | | 0 | | | |
28 | BELT-COMPRESSOR L-91 | 11920-N3600 | OP.FOR AIR CON | | | 1 | | | |
29 | ASSY-PULLEY IDLER | 11925-U6000 | OP.FOR AIR CON | | | 1 | | | |
30 | BRACKET-PULLEY IDLER | 11926-U6000 | OP.FOR AIR CON | | 7501 | 1 | | | |
30 | BRACKET-PULLEY IDLER | 11926-Y4000 | OP.FOR AIR CON | 7502 | | 1 | No | No | 11926-U6000 |
31 | BOLT-TEX M8X1.25 | 08130-81610 | OP.FOR AIR CON | | | 1 | | | |
32 | BOLT-HEX M6X1.0 | 08130-62010 | OP.FOR AIR CON | | | 2 | | | |
33 | WASHER-SPRING | 08915-13610 | OP.FOR AIR CON | | | 2 | | | |
