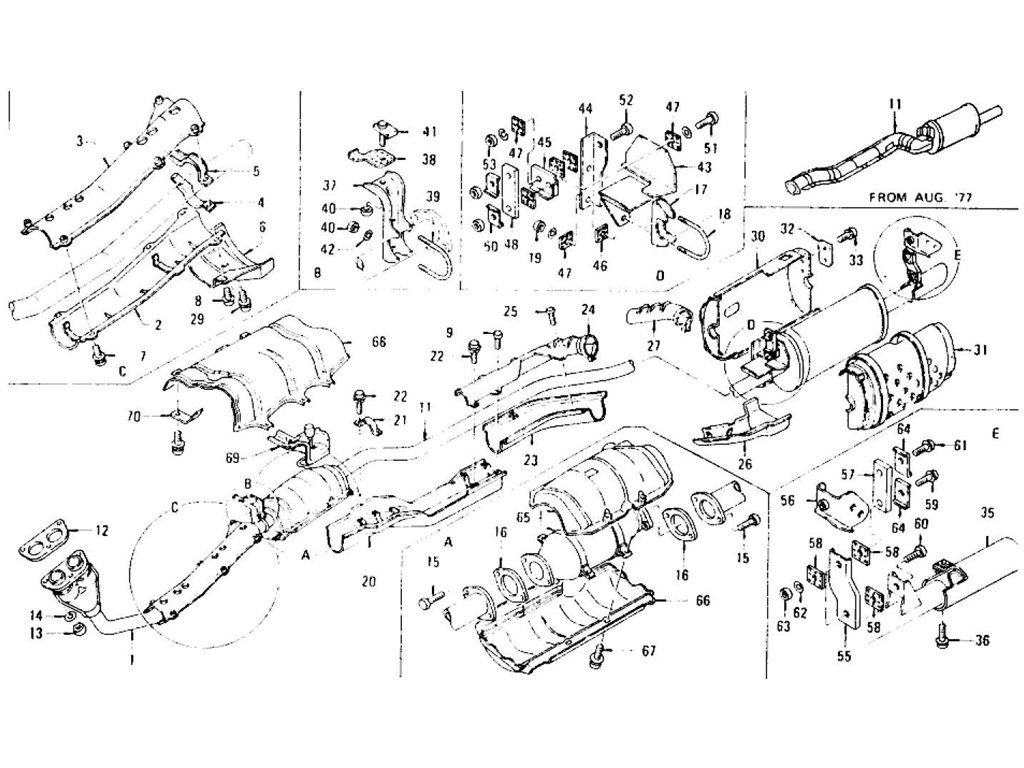

Exhaust Tube, Muffler & Catalyst Converter (Cal) L28E
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-TUBE | 20010-N4231 | 1 | ||||||
| 1 | ASSY-TUBE | 20011-N4200 | 1 | Yes | Yes | 20010-N4231 | |||
| 2 | ASSY-SHIELD EXHAUST | 20510-N4200 | 1 | ||||||
| 3 | ASSY-SHIELD EXHAUST | 20515-N4200 | 1 | ||||||
| 4 | CLAMP-EXHAUST HEAT F | 20517-N4200 | 1 | ||||||
| 5 | CLAMP-EXHAUST HEAT F | 20518-N4200 | 1 | ||||||
| 6 | SHIELD-EXHAUST HEAT | 20511-N4200 | 1 | ||||||
| 7 | BOLT-HEX | 08110-62025 | 4 | ||||||
| 8 | BOLT-HEX | 20846-N4300 | 2 | ||||||
| 9 | BOLT-HEX | 08110-62062 | 1 | ||||||
| 10 | WASHER-PLAIN | 08915-53610 | 1 | ||||||
| 11 | ASSY-MUFFLER W/EXHAU | 20100-N4301 | 2 SEATER | 1 | |||||
| 11 | ASSY-MUFFLER W/EXHAU | 20101-N4300 | 2 SEATER | 7507 | 1 | Yes | Yes | 20100-N4301 | |
| 11 | ASSY-MUFFLER W/EXHAU | 20101-N4310 | 2 SEATER | 7508 | 7602 | 1 | Yes | Yes | 20101-N4300 |
| 11 | ASSY-MUFFLER W/EXHAU | 20101-N4311 | 2 SEATER | 7603 | 7607 | 1 | No | No | 20101-N4310 |
| 11 | ASSY-MUFFLER W/EXHAU | 20101-N4800 | 2 SEATER | 7608 | 7707 | 1 | No | No | 20101-N4311 |
| 11 | ASSY-MUFFLER W/EXHAU | 20101-N7700 | 2 SEATER | 7708 | 1 | No | No | 20101-N4800 | |
| 11 | ASSY-MUFFLER W/EXHAU | 20100-N4306 | 2+2 SEATER | 1 | |||||
| 11 | ASSY-MUFFLER W/EXHAU | 20101-N4305 | 2+2 SEATER | 7507 | 1 | Yes | Yes | 20100-N4306 | |
| 11 | ASSY-MUFFLER W/EXHAU | 20101-N4315 | 2+2 SEATER | 7508 | 7602 | 1 | Yes | Yes | 20101-N4305 |
| 11 | ASSY-MUFFLER W/EXHAU | 20101-N4315 | 2+2 SEATER | 7603 | 1 | No | No | 20101-N4315 | |
| 11 | ASSY-MUFFLER W/EXHAU | 20101-N4810 | 2+2 SEATER | 7608 | 7707 | 1 | No | No | 20101-N4316 |
| 11 | ASSY-MUFFLER W/EXHAU | 20101-N7710 | 2+2 SEATER | 7708 | 1 | No | No | 20101-N4810 | |
| 12 | GASKET-EXHUST | 20711-N4200 | 1 | ||||||
| 13 | NUT-HEX. | 20602-N4200 | 7607 | 3 | |||||
| 13 | NUT-HEX. | 20602-F1700 | 7608 | 3 | Yes | Yes | 20602-N4200 | ||
| 14 | WASHER-PLAIN | 08915-44010 | 3 | ||||||
| 15 | BOLT-HEX. | 08194-03510 | 4 | ||||||
| 16 | GASKET-EXHAUST TUBE | 20712-H7300 | 7607 | 2 | |||||
| 16 | GASKET-EXHAUST TUBE | 20692-M3060 | 7608 | 2 | Yes | Yes | 20712-H7300 | ||
| 17 | ASSY-BRACKET EXHAUST | 20658-N4300 | 1 | ||||||
| 18 | BOLT-U | 20630-N4300 | 7607 | 1 | |||||
| 18 | BOLT-U | 20630-J2000 | 7608 | 1 | Yes | Yes | 20630-N4300 | ||
| 19 | NUT-HEX. | 08912-70810 | 2 | ||||||
| 20 | ASSY-SHIELD EXHAUST | 20521-N4301 | 2 SEATER | 7607 | 1 | ||||
| 20 | ASSY-SHIELD EXHAUST | 20521-N4800 | 2 SEATER | 7608 | 1 | No | No | 20521-N4301 | |
| 20 | ASSY-SHIELD EXHAUST | 20521-N4306 | 2+2 SEATER | 7607 | 1 | ||||
| 20 | ASSY-SHIELD EXHAUST | 20521-N4810 | 2+2 SEATER | 7608 | 1 | No | No | 20521-N4306 | |
| 21 | CLAMP-EXHAUT HEAT IN | 20551-N4300 | 3 | ||||||
| 22 | BOLT-HEX. | 08110-62025 | 8 | ||||||
| 23 | ASSY-SHIELD EXHAUST | 20522-N4301 | 1 | ||||||
| 24 | SHIELD-EXHAUST HEAT | 20532-N4301 | 1 | ||||||
| 25 | BOLT-HEX. | 08110-62025 | 3 | ||||||
| 26 | ASSY-SHIELD EXHAUST | 20523-N4301 | 1 | ||||||
| 27 | ASSY-SHIELD EXHAUST | 20531-N4351 | 1 | ||||||
| 28 | BOLT-HEX. | 08110-61625 | 1 | ||||||
| 29 | BOLT-HEX. | 08110-62025 | 1 | ||||||
| 30 | ASSY-INSULATOR MUFFL | 20541-N4330 | 1 | ||||||
| 31 | ASSY-INSULATOR MUFFL | 20542-N4350 | 1 | ||||||
| 32 | INSULATOR-HEAT MUFFL | 20549-N4300 | 1 | ||||||
| 33 | BOLT-HEX | 08110-61010 | 2 | ||||||
| 34 | BOLT-HEX | 08110-62562 | 2 | ||||||
| 35 | ASSY-DIFFUSER | 20350-N4300 | 7602 | 1 | |||||
| 35 | ASSY-DIFFUSER | 20350-N4600 | 7603 | 1 | No | No | 20350-N4300 | ||
| 36 | BOLT-HEX. | 08110-82062 | 7607 | 1 | |||||
| 36 | NUT-HEX. | 08911-10610 | 7608 | 1 | |||||
| 37 | BRACKET-EXHAUST MTG | 20651-N4200 | 1 | ||||||
| 38 | INSULATOR-EXHAUST MT | 20623-N4205 | 7607 | 1 | |||||
| 38 | INSULATOR-EXHAUST MT | 20623-N4221 | 7608 | 1 | Yes | Yes | 20623-N4205 | ||
| 39 | BOLT-U | 20630-N4300 | 7607 | 1 | |||||
| 39 | BOLT-U | 20630-J2000 | 7608 | 1 | Yes | Yes | 20630-N4300 | ||
| 40 | NUT-SELF LOCK HEX. | 08912-70810 | 3 | ||||||
| 41 | BOLT-HEX. SPECIAL | 20655-N4200 | 7607 | 1 | |||||
| 41 | BOLT-HEX. SPECIAL | 20655-N4201 | 7608 | 1 | Yes | Yes | 20655-N4200 | ||
| 42 | WASHER-PLAIN | 08915-53810 | 2 | ||||||
| 43 | INSULATOR-HEAT FRONT | 20619-N4300 | 1 | ||||||
| 44 | BRACKET-OUTSIDE EXHA | 20657-N4300 | 1 | ||||||
| 45 | JOINT-EXHAUST MTG | 20659-N4200 | 7607 | 1 | |||||
| 45 | JOINT-EXHAUST MTG | 20659-N4201 | 7608 | 1 | Yes | Yes | 20659-N4200 | ||
| 46 | SPACER-MOUNTING | 20625-N4300 | 2 | ||||||
| 47 | SPACER-MOUNTING | 20625-N4200 | 7 | ||||||
| 48 | STRAP-EXHAUST HANGER | 20636-N3400 | 7607 | 1 | |||||
| 48 | STRAP-EXHAUST HANGER | 20636-N4600 | 7608 | 1 | Yes | Yes | 20636-N3400 | ||
| 49 | SHIELD-HEAT EXHAUST | 20618-N4200 | 1 | ||||||
| 50 | WASHER-PLAIN | 20641-N3400 | 2 | ||||||
| 51 | BOLT-HEX. MB | 08110-83510 | 1 | ||||||
| 52 | BOLT-HEX. MB | 08110-83010 | 1 | ||||||
| 53 | NUT-HEX. | 08912-70810 | 2 | ||||||
| 54 | WASHER-PLAIN | 08915-53810 | 4 | ||||||
| 55 | JOINT-REAR EXHUST MT | 20635-N4202 | 1 | ||||||
| 56 | BODY-REAR EXHAUST MT | 20692-N4201 | 1 | ||||||
| 57 | STRAP-EXHAUST HANGER | 20636-N3400 | 7607 | 1 | |||||
| 57 | STRAP-EXHAUST HANGER | 20636-N4600 | 7608 | 1 | Yes | Yes | 20636-N3400 | ||
| 58 | SPACER-MOUNTING | 20625-N4200 | 4 | ||||||
| 59 | BOLT-HEX. M8X1.25 | 08110-83510 | 1 | ||||||
| 60 | BOLT-HEX. M8X1.25 | 08110-82510 | 1 | ||||||
| 61 | BOLT-HEX. M8X1.25 | 08110-83062 | 1 | ||||||
| 62 | WASHER-PLAIN | 08915-53810 | 2 | ||||||
| 63 | NUT-SELF LOCK HEX | 08912-70810 | 3 | ||||||
| 64 | WASHER-PLAIN | 20641-N3400 | 2 | ||||||
| 65 | CONVERTER-CATALYST W | 20802-N4300 | 7504 | 1 | |||||
| 65 | CONVERTER-CATALYST W | 20802-N4302 | 7505 | 7603 | 1 | No | No | 20802-N4300 | |
| 65 | CONVERTER-CATALYST W | 20802-N4395 | 7604 | 7607 | 1 | Yes | Yes | 20802-N4302 | |
| 65 | CONVERTER-CATALYST W | 20802-N4800 | 7608 | 7707 | 1 | No | No | 20802-N4395 | |
| 65 | CONVERTER-CATALYST W | 20802-U8700 | 7708 | 1 | No | No | 20802-N4800 | ||
| 66 | SHELTER-CONVERTER LO | 20851-N4301 | 7504 | 1 | |||||
| 66 | SHELTER-CONVERTER LO | 20851-N4302 | 7505 | 7603 | 1 | No | No | 20851-N4301 | |
| 66 | SHELTER-CONVERTER LO | 20851-N4395 | 7604 | 7607 | 1 | Yes | Yes | 20851-N4302 | |
| 66 | SHELTER-CONVERTER LO | 20851-N4800 | 7608 | 1 | No | No | 20851-N4395 | ||
| 67 | BOLT-HEX. | 08120-62025 | 4 | ||||||
| 68 | ASSY-INSULATOR HEAT | 74661-N4300 | 1 | ||||||
| 69 | PROTECTOR-CAT WIRE | 74665-N4301 | 7504 | 1 | |||||
| 70 | BRACKET-HEAT INSULAT | 74663-N4300 | 4 |
