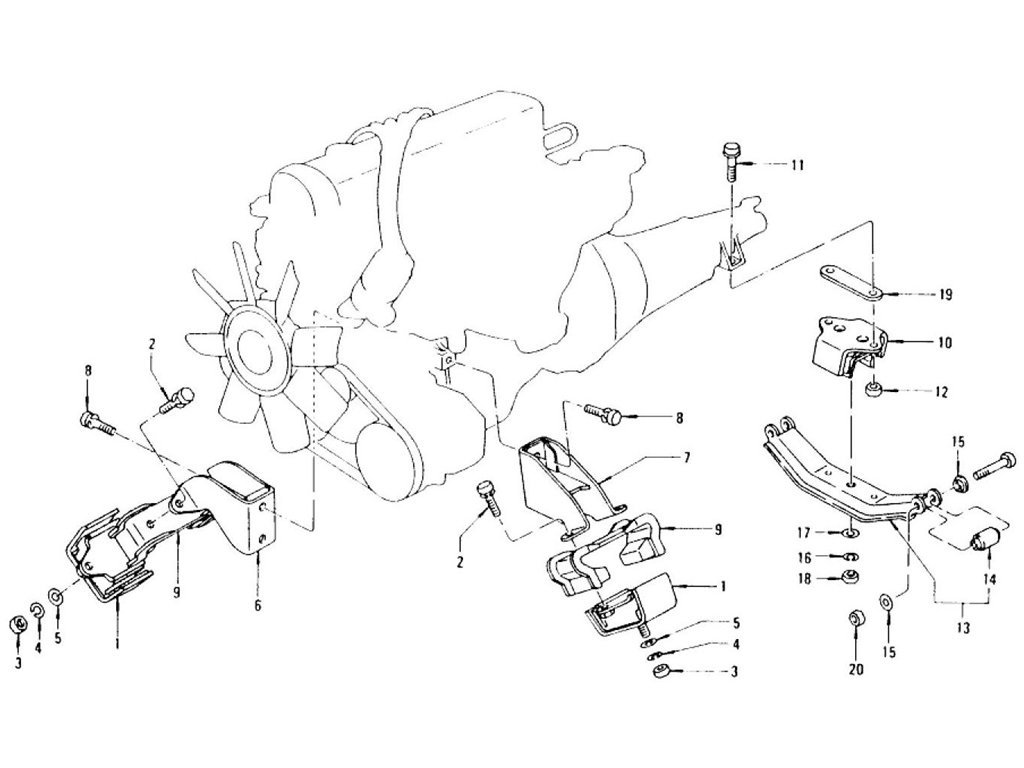

Engine Mounting Engine Mounting L28E
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | ASSY INSULATOR ENGIN | 11220-N3300 | | | | 2 | | | |
|
2 | BOLT HEX | 08120-82562 | | | | 4 | | | |
|
3 | NUT HEX MI0X1.25 | 08911-24010 | | | | 2 | | | |
|
4 | WASHER SPRING LOCK | 08915-14010 | | | | 2 | | | |
|
5 | WASHER PLAIN | 08915-54010 | | | | 2 | | | |
|
6 | ASSY BRACKET ENGINE | 11230-N3600 | | | | 1 | | | |
|
7 | ASSY BRACKET ENGINE | 11231-N3600 | | | | 1 | | | |
|
8 | BOLT HEX | 08121-02262 | | | | 4 | | | |
|
9 | ASSY-STOPPER ENGINE | 11224-N3300 | | | | 2 | | | |
|
10 | ASSY-INSULATOR ENGIN | 11320-N3000 | | | | 1 | | | |
|
11 | BOLT ENGINE MOUNTING | 11322-N4200 | | | | 2 | | | |
|
12 | NUT SELF LOCK | 08912-84010 | | | | 2 | | | |
|
13 | COMP-MEMBER ENGINE M | 11310-N3000 | | | | 1 | | | |
|
14 | ASSY BUSH ENGINE MOU | 11345-N3000 | | | | 2 | | | |
|
15 | STOPPER ENGINE MOUNT | 11346-E8700 | | | | 4 | | | |
|
16 | WASHER SPRING LOCK | 08915-24010 | | | | 1 | | | |
|
17 | WASHER PLAIN | 08915-54010 | | | | 1 | | | |
|
18 | NUT HEX | 08911-24010 | | | | 1 | | | |
|
19 | PIECE REAR ENGINE MO | 11336-N4200 | | | | 1 | | | |
|
20 | NUT HEX | 08912-84210 | | | | 2 | | | |
