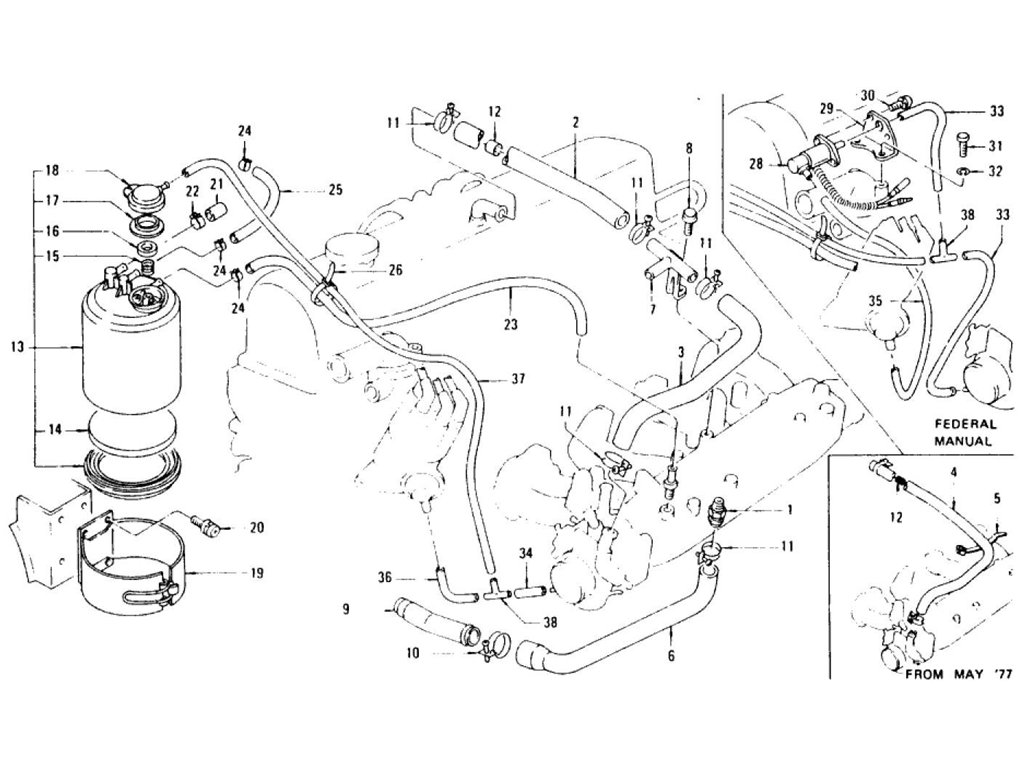

Emission Control Device L28E
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-CONTROL VALVE C | 11810-E3000 | CRANKCASE | 1 | |||||
| 2 | HOSE-3 WAY CONN TO R | 11826-N4200 | CRANKCASE | 7704 | 1 | ||||
| 3 | HOSE-THROTTLE CHAMBE | 11827-N4200 | CRANKCASE | 7704 | 1 | ||||
| 4 | HOSE-THROTTLE CHAMBE | 11827-N4710 | CRNKCASE | 7705 | 1 | No | No | 11827-N4200 | |
| 5 | BAND-HOSE | 17570-N3300 | CRANKCASE | 7505 | 1 | ||||
| 6 | HOSE-PIPE CONN TO AC | 11828-N4200 | CRANKCASE | 1 | |||||
| 7 | CONNECTOR-3 WAY WITH | 14054-N4200 | CRANKCASE | 7507 | 1 | ||||
| 7 | CONNECTOR-3 WAY WITH | 14054-U9810 | CRANKCASE | 7508 | 7704 | 1 | Yes | Yes | 14054-N4200 |
| 8 | BOLT-HEX | 08360-61214 | CRANKCASE | 7704 | 1 | ||||
| 9 | PIPE-CONNECTOR | 11830-N3600 | CRANKCASE | 1 | |||||
| 10 | CLAMP-HOSE | 01555-00021 | CRANKCASE | 7507 | 1 | ||||
| 10 | CLAMP-HOSE | 16439-N4203 | CRANKCASE | 7508 | 1 | Yes | Yes | 01555-00021 | |
| 11 | CLAMP-HOSE | 08723-12400 | CRANKCASE | 7704 | 5 | ||||
| 11 | CLAMP-HOSE | 08723-12400 | CRANKCASE | 7705 | 3 | ||||
| 12 | ARRESTER-FLAME | 15296-E4600 | CRANKCASE | 1 | |||||
| 12 | ARRESTER-FLAME | 15296-N4200 | CRANKCASE | 1 | Yes | Yes | 15296-E4600 | ||
| 13 | ASSY-CANISTER VAPOR | 14950-N4200 | EVAPO | 7604 | 1 | ||||
| 13 | ASSY-CANISTER VAPOR | 14950-N4201 | EVAPO | 7605 | 7607 | 1 | Yes | Yes | 14950-N4200 |
| 13 | ASSY-CANISTER VAPOR | 14950-N4800 | EVAPO | 7608 | 1 | Yes | Yes | 14950-N4201 | |
| 14 | FILTER | 14952-F1700 | EVAPO | 1 | |||||
| 15 | SPRING-VALVE | 14954-N4200 | EVAPO | 7605 | 1 | ||||
| 16 | RETAINER | 14962-F1700 | EVAPO | 1 | |||||
| 17 | DIAPHRAGM | 14963-F1700 | EVAPO | 1 | |||||
| 18 | CAP | 14964-F1700 | EVAPO | 1 | |||||
| 19 | ASSY-CLAMP CANISTER | 14951-N3600 | EVAPO | 1 | |||||
| 20 | SCREW-MACHINE | 08360-61626 | EVAPO | 4 | |||||
| 21 | CAP-RUBBER | 14915-F1701 | EVAPO | 1 | |||||
| 22 | CLAMP-HOSE | 08723-11600 | EVAPO | 1 | Yes | Yes | 16439-A0604 | ||
| 22 | CLAMP-HOSE | 16439-A0604 | EVAPO | 1 | |||||
| 23 | HOSE-CANISTER PURGE | 14912-N4201 | EVAPO | 1 | |||||
| 24 | CLAMP-HOSE | 16439-N2100 | EVAPO | 4 | |||||
| 25 | SERVICE FILE TUBE-CONTROL | 14912-N3601 | EVAPO | 1 | |||||
| 26 | BAND-HOSE | 17570-N3300 | 4 | ||||||
| 27 | PLUG-HOSE | 14927-S1100 | 1 | ||||||
| 28 | VALVE-VACUUM SWITCH( | 14956-U6700 | FED MANUAL | 1 | |||||
| 28 | VALVE-VACUUM SWITCH( | 14956-U6701 | FED MANUAL | 1 | Yes | Yes | 14956-U6700 | ||
| 28 | VALVE-VACUUM SWITCH( | 14956-U6705 | FED MANUAL | 1 | |||||
| 29 | BRACKET-VACUUM SWITH | 14957-N4200 | FED MANUAL | 1 | |||||
| 30 | SCREW-WITH WASHER | 08360-51014 | FED MANUAL | 2 | |||||
| 31 | BOLT-HEX | 08110-81610 | FED MANUAL | 1 | |||||
| 32 | WASHER-SPRING | 08915-13810 | FED MANUAL | 1 | |||||
| 33 | TUBE-VACUUM T/C TO V | 22320-Y4003 | FED MANUAL | 7507 | 2 | ||||
| 33 | TUBE-VACUUM T/C TO V | 22320-Y4017 | FED MANUAL | 7508 | 1 | ||||
| 34 | TUBE-VACUUM T/C TO 3 | 22320-N4210 | EXC FED MANUAL | 7507 | 1 | ||||
| 34 | TUBE-VACUUM T/C TO 3 | 22320-N4214 | EXC FED MANUAL | 7508 | 1 | ||||
| 35 | TUBE-VACUUM V/SW TO | 22320-N4200 | FED MANUAL | 1 | |||||
| 36 | TUBE-VACUUM 3WAY TO | 22320-N4211 | EXC FED MANUAL | 1 | |||||
| 37 | TUBE-VACUUM CANISTER | 22320-N4213 | EXC FED MANUAL | 1 | |||||
| 37 | TUBE-VACUUM CANISTER | 22320-N4204 | FED MANUAL | 1 | |||||
| 38 | CONNECTOR-3WAY | 14960-H3900 | 1 | ||||||
| 39 | PLUG-VACUUM TUBE | 14927-N3000 | 1 | ||||||
| 40 | HOSE-EVAPO (5M) | A4911-N3600 | EVAPO | 0 | |||||
| 41 | TUBE-VACUUM (5M) | B2320-Y4000 | 0 | Yes | Yes | 22320-N4214 |
