Search Item: Key: Part Name: Part Number:

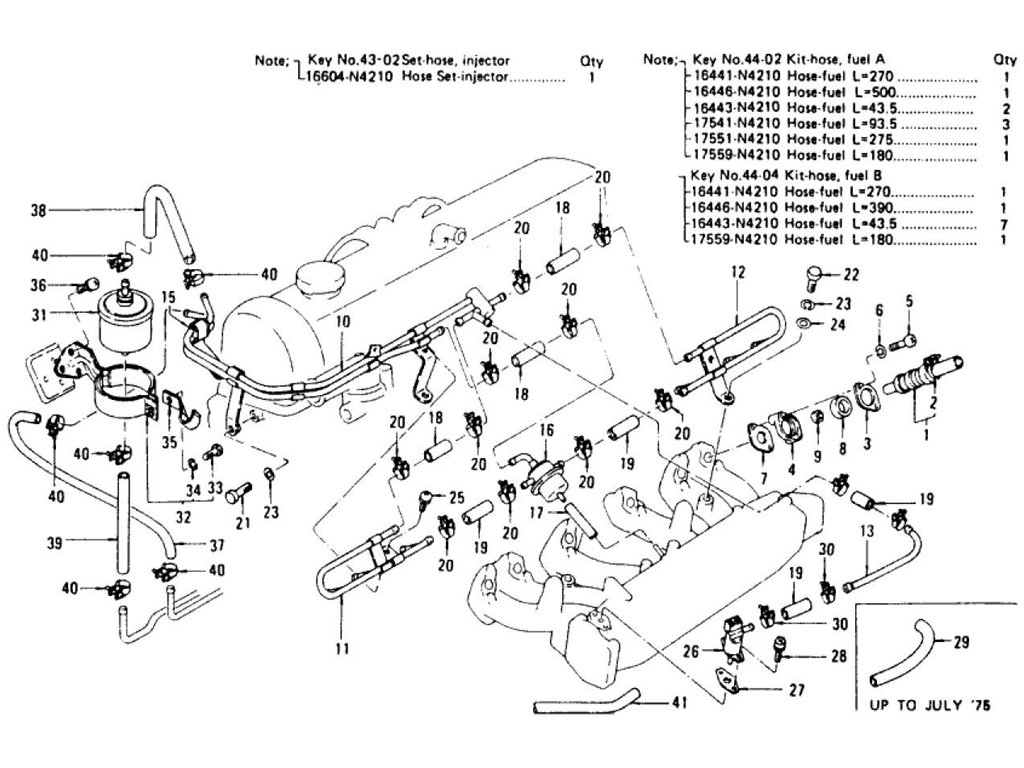

E.F.I.(1) -Fuel- L28E (To Jul.-'76)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-INJECTOR WITH C | 16603-N4200 | 7504 | 6 | |||||
| 1 | ASSY-INJECTOR WITH C | 16603-N4201 | 7505 | 7509 | 6 | Yes | Yes | 16603-N4200 | |
| 1 | ASSY-INJECTOR WITH C | 16603-N4218 | 7510 | 6 | No | No | 16603-N4201 | ||
| 1 | ASSY-INJECTOR WITH C | 16603-W5500 | CANADA FOR SERVIC E | 6 | |||||
| 1 | ASSY-INJECTOR WITH C | 16603-W5510 | CANADA FOR SERVIC E | 6 | |||||
| 1 | ASSY-INJECTOR WITH C | 16603-W5560 | CANADA FOR SERVIC E | 6 | |||||
| 1 | ASSY-INJECTOR WITH C | 16603-N4220 | U.S.A | 7609 | 6 | Yes | Yes | 16603-N4218 | |
| 1 | ASSY-INJECTOR WITH C | 16603-N8810 | U.S.A FOR SERVICE | 6 | Yes | Yes | 16603-W5515 | ||
| 1 | ASSY-INJECTOR WITH C | 16603-W5505 | U.S.A FOR SERVICE | 6 | |||||
| 1 | ASSY-INJECTOR WITH C | 16603-W5515 | U.S.A FOR SERVICE | 6 | |||||
| 1 | ASSY-INJECTOR WITH C | 16603-W5565 | U.S.A FOR SERVICE | 6 | |||||
| 2 | CLAMP-HOSE | 16439-N4710 | 7609 | 6 | Yes | Yes | 16439-N4206 | ||
| 2 | CLAMP-HOSE (FOR BOSC | 16439-N4206 | 7505 | 6 | |||||
| 3 | HOLDER-INJECTOR | 16610-N1400 | 6 | ||||||
| 4 | HOLDER-INJECTOR | 16611-N4200 | 7507 | 6 | |||||
| 4 | HOLDER-INJECTOR | 16611-N4201 | 7508 | 6 | 16611-N4200 | ||||
| 5 | SCREW | 08310-53012 | 12 | ||||||
| 6 | WASHER-SPRING | 08915-13510 | 12 | ||||||
| 7 | INSULATOR-HEAT | 16613-N4200 | 7507 | 6 | |||||
| 7 | INSULATOR-HEAT | 16613-N4201 | 7508 | 6 | 16613-N4200 | ||||
| 8 | RUBBER-INSULATOR | 16635-N1400 | 6 | ||||||
| 9 | RUBBER-INSULATOR | 16636-N1400 | 6 | ||||||
| 10 | ASSY-PIPE | 17521-N4200 | 7505 | 1 | |||||
| 10 | ASSY-PIPE | 17521-N4201 | 7506 | 1 | No | No | 17521-N4200 | ||
| 11 | ASSY-PIPE | 17522-N4200 | 7505 | 1 | |||||
| 11 | ASSY-PIPE | 17522-N4201 | 7506 | 1 | No | No | 17522-N4200 | ||
| 12 | ASSY-PIPE | 17523-N4200 | 7505 | 1 | |||||
| 12 | ASSY-PIPE | 17523-N4201 | 7506 | 1 | No | No | 17523-N4200 | ||
| 13 | ASSY-PIPE | 17524-N4200 | 7506 | 1 | |||||
| 14 | BOLT-HEX | 08360-61214 | 7506 | 1 | |||||
| 15 | SPACER-FUEL TUBE | 17108-N4200 | 7505 | 1 | |||||
| 15 | SPACER-FUEL TUBE | 17108-U9800 | 7506 | 1 | No | No | 17108-N4200 | ||
| 16 | ASSY-REGULATOR | 22670-N4200 | 7707 | 1 | |||||
| 17 | TUBE-VACUUM | 22320-N4210 | 7505 | 1 | |||||
| 17 | TUBE-VACUUM | B2320-Y4000 | 0 | Yes | Yes | 22320-N4214 | |||
| 17 | TUBE-VACUUM | 22320-N4214 | 7506 | 1 | No | No | 22320-N4210 | ||
| 18 | HOSE-FUEL L=95 | 17541-N4200 | 7412 | 3 | |||||
| 18 | HOSE-FUEL L=95 | 17541-N4205 | 7501 | 7505 | 3 | ||||
| 19 | HOSE-FUEL L=43.5 | 17531-N4206 | 7506 | 7507 | 7 | ||||
| 19 | HOSE-FUEL L=43.5 | 16443-N4208 | 7508 | 7 | No | No | 17531-N4206 | ||
| 19 | HOSE-FUEL L=45 | 17531-F2000 | 7412 | 2 | |||||
| 19 | HOSE-FUEL L=45 | 17531-N4205 | 7501 | 7505 | 2 | ||||
| 20 | CLAMP-HOSE | 16439-U2700 | 7504 | 10 | |||||
| 20 | CLAMP-HOSE | 16439-N4205 | 7505 | 7609 | 10 | Yes | Yes | 16439-U2700 | |
| 20 | CLAMP-HOSE | 16439-N4710 | USA | 7610 | 10 | No | No | 16439-N4205 | |
| 21 | BOLT-HEX | 08110-82010 | 1 | ||||||
| 22 | BOLT-HEX | 08110-81210 | 2 | ||||||
| 23 | WASHER-SPRING | 08915-13810 | 3 | ||||||
| 24 | WASHER-PLAIN | 08915-43810 | 2 | ||||||
| 25 | SCREW-WITH WASHER | 08310-40814 | 1 | ||||||
| 26 | ASSY-VALVE | 16601-N4200 | 1 | ||||||
| 26 | ASSY-VALVE | 16601-N7600 | CANADA FOR SERVIC E | 1 | Yes | Yes | 16601-Q0805 | ||
| 26 | ASSY-VALVE | 16601-Q0805 | CANADA FOR SERVIC E | 1 | Yes | Yes | 16601-N4200 | ||
| 26 | ASSY-VALVE | 16601-Y8000 | CANADA FOR SERVIC E | 1 | Yes | Yes | 16601-N4200 | ||
| 26 | ASSY-VALVE | 16601-U8700 | FOR SERVICE | 1 | |||||
| 27 | GASKET-COLD START VA | 16602-N1400 | 1 | ||||||
| 28 | SCREW-WITH WASHER | 08360-61214 | 2 | ||||||
| 29 | partNumber | HOSE-FUEL L=275 | |||||||
| 29 | partNumber | 17551-N4200 | 7412 | 1 | |||||
| 29 | partNumber | HOSE-FULE L=275 | |||||||
| 29 | partNumber | 17551-N4205 | 7501 | 7505 | 1 | ||||
| 30 | CLAMP-HOSE | 16439-U2700 | 7504 | 2 | |||||
| 30 | CLAMP-HOSE | 16439-N4205 | 7505 | 7609 | 2 | Yes | Yes | 16439-U2700 | |
| 30 | CLAMP-HOSE | 16439-N4710 | USA | 7610 | 2 | No | No | 16439-N4205 | |
| 31 | ASSY-FILTER | 16400-N1410 | 7507 | 1 | |||||
| 31 | ASSY-FILTER | 16400-Q0800 | 1 | Yes | Yes | 16400-N4201 | |||
| 31 | ASSY-FILTER | 16400-N4201 | 7508 | 1 | Yes | Yes | 16400-N1410 | ||
| 32 | ASSY-BRACKET | 16401-N4201 | 7505 | 1 | |||||
| 32 | ASSY-BRACKET | 16401-N4202 | 7506 | 1 | |||||
| 33 | SCREW | 08310-52012 | 1 | ||||||
| 34 | WASHER-SPRING | 08915-13510 | 1 | ||||||
| 35 | BRACKET-FUEL HOSE | 16402-N4200 | 7505 | 1 | |||||
| 36 | SCREW-WITH WASHER | 08310-61214 | 3 | ||||||
| 37 | HOSE-FUEL | 16445-N4700 | 1 | Yes | Yes | 16446-N4710 | |||
| 37 | HOSE-FUEL | HOSE-FUEL L=390 | |||||||
| 37 | HOSE-FUEL | 16446-N4206 | 7506 | 1 | No | No | 16446-N4205 | ||
| 37 | HOSE-FUEL | 16446-N4210 | 7506 | 7612 | 1 | Yes | Yes | 16446-N4206 | |
| 37 | HOSE-FUEL | HOSE-FUEL L=410 | |||||||
| 37 | HOSE-FUEL | 16446-N4710 | 7701 | 1 | No | No | 16446-N4210 | ||
| 37 | HOSE-FUEL | HOSE-FUEL L=500 | |||||||
| 37 | HOSE-FUEL | 16446-N4200 | 1 | ||||||
| 37 | HOSE-FUEL | 16446-N4205 | 7501 | 7505 | 1 | ||||
| 38 | partNumber | HOSE-FUEL L=240 | |||||||
| 38 | partNumber | 16441-N4200 | 1 | ||||||
| 38 | partNumber | 16441-N4205 | 7501 | 7507 | 1 | ||||
| 38 | partNumber | HOSE-FUEL L=270 | |||||||
| 38 | partNumber | 16441-N4208 | 7508 | 7607 | 1 | No | No | 16441-N4205 | |
| 38 | partNumber | HOSE-FUEL L=370 | |||||||
| 38 | partNumber | 16441-N4705 | 7608 | 1 | No | No | 16441-N4208 | ||
| 39 | partNumber | HOSE-FUEL L=160 | |||||||
| 39 | partNumber | 17556-N4700 | 7701 | 1 | No | No | 17556-N4211 | ||
| 39 | partNumber | HOSE-FUEL L=180 | |||||||
| 39 | partNumber | 17556-N4200 | 1 | ||||||
| 39 | partNumber | 17556-N4205 | 7501 | 1 | |||||
| 39 | HOSE-FUEL L=55 | 17556-N4206 | 7508 | 7609 | 1 | No | No | 17556-N4205 | |
| 39 | HOSE-FUEL L=55 | 17556-N4211 | U.S.A. | 7610 | 7612 | 1 | Yes | Yes | 17556-N4206 |
| 40 | CLAMP-HOSE | 16439-U2700 | 7504 | 6 | |||||
| 40 | CLAMP-HOSE | 16439-N4205 | 7505 | 7609 | 6 | Yes | Yes | 16439-U2700 | |
| 40 | CLAMP-HOSE | 16439-N4710 | U.S.A. | 7810 | 6 | No | No | 16439-N4205 | |
| 41 | HOSE-FUEL E.G.I (L=5 | A6440-N4210 | 7508 | 0 | No | No | A6440-N4205 | ||
| 41 | SERVICE FILE HOSE FUEL | A6440-N4205 | 7507 | 0 | |||||
| 42 | HOSE-VACUUM (L=5M) | B2320-Y4000 | 0 | ||||||
| 43 | KIT-HOSE | 16449-N4225 | 7507 | 1 | |||||
| 43 | SET-HOSE | 16604-N4225 | 7507 | 1 | |||||
| 44 | KIT-A | 16449-N4210 | 7505 | 1 | Yes | Yes | 16449-N4226 | ||
| 44 | KIT-A | 16449-N4226 | 7505 | 1 | |||||
| 44 | KIT-B | 16449-N4211 | 7506 | 7507 | 1 | Yes | Yes | 16449-N4227 | |
| 44 | KIT-B | 16449-N4227 | 7506 | 7507 | 1 |
