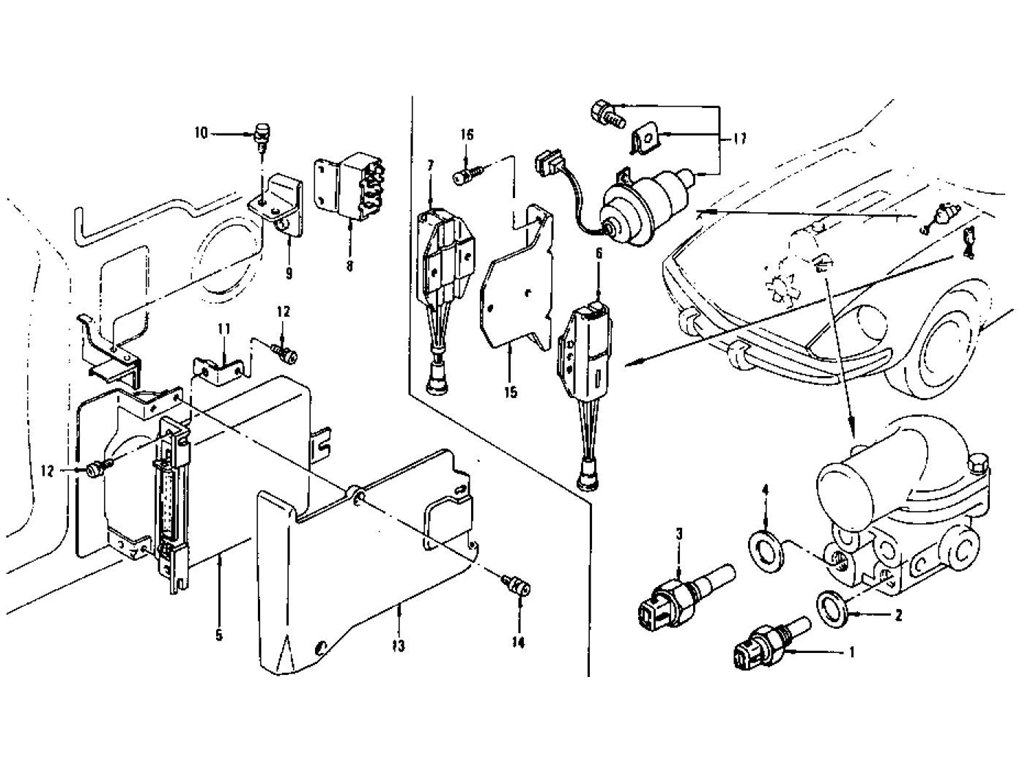

Control E.F.I.(3) -Control- L28E
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | ASSY-SENSOR | 22630-N4200 | | | | 1 | | | |
|
2 | GASKET-WATER TEMP SE | 22636-N4200 | | | | 1 | | | |
|
3 | ASSY-SWITCH | 22635-N4200 | | | | 1 | | | |
|
3 | ASSY-SWITCH | 22635-N4710 | FOR SERVICE | | | 1 | No | No | 22635-N4200 |
|
4 | GASKET-THERMO TIME S | 22636-N4210 | | | | 1 | | | |
|
5 | ASSY-UNIT | 22611-N4210 | | 7505 | 7507 | 1 | Yes | Yes | 22611-N4201 |
|
5 | ASSY-UNIT | 22611-N4212 | | 7508 | 7607 | 1 | No | No | 22611-N4210 |
|
5 | ASSY-UNIT | 22611-N4800 | CAL | 7608 | | 1 | No | No | 22611-N4212 |
|
5 | ASSY-UNIT | 22611-N4212 | FED | 7608 | | 1 | | | |
|
6 | ASSY-OROPPING RESIST | 22695-N4202 | | | | 1 | | | |
|
7 | ASSY-OROPPING RESIST | 22698-N4202 | | | | 1 | | | |
|
8 | ASSY-RELAY | 22696-N4201 | | | | 1 | | | |
|
8 | ASSY-RELAY | 22696-N4202 | | | | 1 | Yes | Yes | 22696-N4201 |
|
9 | BRACKET-RELAY E G I | 24086-N4201 | | | | 1 | | | |
|
10 | SCREW | 08363-61626 | | | | 2 | | | |
|
11 | BRACKET-COMPUTER E G | 24621-N4200 | | | | 1 | | | |
|
12 | SCREW | 08363-61614 | | | | 4 | | | |
|
13 | COVER-COMPUTER E G I | 24619-N4201 | | | | 1 | | | |
|
14 | SCREW | 08363-61698 | | | | 3 | | | |
|
15 | BRACKET-RESISTOR E G | 22088-N4200 | | | | 1 | | | |
|
16 | SCREW | 08313-S1226 | | | | 2 | | | |
|
17 | ASSY-SWITCH | 22612-N4800 | CAL | 7608 | | 1 | | | |
