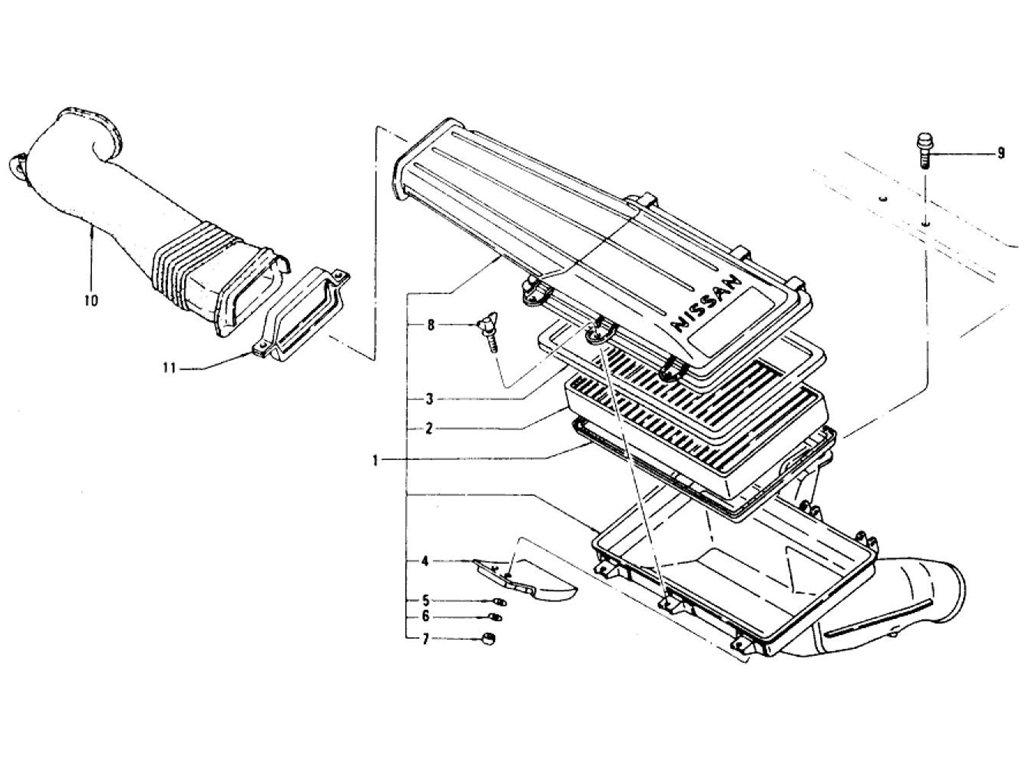

Air Cleaner Air Cleaner L28E
Parts List Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
1 | ASSY-AIR CLEANER | 16500-N4200 | | | | 1 | | | |
2 | ASSY-PAPER ELEMENT | 16546-N4200 | | | | 1 | | | |
3 | PACKING | 16536-N4200 | | | | 1 | | | |
3 | PACKING | 16536-N4201 | | | | 1 | Yes | Yes | 16536-N4200 |
4 | STAY-A | 16599-N4200 | | | | 1 | | | |
5 | WASHER | 08915-43610 | | | | 2 | | | |
6 | WASHER-SPRING | 08915-13610 | | | | 2 | | | |
7 | NUT | 08911-10610 | | | | 2 | | | |
8 | BOLT-WING WITH WASHE | 08363-62523 | | | | 3 | Yes | Yes | 16516-N4200 |
8 | BOLT-WING WITH WASHE | 16516-N4200 | | | | 3 | | | |
9 | BOLT-HEX WITH WASHER | 01431-00093 | | | | 2 | | | |
10 | DUCT-AIR | 62861-N4400 | U.S.A | 7602 | | 1 | | | |
11 | CLAMP-AIR DUCT | 62865-N4400 | U.S.A | 7602 | | 1 | | | |
