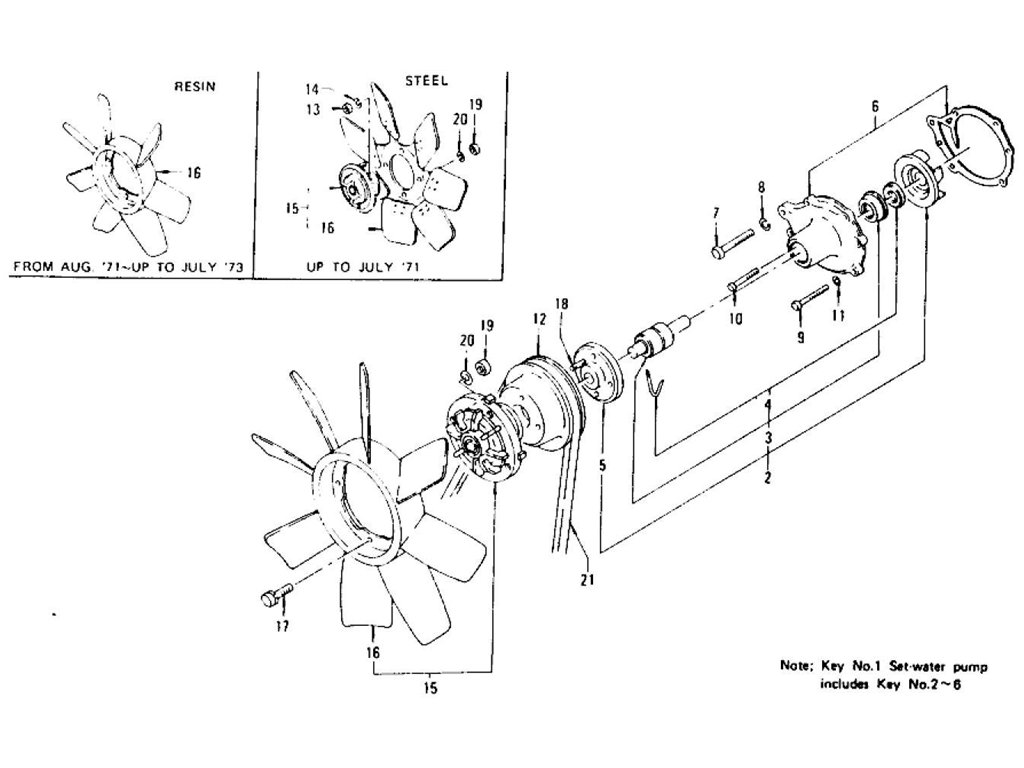

Water Pump & Fan Water Pump & Fan Belt L24, L26 (To Nov.-'74)
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | SET-WATER PUMP | 21010-E3025 | L24 | | | 1 | Yes | Yes | 21010-E3001 |
|
1 | SET-WATER PUMP | 21010-E3026 | L24 | 7109 | | 1 | Yes | Yes | 21010-E3025 |
|
1 | SET-WATER PUMP (WITH | 21010-E3027 | L24 | L26 | | | 1 | | |
|
2 | ASSY-PUMP WATER | 21010-E3001 | L24 | | 7206 | 1 | | | |
|
2 | ASSY-PUMP WATER | 21010-E3002 | L24 | 7207 | | 1 | | | 21010-E3001 |
|
2 | ASSY-PUMP WATER | 21010-E3003 | L24 | L26 | 7207 | | 1 | Yes | Yes |
|
3 | SET-BEARING & SEAL | 21046-E3000 | L24 | L26 | | | 1 | | |
|
3 | SET-BEARING & SEAL | 21046-Y7000 | L24 | L26 | | | 1 | Yes | Yes |
|
4 | SET-SEAL & WIRE | 21047-A0100 | L24 | L26 | | | 1 | | |
|
4 | SET-SEAL & WIRE | 21047-Y7000 | L24 | L26 | | | 1 | Yes | Yes |
|
5 | HUB-WATER PUMP | 21054-E3000 | L24 | L26 | | | 1 | | |
|
6 | GASKET-WATER PUMP TO | 21014-21000 | L24 | L26 | | | 1 | | |
|
7 | BOLT-HEX M8 | 21078-21002 | L24 | | 7206 | 2 | | | |
|
7 | BOLT-HEX M8 | 08110-88510 | L24 | L26 | 7207 | | 2 | | |
|
9 | BOLT-HEX M6 | 21079-21002 | L24 | L26 | | | 1 | | |
|
10 | BOLT-HEX M6 | 08120-62210 | L24 | | 7307 | 2 | | | |
|
11 | WASHER-SPRING M6 | 08915-13610 | L24 | L26 | | | 1 | | |
|
12 | PULLEY-FAN & WATER P | 21051-E3200 | L24 | | 7206 | 1 | | | |
|
12 | PULLEY-WATER PUMP | 21051-E3201 | L24 | L26 | | | 1 | Yes | Yes |
|
12 | PULLEY-WATER PUMP | 21051-E3202 | L24 | L26 | | | 1 | Yes | Yes |
|
13 | NUT-HEX M6 FAN TO CO | 08911-10610 | L24 | | 7307 | 4 | | | |
|
14 | WASHER-SPRING M6 | 08915-13610 | L24 | | 7307 | 4 | | | |
|
15 | ASSY COUPLING FAN | 21082-N3600 | L26 | 7308 | | 1 | No | No | 21082-E8725 |
|
15 | ASSY COUPLING FAN | 21082-Y4100 | L26 | 7308 | | 1 | Yes | Yes | 21082-N3600 |
|
15 | ASSY-FLUID COUPLING | 21082-E3200 | L24 | | 7107 | 1 | | | |
|
15 | SET-COUPLING FLUID | 21082-E8727 | L24 | | 7307 | 1 | Yes | Yes | 21082-E8726 |
|
15 | SET-COUPLING FLUID | 21082-E8728 | L24 | | | 1 | Yes | Yes | 21082-E8727 |
|
15 | SET-COUPLING FLUID | 21082-E8725 | L24 | 7108 | 7307 | 1 | | | 21082-E3200 |
|
15 | SET-COUPLING FLUID | 21082-E8726 | L24 | 7108 | 7307 | 1 | Yes | Yes | 21082-E8725 |
|
16 | ASSY-COOLING | 21060-N3600 | L26 | 7308 | | 1 | No | No | 21060-E8700 |
|
16 | ASSY-FAN SPIDER (RES | 21060-E8700 | L24 | 7108 | 7307 | 1 | | | 21060-E3201 |
|
16 | ASSY-FAN SPIDER (STE | 21060-E3201 | L24 | | 7107 | 1 | | | |
|
17 | BOLT-HEX.FANTO COUPL | 08130-62062 | L26 | 7308 | | 4 | | | |
|
18 | STUD-M6 COUPLING TO | 08226-61410 | L24 | L26 | | | 4 | | |
|
19 | NUT-HEX M6 | 08911-10610 | L24 | L26 | | | 4 | | |
|
20 | WASHER-SPRING M6 | 08915-13610 | L24 | L26 | | | 4 | | |
|
21 | BELT-FAN FOR COOLER | 11720-E3000 | OP L24 | | | 1 | | | |
|
21 | BELT-FAN FOR COOLER | 11720-E3010 | OP L24 | | | 1 | Yes | Yes | 11720-E3000 |
|
21 | BELT-FAN FOR COOLER | 11720-E3011 | OP L24 | | | 1 | Yes | Yes | 11720-E3010 |
|
21 | BELT-FAN FOR COOLER | 11720-E3015 | OP L24 | | | 1 | Yes | Yes | 11720-E3011 |
|
21 | BELT-FAN FOR COOLER | BELT-FAN L=845 | | | | | | | |
|
21 | BELT-FAN FOR COOLER | 11720-E4600 | L24 | | | 1 | | | |
|
21 | BELT-FAN FOR COOLER | 11720-E4615 | L24 | | 7206 | 1 | Yes | Yes | 11720-E4600 |
|
21 | BELT-FAN FOR COOLER | BELT-FAN L=860 | | | | | | | |
|
21 | BELT-FAN FOR COOLER | 11720-E8700 | L24 | 7207 | | 1 | | | 11720-E4615 |
|
21 | BELT-FAN FOR COOLER | BELT-FAN L=885 | | | | | | | |
|
21 | BELT-FAN FOR COOLER | 11720-P0305 | L24 | L26 | 7303 | | 1 | | |
