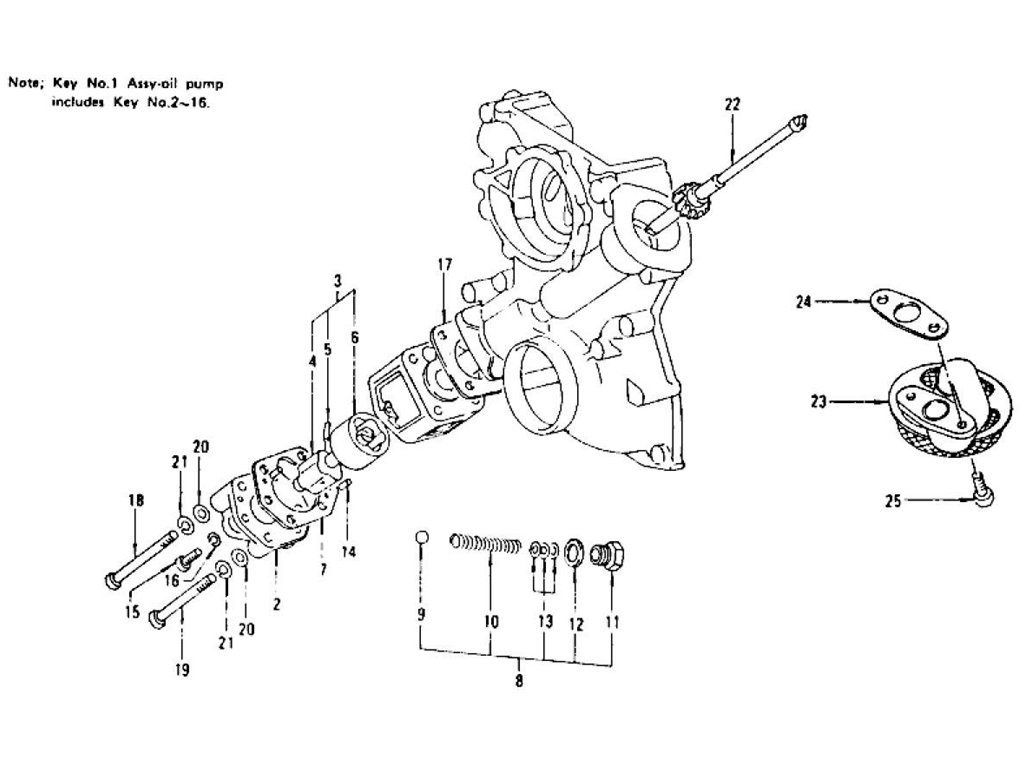

Oil Pump Oil Pump L24, L26 (To Nov.-'74)
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | ASSY-OIL PUMP | 15010-21001 | L24 | L26 | | | 1 | | |
|
2 | COVER-OIL PUMP | 15015-21000 | L24 | L26 | | | 1 | | |
|
3 | SET-SHAFT DRIVE OIL | 15020-21005 | L24 | L26 | | | 1 | | |
|
4 | ASSY-SHAFT DRIVE | 15020-21000 | L24 | L26 | | | 1 | | |
|
4 | ASSY-SHAFT DRIVE | 15020-21005 | L24 | L26 | | | 1 | Yes | Yes |
|
5 | PIN-DRIVE SHAFT OIL | 15030-21000 | L24 | L26 | | | 1 | | |
|
6 | GEAR-DRIVEN OIL PUMP | 15023-09400 | L24 | L26 | | | 1 | | |
|
7 | GASKET-OIL PUMP | 15025-21000 | L24 | L26 | | | 1 | | |
|
8 | SET-VALVE OIL REGULA | 15132-21005 | L24 | L26 | | | 1 | | |
|
9 | VALVE-OIL REGULATOR | 15132-21000 | L24 | L26 | | | 1 | | |
|
10 | SPRING-OIL REGULATRO | 15133-21000 | L24 | | | 1 | | | |
|
11 | NUT-CAP OIL REGULATO | 15134-10602 | L24 | L26 | | | 1 | | |
|
12 | WASHER-OIL REGULATOR | 15136-10601 | L24 | L26 | | | 1 | | |
|
13 | SHIM-OIL REGULATOR | 15137-10600 | L24 | L26 | | | 19 | | |
|
14 | PIN-DRIVE OIL PUMP C | 15019-30100 | L24 | L26 | | | 2 | | |
|
15 | SET-BOLT BODY TO COV | 08110-62010 | L24 | L26 | | | 2 | | |
|
16 | WASHER-SPRING LOCK | 08915-13610 | L24 | L26 | | | 2 | | |
|
17 | GASKET-OIL PUMP TO C | 15066-21001 | L24 | L26 | | | 1 | | |
|
18 | BOLT-OIL PUMP | 15036-21000 | L24 | L26 | | | 2 | | |
|
19 | BOLT-OIL PUMP | 15037-21000 | L24 | L26 | | | 2 | | |
|
20 | WASHER-PLAIN | 08915-43810 | L24 | L26 | | | 4 | | |
|
21 | WASHER-SPRING LOCK | 08915-13810 | L24 | L26 | | | 4 | | |
|
22 | ASSY-SPINOLE OIL PUM | 15040-21001 | L24 | L26 | | | 1 | | |
|
23 | ASSY-OIL STRAINER | 15050-E3000 | L24 | L26 | | | 1 | | |
|
24 | GASKET-OIL STRAINER | 15059-E3000 | L24 | L26 | | | 1 | | |
|
25 | BOLT-HEX M8X1.25 | 08110-82214 | L24 | | | 2 | | | |
|
25 | BOLT-HEX M8X1.25 | 08110-82262 | L24 | L26 | | | 2 | Yes | Yes |
