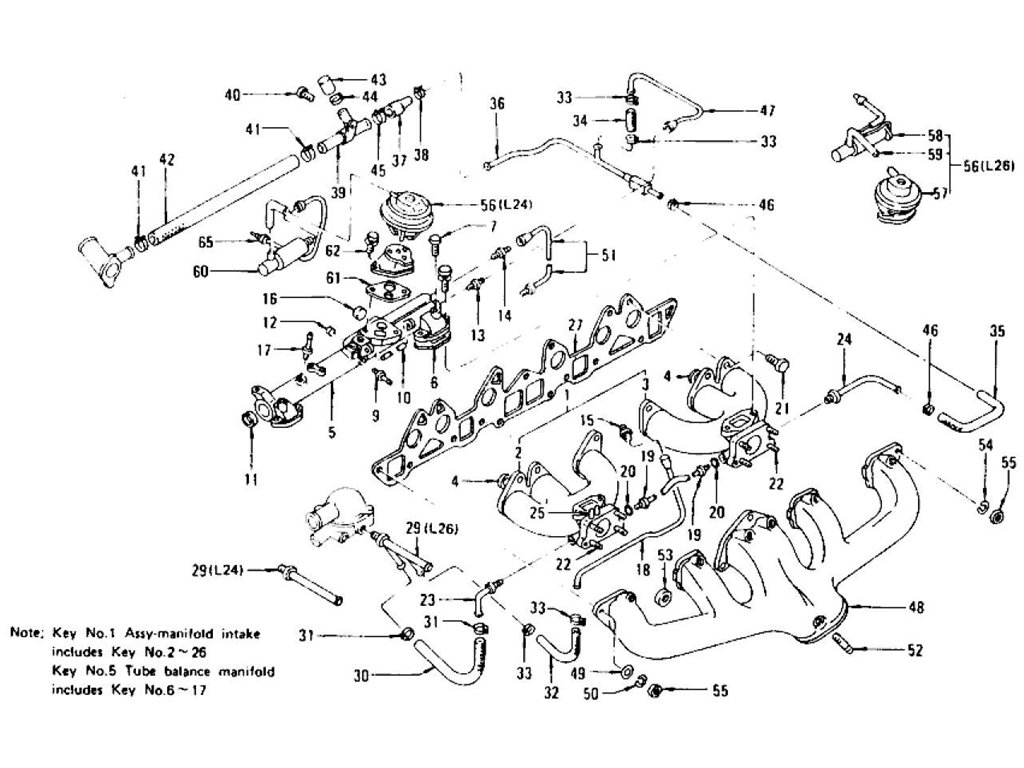

From Jul.-'72 Manifold, Egr L24, L26 (From Jul.-'72 To Nov.-'74)
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | ASSY-MANIFOLD INTAKE | 14002-N3300 | L24 | | 7307 | 1 | No | No | 14002-E4600 |
|
1 | ASSY-MANIFOLD INTAKE | 14002-N3600 | L26 | 7308 | | 1 | No | No | 14002-N3300 |
|
2 | MANIFOLD-INTAKE FRON | 14003-N3302 | L24 | | 7307 | 1 | No | No | 14003-E8800 |
|
2 | MANIFOLD-INTAKE FRON | 14003-N3600 | L26 | 7308 | | 1 | No | No | 14003-N3302 |
|
3 | MANIFOLD-INTAKE REAR | 14003-N3301 | L24 | | 7307 | 1 | No | No | 14003-E8801 |
|
3 | MANIFOLD-INTAKE REAR | 14003-N3601 | L26 | 7308 | | 1 | No | No | 14003-N3301 |
|
4 | PLUG-WLECH 20 | 00933-12010 | L24 | | 7307 | 2 | | | |
|
4 | PLUG-WLECH 20 | 00933-12010 | L26 | 7308 | | 2 | | | |
|
5 | TUBE-BALANCE MANIFOLD | 14008-N3302 | L24 | | 7307 | 1 | No | No | 14008-E4601 |
|
5 | TUBE-BALANCE MANIFOLD | 14008-N3600 | L26 | 7308 | | 1 | No | No | 14008-N3302 |
|
6 | GASKET-BALANCE TUBE | 14009-73400 | L24 | | 7307 | 2 | | | |
|
6 | GASKET-BALANCE TUBE | 14009-73400 | L26 | 7308 | | 2 | | | |
|
7 | BOLT-HEX (B/TUBE FIX | 08110-62062 | L24 | | 7307 | 4 | | | |
|
7 | BOLT-HEX (B/TUBE FIX | 08110-62062 | L26 | 7308 | | 4 | | | |
|
8 | PLUG-TAPER 1/4-19 | 08931-30410 | L24 | | 7307 | 2 | | | |
|
8 | PLUG-TAPER 1/4-19 | 08931-30410 | L26 | 7308 | | 2 | | | |
|
9 | CONNECTOR-STRAIGHT | 14875-N3602 | L26 | 7308 | | 1 | | | |
|
10 | BUSH-AUX SHAFT | 14016-14600 | L24 | | 7307 | 2 | | | |
|
10 | BUSH-AUX SHAFT | 14016-14600 | L26 | 7308 | | 2 | | | |
|
11 | PLUG-WELCH 20 | 00933-12000 | L24 | | 7307 | 1 | | | |
|
11 | PLUG-WELCH 20 | 00933-12000 | L26 | 7308 | | 1 | | | |
|
12 | PLUG-WELCH 16 | 00933-11600 | L24 | L26 | | | 1 | | |
|
13 | CONNECTOR-STRAIGHT | 08712-14600 | L24 | | 7307 | 1 | | | |
|
13 | CONNECTOR-STRAIGHT | 08712-15000 | L26 | 7308 | | 1 | No | No | 08712-14600 |
|
14 | CONNECTOR-STRAIGHT | 08712-14400 | L24 | L26 | | | 2 | | |
|
15 | CONNECTOR-STRAIGHT | 14875-A3000 | L24 | | 7307 | 1 | | | |
|
15 | CONNECTOR-STRAIGHT | 01691-00011 | L26 | 7308 | | 1 | No | No | 14875-A3000 |
|
16 | PLUG-WELCH 18 | 00933-11810 | L24 | L26 | | | 1 | | |
|
17 | STUB MBX1.25 (EGR C/ | 08213-82210 | L24 | L26 | | | 2 | | |
|
18 | TUBE-WATER | 14011-N3301 | L24 | | 7307 | 1 | No | No | 14011-E4100 |
|
18 | TUBE-WATER | 14011-N3600 | L26 | 7308 | | 1 | No | No | 14011-N3301 |
|
19 | NUT-CONN WATER TUBE | 14012-E4100 | L24 | | 7307 | 2 | | | |
|
19 | NUT-CONN WATER TUBE | 14012-E4100 | L26 | 7308 | | 2 | | | |
|
20 | RING-RUBBER WATER TU | 14013-73400 | L24 | | 7307 | 2 | | | |
|
20 | RING-RUBBER WATER TU | 14013-73400 | L26 | 7308 | | 2 | | | |
|
21 | BOLT MBX1.25 (MANIF | 08120-83510 | L24 | | 7307 | 6 | | | |
|
21 | BOLT MBX1.25 (MANIF | 08120-83510 | L26 | 7308 | | 6 | | | |
|
22 | STUD MB (CARB FIX) | 08213-83010 | L24 | | 7307 | 8 | | | |
|
22 | STUD-CARBURATOR FIX | 15243-N3300 | L26 | 7308 | | 8 | | | |
|
23 | CONN-WATER HOSE | 14875-N3305 | L24 | | 7307 | 1 | | | |
|
23 | CONN-WATER HOSE | 14875-N3601 | L26 | 7308 | | 1 | No | No | 14875-N3305 |
|
24 | CONN-WATER HOSE | 14875-N3304 | L24 | | 7307 | 1 | | | |
|
25 | CONN-VACCUM | 14875-N3300 | L26 | 7308 | | 2 | | | |
|
25 | CONN-WATER HOSE | 14875-N3304 | L26 | 7308 | | 1 | | | |
|
26 | CONN-WATER HOSE | 14875-N3300 | L24 | | 7307 | 2 | | | |
|
27 | GASKET-MANIFOLD | 14035-E4601 | L24 | L26 | | | 1 | | |
|
28 | CAP-CONNECTOR | 16599-N3600 | L26 AUTOMATIC | | | 1 | | | |
|
29 | CONN-WATER HOSE | 14875-N3306 | L24 | | 7307 | 1 | | | |
|
29 | CONN-WATER HOSE | 14875-N3600 | L26 | 7308 | | 1 | No | No | 14875-N3306 |
|
30 | HOSE-WATER | 14052-N3302 | L24 | | 7307 | 1 | | | |
|
30 | HOSE-WATER | 14052-N3600 | L26 | 7308 | | 1 | No | No | 14052-N3302 |
|
31 | CLAMP-HOSE | 08723-12200 | L24 | | 7307 | 2 | | | |
|
31 | CLAMP-HOSE | 08723-12000 | L26 | 7308 | | 2 | No | No | 08723-12200 |
|
32 | HOSE-WATER | 14052-N3303 | L24 | | 7307 | 1 | | | |
|
32 | HOSE-WATER | 14052-N3601 | L26 | 7308 | | 1 | No | No | 14052-N3303 |
|
33 | CLAMP-HOSE | 16439-22100 | L24 | | | 4 | Yes | Yes | 08723-11400 |
|
33 | CLAMP-HOSE | 08723-11400 | L24 | L26 | | | 4 | | |
|
34 | HOSE-WATER | 14055-N3302 | L24 | | 7307 | 1 | No | No | 14055-E3000 |
|
34 | HOSE-WATER | 14055-N3601 | L26 | 7308 | | 1 | No | No | 14055-N3302 |
|
35 | HOSE-WATER CONN TO P | 14055-N3305 | L24 | L26 | | | 1 | | |
|
35 | HOSE-WATER CONN TO P | 14055-N3605 | L26 | 7308 | | 1 | | | |
|
36 | ASSY-PIPE | 14053-N3302 | L24 | | 7307 | 1 | No | No | 14053-E8800 |
|
36 | ASSY-PIPE | 14053-N3600 | L26 | 7308 | | 1 | No | No | 14053-N3302 |
|
36 | ASSY-PIPE | 14053-N3601 | L26 | 7308 | | 1 | | | |
|
37 | HOSE-PIPE TO 3 WAY C | 14054-N3300 | L24 | | 7307 | 1 | | | |
|
37 | HOSE-PIPE TO 3 WAY C | 14054-N3300 | L26 | 7308 | | 1 | | | |
|
38 | CLAMP-HOSE | 08723-12400 | L24 | | 7307 | 1 | | | |
|
38 | CLAMP-HOSE | 08723-12400 | L26 | 7308 | | 1 | | | |
|
39 | CONNECTOR-3 WAY | 14051-E5600 | L24 | | 7307 | 1 | | | |
|
39 | CONNECTOR-3 WAY | 14051-E5600 | L26 | 7308 | | 1 | | | |
|
40 | BOLT-HEX | 08110-61462 | L24 | | 7307 | 1 | | | |
|
40 | BOLT-HEX | 08110-61462 | L26 | 7308 | | 1 | | | |
|
41 | CLAMP-HOSE | 08723-12800 | L24 | | 7307 | 2 | | | |
|
41 | CLAMP-HOSE | 08723-12800 | L26 | 7308 | | 2 | | | |
|
42 | HOSE-WATER INLET | 14056-P0300 | L24 | | 7307 | 1 | | | |
|
42 | HOSE-WATER INLET | 14056-P0300 | L26 | 7308 | | 1 | | | |
|
43 | CAP-CONNECTOR | 14058-25500 | L24 | | 7307 | 1 | | | |
|
43 | CAP-CONNECTOR | 14058-25500 | L26 | 7308 | | 1 | | | |
|
44 | CLAMP-HOSE | 21505-78500 | L24 | | 7307 | 1 | | | |
|
44 | CLAMP-HOSE | 21505-78500 | L26 | 7308 | | 1 | | | |
|
45 | CLAMP-HOSE | 08723-12800 | L24 | | 7307 | 1 | | | |
|
45 | CLAMP-HOSE | 08723-12600 | L26 | 7308 | | 1 | No | No | 08723-12800 |
|
46 | CLAMP-HOSE | 08723-11900 | L24 | | 7307 | 2 | | | |
|
46 | CLAMP-HOSE | 08723-11900 | L26 | 7308 | | 2 | | | |
|
47 | TUBE-BALANCE TUBE TO | 14055-N3303 | L24 | | 7307 | 1 | | | |
|
47 | TUBE-BALANCE TUBE TO | 14055-N3602 | L26 | 7308 | | 1 | No | No | 14055-N3303 |
|
48 | MANIFOLD-EXHAUST | 14004-N3300 | L24 | | 7307 | 1 | No | No | 14004-E4600 |
|
48 | MANIFOLD-EXHAUST | 14004-N3601 | L26 | 7308 | | 1 | No | No | 14004-N3300 |
|
49 | WASHER-PLAIN | 08915-53810 | L24 | L26 | | | 6 | | |
|
50 | WASHER-SPRING | 08915-13810 | L24 | L26 | | | 1 | | |
|
51 | TUBE-EXHAUST MANIFOLD | 14120-N3301 | L24 | | 7307 | 1 | | | |
|
51 | TUBE-EXHAUST MANIFOLD | 14120-N3601 | L26 | 7308 | | 1 | No | No | 14120-N3301 |
|
52 | STUD-EXHAUST TUBE FI | 14064-E3001 | L24 | L26 | | | 3 | | |
|
53 | YOKE-MANIFOLD | 14037-32200 | L24 | L26 | | | 6 | | |
|
54 | WASHER-PLAIN | 01311-00131 | L24 | L26 | | | 1 | Yes | Yes |
|
54 | WASHER-PLAIN | 14037-E3000 | L24 | L26 | | | 1 | | |
|
55 | NUT/HEX MB | 08911-10810 | L24 | L26 | | | 1 | | |
|
56 | ASSY-VALVE EGR CONTR | 14710-N3302 | L24 | | 7212 | 1 | | | |
|
56 | ASSY-VALVE EGR CONTR | 14710-N3303 | L24 | 7301 | 7307 | 1 | Yes | Yes | 14710-N3302 |
|
56 | ASSY-VALVE EGR CONTR | 14710-N3601 | L26 | 7308 | | 1 | No | No | 14710-N3303 |
|
57 | VALVE-EGR | 14718-N3601 | L26 | 7308 | | 1 | | | |
|
58 | KIT-SOLENOID BRACKET | 14723-N3601 | L26 | 7308 | | 1 | | | |
|
59 | TUBE-RUBBER | 14729-N3601 | L26 | 7308 | | 1 | | | |
|
60 | ASSY-VALVE SOLENOID | 14720-N3301 | L24 | | 7307 | 1 | | | |
|
61 | GASKET-EGR C/VALVE | 14719-N3301 | L24 | L26 | | | 1 | | |
|
62 | BOLT-HEX WITH S/WASH | 08110-82562 | L24 | | 7307 | 2 | | | |
|
63 | WASHER-LOCK MB | 08915-13810 | L26 | 7308 | | 2 | | | |
|
64 | NUT | 08911-10810 | L26 | 7308 | | 2 | | | |
|
65 | ASSY-TUBE EGR C/V TO | 14731-N3301 | L24 | | 7307 | 1 | | | |
|
65 | ASSY-TUBE EGR C/V TO | 14731-N3600 | L26 | 7308 | | 1 | No | No | 14731-N3301 |
|
66 | CLAMP-HOSE | 17111-U6000 | L26 | 7308 | 7309 | 1 | | | |
|
66 | CLAMP-HOSE | 24220-89993 | L26 | 7310 | | 1 | No | No | 17111-U6000 |
|
66 | CLIP 20 | 24220-89985 | L26 | 7308 | | 1 | | | |
|
67 | ASSY-SWITCH | 22120-N3601 | L26 | 7308 | | 1 | | | |
