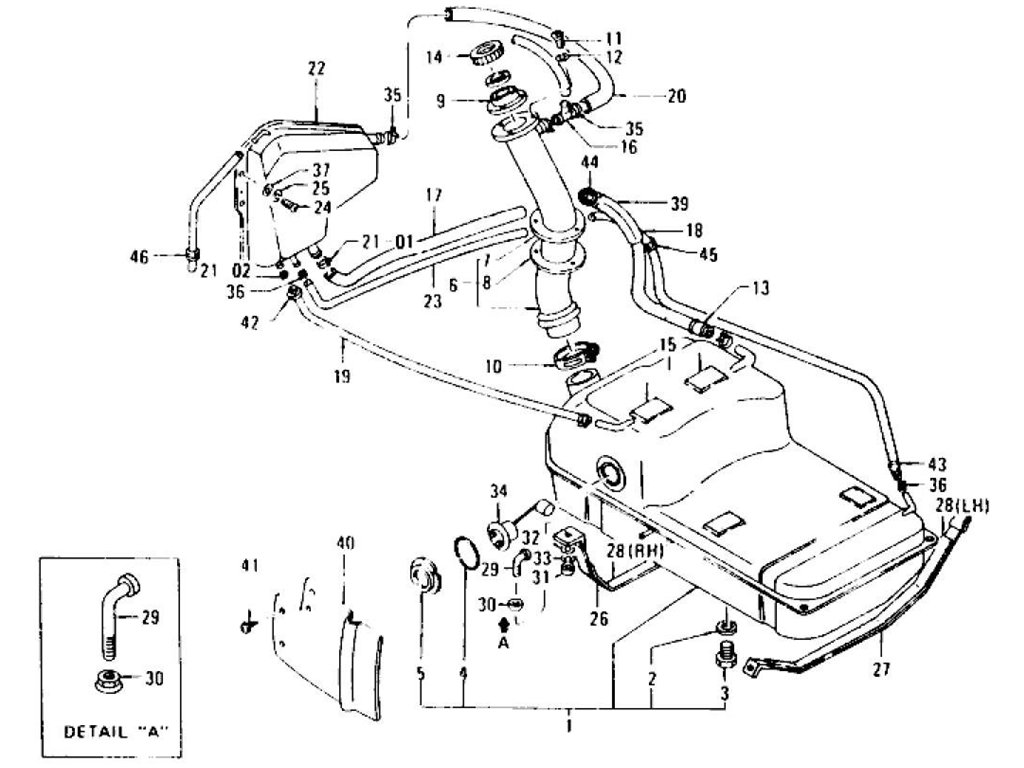

Fuel Tank L24, L26 (To Aug.-'74)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-TANK FUEL | 17201-E4100 | CRANK & EXHAUST | 7307 | 1 | ||||
| 1 | ASSY-TANK FUEL FOR E | 17201-E4600 | EVAPO | 7307 | 1 | ||||
| 1 | ASSY-TANK FUEL FOR E | 17201-N3400 | L26 | 7308 | 1 | No | No | 17201-E4600 | |
| 2 | GASKET-DRAIN SEAT | 17312-20500 | 1 | ||||||
| 3 | PLUG-DRAIN GAS TANK | 00931-44810 | 1 | ||||||
| 4 | RING-"O" FUEL GAUGE | 17342-18000 | 1 | ||||||
| 5 | PLATE-LOCK | 17343-14801 | L24 | 7307 | 1 | ||||
| 6 | ASSY-HOSE FILLER FUE | 17208-E4100 | L24 | 1 | |||||
| 6 | ASSY-HOSE FILLER FUE | 17208-E8700 | L24-2 SEATER 2+2 SEATER | 1 | Yes | Yes | 17208-E4100 | ||
| 6 | ASSY-HOSE FILLER FUE | 17208-N3050 | L24-2 SEATER 2+2 SEATER | 7210 | 1 | Yes | Yes | 17208-E8700 | |
| 7 | GROMMET-FILLER HOSE | 17312-E8700 | 1 | ||||||
| 8 | PLATE-FILLER HOSE GR | 17311-E8700 | 1 | ||||||
| 9 | NECK-FILLER FOR FUEL | 17212-E4101 | 1 | ||||||
| 9 | NECK-FILLER FOR FUEL | 17212-E4102 | L24 | 1 | Yes | Yes | 17212-E4101 | ||
| 9 | NECK-FILLER FOR FUEL | 17212-E8800 | L24 | L26 | 1 | Yes | Yes | ||
| 10 | CLAMP-HOSE FUEL TANK | 17213-E4100 | 1 | ||||||
| 10 | CLAMP-HOSE FUEL TANK | 17213-E4101 | L24 | 7307 | 1 | Yes | Yes | 17213-E4100 | |
| 10 | CLAMP-HOSE FUEL TANK | 17213-E4102 | L26 | 7308 | 1 | Yes | Yes | 17213-E4101 | |
| 11 | SCREW-MACHINE | 08310-51212 | L24 | 7307 | 3 | ||||
| 12 | WASHER-SPRING LOCK | 08915-13510 | L24 | 7307 | 3 | ||||
| 13 | GROMMET-RUBBER | 17241-E4100 | L24 | L26 | 1 | ||||
| 14 | ASSY-CAP FILLER FUEL | 17251-E4101 | L24 | 1 | |||||
| 14 | ASSY-CAP FILLER FUEL | 17251-E4102 | L24 | 1 | Yes | Yes | 17251-E4101 | ||
| 14 | ASSY-CAP FILLER FUEL | 17251-N4501 | L24 | L26 | 1 | Yes | Yes | ||
| 14 | ASSY-CAP FILLER FUEL | 17251-E8801 | L24 | L26 | 7205 | 1 | Yes | Yes | |
| 14 | ASSY-CAP FILLER FUEL | 17251-E8800 | OP L24 | 7204 | 1 | Yes | Yes | 17251-E4102 | |
| 15 | FELT-FUEL TANK MOUNT | 17231-E4100 | L24 | L26 | 2 | ||||
| 16 | JOINT-TUBE BREATHER | 17227-E4100 | L24 CRANK & EXHAU ST | 7103 | 1 | ||||
| 16 | JOINT-TUBE BREATHER | 17227-E4101 | L24 CRANK & EXHAU ST | 7104 | 1 | No | No | 17227-E4100 | |
| 16 | JOINT-TUBE BREATHER | 17227-E4600 | L24 EVAPO | 7103 | 1 | ||||
| 16 | JOINT-TUBE BREATHER | 17227-E4601 | L24 | L26 EVAPO | 7104 | 1 | Yes | Yes | |
| 17 | HOSE-VENTILATION TAN | 17235-E4100 | L24 CRANK & EXHAU ST | 7307 | 1 | ||||
| 17 | HOSE-VENTILATION TAN | 17235-E4101 | L24 CRANK & EXHAU ST | 1 | Yes | Yes | 17235-E4100 | ||
| 17 | HOSE-VENTILATION TAN | 17235-E4600 | L24 | L26 EVAPO | 1 | ||||
| 17 | HOSE-VENTILATION TAN | 17235-E4601 | L24 | L26 EVAPO | 1 | Yes | Yes | ||
| 18 | HOSE-VENTILATION | 17243-E4100 | L24 | 1 | |||||
| 18 | TUBE-FLEXIBLE | 17236-E4600 | L24 | L26 EVAPO | 1 | ||||
| 18 | TUBE-FLEXIBLE | 17236-E4601 | L24 | L26 EVAPO | 1 | Yes | Yes | ||
| 19 | HOSE-VENTILATION FUE | 17239-E4600 | L24 | L26 EVAPO | 1 | ||||
| 19 | HOSE-VENTILATION FUE | 17239-E4601 | L24 | L26 EVAPO | 1 | Yes | Yes | ||
| 20 | HOSE-VENTILATION RES | 17238-E4601 | L24 | L26 EVAPO | 1 | ||||
| 20 | HOSE-VENTILATION RES | 17238-E4602 | L24 | L26 EVAPO | 1 | Yes | Yes | ||
| 21 | CLAMP-HOSE | 08723-11600 | L24 | L26 | 1 | ||||
| 21 | CLAMP-HOSE | 08723-12400 | L24 | L26 | 1 | ||||
| 22 | TANK-RESERVOIR | 17350-E4600 | L24 EVAPO | 7106 | 1 | ||||
| 22 | TANK-RESERVOIR | 17350-E4601 | L24 EVAPO | 7107 | 7307 | 1 | No | No | 17350-E4600 |
| 22 | TANK-RESERVOIR | 17350-N3400 | L26 EVAPO | 7308 | 1 | No | No | 17350-E4601 | |
| 23 | TUBE-RESERVOIR TANK | 17365-N3400 | L26 EVAPO | 7308 | 1 | ||||
| 24 | SCREW-MACHINE | 08310-51612 | L24 EVAPO | 7307 | 3 | ||||
| 24 | SCREW-MACHINE | 01431-00043 | L26 EVAPO | 7308 | 3 | No | No | 08310-51612 | |
| 25 | SPRING-WASHER | 08915-13510 | L24 EVAPO | 3 | |||||
| 26 | ASSY-BAND FUEL TANK | 17405-E4100 | L24 | 7307 | 1 | ||||
| 26 | ASSY-BAND FUEL TANK | 17405-N3400 | L26 | 7308 | 1 | Yes | Yes | 17405-E4100 | |
| 27 | ASSY-BAND FUEL TANK | 17410-E4100 | L24 | L26 | 1 | ||||
| 28 | SHIM-FUEL TANK MOUNT | 17413-E4100 | L24 | L26 | 1 | ||||
| 28 | SHIM-FUEL TANK MOUNT | 17417-E4100 | L24 | L26 | 1 | ||||
| 29 | BOLT-FUEL TANK MOUNT | 17415-N3400 | 2+2 SEATER | 7310 | 2 | No | No | 17415-E4100 | |
| 29 | BOLT-FUEL TANK MOUNT | 17415-E4100 | L24-2 SEATER 2 SE ATER | 2 | |||||
| 30 | NUT-FLANGE | 01221-00051 | L26 | 2 | Yes | Yes | 01221-00050 | ||
| 30 | NUT-FLANGE | 01221-00050 | L26 | 7308 | 2 | No | No | 01221-00053 | |
| 30 | NUT-SPECIAL | 01221-00053 | 7307 | 2 | |||||
| 31 | NUT-HEX | 08911-34010 | 7307 | 2 | |||||
| 31 | NUT-HEX | 08911-24010 | L26 | 7308 | 2 | No | No | 08911-34010 | |
| 32 | WASHER-PLAIN | 08915-54010 | 2 | ||||||
| 33 | WASHER-LOCK | 08915-14010 | L26 | 7308 | 2 | ||||
| 34 | UNIT-GAUGE FUEL TANK | 25060-E4100 | 1 | ||||||
| 35 | CLAMP-HOSE | 08723-12600 | L24 EVAPO | 7307 | 2 | ||||
| 36 | CLAMP-HOSE | 08723-12000 | L24 EVAPO | 7307 | 2 | ||||
| 37 | WASHER-PLAIN | 08915-43510 | L24 EVAPO | 7307 | 3 | ||||
| 38 | WASHER-LOCK | 08915-14010 | L24 | 7307 | 2 | ||||
| 39 | COVER BREATHER | 17244-E4100 | L24 | L26 EVAPO | 1 | ||||
| 40 | PROTECTOR-FILLER HOS | 17270-E4100 | L24 | 7307 | 1 | ||||
| 40 | PROTECTOR-FILLER HOS | 17270-N3400 | L26 | 7308 | 1 | Yes | Yes | 17270-E4100 | |
| 41 | SCREW-TAPPING | 08510-41223 | 4 | ||||||
| 42 | GROMMET-RUBBER | 17384-N3700 | 2+2 SEATER | 7310 | 1 | ||||
| 42 | GROMMET-RUBBER | 17225-E4600 | L24 | L26 | 1 | ||||
| 43 | GROMMET-HOSE | 17242-E4600 | 1 | ||||||
| 44 | GROMMET-RUBBER | 17271-E4100 | 1 | ||||||
| 45 | GROMMET-RUBBER | 17271-E4600 | 1 | ||||||
| 46 | SERVICE FILE GROMMET | 00951-11200 | 1 |
