Search Item: Key: Part Name: Part Number:

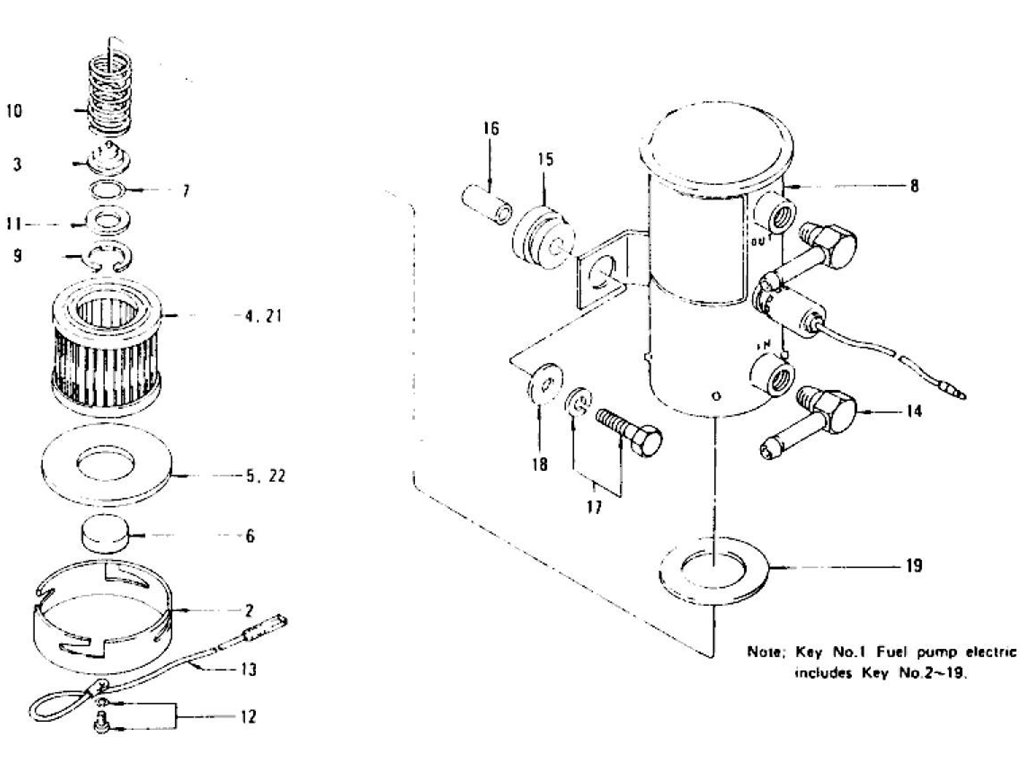

Electric Fuel Pump (From Jul.-'72)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-FUEL PUMP | 17020-N3310 | 7307 | 1 | |||||
| 1 | ASSY-FUEL PUMP | 17020-N3311 | 7307 | 1 | Yes | Yes | 17020-N3310 | ||
| 1 | ASSY-FUEL PUMP | 17020-N3601 | 7308 | 1 | |||||
| 1 | ASSY-FUEL PUMP | 17020-N3602 | 7308 | 1 | Yes | Yes | 17020-N3601 | ||
| 2 | ASSY-COVER | 17082-28500 | 1 | ||||||
| 2 | ASSY-COVER | 17082-28530 | 1 | No | No | 17082-28500 | |||
| 3 | ASSY-VALVE | 17065-29900 | 1 | ||||||
| 4 | FILTER-PUMP | 16404-28530 | 1 | ||||||
| 5 | GASKET | 16407-29900 | 1 | ||||||
| 6 | MAGNET-COVER | 16443-29900 | 1 | ||||||
| 7 | "O" RING | 17061-28530 | 1 | ||||||
| 8 | ASSY-PLUNGER | 17035-S0100 | 1 | ||||||
| 9 | RING-RETAINING | 17072-29900 | 1 | ||||||
| 10 | SPRING | 17036-Y0810 | 1 | ||||||
| 11 | WASHER | 17091-B3920 | 1 | ||||||
| 12 | SCREW | 17089-28530 | 1 | ||||||
| 12 | SCREW | 17089-28531 | 1 | Yes | Yes | 17089-28530 | |||
| 13 | ASSY-GROUND WIRE | 17037-N3310 | 7307 | 1 | |||||
| 14 | CONNECTOR-ELBOW | 17103-N3600 | 2 | ||||||
| 15 | GROMMET | 17033-28530 | 2 | ||||||
| 16 | COLLAR | 17023-28530 | 2 | ||||||
| 17 | SCREW | 17089-28531 | 2 | ||||||
| 18 | WASHER | 17091-28531 | 2 | ||||||
| 19 | GASKET | 16406-29900 | 1 | ||||||
| 20 | ASSY-FUEL PUMP | 17020-N3315 | 7307 | 1 | |||||
| 21 | FILTER-PUMP (ZIKIKI) | 16404-28530 | 7307 | 1 | |||||
| 21 | FILTER-PUMP(MITSUBA) | 16404-78020 | 7307 | 1 | |||||
| 22 | GASKET (MITSUBA) | 16407-P0310 | 7307 | 1 |
