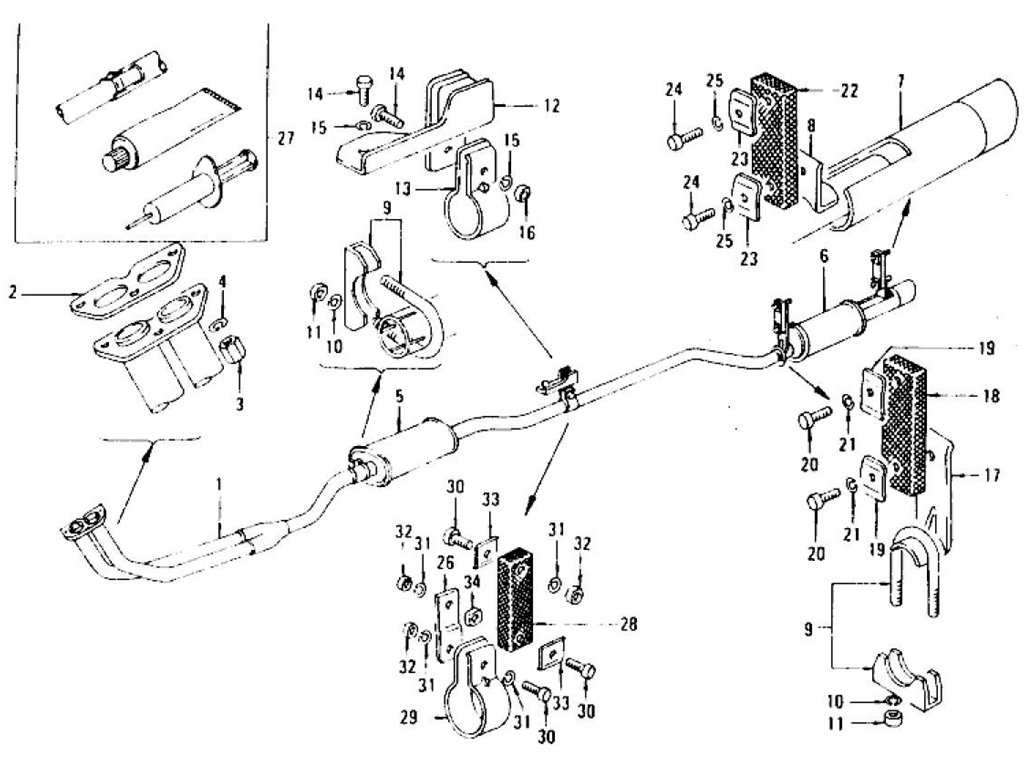

Exhaust Tube & Muffler L24, L26 (To Jul.-'73)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-TUBE EXHAUST FR | 20010-E4700 | L24 AUTOMATIC | 7108 | 1 | ||||
| 1 | ASSY-TUBE EXHAUST FR | 20010-E8720 | L24 AUTOMATIC | 7109 | 1 | Yes | Yes | 20010-E4700 | |
| 1 | ASSY-TUBE EXHAUST FR | 20010-N3398 | L24 AUTOMATIC | 7207 | 7209 | 1 | Yes | Yes | 20010-E8720 |
| 1 | ASSY-TUBE EXHAUST FR | 20010-N3320 | L24 AUTOMATIC | 7210 | 7307 | 1 | 20010-N3398 | ||
| 1 | ASSY-TUBE EXHAUST FR | 20010-E4100 | L24 MANUAL | 7108 | 1 | ||||
| 1 | ASSY-TUBE EXHAUST FR | 20010-E8700 | L24 MANUAL | 7109 | 1 | Yes | Yes | 20010-E4100 | |
| 1 | ASSY-TUBE EXHAUST FR | 20010-N3399 | L24 MANUAL | 7207 | 7209 | 1 | Yes | Yes | 20010-E8700 |
| 1 | ASSY-TUBE EXHAUST FR | 20010-N3300 | L24 MANUAL | 7210 | 7307 | 1 | No | No | 20010-N3399 |
| 2 | GASKET-EXHAUST | 20711-E3200 | L24 | 7307 | 1 | ||||
| 3 | NUT-FIXING TUBE END | 20602-A7100 | L24 | 7307 | 3 | ||||
| 4 | WASHER-SPRING LOCK | 08915-43810 | L24 | 7307 | 3 | ||||
| 5 | ASSY-TUBE CENTER WIT | 20050-E4150 | L24 | 7108 | 1 | ||||
| 5 | ASSY-TUBE CENTER WIT | 20050-E4156 | L24 | 7109 | 1 | Yes | Yes | 20050-E4150 | |
| 5 | ASSY-TUBE CENTER WIT | 20050-N3050 | L24 | 7210 | 7307 | 1 | No | No | 20050-E4156 |
| 6 | ASSY-MUFFLER WITH TA | 20100-E4100 | L24 | 1 | Yes | Yes | 20100-E4150 | ||
| 6 | ASSY-MUFFLER WITH TA | 20100-E4150 | L24 | 7307 | 1 | ||||
| 6 | ASSY-MUFFLER WITH TA | 20100-N3399 | L24 | 7207 | 7209 | 1 | Yes | Yes | 20100-E4100 |
| 6 | ASSY-MUFFLER WITH TA | 20100-N3300 | L24 | 7210 | 7307 | 1 | No | No | 20100-N3399 |
| 7 | FINISHER-EXHAUST TAI | 20105-E4100 | L24 | 7307 | 1 | ||||
| 8 | ASSY-BRACKET EXHAUST | 20652-E4100 | L24 | 7307 | 1 | ||||
| 9 | ASSY-CLAMP U BOLT EX | 20680-78551 | L24 | 2 | |||||
| 9 | ASSY-CLAMP U BOLT EX | 20685-E4150 | L24 | 7307 | 2 | Yes | Yes | 20680-78551 | |
| 10 | WASHER-SPRING | 08915-13810 | L24 | 7307 | 4 | ||||
| 11 | NUT-HEX M8X1.25 | 08911-10810 | L24 | 7307 | 4 | ||||
| 12 | ASSY-RUBBER COMP EXH | 20621-E4100 | L24 | 7307 | 1 | ||||
| 13 | CLAMP-EXHAUST MOUNTI | 20625-E4100 | L24 | 7108 | 1 | ||||
| 13 | CLAMP-EXHAUST MOUNTI | 20625-E8200 | L24 | 7109 | 7307 | 1 | Yes | Yes | 20625-E4100 |
| 14 | BOLT-HEX M10X1.25 | 08114-02010 | L24 | 7307 | 1 | ||||
| 14 | BOLT-HEX M10X1.25 | 08114-03010 | L24 | 7307 | 1 | ||||
| 15 | WASHER-SPRING LOCK | 08915-14010 | L24 | 7307 | 2 | ||||
| 16 | NUT-HEX M10X1.25 | 08911-14010 | L24 | 7307 | 1 | ||||
| 17 | ASSY-EXHAUST MOUNTIN | 20651-E4100 | L24 | 7209 | 1 | ||||
| 17 | ASSY-EXHAUST MOUNTIN | 20651-N3000 | L24 | 7210 | 7307 | 1 | No | No | 20651-E4100 |
| 18 | STRAP-EXHUST HANGER | 20640-18000 | L24 | 7307 | 1 | ||||
| 19 | WASHER-PLAIN EXHAUST | 20641-18000 | L24 | 7307 | 2 | ||||
| 20 | BOLT-HEX M8X1.25 | 08110-82510 | L24 | 2 | |||||
| 20 | BOLT-HEX M8X1.25 | 32055-47600 | L24 | 7307 | 2 | Yes | Yes | 08110-82510 | |
| 21 | WASHER-SPRING LOCK | 08915-13810 | L24 | 7307 | 2 | ||||
| 22 | STRAP-EXHAUST HANGER | 20640-18000 | L24 | 7307 | 1 | ||||
| 23 | WASHER-PLAIN EXHAUST | 20641-18000 | L24 | 7307 | 2 | ||||
| 24 | BOLT-HEX M8X1.25 | 08110-82510 | L24 | 2 | |||||
| 24 | BOLT-HEX M8X1.25 | 32055-47600 | L24 | 7307 | 2 | Yes | Yes | 08110-82510 | |
| 25 | WASHER-SPRING LOCK | 08915-13810 | L24 | 7307 | 2 | ||||
| 26 | JOINT-EXHAUST MOUNTI | 20624-E8700 | L24 | 7307 | 1 | ||||
| 27 | KIT-SEALANT | 20720-N2225 | L24 | 7307 | 1 | ||||
| 28 | STRAP-EXHAUST HANGER | 20640-18000 | L24 | 7108 | 7307 | 1 | |||
| 29 | CLAMP-EXHAUST MTG | 20625-E8200 | L24 | 7307 | 1 | ||||
| 30 | BOLT-HEX | 08110-82510 | L24 | 7307 | 3 | ||||
| 31 | WASHER-SPRING | 08915-13810 | L24 | 7307 | 3 | ||||
| 32 | NUT-HEX M8X1.25 | 08911-10810 | L24 | 7307 | 2 | ||||
| 33 | WASHER-PLAIN EXHAUST | 20641-18000 | L24 | 7307 | 2 | ||||
| 34 | SHEET-JOINT EXHAUST | 20623-E8200 | L24 | 7307 | 3 |
