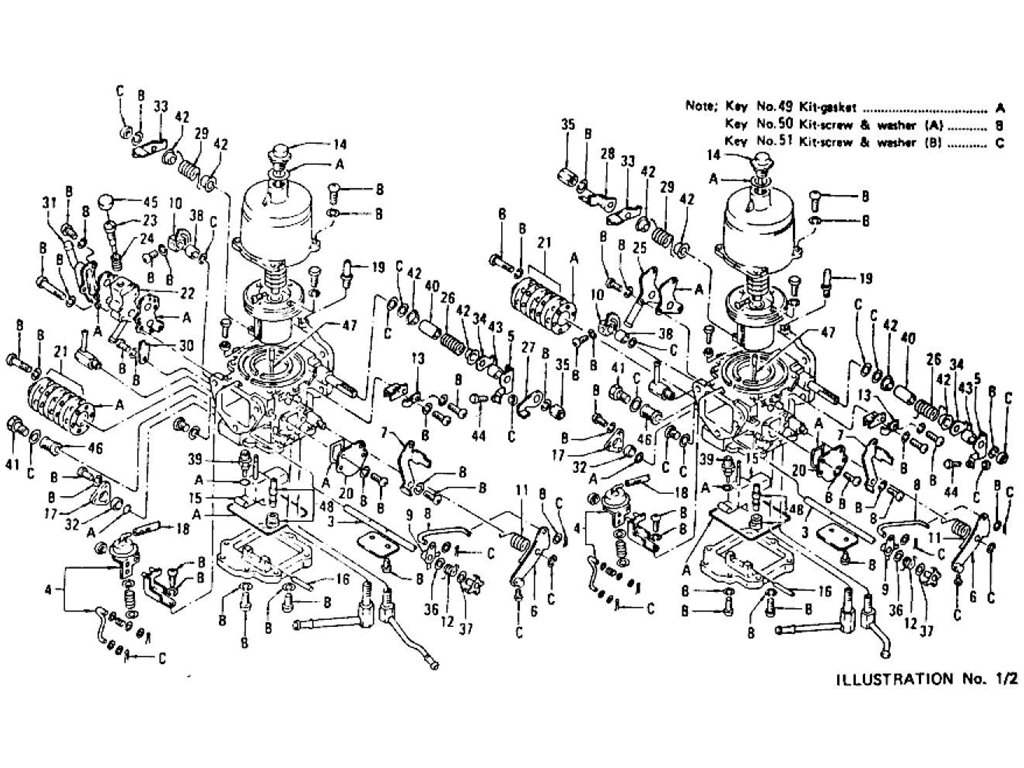

Carburetor 260Z (L26) Carburetor L26 (From Aug.-'73 To Nov.-'74)
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | ASSY-CARBURETOR | 16010-N3634 | L26 | 7308 | 7407 | 1 | Yes | Yes | 16010-N3633 |
|
1 | ASSY-CARBURETOR | 16010-N3633 | L26 | 7308 | | 1 | | | |
|
1 | ASSY-CARBURETOR | 16010-N3635 | L26 | 7408 | | 1 | Yes | Yes | 16010-N3634 |
|
2 | ASSY-CARBURETOR | 16010-N3653 | L26 | 7308 | 7309 | 1 | | | |
|
2 | ASSY-CARBURETOR | 16010-N3654 | L26 | 7308 | 7407 | 1 | Yes | Yes | 16010-N3663 |
|
2 | ASSY-CARBURETOR | 16010-N3663 | L26 | 7310 | | 1 | | | 16010-N3653 |
|
2 | ASSY-CARBURETOR | 16010-N3655 | L26 | 7408 | | 1 | Yes | Yes | 16010-N3654 |
|
3 | ASSY-SHAFT | 16271-N3311 | L26 | 7308 | | 2 | | | |
|
4 | ASSY-PISTON | 16466-N3311 | L26 | 7308 | | 2 | | | |
|
5 | LEVER-FAST IDLE | 16277-N3311 | L26 | 7308 | | 2 | | | |
|
6 | CAM-CHOKE | 16468-N3310 | L26 | 7308 | | 2 | | | |
|
7 | STOPPER-CHOKE CAM | 16469-N3311 | L26 | 7308 | | 2 | | | |
|
8 | ROD-CONNECTING | 16143-N3310 | L26 | 7308 | | 2 | | | |
|
9 | LEVER-CHOKE | 16238-N3310 | L26 | 7308 | | 2 | | | |
|
10 | LEVER-CHOKE PISTON | 16471-N3310 | L26 | 7308 | | 2 | | | |
|
11 | SPRING-CHOKE RETURN | 16190-N3310 | L26 | 7308 | | 2 | | | |
|
12 | SPRING-CHOKE | 16190-N3600 | L26 | 7308 | | 2 | | | |
|
13 | GUIDE-CHOKE WIRE | 16165-N3310 | L26 | 7308 | | 2 | | | |
|
14 | ASSY-NUT | 16341-N3310 | L26 | 7308 | | 2 | | | |
|
15 | FLOAT | 16061-N3311 | L26 | 7308 | | 2 | | | |
|
16 | SHAFT-FLOAT | 16066-N3310 | L26 | 7308 | | 2 | | | |
|
17 | HOLDER-LEVER GAUGE | 16474-N3312 | L26 | 7308 | | 2 | | | |
|
18 | 'OSE-VACUUM | 16267-N3310 | L26 | 7308 | | 2 | | | |
|
19 | NIPPLE-VACUUM | 16337-N3310 | L26 | 7308 | | 2 | | | |
|
20 | COVER-PLATE | 16272-N3310 | L26 | 7308 | | 2 | | | |
|
21 | ASSY-POWER VALVE | 16059-N3600 | L26 | 7308 | | 2 | | | |
|
22 | BLOCK-IMS | 16477-N3310 | L26 | 7308 | | 1 | | | |
|
23 | SCREW-IMS | 16144-N3310 | L26 | 7308 | | 1 | | | |
|
24 | SPRING-IMS SCREW | 16145-N3310 | L26 | 7308 | | 1 | | | |
|
25 | CONNECTOR-IMS | 16478-N3310 | L26 | 7308 | | 1 | | | |
|
26 | SPRING-THROTTLE | 16160-N3600 | L26 | 7308 | | 2 | | | |
|
27 | LEVER-THROTTLE (F) | 16134-N3310 | L26 | 7308 | | 1 | | | |
|
28 | LEVER-THROTTLE (R) | 16134-N3311 | L26 | 7308 | | 1 | | | |
|
29 | SPRING-THROTTLE | 16160-N3610 | L26 | 7308 | | 2 | | | |
|
30 | STOPPER-LIMITER | 16476-N3310 | L26 | 7308 | | 1 | | | |
|
31 | CONNECTOR-AIR | 16334-N3310 | L26 | 7308 | | 1 | | | |
|
32 | GAUGE-LEVEL | 16125-N3600 | L26 | 7308 | | 2 | | | |
|
33 | LEVER-THROTTLE ADJUS | 16479-N3310 | L26 | 7308 | | 2 | | | |
|
34 | HANGER-SPRING | 16162-N3600 | L26 | 7308 | | 2 | | | |
|
35 | NUT | 16214-25610 | L26 | 7308 | | 2 | | | |
|
36 | COLLAR (A) | 16217-N3310 | L26 | 7308 | | 2 | | | |
|
37 | COLLAR (B) | 16217-N3311 | L26 | 7308 | | 2 | | | |
|
38 | COLLART | 16217-N3312 | L26 | 7308 | | 2 | | | |
|
39 | VALVE-NEEDLE | 16101-N3310 | L26 | 7308 | 7407 | 2 | | | |
|
39 | VALVE-NEEDLE (1.7) | 16101-N3605 | L26 | 7408 | | 2 | Yes | Yes | 16101-N3310 |
|
40 | SHIM-COLLAR | 16239-N3600 | L26 | 7308 | | 2 | | | |
|
41 | SCREW-FILTER | 16108-N3310 | L26 | 7308 | | 2 | | | |
|
42 | COLLAR | 16116-S0802 | L26 | 7308 | | 8 | | | |
|
43 | COLLAR | 16116-N3600 | L26 | 7308 | | 2 | | | |
|
44 | SCREW-FAST IDLE | 16065-N3310 | L26 | 7308 | | 2 | | | |
|
45 | CAP-IMS LIMIT | 16147-N3605 | L26 | 7308 | | 1 | | | |
|
46 | FILTER | 16098-25710 | L26 | 7308 | | 2 | | | |
|
47 | JET-NEEDLE | 16354-N3310 | L26 | 7308 | | 2 | | | |
|
48 | KIT-NOZZLE | 16496-N3300 | L26 | 7308 | | 2 | | | |
|
49 | KIT-GASKET | 16455-N3311 | L26 | 7308 | | 1 | | | |
|
50 | KIT-SCREW & WASHER ( | 16465-N3310 | L26 | 7308 | | 1 | | | |
|
51 | KIT-SCREW & WASHER ( | 16475-N3601 | L26 | 7308 | | 1 | | | |
|
52 | KIT-REPAIR | 16009-N3302 | L26 | 7308 | | 1 | | | |
|
53 | 2NSULATOR-CARBURETOR | 16174-N3301 | L26 | 7308 | | 2 | | | |
|
53 | 2NSULATOR-CARBURETOR | 16174-N3600 | L26 | 7308 | | 2 | Yes | Yes | 16174-N3301 |
|
54 | WASHER-PLAIN | 08915-43890 | L26 | 7308 | | 8 | | | |
|
54 | WASHER-PLAIN | 14037-N3311 | L26 | 7308 | | 8 | | | |
|
55 | WASHER-LOCK | 08915-13890 | L26 | 7308 | | 8 | | | |
|
56 | NUT | 08911-10810 | L26 | 7308 | | 8 | | | |
|
57 | ASSY-SHAFT THROTTLE | 16380-N3600 | L26 AUTOMATIC | 7308 | | 1 | | | |
|
57 | ASSY-SHAFT THROTTLE | 16380-N3301 | L26 MANUAL | 7308 | | 1 | | | |
|
58 | SPRING-THROTTLE ADJU | 16378-E4300 | L26 | 7308 | | 2 | | | |
|
59 | SCREW-THROTTLE ADJUS | 16379-E4300 | L26 | 7308 | | 2 | | | |
|
60 | CAP-ADJUST SCREW | 16147-N3300 | L26 | 7308 | | 1 | | | |
|
61 | SHAFT-AUX | 16361-N3601 | L26 | 7308 | | 1 | Yes | Yes | 16361-N3600 |
|
61 | SHAFT-AUX.THROTTLE | 16361-N3600 | L26 | | | 1 | | | |
|
62 | ARM-AUX.THROTTLE SHA | 16365-N3302 | L26 | 7308 | | 1 | | | |
|
63 | WASHER-TOOTH LOCK | 08916-43510 | L26 | 7308 | | 1 | | | |
|
64 | SCREW MS | 08330-51012 | L26 | 7308 | | 1 | | | |
|
64 | SCREW MS | 08330-51612 | L26 | 7308 | | 1 | | | |
|
65 | ASSH-BRACKET | 16375-N3600 | L26 | 7308 | | 1 | | | |
|
66 | SPRING-THROTTLE ADJU | 16378-E4300 | L26 | 7308 | | 1 | | | |
|
67 | SCRING-THROTTLE ADJU | 16379-E4300 | L26 | 7308 | | 1 | | | |
|
68 | WASHER-SPRING | 08915-13510 | L26 | 7308 | | 2 | | | |
|
69 | SCREW M5 | 08310-51212 | L26 | 7308 | | 2 | | | |
|
70 | CAP-ADJUST SCREW | 16147-N3300 | L26 | 7308 | | 1 | | | |
|
71 | ROD-CONNECTING | 16371-N3301 | L26 | 7308 | | 1 | | | |
|
72 | &LATE-HEAT SHIELD FR | 14330-N3304 | L26 | 7308 | | 1 | | | |
|
73 | PLATE-HEAT REAR | 14331-N3600 | L26 | 7308 | | 1 | | | |
|
74 | WASHER-PLAIN | 08915-43610 | L26 | 7308 | | 4 | | | |
|
75 | BOLT | 08110-61262 | L26 | 7308 | | 4 | | | |
|
75 | BOLT | 08110-61262 | L26 | 7308 | | 5 | | | |
|
76 | &LATE-SUB HEAT SHIEL | 14335-N3300 | L26 | 7308 | | 2 | | | |
|
77 | 2NSULATOR-SUB HEAT S | 14337-N3300 | L26 | 7308 | | 4 | | | |
|
78 | BOLT WITH WASHER M6 | 08110-61662 | L26 | 7308 | | 4 | | | |
|
79 | WASHER-PLAIN M6 | 08915-53610 | L26 | 7308 | | 4 | | | |
|
80 | HOSE-CONN.TO FRONT C | 16085-N3302 | L26 | 7308 | | 1 | | | |
|
81 | HOSE-WATER FRONT CAR | 16086-N3302 | L26 | 7308 | | 1 | | | |
|
82 | HOSE-CARB.TO WATER C | 16087-N3304 | L26 | 7308 | | 1 | | | |
|
82 | HOSE-CARB.TO WATER C | 16087-N3601 | L26 | 7407 | | 1 | No | No | 16087-N3600 |
|
82 | 'OSE-CARB.TO WATER C | 16087-N3600 | L26 | 7308 | 7406 | 1 | No | No | 16087-N3304 |
|
83 | CLAMP-HOSE | 08723-11600 | L26 | 7308 | | 4 | | | |
|
84 | CLAMP-HOSE | 08723-11900 | L26 | 7308 | | 1 | | | |
|
85 | CLAMP-HOSE | 08723-12200 | L26 | 7308 | | 1 | | | |
|
86 | BAND-HOSE | 01552-00411 | L26 | | | 3 | Yes | Yes | 14896-25601 |
|
86 | BAND-HOSE | 14896-25601 | L26 | 7308 | | 3 | | | |
|
87 | ASSY-VALVE CARBURETO | 14100-N3303 | L26 | 7308 | | 1 | | | |
|
88 | 'OSE-FRONT CARB.TO R | 16088-N3300 | L26 | 7308 | | 1 | | | |
|
89 | CLAMP-HOSE | 01557-00011 | L26 | 7308 | | 1 | | | |
|
90 | CLAMP-HOSE | 01557-00021 | L26 | 7308 | | 1 | | | |
|
91 | HOSE-A/C TO FRONT CA | 16089-N3300 | L26 | 7308 | | 1 | | | |
|
92 | CLAMP-HOSE | 01557-00021 | L26 | 7308 | | 2 | | | |
|
93 | SCREW-WITH WASHER | 08310-51014 | L26 | 7308 | | 4 | | | |
|
94 | ASSY-HOSE CARBURETOR | 16084-N3001 | L26 | 7308 | | 2 | | | |
|
94 | HOSE (L=2200) | 08742-20020 | L26 | 7308 | | 0 | | | |
|
95 | CLAMP-HOSE | 08723-11400 | L26 | | | 4 | Yes | Yes | 16439-A0601 |
|
95 | CLAMP-HOSE | 16439-A0601 | L26 | 7308 | | 4 | | | |
|
96 | ASSY-HOSE | 16084-N3301 | L26 | 7308 | | 1 | | | |
|
96 | HOSE (L=2200) | 08742-20030 | L26 | | | 0 | | | |
|
97 | CLAMP | 08723-11600 | L26 | 7308 | | 2 | Yes | Yes | 16439-A0604 |
|
97 | CLAMP-HOSE | 16439-A0604 | L26 | | | 2 | | | |
|
98 | ASSY-TUBE ISS | 16090-N3301 | L26 | 7308 | | 1 | | | |
|
99 | ASSY-ISS | 16091-N3301 | L26 | 7308 | | 1 | | | |
|
100 | (OZZLE-KIT | 16496-N3300 | L26 | 7308 | | 1 | | | |
