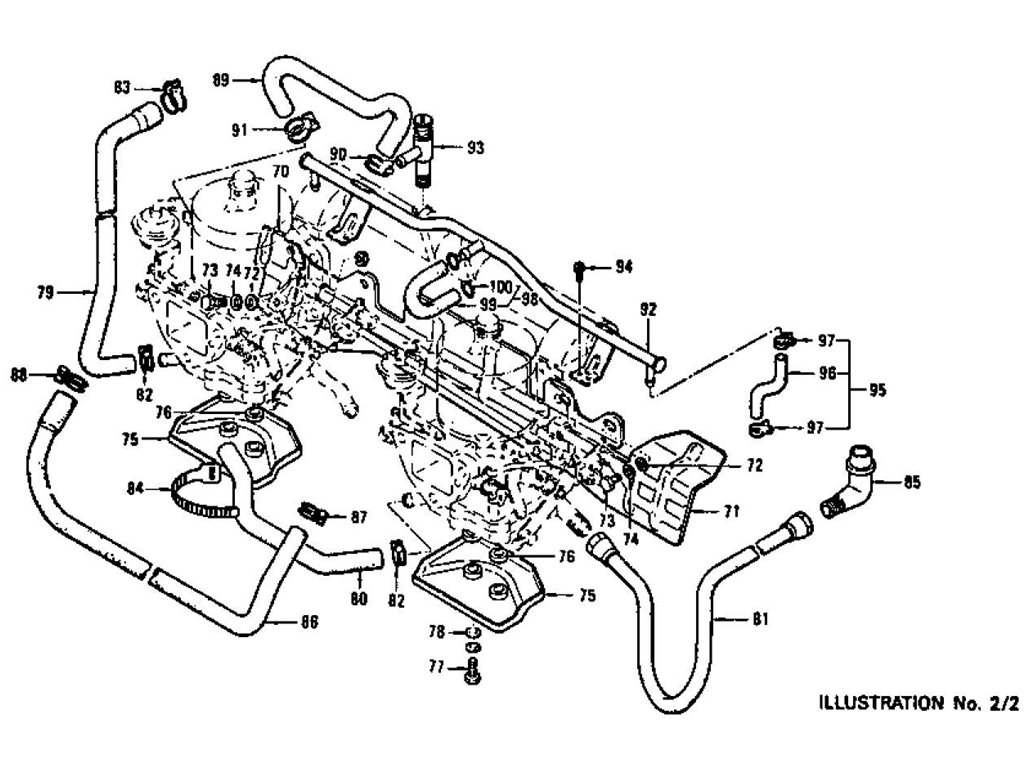

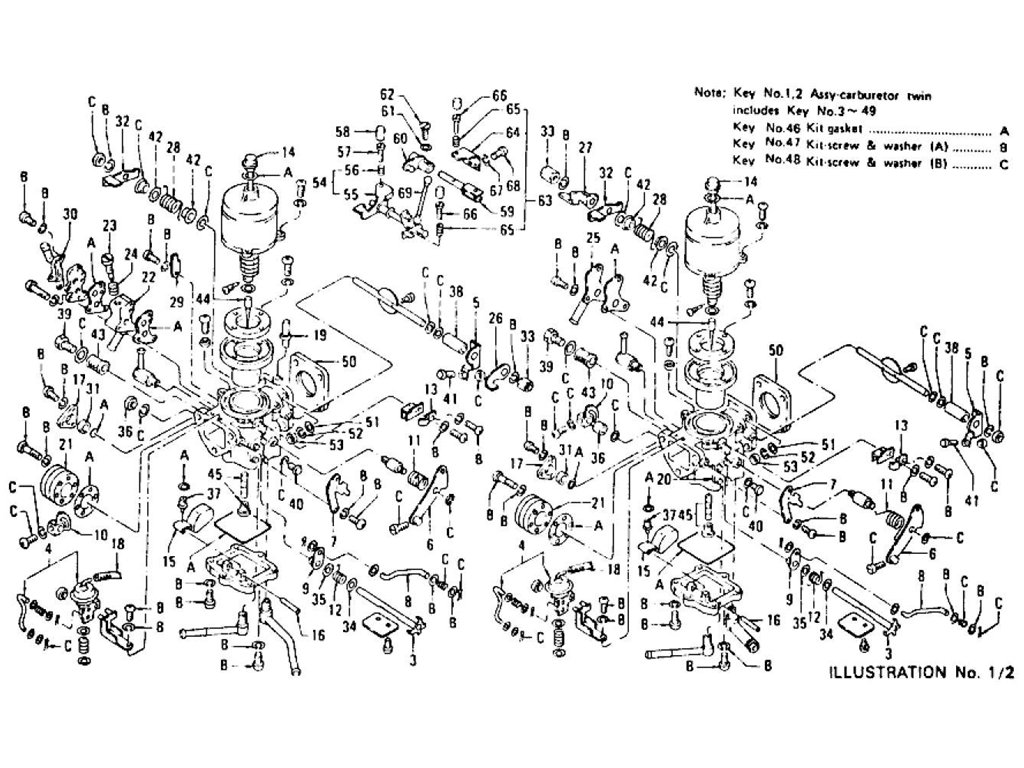

Carburetor L24 (From Jul.-'72 To Jul.-'73)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-CARBURETOR FRON | 16010-N3327 | L24 | 7207 | 7307 | 1 | Yes | Yes | 16010-N3332 |
| 1 | ASSY-CARBURETOR FRON | 16010-N3330 | L24 | 7207 | 7307 | 1 | |||
| 1 | ASSY-CARBURETOR FRON | 16010-N3332 | L24 | 7207 | 7307 | 1 | No | No | 16010-N3330 |
| 1 | ASSY-CARBURETOR FRON | 16010-N3335 | L24 AUTO | 7207 | 7307 | 1 | |||
| 2 | ASSY-CARBURETOR REAR | 16010-N3350 | L24 | 7202 | 7307 | 1 | |||
| 2 | ASSY-CARBURETOR REAR | 16010-N3328 | L24 | 7207 | 7307 | 1 | Yes | Yes | 16010-N3352 |
| 2 | ASSY-CARBURETOR REAR | 16010-N3352 | L24 | 7207 | 7307 | 1 | No | No | 16010-N3350 |
| 2 | ASSY-CARBURETOR REAR | 16010-N3355 | L24 AUTO | 7202 | 7307 | 1 | |||
| 3 | ASSY-SHAFT CHOKE (FR | 16271-N3310 | L24 | 7307 | 2 | ||||
| 3 | ASSY-SHAFT CHOKE (FR | 16271-N3311 | L24 | 7207 | 7307 | 2 | Yes | Yes | 16271-N3310 |
| 4 | ASSY-PISTON CHOKE | 16466-N3310 | L24 | 7307 | 2 | ||||
| 4 | ASSY-PISTON CHOKE | 16466-N3311 | L24 | 7207 | 7307 | 2 | Yes | Yes | 16466-N3310 |
| 5 | LEVER-1ST IDLE | 16277-N3310 | L24 | 2 | |||||
| 5 | LEVER-1ST IDLE | 16277-N3311 | L24 | 7207 | 7307 | 2 | Yes | Yes | 16277-N3310 |
| 6 | CAM-CHOKE | 16468-N3310 | L24 | 7307 | 2 | ||||
| 7 | STOPPER-CHOKE CAM | 16469-N3310 | L24 | 2 | |||||
| 7 | STOPPER-CHOKE CAM | 16469-N3311 | L24 | 7207 | 7307 | 2 | Yes | Yes | 16469-N3310 |
| 8 | ROD-CONNECTING | 16143-N3310 | L24 | 7307 | 2 | ||||
| 9 | LEVER-CHOKE | 16238-N3310 | L24 | 7307 | 2 | ||||
| 10 | LEVER-CHOKE PISTON | 16471-N3310 | L24 | 7307 | 2 | ||||
| 11 | SPRING-CHOKE RETURN | 16190-N3310 | L24 | 7307 | 2 | ||||
| 12 | SPRING-CHOKE | 16190-N3311 | L24 | 7307 | 2 | ||||
| 12 | SPRING-CHOKE | 16190-N3600 | L24 | 7207 | 7307 | 2 | Yes | Yes | 16190-N3311 |
| 13 | GUIDE-CHOKE WIRE | 16165-N3310 | L24 | 7307 | 2 | ||||
| 14 | ASSY-NUT OIL CAP | 16341-N3310 | L24 | 7307 | 2 | ||||
| 15 | FLOAT | 16061-N3301 | L24 | 2 | Yes | Yes | 16061-N3310 | ||
| 15 | FLOAT | 16061-N3310 | L24 | 2 | |||||
| 15 | FLOAT | 16061-N3311 | L24 | 7207 | 7307 | 2 | No | No | 16061-N3301 |
| 16 | SHAFT-FLOAT | 16066-N3310 | L24 | 2 | |||||
| 16 | SHAFT-FLOAT | 16066-N3311 | L24 | 7207 | 7307 | 2 | No | No | 16066-N3310 |
| 17 | HOLDER-LEVEL GAUGE | 16474-N3311 | L24 | 2 | |||||
| 17 | HOLDER-LEVEL GAUGE | 16474-N3312 | L24 | 7207 | 7307 | 2 | No | No | 16474-N3311 |
| 18 | HOSE-VACUUM | 16267-N3310 | L24 | 7307 | 2 | ||||
| 19 | NIPPLE-VACUUM (FRONT | 16337-N3310 | L24 | 7307 | 1 | ||||
| 20 | PLATE-COVER | 16272-N3310 | L24 | 7307 | 2 | ||||
| 21 | ASSY-VALVE POWER | 16059-N3311 | L24 | 2 | |||||
| 21 | ASSY-VALVE POWER | 16059-N3312 | L24 | 7207 | 7307 | 2 | Yes | Yes | 16059-N3311 |
| 21 | ASSY-VALVE POWER | 16059-N3313 | L24 | 7207 | 7307 | 2 | Yes | Yes | 16059-N3312 |
| 21 | ASSY-VALVE POWER | 16059-N3600 | L24 | 7207 | 7307 | 2 | Yes | Yes | 16059-N3313 |
| 22 | BLOCK-IMS (FRONT) | 16477-N3310 | L24 | 7307 | 1 | ||||
| 23 | SCREW-IMS (FRONT) | 16144-N3310 | L24 | 7307 | 1 | ||||
| 24 | SPRING-IMS SCREW (FR | 16145-N3310 | L24 | 7307 | 1 | ||||
| 25 | CONNECTOR-IMS (REAR) | 16478-N3310 | L24 | 7307 | 1 | ||||
| 26 | LEVER-THROTTLE (FRON | 16134-N3310 | L24 | 7307 | 1 | ||||
| 27 | LEVER-THROTTLE (REAR | 16134-N3311 | L24 | 7307 | 1 | ||||
| 28 | SPRING-THROTTLE | 16160-N3310 | L24 | 7307 | 2 | ||||
| 29 | STOPPER-LIMITER | 16476-N3310 | L24 | 7307 | 1 | ||||
| 30 | CONNECTOR-AIR | 16334-N3310 | L24 | 7307 | 1 | ||||
| 31 | GAUGE-LEVEL | 16125-N3311 | L24 | 2 | |||||
| 31 | GAUGE-LEVEL | 16125-N3312 | L24 | 7207 | 7307 | 2 | No | No | 16125-N3311 |
| 31 | GAUGE-LEVEL | 16125-N3600 | L24 | 7207 | 7307 | 2 | Yes | Yes | 16125-N3312 |
| 32 | LEVER-THROTTLE ADJUS | 16479-N3310 | L24 | 7307 | 2 | ||||
| 33 | NUT-8 DIA | 16214-25610 | L24 | 7307 | 2 | ||||
| 34 | COLLAR (A) | 16217-N3310 | L24 | 7307 | 2 | ||||
| 35 | COLLAR (B) | 16217-N3311 | L24 | 7307 | 2 | ||||
| 36 | COLLAR | 16217-N3312 | L24 | 7307 | 2 | ||||
| 37 | VALVE-NEEDLE (1.7) | 16101-N3310 | L24 | 7307 | 2 | ||||
| 38 | COLLAR-SHIM | 16239-N3310 | L24 | 7307 | 2 | ||||
| 39 | SCREW-FILTER STOP | 16108-N3310 | L24 | 7307 | 2 | ||||
| 40 | PLUG-DRAIN | 16272-14810 | L24 | 2 | |||||
| 40 | PLUG-DRAIN | 16272-N2810 | L24 | 7307 | 2 | Yes | Yes | 16272-14810 | |
| 41 | SCREW-IDLE 1ST | 16065-N3310 | L24 | 7307 | 2 | ||||
| 42 | COLLER | 16116-S0801 | L24 | 2 | |||||
| 42 | COLLER | 16116-S0802 | L24 | 7307 | 2 | Yes | Yes | 16116-S0801 | |
| 43 | FILTER | 16098-25710 | L24 | 7307 | 2 | ||||
| 44 | JET-NEEDLE | 16354-N3310 | L24 | 7307 | 2 | ||||
| 45 | KIT-NOZZLE | 16496-N3300 | L24 | 2 | |||||
| 46 | KIT-GASKET | 16455-N3310 | L24 | 1 | |||||
| 46 | KIT-GASKET | 16455-N3311 | L24 | 7207 | 7307 | 1 | Yes | Yes | 16455-N3310 |
| 47 | KIT-SCREW & WASHER ( | 16465-N3310 | L24 | 7307 | 1 | ||||
| 48 | KIT-SCREW & WASHER ( | 16475-N3310 | L24 | 7307 | 1 | ||||
| 49 | SPRING-ROD | 16170-21610 | L24 | 7307 | 2 | ||||
| 50 | INSULATOR-CARB | 16174-N3301 | L24 | 7307 | 2 | ||||
| 50 | INSULATOR-CARB | 16174-N3600 | L24 | 7307 | 2 | Yes | Yes | 16174-N3301 | |
| 51 | WASHER-PLAIN | 08915-43890 | L24 | 7307 | 8 | ||||
| 52 | WASHER-SPRING | 08915-13890 | L24 | 7307 | 8 | ||||
| 53 | NUT-HEX | 08911-10810 | L24 | 7307 | 8 | ||||
| 54 | ASSY-SHAFT THROTTLE | 16380-N3301 | L24 | 7307 | 1 | ||||
| 55 | SHAFT-THROTTLE | 16381-N3301 | L24 | 7307 | 1 | ||||
| 56 | SPRING-THROTTLE ADJ | 16378-E4300 | L24 | 7307 | 1 | ||||
| 57 | SCREW-THROTTLE ADJ | 16379-E4300 | L24 | 7307 | 1 | ||||
| 58 | CAP-ADJUST SCREW | 16147-N3300 | L24 | 7307 | 1 | ||||
| 59 | SHAFT-AUX THROTTLE | 16361-N3300 | L24 | 7307 | 1 | ||||
| 60 | ARM-AUX THR SHAFT | 16365-N3302 | L24 | 7307 | 1 | ||||
| 61 | WASHER-TOOTH LOCK | 08916-43510 | L24 | 7307 | 1 | ||||
| 62 | SCREW MS (SHAFT FIX) | 08330-51612 | L24 | 7307 | 1 | ||||
| 63 | ASSY-BRKT ADJ SCREW | 16375-N3302 | L24 | 7307 | 1 | ||||
| 64 | BRACKET-ADJ SCREW | 16376-N3302 | L24 | 7307 | 1 | ||||
| 65 | SPRING-THROTTLE ADJ | 16378-E4300 | L24 | 7307 | 1 | ||||
| 66 | SCREW-THROTTLE ADJ | 16379-E4300 | L24 | 7307 | 1 | ||||
| 67 | WASHER-SPRING | 08915-13510 | L24 | 7307 | 2 | ||||
| 68 | SCREW MS (BRKT FIX) | 08310-51212 | L24 | 7307 | 2 | ||||
| 69 | ROD-CONNECTING | 16371-N3301 | L24 | 7307 | 1 | ||||
| 70 | PLATE-HEAT SHIELD FR | 14330-N3304 | L24 | 7307 | 1 | ||||
| 71 | PLATE-HEAT SHIELD RR | 14331-N3301 | L24 | 7307 | 1 | ||||
| 72 | WASHER-PLAIN | 08915-43610 | L24 | 7307 | 5 | ||||
| 73 | BOLT-HEX (M6X1.0) | 08110-61210 | L24 | 7307 | 5 | ||||
| 74 | WASHER-SPRING | 08915-13610 | L24 | 7307 | 5 | ||||
| 75 | PLATE-SUB HEAT SHIEL | 14335-N3300 | L24 | 7307 | 2 | ||||
| 76 | INSULATOR-SUB H/SHIE | 14337-N3300 | L24 | 7307 | 4 | ||||
| 77 | BOLT-HEX WITH S/W M6 | 08110-61662 | L24 | 7307 | 4 | ||||
| 78 | WASHER-PLAIN M6 | 08915-53610 | L24 | 7307 | 4 | ||||
| 79 | HOSE-CONN TO FRONT C | 16085-N3302 | L24 | 7307 | 1 | ||||
| 80 | HOSE-WATER FR CARB T | 16086-N3302 | L24 | 7307 | 1 | ||||
| 81 | HOSE-CARB TO WATER C | 16087-N3304 | K | 7207 | 7307 | 1 | Yes | Yes | 16087-N3303 |
| 81 | TUBE-CARB TO WATER C | 16087-N3303 | K | 0 | |||||
| 82 | CLAMP-HOSE | 08723-11600 | K | 7307 | 3 | ||||
| 83 | CLAMP-HOSE | 08723-12200 | K | 7307 | 1 | ||||
| 84 | BAND-HOSE | 01552-00411 | K | 3 | Yes | Yes | 14896-25601 | ||
| 84 | BAND-HOSE | 14896-25601 | K | 3 | |||||
| 85 | ASSY-VALVE CARB WATE | 14100-N3304 | L24 | 7307 | 1 | Yes | Yes | 14100-N3302 | |
| 85 | ASSY-VALVE CARB WATE | 14100-N3302 | L242 | 1 | |||||
| 86 | HOSE-FRONT CARB TO R | 16088-N3300 | L24 | 7307 | 1 | ||||
| 87 | CLAMP-HOSE | 01557-00011 | L24 | 7307 | 1 | ||||
| 88 | CLAMP-HOSE | 01557-00021 | L24 | 7307 | 1 | ||||
| 89 | HOSE-A/C TO FR CARB | 16089-N3300 | L24 | 7307 | 1 | ||||
| 90 | CLAMP-HOSE | 01557-00021 | L24 | 7307 | 1 | ||||
| 91 | CLAMP-HOSE | 01557-00031 | L24 | 1 | |||||
| 92 | ASSY-TUBE ISS. | 16090-N3301 | 1 | ||||||
| 93 | ASSY-ISS. | 16091-N3301 | L24 | 7307 | 1 | ||||
| 94 | SCREW-WITH S/W ISS.T | 08310-31014 | L24 | 7307 | 4 | ||||
| 95 | ASSY-HOSE | 16084-N3001 | L24 | 2 | Yes | Yes | 16084-N3001 | ||
| 95 | ASSY-HOSE | 16084-N3310 | L24 | 7307 | 2 | ||||
| 96 | HOSE-CARB (L=2200) | 08742-20020 | L24 | 7307 | 0 | ||||
| 96 | 'OSE-CARB TO ISS.TUB | 08740-06520 | L24 | 7307 | 2 | ||||
| 97 | CLAMP-HOSE | 01557-00041 | L24 | 4 | |||||
| 97 | CLAMP-HOSE | 16439-A0601 | L24 | 4 | Yes | Yes | 01557-00041 | ||
| 97 | CLAMP-HOSE | 16439-22100 | L24 | 7207 | 7307 | 4 | Yes | Yes | 16439-A0601 |
| 98 | SERVICE FILE HOSE & CLAMP | 16084-N3300 | L24 | 7307 | 1 | ||||
| 99 | 'OSE-ISS TUBE TO ISS | 08740-07030 | L24 | 7307 | 1 | ||||
| 100 | CLAMP-HOSE | 16572-N3300 | L24 | 2 | |||||
| 100 | CLAMP-HOSE ISS TUBE | 08723-11600 | L24 | 7307 | 2 | Yes | Yes | 16439-A0604 | |
| 100 | CLAMP-HOSE ISS TUBE | 16439-A0604 | L24 | 2 | YY165-72N33 | ||||
| 101 | HOSE-FUEL(6.0X13.5X2 | 08742-20020 | 0 | ||||||
| 101 | HOSE-FUEL(6.0X13.5X2 | HOSE-FUEL(7.5X15X220 | |||||||
| 101 | HOSE-FUEL(6.0X13.5X2 | 08742-20030 | 0 | ||||||
| 102 | KIT-REPAIR CARBURETO | 16009-N3300 | L24 | 7307 | 1 |
