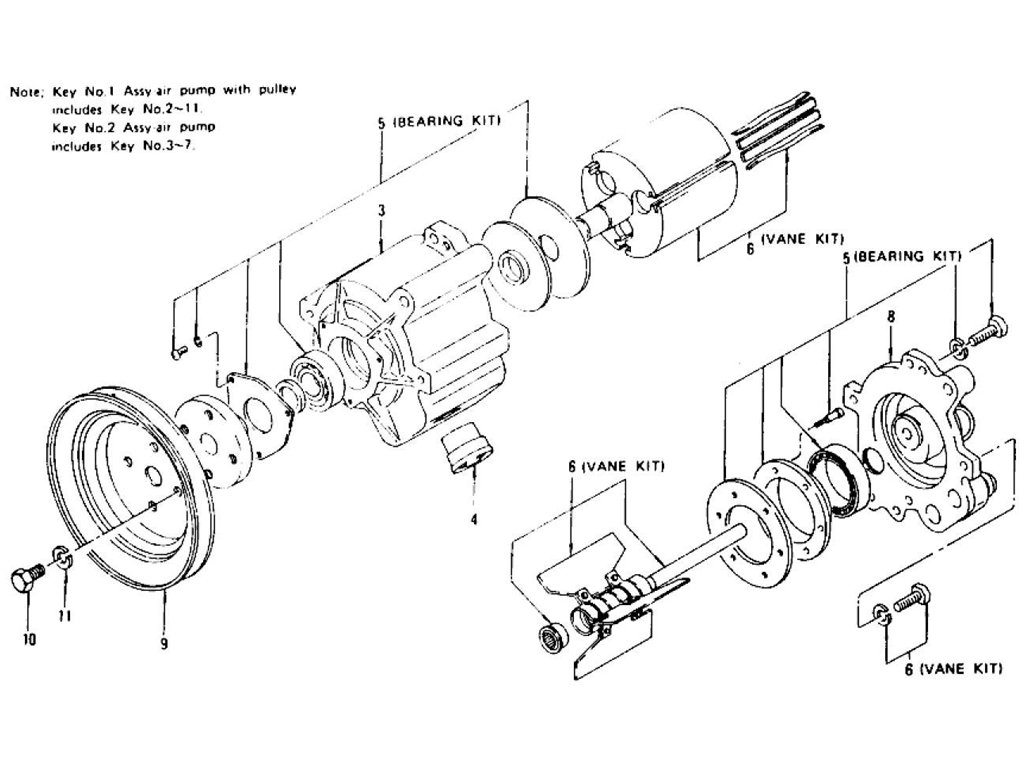

Air Pump Air Pump L24, L26 (To Nov.-'74)
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | ASSY-AIR PUMP W/PULL | 14800-E4605 | OP L24 EXHAUST | | 7108 | 1 | | | |
|
1 | ASSY-AIR PUMP W/PULL | 14800-E8000 | OP L24 EXHAUST | 7109 | 7307 | 1 | No | No | 14800-E4605 |
|
1 | ASSY-AIR PUMP W/PULL | 14800-N3610 | OP L26 EXHAUST | 7308 | | 1 | No | No | 14800-E8000 |
|
1 | ASSY-AIR PUMP WOTH P | 14800-E4600 | L24 EXHAUST | | 7307 | 1 | | | |
|
1 | ASSY-AIR PUMP WOTH P | 14800-N3600 | L26 EXHAUST | 7308 | | 1 | No | No | 14800-E4600 |
|
2 | ASSY-AIR PUMP | 14810-E4600 | L24 EXHAUST | | 7307 | 1 | | | |
|
2 | ASSY-AIR PUMP | 14810-N3600 | L26 EXHAUST | 7308 | | 1 | No | No | 14810-E4600 |
|
3 | ASSY-CASING | 14802-E4600 | L24 | L26 EXHAUST | | | 1 | | |
|
4 | ASSY-VALVE RELIEF | 14858-E4600 | L24 | L26 EXHAUST | | | 1 | | |
|
5 | KIT-BEARING | 14890-E4600 | L24 | L26 EXHAUST | | | 1 | | |
|
6 | KIT-VANE | 14870-E4600 | L24 | L26 EXHAUST | 7308 | | 1 | | |
|
6 | KIT-VANE | 14870-N3600 | L26 EXHAUST | | | 1 | | | |
|
7 | SET-VANE & CARBON SH | 14871-N3600 | L26 EXHAUST | 7308 | | 1 | | | |
|
8 | ASSY-BRACKET | 14803-E4600 | L26 EXHAUST | | | 1 | | | |
|
9 | PULLEY | 14850-E4600 | L26 EXHAUST | 7308 | | 1 | | | |
|
9 | PULLEY FOR COOLER | 14850-N3610 | OP L26 EXHAUST | 7308 | | 1 | | | |
|
10 | BOLT-AIR PUMP | 08110-81610 | L24 | L26 EXHAUST | | | 4 | | |
|
11 | WASHER-LOCK | 08915-13810 | L24 | L26 EXHAUST | | | 4 | | |
