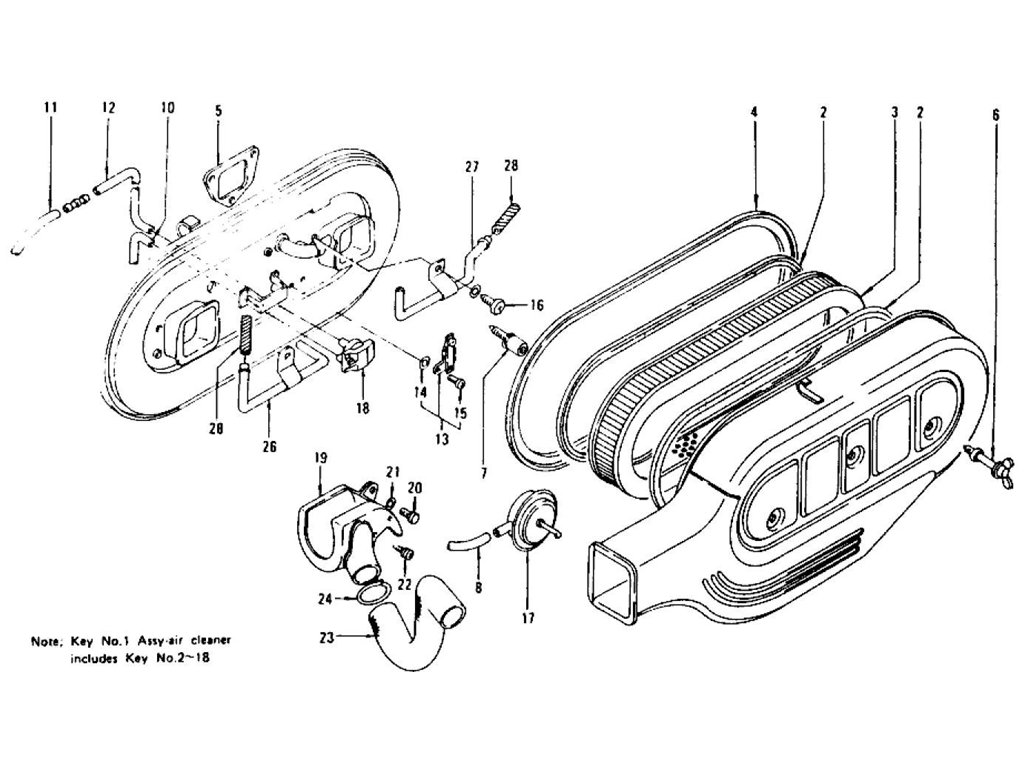

Air Cleaner 260Z (L26) Air Cleaner L26 (From Aug.-'73 To Nov.-'74)
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | ASSY-AIR CLEANER | 16500-N3600 | L26 | 7308 | | 1 | | | |
|
1 | ASSY-AIR CLEANER | 16500-N3602 | L26 | 7308 | | 1 | Yes | Yes | 16500-N3600 |
|
2 | PACKING | 16547-N3300 | L26 | | | 2 | | | |
|
3 | ASSY-ELEMENT | 16546-N3310 | L26 | | | 1 | | | |
|
4 | PACKING | 16548-N3300 | L26 | | | 1 | | | |
|
5 | GASKET | 16523-N3301 | L26 | | | 2 | | | |
|
6 | BOLT-CENTER | 16516-S0900 | L26 | | | 3 | | | |
|
7 | CONNECTOR | 16517-N3300 | L26 | | | 2 | | | |
|
8 | HOSE-VACUUM | 22318-N3307 | L26 | | | 1 | | | |
|
9 | ORIFICE | 16335-N3302 | L26 | | | 1 | | | |
|
10 | TUBE-T/SENSOR TO 3 W | 22318-N3603 | L26 | | | 1 | | | |
|
11 | TUBE-T/SENSOR TO VAC | 22318-P0100 | L26 | | | 1 | | | |
|
11 | TUBE-T/SENSOR TO VAC | B2318-N3300 | L26 | | | 1 | Yes | Yes | 22318-P0100 |
|
12 | TUBE-T/SENSOR TO VAC | 22318-P4410 | L26 | | | 1 | | | |
|
13 | KIT-IDLE COMPENSATOR | 16330-N3305 | L26 | | | 1 | Yes | Yes | 16330-N3303 |
|
13 | KIT-IDLE COMPENSATOR | 16330-N3303 | L26 | 7308 | | 1 | | | |
|
14 | GASKET | 16338-N3300 | L26 | | | 1 | | | |
|
15 | SCREW-WITH WASHER | 16339-N3300 | L26 | | | 2 | | | |
|
16 | BOLT M8 | 08460-81612 | L26 | | | 4 | | | |
|
17 | ASSY-MOTOR VACUUM | 16510-H3900 | L26 | | | 1 | | | |
|
17 | ASSY-MOTOR VACUUM | 16510-N3300 | L26 | | | 1 | | | |
|
18 | ASSY-SENSOR TEMPERAT | 16580-N3300 | L26 | | | 1 | | | |
|
18 | ASSY-SENSOR TEMPERAT | 16580-H3900 | L26 | 7308 | | 1 | Yes | Yes | 16580-N3300 |
|
19 | ASSY-COVER EXHAUST M | 16590-N3100 | L26 | | | 1 | | | |
|
20 | BOLT M8 | 08110-81210 | L26 | | | 2 | | | |
|
21 | WASHER-PLAIN | 08915-43810 | L26 | | | 2 | | | |
|
22 | SCREW-WITH WASHER | 08360-61623 | L26 | | | 3 | | | |
|
23 | DUCT-COVER L=1200MM | A6530-76004 | L26 | | | 0 | Yes | Yes | 16530-N3000 |
|
23 | DUCT-COVER L=80 | 16530-N3000 | L26 | | | 1 | | | |
|
24 | CLAMP-TUBE | 17111-A5500 | L26 | | | 1 | | | |
|
25 | CAP-CONNECTOR | 16599-N3600 | L26 AUTOMATIC | 7308 | | 1 | | | |
|
26 | ASSY-TUBE AIR VENT F | 16525-N3600 | L26 | 7308 | | 1 | | | |
|
27 | ASSY-TUBE AIR VENT R | 16526-N3600 | L26 | 7308 | | 1 | | | |
|
28 | HOSE-RUBBER | 16527-N3600 | L26 | | | 2 | | | |
