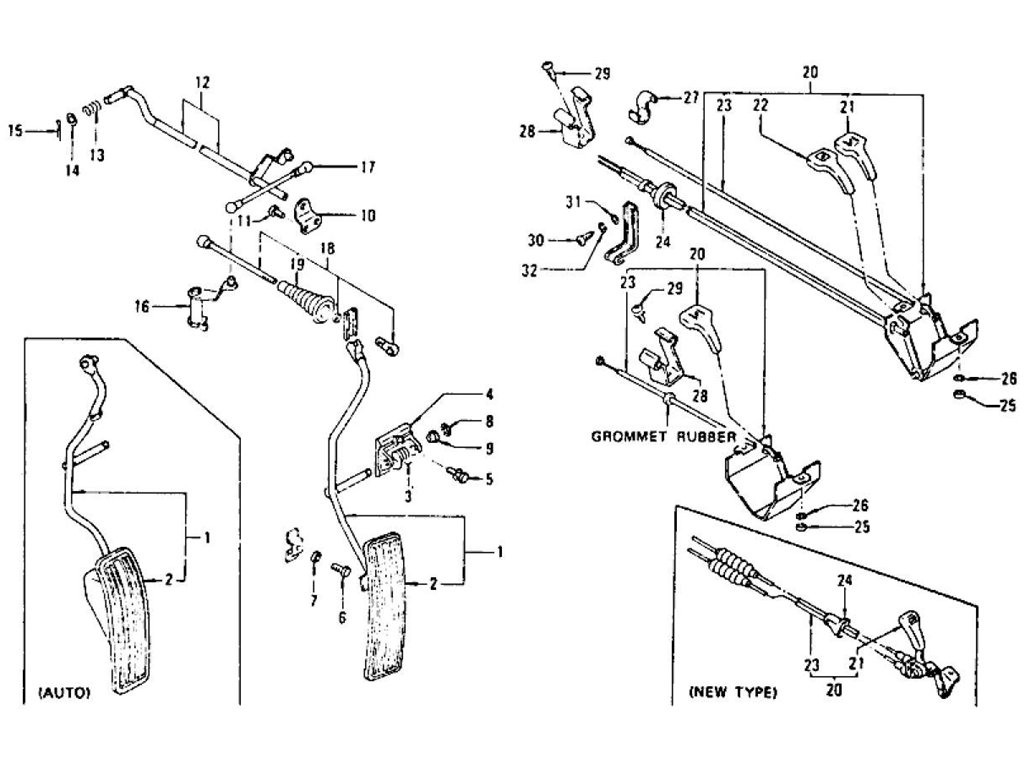

Accelerator, Choke & Throttle Accelerator Pedal, Choke & Throttle Control L24, L26 (To Nov.-'74)
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | ASSY-PEDAL ACCELERAT | 18010-E4700 | L24 | AUTO | | | 1 | | |
|
1 | ASSY-PEDAL ACCELERAT | 18010-E4701 | L24 | AUTO | | 7206 | 1 | Yes | Yes |
|
1 | ASSY-PEDAL ACCELERAT | 18010-N3320 | L24 | AUTO | 7207 | 7307 | 1 | No | No |
|
1 | ASSY-PEDAL ACCELERAT | 18010-E4600 | L24 | MANUAL | | 7005 | 1 | | |
|
1 | ASSY-PEDAL ACCELERAT | 18010-E4600 | L24 | MANUAL | | 7206 | 1 | Yes | Yes |
|
1 | ASSY-PEDAL ACCELERAT | 18010-E4601 | L24 | MANUAL | 7006 | | 1 | No | No |
|
1 | ASSY-PEDAL ACCELERAT | 18010-N3300 | L24 | MANUAL | 7207 | 7307 | 1 | No | No |
|
1 | ASSY-PEDAL ACCELERAT | 18010-N3620 | L26 | AUTO | 7308 | 7408 | 1 | No | No |
|
1 | ASSY-PEDAL ACCELERAT | 18010-N4200 | L26 | AUTO | 7409 | | 1 | No | No |
|
1 | ASSY-PEDAL ACCELERAT | 18010-N3600 | L26 | MANUAL | 7308 | 7408 | 1 | No | No |
|
1 | ASSY-PEDAL ACCELERAT | 18010-N4205 | L26 | MANUAL | 7409 | | 1 | No | No |
|
2 | PAD-ACCELERATOR PEDA | 18014-E4100 | L24 | | 7206 | 1 | | | |
|
2 | PAD-ACCELERATOR PEDA | 18014-N3000 | L24 | L26 | 7207 | | 1 | No | No |
|
3 | SPRING-RETURN ACCELE | 18215-E4600 | L24 | | 7206 | 1 | | | |
|
3 | SPRING-RETURN ACCELE | 18215-N3300 | L24 | L26 | 7207 | | 1 | No | No |
|
4 | ASSY-BRACKET ACCELER | 18021-24900 | L24 | | 7206 | 1 | | | |
|
4 | ASSY-BRACKET ACCELER | 18021-N3300 | L24 | L26 | 7207 | | 1 | No | No |
|
5 | BOLT-PAN HEAD | 08340-51814 | L24 | | 7307 | 3 | | | |
|
5 | BOLT-PAN HEAD | 08313-51614 | L26 | 7308 | | 3 | No | No | 08340-51814 |
|
6 | BOLT-HEX | 08110-63510 | L24 | | | 1 | | | |
|
6 | BOLT-SPECIAL(M6X1.0) | 18017-E4100 | L24 | | 7112 | 1 | Yes | Yes | 08110-63510 |
|
6 | BOLT-SPECIAL(M8X1.25 | 18017-E8701 | L24 | L26 | 7201 | | 1 | No | No |
|
7 | NUT-HEX | 08911-10610 | L24 | | 7307 | 1 | | | |
|
7 | NUT-HEX | 08911-10810 | L26 | 7308 | | 1 | No | No | 08911-10610 |
|
8 | RING-SNAP E TYPE | 18137-10600 | L24 | L26 | | | 1 | | |
|
9 | BUSH-ACC PEDAL | 18124-N3300 | L24 | L26 | | | 2 | | |
|
9 | BUSH-NYLON | 18124-73000 | L24 | L26 | | | 1 | | |
|
10 | ASSY-SUPPORT ACCELER | 18310-E4100 | L24 | | 7206 | 1 | | | |
|
10 | ASSY-SUPPORT ACCELER | 18310-N3000 | L24 | L26 | 7207 | 7408 | 1 | No | No |
|
10 | ASSY-SUPPORT ACCELER | 18310-N4500 | L26 | 7409 | | 1 | No | No | 18310-N3000 |
|
11 | BOLT-HEX | 08360-61414 | L24 | | 7307 | 2 | | | |
|
11 | BOLT-HEX | 08363-61214 | L26 | 7308 | | 2 | No | No | 08360-61414 |
|
12 | ASSY-TORSION SHAFT A | 18300-E4600 | L24 | | | 1 | | | |
|
12 | ASSY-TORSION SHAFT A | 18300-E4601 | L24 | | 7206 | 1 | Yes | Yes | 18300-E4600 |
|
12 | ASSY-TORSION SHAFT A | 18300-N3300 | L24 | 7207 | 7307 | 1 | | | |
|
12 | ASSY-TORSION SHAFT A | 18300-N3600 | L26 | 7308 | 7408 | 1 | No | No | 18300-N3300 |
|
12 | ASSY-TORSION SHAFT A | 18300-N4310 | L26 | 7409 | | 1 | No | No | 18300-N3600 |
|
13 | SPRING-ACCELERATOR S | 18212-73400 | L24 | L26 | | | 1 | | |
|
14 | WASHER-PLAIN | 08915-43810 | L24 | L26 | | | 1 | | |
|
15 | PIN-COTTER | 00921-02210 | L24 | | 7307 | 1 | | | |
|
15 | PIN-COTTER | 00921-02010 | L26 | 7308 | | 1 | No | No | 00921-02210 |
|
16 | ASSY-BELL CRANK ACCE | 18121-E4600 | L24 | | 7005 | 1 | | | |
|
16 | ASSY-BELL CRANK ACCE | 18121-E4601 | L24 | 7006 | 7206 | 1 | No | No | 18121-E4600 |
|
16 | ASSY-BELL CRANK ACCE | 18121-N3300 | L24 | L26 | 7207 | | 1 | No | No |
|
17 | ASSY-BALL JOINT B | 18130-E4600 | L24 | | 7005 | 1 | | | |
|
17 | ASSY-BALL JOINT B | 18130-E4601 | L24 | 7006 | 7206 | 1 | No | No | 18130-E4600 |
|
17 | ASSY-BALL JOINT B | 18130-N3300 | L24 | 7207 | 7307 | 1 | No | No | 18130-E4601 |
|
17 | ASSY-BALL JOINT B | 18130-N3600 | L26 | 7308 | | 1 | | | 18130-N3300 |
|
18 | ASSY-BALL JOINT A | 18200-E4600 | | 7006 | | 1 | No | No | 18200-E4100 |
|
18 | ASSY-BALL JOINT A | 18200-E4100 | L24 | | 7005 | 1 | | | |
|
18 | ASSY-BALL JOINT A | 18200-E4400 | L24 | MANUAL | 7006 | 7307 | 1 | No | No |
|
18 | ASSY-BALL JOINT A | 18200-N3600 | L26 | 7308 | | 1 | No | No | 18200-E4400 |
|
19 | BOOT-ACCELERATOR ROD | 18218-E4101 | L24 | | 7005 | 1 | | | |
|
19 | BOOT-ACCELERATOR ROD | 18218-E4102 | L24 | 7006 | 7307 | 1 | No | No | 18218-E4101 |
|
19 | BOOT-ACCELERATOR ROD | 18218-N3400 | L26 | 7308 | | 1 | No | No | 18218-E4102 |
|
20 | ASSY-CONTROL CHOKE | 18410-E8804 | L24 | 7201 | 7206 | 1 | Yes | Yes | 18410-E8803 |
|
20 | ASSY-CONTROL CHOKE | 18410-N3300 | L24 | 7207 | 7302 | 1 | Yes | Yes | 18410-E8802 |
|
20 | ASSY-CONTROL CHOKE | 18410-E4502 | L24 AUTO | 7002 | 7102 | 1 | No | No | 18410-E4401 |
|
20 | ASSY-CONTROL CHOKE | 18410-E8803 | L24 MANUAL | | 7112 | 1 | Yes | Yes | 18410-E8800 |
|
20 | ASSY-CONTROL CHOKE | 18410-E4601 | L24 MANUAL | 7103 | 7108 | 1 | No | No | 18410-E4502 |
|
20 | ASSY-CONTROL CHOKE | 18410-E8800 | L24 MANUAL | 7109 | | 1 | No | No | 18410-E4601 |
|
20 | ASSY-CONTROL CHOKE | 18410-N3301 | L24 U.S.A | 7303 | 7307 | 1 | Yes | Yes | 18410-N3300 |
|
20 | ASSY-CONTROL CHOKE | 18410-N3602 | L26 U.S.A | 7308 | | 1 | | | |
|
20 | COMP-WIRE CHOKE THRO | 18410-E4401 | L24 | | 7001 | 1 | | | |
|
21 | KNOB-CHOKE | 18415-E4100 | L24 | | 7001 | 1 | | | |
|
21 | KNOB-CHOKE | 18415-E4101 | L24 | 7002 | 7108 | 1 | No | No | 18415-E4100 |
|
21 | KNOB-CHOKE | 18415-E8700 | L24 | 7109 | 7307 | 1 | No | No | 18415-E4101 |
|
21 | KNOB-CHOKE | 18415-N3601 | L26 U.S.A | 7308 | | 1 | | | |
|
22 | KNOB-THROTTLE | 18515-E4100 | L24 MANUAL | | 7001 | 1 | | | |
|
22 | KNOB-THROTTLE | 18515-E4101 | L24 MANUAL | 7002 | 7108 | 1 | No | No | 18515-E4100 |
|
23 | ASSY-WIRE CHOKE | 18491-E4100 | | | 7108 | 1 | | | |
|
23 | ASSY-WIRE CHOKE | 18491-N3400 | 2 SEATER | 7308 | | 1 | | | |
|
23 | ASSY-WIRE CHOKE | 18491-N3402 | 2+2 SEATER | 7310 | | 1 | | | |
|
23 | ASSY-WIRE CHOKE | 18491-E8800 | L24 | 7109 | 7206 | 1 | No | No | 18491-E4100 |
|
23 | ASSY-WIRE CHOKE | 18491-N3300 | L24 | 7207 | | 1 | No | No | 18491-E8800 |
|
24 | GROMMET-RUBBER W | 18453-E4100 | | | | 1 | | | |
|
24 | GROMMET-RUBBER W | 18453-E8700 | | | | 1 | Yes | Yes | 18453-E4100 |
|
25 | NUT-HEX | 08911-10510 | | | 7307 | 2 | | | |
|
26 | WASHER-SPRING LOCK | 08915-13510 | | | 7307 | 2 | | | |
|
27 | CLAMP-CHOKE CONTROL | 18153-G0300 | L24 | 7201 | 7205 | 1 | | | |
|
27 | CLAMP-CHOKE CONTROL | 18431-E8700 | L24 | 7206 | | 1 | No | No | 18153-G0300 |
|
27 | CLAMP-CHOKE CONTROL | 18153-G0300 | L24 | L26 | 7207 | | 1 | No | No |
|
28 | BRACKET-CHOKE WIRE | 24210-89967 | L24 | | 7206 | 1 | | | |
|
28 | BRACKET-CHOKE WIRE | 18431-N3000 | L24 | L26 | 7207 | | 1 | | |
|
29 | SCREW-PAN HEAD WITH | 08310-51014 | L24 | | 7206 | 2 | | | |
|
29 | SCREW-PAN HEAD WITHP | 08363-61214 | L24 | L26 | 7207 | | 2 | No | No |
|
30 | SCREW-SELF TAPPING | 01421-00123 | L24 | L26 | | | 2 | | |
|
31 | WASHER-PLAIN | 08915-43510 | L24 | L26 | | | 2 | | |
|
32 | WASHER-LOCK | 08915-13510 | L24 | L26 | | | 2 | | |
