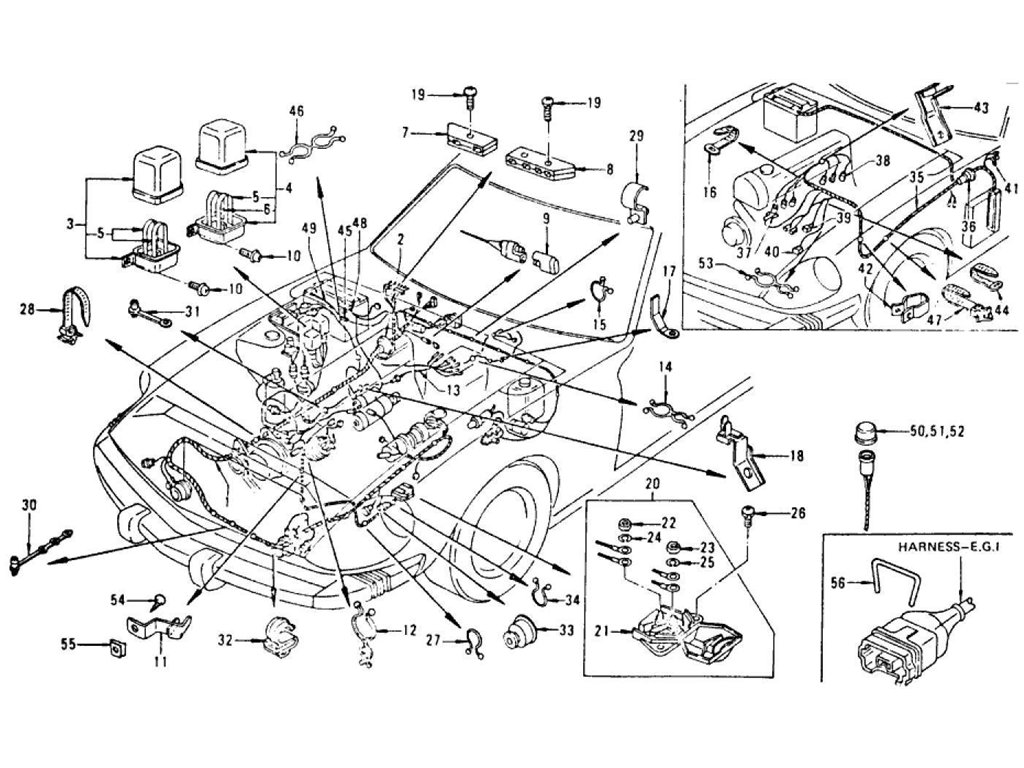

Engine Room (From Aug.-'76) Wiring (Engine Room) (From Aug.-'76)
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | HARNESS-ENGINE ROOM | 24012-N4801 | AUTOMATIC | 7608 | 7707 | 1 | | | |
|
1 | HARNESS-ENGINE ROOM | 24012-N7601 | AUTOMATIC | 7708 | 7802 | 1 | No | No | 24012-N4801 |
|
1 | HARNESS-ENGINE ROOM | 24012-N7603 | AUTOMATIC | 7803 | | 1 | No | No | 24012-N7601 |
|
1 | HARNESS-ENGINE ROOM | 24012-N4800 | MANUAL | 7608 | 7707 | 1 | | | |
|
1 | HARNESS-ENGINE ROOM | 24012-N7600 | MANUAL | 7708 | 7802 | 1 | No | No | 24012-N4800 |
|
1 | HARNESS-ENGINE ROOM | 24012-N7602 | MANUAL | 7803 | | 1 | No | No | 24012-N7600 |
|
2 | GROMMET | 24250-N4500 | | 7608 | | 1 | | | |
|
3 | CASE-FUSIBLE FRONT | 24020-N4700 | | 7608 | | 1 | | | |
|
4 | CASE-FUSIBLE REAR | 24020-N4701 | | 7608 | | 1 | | | |
|
5 | FUSIBLE LINK-1.25 | 24161-A0100 | | 7608 | | 1 | | | |
|
6 | FUSIBLE LINK-0.3 | 24161-N4200 | | 7608 | | 3 | | | |
|
7 | CLAMP | 24134-U6700 | | 7608 | | 1 | | | |
|
8 | CLAMP | 24134-U6710 | | 7608 | | 1 | | | |
|
9 | ASSY-RESISTOR | 24130-U6700 | | 7608 | | 1 | | | |
|
10 | SCREW | 25234-N4400 | | 7608 | | 4 | | | |
|
11 | CLIP | 24210-N4305 | | 7608 | | 2 | | | |
|
12 | CLIP | 24220-E4101 | | 7608 | | 1 | | | |
|
13 | HARNESS-SUB | 24074-N4700 | AUTOMATIC | 7608 | | 1 | | | |
|
14 | CLIP | 24220-B0701 | AUTOMATIC | 7608 | | 1 | | | |
|
15 | CLIP | 16290-K0500 | AUTOMATIC | 7608 | | 1 | | | |
|
16 | CLIP | 24216-S3000 | | 7608 | | 2 | Yes | Yes | 24220-89963 |
|
16 | CLIP | 24220-89963 | | 7608 | | 2 | | | |
|
17 | CLIP | 24210-89932 | AUTOMATIC | 7608 | | 1 | | | |
|
18 | CLIP | 24380-N4600 | | 7608 | | 1 | | | |
|
19 | SCREW-HEX | 08360-61226 | | 7608 | | 3 | | | |
|
20 | BLOCK TERMINAL | 24350-89901 | | 7608 | | 1 | | | |
|
20 | BLOCK TERMINAL | 24350-89903 | | ML | | | 1 | Yes | Yes |
|
21 | BASE TERMINAL BLOCK | 24351-89901 | | 7608 | | 1 | | | |
|
22 | NUT HEX-M5 | 01211-00121 | | 7608 | | 1 | | | |
|
23 | NUT HEX M6 | 01211-00111 | | 7608 | | 1 | | | |
|
24 | WASHER LOCK-M5 | 01321-00041 | | 7608 | | 1 | | | |
|
25 | WASHER LOCK M6 | 01321-00051 | | 7608 | | 1 | | | |
|
26 | SCREW MACHINE | 08310-51426 | | 7608 | | 2 | | | |
|
27 | PURSE LOCK | 16290-K0500 | | 7608 | | 1 | | | |
|
28 | CLIP | 24210-N4600 | | 7608 | | 7 | | | |
|
29 | CLIP | 24220-89998 | | 7608 | | 6 | | | |
|
30 | CLIP | 24220-89937 | | 7608 | | 13 | | | |
|
30 | CLIP | 24220-S5000 | | 7608 | | 13 | Yes | Yes | 24220-89937 |
|
31 | CLIP | 24220-89964 | CAL | 7608 | | 1 | | | |
|
32 | CLIP | 01552-00081 | | 7608 | | 4 | | | |
|
33 | CAP CHECK CONNECTOR | 24250-U6700 | | 7608 | | 1 | | | |
|
34 | PURSE LOCK | 24220-89985 | | 7608 | | 1 | | | |
|
35 | HARNESS E.G.I. | 24011-N4700 | CAL | 7608 | 7707 | 1 | | | |
|
35 | HARNESS E.G.I. | 24011-N7700 | CAL | 7708 | | 1 | No | No | 24011-N4700 |
|
35 | HARNESS E.G.I. | 24011-N4701 | FED | 7608 | 7707 | 1 | | | |
|
35 | HARNESS E.G.I. | 24011-N7600 | FED | 7708 | | 1 | No | No | 24011-N4701 |
|
36 | GROMMET | 01651-00163 | | 7608 | | 1 | | | |
|
37 | HARNESS SUB | 24079-N4203 | | 7608 | 7701 | 1 | | | |
|
37 | HARNESS SUB | 24079-U8700 | | 7608 | | 1 | Yes | Yes | 24079-N4203 |
|
38 | ASSY CONNECTOR 2 POL | B4340-N4201 | | 7608 | | 6 | | | |
|
39 | ASSY CONNECTOR 3 POL | B4340-N4205 | | 7608 | | 1 | | | |
|
40 | ASSY CONNECTOR 7 POL | B4340-N4206 | | 7608 | | 1 | | | |
|
41 | TERMINAL RELAY | 24342-N4200 | | 7608 | | 2 | | | |
|
42 | CLIP | 24210-N4205 | | 7608 | | 1 | | | |
|
43 | CLIP E.G.I. HARNESS | 24210-N4206 | | 7608 | | 1 | | | |
|
44 | CLIP BAND | 01552-00411 | | | | 2 | Yes | Yes | 14896-25601 |
|
44 | CLIP BAND | 14896-25601 | | 7608 | | 2 | | | |
|
45 | FUSIBLE LINK 0.5 | 24022-N4200 | | 7608 | 7707 | 1 | | | |
|
45 | FUSIBLE LINK 0.5 | 24022-N7600 | | 7708 | | 1 | No | No | 24022-U8700 |
|
45 | FUSIBLE LINK 0.5 | 24022-U8700 | | 7708 | | 1 | No | No | 24022-N4200 |
|
46 | CLIP 8X8 | 22472-G0302 | | 7608 | | 3 | | | |
|
47 | CLIP | 24210-N4600 | | 7608 | | 1 | | | |
|
48 | CABLE BATTERY | 24080-N4700 | | 7608 | | 1 | | | |
|
48 | CABLE BATTERY | 24080-N7600 | | 7708 | | 1 | No | No | 24080-N4800 |
|
48 | CABLE BATTERY | 24080-N4800 | CANADA OP USA | 7702 | 7707 | 1 | Yes | Yes | 24080-N4700 |
|
49 | CABLE BATTERY | 24110-N7603 | | 7708 | | 1 | | | |
|
49 | CABLE BATTERY | 24110-N4201 | AUTOMATIC | 7608 | 7707 | 1 | | | |
|
49 | CABLE BATTERY | 24110-N4800 | CANADA OP USA | 7702 | 7707 | 1 | | | |
|
49 | CABLE BATTERY | 24110-N4200 | MANUAL | 7608 | 7707 | 1 | | | |
|
50 | COVER CONNECTOR | 24037-N4200 | | 7608 | | 1 | | | |
|
51 | COVER CONNECTOR | 24038-N4200 | | 7608 | | 1 | | | |
|
52 | COVER CONNECTOR | 24039-N4200 | | 7608 | | 1 | | | |
|
53 | CLIP | 24220-E4101 | | 7608 | | 1 | | | |
|
53 | CLIP | 14908-B5000 | CANADA OP USA | 7708 | | 2 | | | |
|
53 | CLIP | 24220-89993 | CANADA OP USA | 7708 | | 1 | | | |
|
54 | SCREW TAPPING | 08513-61623 | | 7608 | | 2 | | | |
|
55 | NUT SPRING | 01241-00061 | | 7608 | | 2 | | | |
|
56 | SPRING HARNESS EGI | B4111-U7600 | FOR SERVICE | | | 6 | | | |
