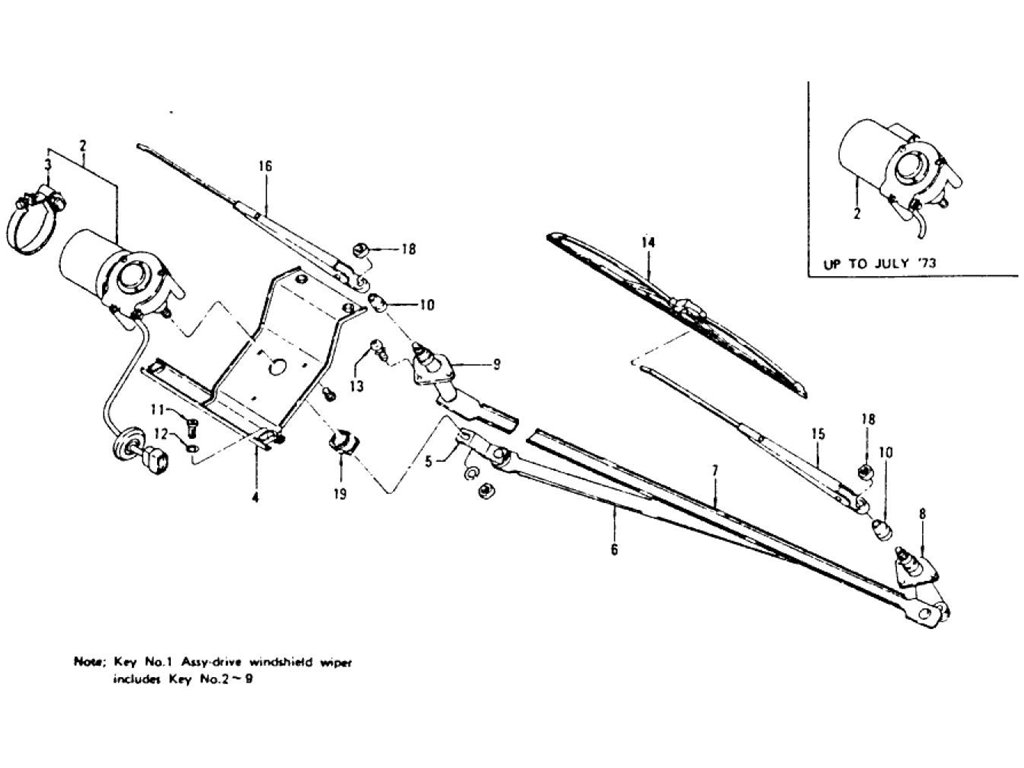

Windshield Wiper Windshield Wiper, Motor & Wiper Blade
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | ASSY-DRIVE WINDSHIEL | 28800-E4600 | | | | 1 | | | |
|
1 | ASSY-DRIVE WINDSHIEL | 28800-E8300 | | | 7205 | 1 | Yes | Yes | 28800-E4600 |
|
1 | ASSY-DRIVE WINDSHIEL | 28800-E8301 | | 7206 | 7206 | 1 | Yes | Yes | 28800-E8300 |
|
1 | ASSY-DRIVE WINDSHIEL | 28800-N3301 | | 7207 | | 1 | Yes | Yes | 28800-E8301 |
|
1 | ASSY-DRIVE WINDSHIEL | 28800-N4200 | | 7409 | 7601 | 1 | No | No | 28800-N3601 |
|
1 | ASSY-DRIVE WINDSHIEL | 28800-N4201 | | 7602 | | 1 | Yes | Yes | 28800-N4200 |
|
1 | ASSY-DRIVE WINDSHIEL | 28800-N3600 | 2 SEATER 2+2 SEAT ER | 7308 | 7311 | 1 | | | |
|
1 | ASSY-DRIVE WINDSHIEL | 28800-N3601 | 2 SEATER 2+2 SEAT ER | 7312 | 7408 | 1 | No | No | 28800-N3600 |
|
1 | ASSY-DRIVE WINDSHIEL | 28800-N3602 | 2 SEATER 2+2 SEAT ER | 7312 | 7408 | 1 | Yes | Yes | 28800-N3601 |
|
2 | ASSY-MOTOR WINDSHIEL | 28810-E4100 | | | | 1 | | | |
|
2 | ASSY-MOTOR WINDSHIEL | 28810-E8200 | | | 7205 | 1 | Yes | Yes | 28810-E4100 |
|
2 | ASSY-MOTOR WINDSHIEL | 28810-E8201 | | 7206 | 7206 | 1 | Yes | Yes | 28810-E8200 |
|
2 | ASSY-MOTOR WINDSHIEL | 28810-N3200 | | 7207 | 7307 | 1 | Yes | Yes | 28810-E8201 |
|
2 | ASSY-MOTOR WINDSHIEL | 28810-N3103 | | 7312 | 7408 | 1 | | | 28810-N3601 |
|
2 | ASSY-MOTOR WINDSHIEL | 28810-N4510 | | 7409 | | 1 | No | No | 28810-N3601 |
|
2 | ASSY-MOTOR WINDSHIEL | 28810-N3600 | 2 SEATER 2+2 SEAT ER | 7308 | 7311 | 1 | No | No | 28810-N3200 |
|
2 | ASSY-MOTOR WINDSHIEL | 28810-N3601 | 2 SEATER 2+2 SEAT ER | 7312 | 7408 | 1 | No | No | 28810-N3600 |
|
3 | ASSY-RELAY RESE UP | 28815-N4510 | | 7603 | | 1 | | | |
|
4 | ASSY-BRACKET WIPER M | 28835-E4100 | | | | 1 | | | |
|
5 | ASSY-ARM MOTOR | 28840-E4100 | | | 7406 | 1 | | | |
|
5 | ASSY-ARM MOTOR | 28840-N3600 | | 7407 | | 1 | | | 28840-E4100 |
|
6 | ASSY-CONNECTING ROD | 28860-E4100 | | | | 1 | | | |
|
7 | ASSY-CONNECTING ROD | 28865-E4100 | | | | 1 | | | |
|
8 | ASSY-PIVOT NO.1 | 28870-E4600 | | | | 1 | | | |
|
9 | ASSY-PIVOT NO.2 | 28880-E4100 | | | | 1 | | | |
|
10 | BOOTS-PIVOT SHAFT | 28890-E4100 | | | | 2 | | | |
|
11 | SCREW-MACHINE HEX HE | 08360-62512 | | | 7307 | 4 | | | |
|
11 | SCREW-MACHINE HEX HE | 08360-62026 | 2 SEATER 2+2 SEAT ER | 7308 | | 4 | No | No | 08360-62512 |
|
12 | WASHER-SPECIAL 6 | 74340-12161 | | | | 4 | | | |
|
13 | SCREW-MACHINE HEX WI | 08360-51014 | | | | 6 | | | |
|
14 | ASSY-BLADE WINDSHIEL | 26370-E4100 | | | 7607 | 2 | | | |
|
14 | ASSY-BLADE WINDSHIEL | 26370-N4701 | | 7608 | | 2 | No | No | 26370-E4100 |
|
15 | ASSY-ARM NO.1 | 26380-E4600 | | | 7307 | 1 | | | |
|
15 | ASSY-ARM NO.1 | 26385-N4700 | | 7608 | | 1 | No | No | 26385-N3600 |
|
15 | ASSY-ARM NO.1 | 26385-N3600 | 2 SEATER 2+2 SEAT ER | 7308 | 7607 | 1 | | | |
|
16 | ASSY-ARM NO.2 | 26385-E4600 | | | 7307 | 1 | | | |
|
16 | ASSY-ARM NO.2 | 26380-E4600 | | 7308 | 7607 | 1 | | | |
|
16 | ASSY-ARM NO.2 | 26380-N4700 | | 7608 | | 1 | No | No | 26380-E4600 |
|
17 | COVER-WIPER MOTOR | 28836-E4100 | OP | | 7307 | 1 | | | |
|
18 | NUT-LOCK | 26381-M0200 | | | 7607 | 2 | | | |
|
18 | NUT-LOCK | 26381-H2300 | | 7608 | | 2 | Yes | Yes | 26381-N4500 |
|
18 | NUT-LOCK | 26381-N4500 | | 7608 | | 2 | No | No | 26381-M0200 |
|
19 | JOINT CAP | 28849-N3100 | | | | 1 | | | |
