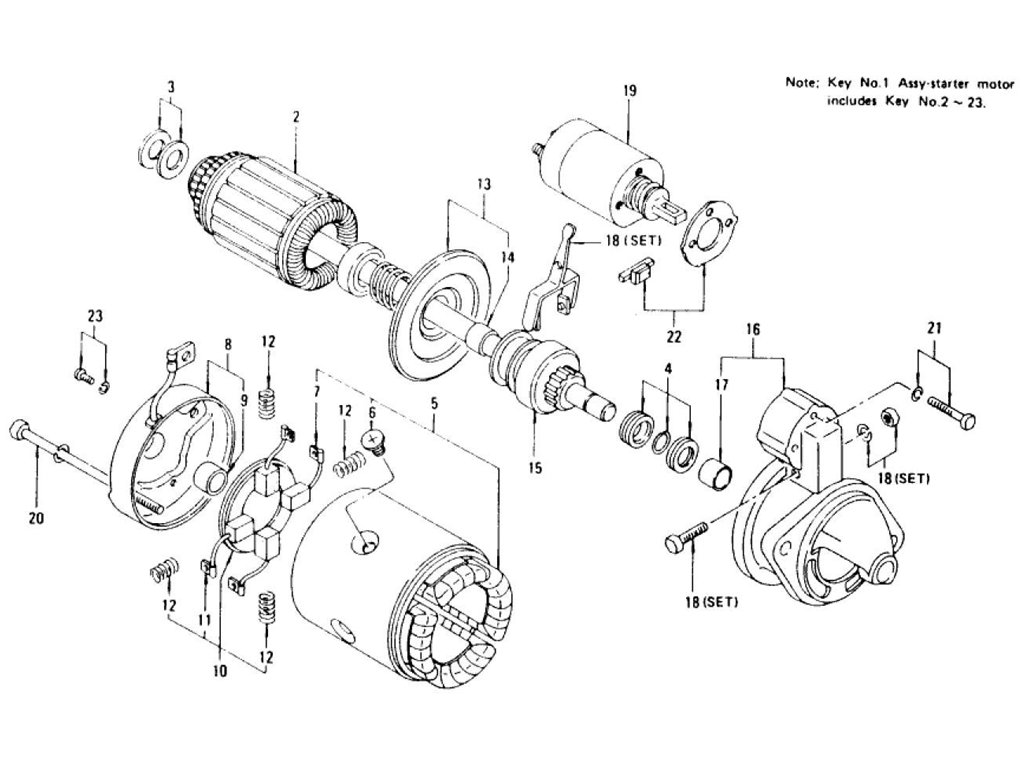

Starter Motor (For Automatic) (To Jul.-'72)

To Jul.-'72
Starter Motor (For Automatic) (To Jul.-'72)Starter Motor (For Automatic) (To Jul.-'72)
Parts List
Key Part Name Part Number Model From To Qty Newer Former Superceded
  1 ASSY-STARTER MOTOR ( 23300-N3300 L24 AUTOMATIC 7207 7207 1
  2 ASSY-ARMATURE 23310-N3300 L24 AUTOMATIC 7207 7207 1
  3 SET-WASHER THRUST 23321-E6800 L24 AUTOMATIC 7207 7207 1
  4 SET-STOPPER 23465-E6800 L24 AUTOMATIC 7207 7207 1
  5 ASSY-COIL FIELD 23306-N3300 L24 AUTOMATIC 7207 7207 1
  6 SET-SCREW 23305-E6800 L24 AUTOMATIC 7207 7207 4
  7 BRUSH (+) 23380-21000 L24 AUTOMATIC 7207 7207 2
  8 ASSY-COVER REAR 23337-E6800 L24 AUTOMATIC 7207 7207 1
  9 METAL-REAR COVER 23338-E6800 L24 AUTOMATIC 7207 7207 1
  10 ASSY-HOLDER BRUSH 23378-21006 L24 AUTOMATIC 7207 7207 1
  11 BRUSH (-) 23379-21000 L24 AUTOMATIC 7207 7207 2
  12 SPRING-BRUSH 23333-21001 L24 AUTOMATIC 7207 7207 4
  12 SPRING-BRUSH 23333-21001 L24 COLD AREA 7207 7207 4
  13 ASSY-BRACKET 23383-E6800 L24 AUTOMATIC 7207 7207 1
  14 METAL-CENTER BRACKET 23341-10600 L24 AUTOMATIC 7207 7207 1
  14 METAL-CENTER BRACKET 23341-10600 L24 COLD AREA 7207 7207 1
  15 ASSY-PINION 23312-N0900 L24 AUTOMATIC 7207 7207 1
  16 ASSY-CASE GEAR 23318-N0900 L24 AUTOMATIC 7207 7207 1
  17 METAL-GEAR CASE 23319-E6800 L24 AUTOMATIC 7207 7207 1
  18 SET-LEVER SHIFT 23322-E6800 L24 AUTOMATIC 7207 7207 1
  19 ASSY-SWITCH MAGNETIC 23343-E6800 L24 AUTOMATIC 7207 7207 1
  20 BOLT-THROUGH 23340-N3300 L24 AUTOMATIC 7207 7207 2
  21 SCREW SD 23344-21005 L24 AUTOMATIC 7207 7207 3
  21 SCREW SD 23344-21005 L24 COLD AREA 7207 7207 3
  22 SET-COVER DUST 23470-E6800 L24 AUTOMATIC 7207 7207 1
  23 SET-SCREW 23480-M0100 L24 AUTOMATIC 7207 7207 1
