Search Item: Key: Part Name: Part Number:

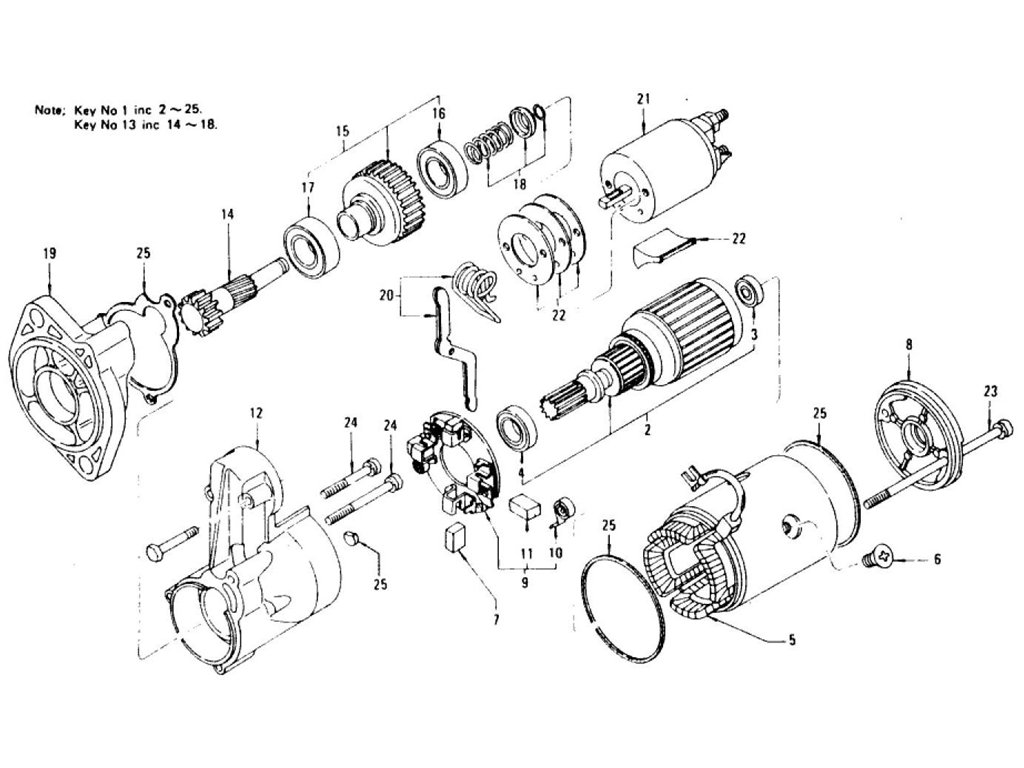

Starter Motor (For Automatic) (From Apr.-'77)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-STARTER MOTOR ( | 23300-N5901 | L28E | 1 | Yes | Yes | 23300-N5900 | ||
| 1 | ASSY-STARTER MOTOR ( | 23300-N5902 | L28E | 1 | Yes | Yes | 23300-N5901 | ||
| 1 | ASSY-STARTER MOTOR ( | 23300-N5903 | L28E | 1 | Yes | Yes | 23300-N5902 | ||
| 1 | ASSY-STARTER MOTOR ( | 23300-N5900 | L28E USA | 7708 | 1 | ||||
| 2 | ASSY-ARMATURE | 23310-N5900 | L28E USA | 7708 | 1 | Yes | Yes | 23343-N3300 | |
| 3 | BEARING-BALL | 23319-M4900 | L28E USA | 7708 | 1 | Yes | Yes | 23343-N3300 | |
| 4 | BEARING-BALL | 23338-M4900 | L28E USA | 7708 | 1 | ||||
| 5 | ASSY-COIL FIELD | 23306-N5900 | L28E USA | 7708 | 1 | ||||
| 6 | SET-SCREW POLE CORE | 23305-09500 | L28E USA | 7708 | 4 | ||||
| 7 | BRUSH (+) | 23380-M4900 | L28E USA | 7708 | 2 | ||||
| 8 | COVER-REAR | 23337-M4900 | L28E USA | 7708 | 1 | ||||
| 9 | ASSY-HOLDER BRUSH | 23378-M4901 | L28E USA | 1 | Yes | Yes | 23378-M4900 | ||
| 9 | ASSY-HOLDER BRUSH | 23378-M4900 | L28E USA | 7708 | 1 | ||||
| 10 | SPRING-BRUSH | 23333-M4900 | L28E USA | 7708 | 4 | ||||
| 11 | BRUSH (-) | 23379-M4900 | L28E USA | 7708 | 2 | ||||
| 12 | HOUSING-CENTER | 23346-N5901 | L28E USA | 7708 | 1 | ||||
| 13 | ASSY-PINION | 23312-H9100 | L28E USA | 7708 | 1 | ||||
| 14 | SHAFT-PINION | 23357-H9100 | L28E USA | 7708 | 1 | ||||
| 15 | ASSY-CLUTCH | 23354-M4900 | L28E USA | 7708 | 1 | ||||
| 16 | BEARING-BALL | 23358-M4900 | L28E USA | 7708 | 1 | ||||
| 17 | BEARING-BALL | 23363-M4900 | L28E USA | 7708 | 1 | ||||
| 18 | SET-STOPPER | 23465-M4900 | L28E USA | 7708 | 1 | ||||
| 19 | CASE-GEAR | 23318-N5901 | L28E USA | 7708 | 1 | ||||
| 20 | SET-SHIFT LEVER | 23322-N5900 | L28E USA | 7708 | 1 | ||||
| 21 | ASSY-SWITCH MAGNETIC | 23343-M4900 | L28E USA | 7708 | 1 | ||||
| 22 | KIT-COVE DUST (1) | 23470-H9100 | L28E USA | 7708 | 1 | ||||
| 23 | BOLT-THROUGH | 23340-N5900 | L28E USA | 7708 | 2 | ||||
| 24 | KIT-BOLT | 23480-M4900 | L28E USA | 7708 | 1 | ||||
| 25 | KIT-COVER DUST (2) | 23470-N5905 | L28E | 1 | Yes | Yes | 23470-H9105 | ||
| 25 | KIT-COVER DUST (2) | 23470-H9105 | L28E USA | 7708 | 1 |
