Search Item: Key: Part Name: Part Number:

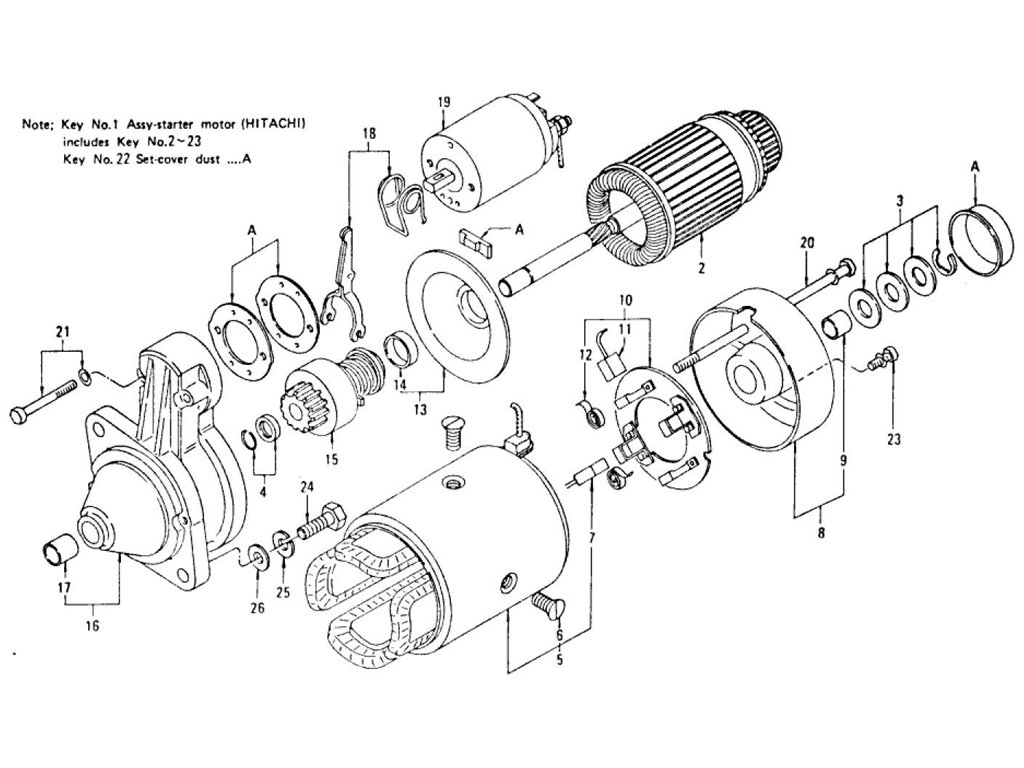

Starter Motor (For Automatic) (From Aug.-'72 To Mar.-'77)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-STARTER MOTOR ( | 23300-N3303 | L24 | L26 | L28E AUTO | 1 | Yes | ||
| 1 | ASSY-STARTER MOTOR ( | 23300-N3304 | L24 | L26 | L28E AUTO | 1 | Yes | ||
| 1 | ASSY-STARTER MOTOR ( | 23300-N3301 | L24 | L26 | L28E AUTO | 7208 | 7507 | 1 | |
| 1 | ASSY-STARTER MOTOR ( | 23300-N3302 | L24 | L26 | L28E AUTO | 7508 | 1 | Yes | |
| 2 | ASSY-ARMATURE | 23310-N3301 | L24 | L26 | L28E AUTO | 7208 | 1 | ||
| 3 | SET-WASHER THRUST | 23321-N3300 | L24 | L26 | L28E AUTO | 7208 | 1 | ||
| 4 | SET-STOPPER PINION | 23465-N3300 | L24 | L26 | L28E AUTO | 7208 | 1 | ||
| 5 | ASSY-COIL FIELD | 23306-N3301 | L24 | L26 | L28E AUTO | 7208 | 1 | ||
| 6 | SET-SCREW POLE CORE | 23305-N3300 | L24 | L26 | L28E AUTO | 7208 | 1 | ||
| 7 | BRUSH (+) | 23380-M0100 | L24 | L26 | L28E AUTO | 7208 | 2 | ||
| 8 | ASSY-COVER REAR | 23337-N3300 | L24 | L26 | L28E AUTO | 7208 | 1 | ||
| 9 | METAL-REAR COVER | 23338-N3300 | L24 | L26 | L28E AUTO | 7208 | 1 | ||
| 10 | ASSY-HOLDER BRUSH | 23378-N3300 | L24 | L26 | L28E AUTO | 7208 | 1 | ||
| 11 | BRUSH (-) | 23379-M0100 | L24 | L26 | L28E AUTO | 7208 | 2 | ||
| 12 | SPRING-BRUSH | 23333-21001 | L24 | L26 | L28E AUTO | 7208 | 4 | ||
| 13 | ASSY-BRACKET CENTER | 23383-N3300 | L24 | L26 | L28E AUTO | 7208 | 1 | ||
| 14 | BEARING-CENTER | 23441-10600 | L24 | L26 | L28E AUTO | 7208 | 1 | ||
| 15 | ASSY-PINION | 23312-U6000 | L24 | L26 | L28E AUTO | 1 | Yes | ||
| 15 | ASSY-PINION | 23312-N3300 | L24 | L26 | L28E AUTO | 7208 | 7507 | 1 | |
| 15 | ASSY-PINION | 23312-Y0700 | L24 | L26 | L28E AUTO | 7508 | 1 | No | |
| 16 | ASSY-CARE GEAR | 23318-N3300 | L24 | L26 | L28E AUTO | 7208 | 1 | ||
| 17 | METAL-GEAR CASE | 23319-N3300 | L24 | L26 | L28E AUTO | 7208 | 1 | ||
| 18 | SET-LEVER SHIFT | 23322-N3300 | L24 | L26 | L28E AUTO | 7208 | 1 | ||
| 19 | ASSY-SWITCH MAGNETIC | 23343-N3300 | L24 | L26 | L28E AUTO | 7208 | 1 | ||
| 19 | ASSY-SWITCH MAGNETIC | 23343-N3301 | L24 | L26 | L28E AUTO | 7208 | 1 | Yes | |
| 20 | BOLT-THOUGH | 23340-N3100 | L24 | L26 | L28E AUTO | 7208 | 2 | ||
| 21 | SCREW SD | 23344-21005 | L24 | L26 | L28E AUTO | 7208 | 3 | ||
| 22 | SET-COVER DUST | 23470-N3300 | L24 | L26 | L28E AUTO | 7208 | 1 | ||
| 23 | SET-SCREW | 23480-M0100 | L24 | L26 | L28E AUTO | 7208 | 1 | ||
| 24 | BOLT-HEX-M10 | 08121-03528 | L24 | L26 | L28 AUTO | 2 | Yes | ||
| 24 | BOLT-HEX-M10 | 08121-03510 | L24 | L26 | L28 AUTO | 7208 | 2 | ||
| 25 | WASHER-LOCK | 08915-24010 | L24 | L26 | L28E AUTO | 7208 | 2 | ||
| 26 | WASHER-PLAIN | 08915-44010 | L24 | L26 | L28E AUTO | 7208 | 2 |
