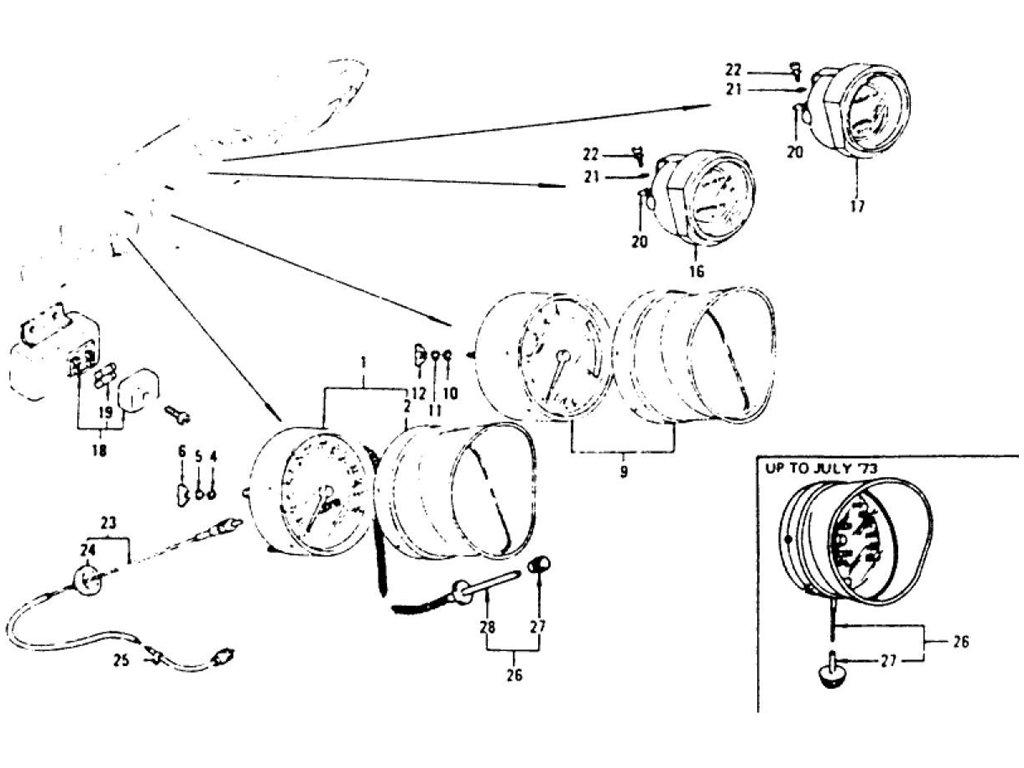

Speedometer, Tachometer & Combination Meter
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-SPEEDOMETER FOR | 24850-E4400 | 7012 | 1 | |||||
| 1 | ASSY-SPEEDOMETER FOR | 24850-E8300 | 7101 | 7206 | 1 | Yes | Yes | 24850-E4400 | |
| 1 | ASSY-SPEEDOMETER FOR | 24850-N3300 | 7207 | 7307 | 1 | No | No | 24850-E8300 | |
| 1 | ASSY-SPEEDOMETER FOR | 24850-N3501 | 2 SEATER 2+2 SEAT ER AUTO | 7308 | 7507 | 1 | |||
| 1 | ASSY-SPEEDOMETER FOR | 24850-N3600 | 2 SEATER 2+2 SEAT ER MANUAL | 7308 | 7411 | 1 | |||
| 1 | ASSY-SPEEDOMETER FOR | 24850-N4200 | MANUAL | 7412 | 7507 | 1 | Yes | Yes | 24850-N3600 |
| 1 | ASSY-SPEEDOMETER FOR | 24850-N4207 | U.S.A AUTO | 7508 | 7607 | 1 | No | No | 24850-N3501 |
| 1 | ASSY-SPEEDOMETER FOR | 24850-N4801 | U.S.A AUTO | 7608 | 7707 | 1 | No | No | 24850-N4207 |
| 1 | ASSY-SPEEDOMETER FOR | 24850-N7601 | U.S.A AUTO | 7708 | 1 | No | No | 24850-N4801 | |
| 1 | ASSY-SPEEDOMETER FOR | 24850-N4204 | U.S.A MANUAL | 7508 | 7607 | 1 | Yes | Yes | 24850-N4200 |
| 1 | ASSY-SPEEDOMETER FOR | 24850-N4800 | U.S.A MANUAL | 7608 | 7707 | 1 | No | No | 24850-N4204 |
| 1 | ASSY-SPEEDOMETER FOR | 24850-N7600 | U.S.A MANUAL | 7708 | 1 | No | No | 24850-N4800 | |
| 2 | COVER-FRONT | 25012-N3400 | 2 SEATER 2+2 SEAT ER | 7308 | 1 | ||||
| 3 | AMPLIFIER | 25035-N3300 | 2 SEATER 2+2 SEAT ER | 7307 | 1 | ||||
| 3 | AMPLIFIER | 25035-N3400 | 2 SEATER 2+2 SEAT ER | 7308 | 7411 | 1 | |||
| 3 | AMPLIFIER | 25035-N4200 | MANUAL | 7412 | 1 | No | No | 25035-N3400 | |
| 4 | WASHER-SPECIAL | 74340-12161 | 7307 | 2 | |||||
| 5 | WASHER-SPRING | 08915-13510 | 7307 | 2 | |||||
| 6 | NUT-WING | 08913-40510 | 7307 | 2 | |||||
| 7 | SCREW PAN HEAD WITH | 08310-51626 | 2 SEATER | 7308 | 1 | ||||
| 8 | SCREW FLAT HEAD | 08320-42542 | 7308 | 1 | |||||
| 9 | ASSY-TACHOMETER | 24855-E4100 | 1 | ||||||
| 9 | ASSY-TACHOMETER | 24855-E8200 | 7101 | 7207 | 1 | Yes | Yes | 24855-E4100 | |
| 9 | ASSY-TACHOMETER | 24855-N3301 | 7208 | 7307 | 1 | No | No | 24855-E8200 | |
| 9 | ASSY-TACHOMETER | 24855-N4200 | 7409 | 7507 | 1 | No | No | 24855-N3600 | |
| 9 | ASSY-TACHOMETER | 24855-N4400 | 7508 | 7607 | 1 | No | No | 24855-N4200 | |
| 9 | ASSY-TACHOMETER | 24855-N4700 | 7608 | 7707 | 1 | No | No | 24855-N4400 | |
| 9 | ASSY-TACHOMETER | 24855-N7600 | 7708 | 1 | No | No | 24855-N4700 | ||
| 9 | ASSY-TACHOMETER | 24855-N3600 | 2 SEATER 2+2 SEAT ER | 7308 | 7408 | 1 | No | No | 24855-N3301 |
| 10 | WASHER-SPECIAL | 74340-12161 | 7307 | 2 | |||||
| 11 | WASHER-SPRING | 08915-13510 | 7307 | 2 | |||||
| 12 | NUT-WING | 08913-40510 | 7307 | 2 | |||||
| 13 | SCREW PAN HEAD WITH | 08310-51626 | 2 SEATER 2+2 SEAT ER | 7308 | 1 | ||||
| 14 | SCREW FLAT HEAD | 08320-42542 | 2 SEATER 2+2 SEAT ER | 7308 | 1 | ||||
| 15 | ASSY RESISTOR | 24130-U6700 | 2 SEATER 2+2 SEAT ER | 7508 | 1 | Yes | Yes | 25054-N3600 | |
| 15 | ASSY-RESISTOR | 25054-N3600 | 2 SEATER 2+2 SEAT ER | 7308 | 7507 | 1 | |||
| 16 | ASSY-GAUGE WATER & O | 24830-N4700 | 7608 | 1 | No | No | 24830-N3502 | ||
| 16 | ASSY-GAUGE WATER & O | 24830-N3500 | 2 SEATER 2+2 SEAT ER | 7308 | 7607 | 1 | No | No | 24830-E8301 |
| 16 | ASSY-GAUGE WATER & O | 24830-N3502 | 2 SEATER 2+2 SEAT ER | 7308 | 7607 | 1 | Yes | Yes | 24830-N3500 |
| 16 | ASSY-GAUGE WATER TEM | 24830-E4400 | 1 | ||||||
| 16 | ASSY-GAUGE WATER TEM | 24830-E8300 | 1 | Yes | Yes | 24830-E4400 | |||
| 16 | ASYS-GAUGE WATER TEM | 24830-E8301 | 1 | Yes | Yes | 24830-E8300 | |||
| 17 | ASSY-GAUGE AMP FUEL | 24840-E4100 | 1 | ||||||
| 17 | ASSY-GAUGE AMP FUEL | 24840-E8200 | 1 | Yes | Yes | 24840-E4100 | |||
| 17 | ASSY-GAUGE AMP FUEL | 24840-N3500 | 7404 | 7507 | 1 | Yes | Yes | 24840-N3400 | |
| 17 | ASSY-GAUGE AMP FUEL | 24840-N3400 | 2 SEATER 2+2 SEAT ER | 7308 | 7403 | 1 | No | No | 24840-N3300 |
| 17 | ASSY-GAUGE AMP FUEL | 24840-N3300 | MANUAL | 7207 | 7307 | 1 | No | No | 24840-E8200 |
| 17 | ASSY-GAUGE VOLT & FU | 24840-N4600 | 7608 | 1 | No | No | 25031-N4400 | ||
| 17 | ASSY-GAUGE VOLT & FU | 25031-N4400 | 2 SEATER | 2+2 SEAT ER | 7508 | 7607 | 1 | No | No |
| 18 | ASSY-SHUNT | 24845-N3400 | 7308 | 7408 | 1 | ||||
| 18 | ASSY-SHUNT | 24845-N3401 | 7409 | 7507 | 1 | Yes | Yes | 24845-N3400 | |
| 19 | FUSE-2A | 01981-00023 | 7409 | 7507 | 2 | No | No | 01981-00013 | |
| 19 | FUSE-3A | 01981-00013 | 7308 | 7408 | 2 | ||||
| 20 | ASSY-BRAKCET COMBIME | 24831-E4100 | 7307 | 1 | |||||
| 21 | WASHER-PLAIN | 08915-43510 | 7307 | 2 | |||||
| 22 | BOLT-HEX WITH SPRING | 08360-51414 | 7307 | 2 | |||||
| 23 | ASSY-SHAFT FLEXIBLE | 25050-E4400 | 1 | ||||||
| 23 | ASSY-SHAFT FLEXIBLE | 25050-E4401 | 7307 | 1 | Yes | Yes | 25050-E4400 | ||
| 23 | ASSY-SHAFT | 25050-N4202 | 7503 | 1 | Yes | Yes | 25050-N4200 | ||
| 23 | ASSY-SHAFT | 25050-N4700 | 7608 | 7611 | 1 | Yes | Yes | 25050-N4202 | |
| 23 | ASSY-SHAFT | 25050-N4701 | 7612 | 1 | Yes | Yes | 25050-N4700 | ||
| 23 | ASSY-SHAFT | 25050-N3601 | 2 SEATER 2+2 SEAT ER AUTOMATIC | 7308 | 7408 | 1 | No | No | 25050-E4401 |
| 23 | ASSY-SHAFT | 25050-N3600 | 2 SEATER 2+2 SEAT ER MANUAL | 7308 | 7408 | 1 | No | No | 25050-E4401 |
| 23 | ASSY-SHAFT | 25050-N4201 | AUTOMATIC | 7409 | 7409 | 1 | No | No | 25050-N3601 |
| 23 | ASSY-SHAFT | 25050-N4200 | AUTOMATIC | 7410 | 7502 | 1 | Yes | Yes | 25050-N4201 |
| 23 | ASSY-SHAFT | 25050-N4200 | MANUAL | 7409 | 7502 | 1 | No | No | 25050-N3600 |
| 24 | GROMMET-CABLE | 24051-10600 | 1 | Yes | Yes | 24253-E4100 | |||
| 24 | GROMMET-CABLE | 24250-89943 | 1 | Yes | Yes | 24051-10600 | |||
| 24 | GROMMET-CABLE | 24253-E4100 | 1 | ||||||
| 24 | GROMMET-CABLE | 25051-N4500 | 7508 | 1 | |||||
| 25 | CLIP | 24210-89926 | 7307 | 2 | |||||
| 25 | CLIP-SPEEDOMETER CAB | 24210-89926 | 2 SEATER 2+2 SEAT ER AUTOMATIC | 7308 | 1 | ||||
| 25 | CLIP-SPEEDOMETER CAB | 24210-89926 | 2 SEATER 2+2 SEAT ER MANUAL | 7308 | 2 | ||||
| 26 | ASSY-CABLE TRIP RESE | 25056-E4100 | 7307 | 1 | |||||
| 26 | ASSY-CABLE TRIP REST | 25056-N4600 | 7608 | 1 | No | No | 25056-N3400 | ||
| 26 | ASSY-CABLE TRIP REST | 25056-N3400 | 2 SEATER 2+2 SEAT ER | 7308 | 7607 | 1 | No | No | 25056-E4100 |
| 27 | KNOB-TRIP RESET | 24854-E4100 | 7307 | 1 | |||||
| 27 | KNOB-TRIP RESET | 25058-N4600 | 7608 | 1 | No | No | 25058-N3400 | ||
| 27 | KNOB-TRIP RESET | 25058-N3400 | 2 SEATER 2+2 SEAT ER | 7308 | 7607 | 1 | |||
| 28 | ASSY-TRIP RESET CABL | 25057-N3400 | 2 SEATER 2+2 SEAT ER | 7308 | 1 |
