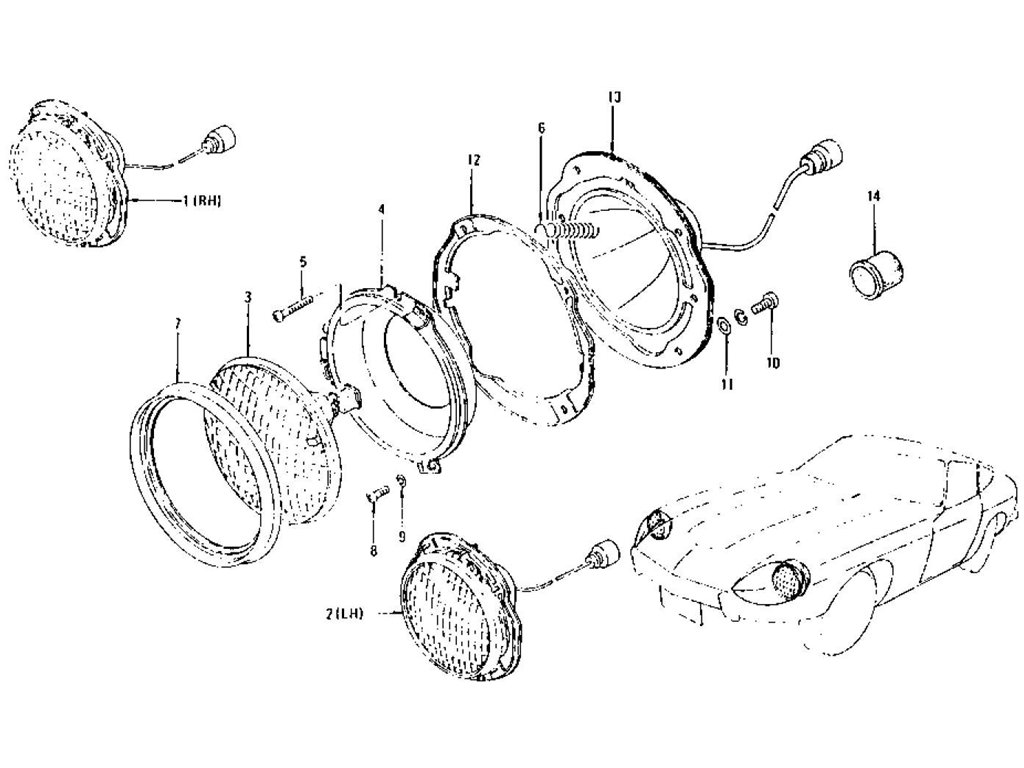

Head Lamp Head Lamp
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | ASSY-HEAD LAMP RH | 26010-N4200 | | 7409 | | 1 | No | No | 26010-N3600 |
|
1 | ASSY-HEAD LAMP RH | 26010-N3600 | 2 SEATER 2+2 SEAT ER | 7308 | 7408 | 1 | | | |
|
1 | ASSY-HEAD LAMP RH(LE | 26010-E4600 | | | | 1 | | | |
|
1 | ASSY-HEAD LAMP RH(WI | 26010-E4601 | | | 7307 | 1 | Yes | Yes | 26010-E4600 |
|
2 | ASSY-HEAD LAMP LH | 26060-N4200 | | 7409 | | 1 | No | No | 26060-N3600 |
|
2 | ASSY-HEAD LAMP LH | 26060-N3600 | 2 SEATER 2+2 SEAT ER | 7308 | 7408 | 1 | | | |
|
2 | ASSY-HEAD LAMP LH(LE | 26060-E4600 | | | | 1 | | | |
|
2 | ASSY-HEAD LAMP LH(WI | 26060-E4601 | | | | 1 | Yes | Yes | 26060-E4600 |
|
2 | ASSY-HEAD LAMP WITH | 26060-N4200 | | 7409 | | 1 | No | No | 26066-N3400 |
|
2 | ASSY-HEAD LAMP WITH | 26066-N3400 | 2 SEATER 2+2 SEAT ER | 7308 | 7408 | 1 | No | No | 26066-E4100 |
|
3 | 02260-231K0 | 26705-89905 | | | 7307 | 2 | | | |
|
3 | 02260-231K0 | 26705-89905 | 2 SEATER 2+2 SEAT ER | 7308 | 7310 | 2 | | | |
|
3 | 02260-132K0 | 26705-89906 | 2 SEATER 2+2 SEAT ER | 7311 | | 2 | Yes | Yes | 26705-89905 |
|
4 | BODY-SUB | 26016-04100 | | | | 1 | | | |
|
5 | SCREW-ADJUSTING | 26022-01301 | | | | 4 | | | |
|
5 | SCREW-ADJUSTING | 26022-19900 | | | | 4 | Yes | Yes | 26022-01301 |
|
6 | SPRING-EXTENSION | 26024-01301 | | | | 2 | | | |
|
7 | RING-RETAINING | 26017-04100 | | | | 2 | | | |
|
7 | RING-RETAINING | 26017-18010 | | | | 2 | Yes | Yes | 26017-04100 |
|
7 | RING-RETAINING | 26023-89910 | | | | 2 | Yes | Yes | 26017-18010 |
|
8 | SCREW-MACHINE | 08310-40612 | | | | 6 | | | |
|
9 | WASHER-LOCK SPRING | 08915-13510 | | | | 8 | | | |
|
10 | SCREW-MACHINE | 08410-51612 | | | | 8 | | | |
|
10 | SCREW-PAN HEAD M5 | 01431-00053 | | | 7307 | 8 | | | |
|
10 | SCREW-PAN HEAD M5 | 08410-51690 | 2 SEATER 2+2 SEAT ER | 7308 | | 8 | No | No | 01431-00053 |
|
11 | WASHER-PLAIN | 08915-43510 | 2 SEATER 2+2 SEAT ER | 7308 | | 8 | | | |
|
12 | PACKING | 26027-E4101 | 2 SEATER | 7308 | | 2 | No | No | 26027-E4100 |
|
12 | PACKING-SHEET LH | 26077-E4100 | 2+2 SEATER | 7308 | | 2 | | | |
|
12 | PACKING-SHEET RH | 26027-E4100 | | | 7307 | 2 | | | |
|
13 | ASSY-BODY HEAD LAMP | 26025-E4100 | | 7308 | 7408 | 1 | No | No | 26025-E4100 |
|
13 | ASSY-BODY HEAD LAMP | 26075-E4100 | 2 SEATER 2+2 SEAT ER | 7308 | 7408 | 1 | No | No | 26075-E4100 |
|
13 | ASSY-BODY HEAD LAMP | 26025-N4500 | EXC EUROPE | 7409 | 7607 | 1 | No | No | 26025-E4100 |
|
13 | ASSY-BODY HEAD LAMP | 26075-N4500 | EXC EUROPE | 7409 | 7607 | 1 | No | No | 26075-E4100 |
|
13 | ASSY-BODY HEAD LAMP | 26025-N4200 | EXC EUROPE | 7608 | | 1 | Yes | Yes | 26025-N4500 |
|
13 | ASSY-BODY HEAD LAMP | 26075-N4200 | EXC EUROPE | 7608 | | 1 | Yes | Yes | 26075-N4500 |
|
13 | ASSY-HOUSING WITH CO | 26025-E4100 | | | 7307 | 1 | | | |
|
13 | ASSY-HOUSING WITH CO | 26075-E4100 | | | 7307 | 1 | | | |
|
14 | COVER-HEAD LAMP(RUBB | 26029-E4600 | | | 7307 | 2 | | | |
