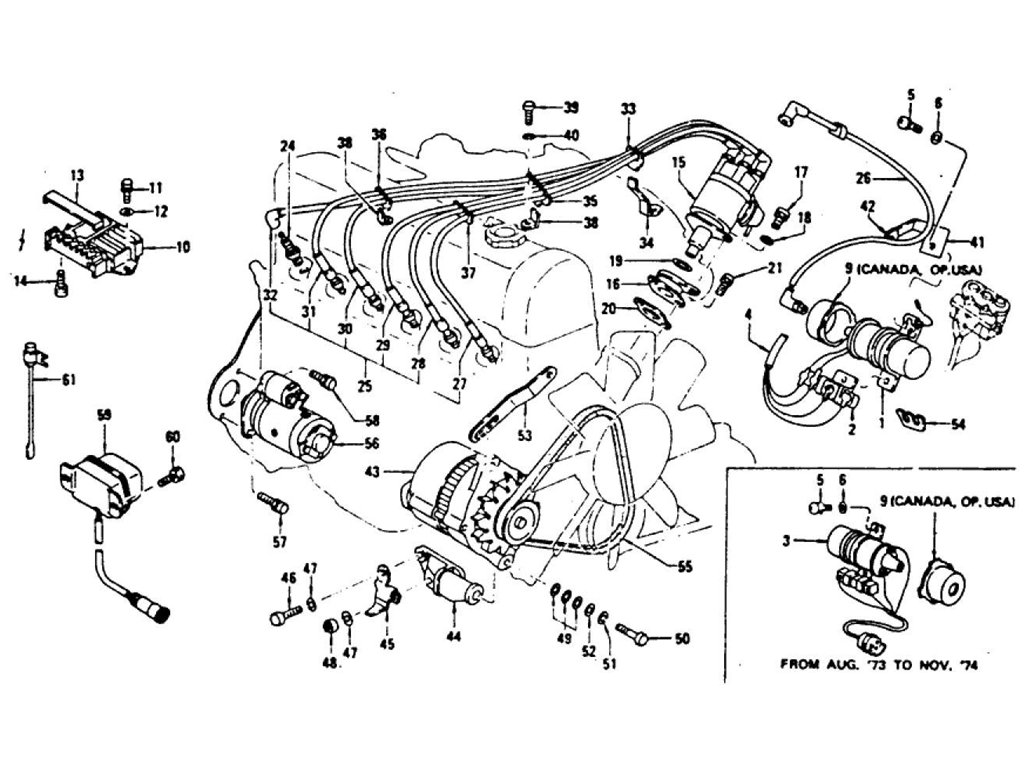

Engine Electrical & Fitting

Engine Electrical & Fitting Parts

Engine Electrical & Fitting
Parts List
Key Part Name Part Number Model From To Qty Newer Former Superceded
  1 COIL IGNITION WITH R 22433-A5410 L24 7307 1
  1 COIL IGNITION WITH R 22433-U3110 L24 7307 1 Yes Yes 22433-A5410
  2 RESISTER IGNITION CO 22460-14615 L24 7307 1
  3 ASSY COIL IGNITION 22448-N3600 L26 7308 7411 1
  3 ASSY COIL IGNITION 22448-N4201 L28E 7412 7601 1 No No 22448-N3600
  3 ASSY COIL IGNITION 22448-N4202 L28E 7602 7707 1 Yes Yes 22448-N4201
  3 ASSY COIL IGNITION 22433-H7280 L28E 7708 1
  3 ASSY COIL IGNITION ( 22433-H7285 L28E 7708 1 Yes Yes 22433-H7280
  4 ASSY HARNESS IGNITIO 22461-N3601 L26 7308 7411 1
  5 SCREW M6X1.0X12 08310-61214 L24 L26 7411 2
  5 SCREW M6X1.0X16 08310-61214 L28E 2 Yes Yes 08310-61262
  5 SCREW M6X1.0X16 08310-61262 L28E 7412 2
  6 WASHER PLAIN M6 08915-53610 L24 L26 7411 2
  6 WASHER PLAIN M6 08915-53610 L28E 7412 2
  7 NUT HEX 01211-00101 L28E 7412 2
  8 WASHER SPRING 01321-00041 L28E 7412 2
  9 PROTECTOR IGNITION COIL 22465-N6000 CANADA OP USA 7308 7408 1
  9 PROTECTOR IGNITION COIL 22465-U6700 CANADA OP USA 7409 1 Yes Yes 22465-N6000
  10 UNIT TRIGNITION 22020-N3606 L26 AUTOMATIC 7308 7411 1
  10 UNIT TRIGNITION 22020-N3607 L26 AUTOMATIC 7308 7411 1 Yes Yes 22020-N3606
  10 UNIT TRIGNITION 22020-N3601 L26 MANUAL 7411 1 Yes Yes 22020-N3600
  10 UNIT TRIGNITION 22020-N3600 L26 MANUAL 7308 7411 1
  10 UNIT TRIGNITION 22020-N4200 L28E FED 7412 7506 1
  10 UNIT-TRIGNITION 22020-F1703 L28E 1 Yes Yes 22020-U6800
  10 UNIT-TRIGNITION 22020-U6800 L28E 7608 1 No No 22020-N4201
  10 UNIT-TRIGNITION 22020-H7281 L28E 7708 1 No No 22020-F1703
  10 UNIT-TRIGNITION 22020-U6800 L28E CAL 7412 7607 1
  10 UNIT-TRIGNITION 22020-N4201 L28E FED 7507 7607 1 Yes Yes 22020-N4200
  11 BOLT-WITH WASHER M6 08120-62062 L26 7308 7411 2
  11 SCREW-MACHINE HEX FI 08363-62026 L28E 7412 7707 2 No No 08120-62062
  11 SCREW-MACHINE HEX FI 08363-61226 L28E 7708 2 No No 08363-62026
  12 WASHER-PLAIN 08915-43610 L26 7308 7411 2
  13 COVER-TERMINAL BLOCK 22026-U6800 L28E 7412 7707 1
  14 SCREW-MACHINE WITH S 01431-00121 L28E 7412 7707 7
  15 ASSY-DISTRIBUTOR D61 22100-E8000 L24 AUTOMATIC 7008 7206 1
  15 ASSY-DISTRIBUTOR HIT 22100-N3305 L24 AUTOMATIC 7207 7307 1 No No 22100-E8000
  15 ASSY-DISTRIBUTOR HIT 22100-E4601 L24 MANUAL 7108 1
  15 ASSY-DISTRIBUTOR HIT 22100-E4603 L24 MANUAL 7109 7206 1 Yes Yes 22100-E4601
  15 ASSY-DISTRIBUTOR HIT 22100-N3300 L24 MANUAL 7207 7307 1 No No 22100-E4603
  15 ASSY-DISTRIBUTOR HIT 22100-N3607 L26 AUTOMATIC 7308 7411 1 No No 22100-N3305
  15 ASSY-DISTRIBUTOR HIT 22100-N3602 L26 MANUAL 7308 7411 1 No No 22100-N3300
  15 ASSY-DISTRIBUTOR HIT 22100-N4301 L28E CAL 7412 1
  15 ASSY-DISTRIBUTOR HIT 22100-N4703 L28E CANADA MANUA L 7608 1 No No 22100-N4201
  15 ASSY-DISTRIBUTOR HIT 22100-N4206 L28E FED AUTO 7412 7607 1 No No 22100-N3607
  15 ASSY-DISTRIBUTOR HIT 22100-N4705 L28E FED AUTO 7608 1 No No 22100-N4206
  15 ASSY-DISTRIBUTOR HIT 22100-N4201 L28E FED MANUAL 7412 7607 1 No No 22100-N3602
  15 ASSY-DISTRIBUTOR HIT 22100-N4700 L28E FED MANUAL 7608 1 No No 22100-N4201
  16 SUPPORT-DISTRIBUTOR 22178-21000 L24 7307 1
  16 SUPPORT-DISTRIBUTOR 22178-U6000 L26 L28E 7308 1
  17 SCREW-MACHINE 08360-61214 L24 7307 1
  17 SCREW-MACHINE 08360-61426 L26 7308 1
  17 SCREW-MACHINE 08360-61414 L26 L28E 1 Yes Yes
  18 WASHER-PLAIN 08915-43610 L24 L26 L28E 1
  19 RING-"O" SUPPORT DIS 22180-71200 L24 L26 L28E 1
  20 PACKING-SUPPORT DIST 22179-E3000 L24 L26 L28E 1
  21 BOLT-HEX M6X1.0X20 08110-62010 L24 7307 2
  21 BOLT-HEX M6X1.0X20 08110-62062 L26 L28E 7308 2 No No
  22 NUT-HEX M4X0.7 01211-00131 L28E FED 7412 1
  22 NUT-HEX M5X0.8 01211-00121 L28E 7412 1
  22 NUT-HEX M6X1.0 01211-00111 L28E 7412 1
  23 WASHER-SPRING M4 01321-00061 L28E FED 7412 1
  23 WASHER-SPRING M5 01321-00041 L28E 7412 1
  23 WASHER-SPRING M6 01321-00051 L28E 7412 1
  24 PLUG-SPARK B-4E (NGK 22401-58001 OP.L28E 7412 7607 6
  24 PLUG-SPARK B-5ES (NG 22401-E6610 OP.L28E 7412 7607 6
  24 PLUG-SPARK B5ES-11 ( 22401-N4715 OP.L28E 7608 6
  24 PLUG-SPARK B-6ES (NG 22401-E6810 OP.L28E 7412 7607 6
  24 PLUG-SPARK B6ES(NGK) 22401-E6810 L28E 7412 7607 6
  24 PLUG-SPARK B6ES-11 ( 22401-N4716 L28E USA 7608 6
  24 PLUG-SPARK B6ES-11 ( 22401-N4716 OP.L28E 7608 6
  24 PLUG-SPARK B-7ES (NG 22401-A0200 OP.L28E 7412 7607 6
  24 PLUG-SPARK B7ES-11 ( 22401-N4717 OP.L28E 7608 6
  24 PLUG-SPARK BP-4E (NG 22401-75504 OP.L24 L26 6
  24 PLUG-SPARK BP-5ES (N 22401-A4605 OP.L24 L26 6
  24 PLUG-SPARK BP-6ES (N 22401-A4616 OP.L24 L26 6
  24 PLUG-SPARK BP6ES(NGK 22401-A4616 L24 L26 6
  24 PLUG-SPARK BP-7ES (N 22401-A4617 OP.L24 L26 6
  24 PLUG-SPARK L44P (HIT 22401-21004 OP.L24 7307 6
  24 PLUG-SPARK L44PW (HI 22401-A4704 OP.L26 7308 6
  24 PLUG-SPARK L44W (HIT 22401-A4804 OP.L28E 7412 7607 6
  24 PLUG-SPARK L44W-11 ( 22401-N4704 OP.L28E 7608 6
  24 PLUG-SPARK L45P (HIT 22401-21005 OP.L24 7307 6
  24 PLUG-SPARK L45PW (HI 22401-A4705 OP.L26 7308 6
  24 PLUG-SPARK L45PW(HIT 22401-A4705 L24 L26 6
  24 PLUG-SPARK L45W (HIT 22401-A4805 OP.L28E 7412 7607 6
  24 PLUG-SPARK L45W(HITA 22401-A4805 L28E 7412 7607 6
  24 PLUG-SPARK L45W-11 ( 22401-N4705 OP.L28E 7608 6
  24 PLUG-SPARK L45W-11(H 22401-N4705 L28E USA 7608 6
  24 PLUG-SPARK L46PW (HI 22401-A4706 OP.L26 7308 6
  24 PLUG-SPARK L46W (HIT 22401-E6800 OP.L28E 7412 7607 6
  24 PLUG-SPARK L46W-11 ( 22401-N4706 OP.L28E 7608 6
  24 PLUG-SPARK L47P (HIT 22401-21007 OP.L24 7307 6
  24 PLUG-SPARK L47PW (HI 22401-A4707 OP.L26 7308 6 Yes Yes 22401-21007
  24 SPARK PLUG BR4ES-11 22401-N4814 OP L28E USA 7708 6
  24 SPARK PLUG BR5ES-11 22401-N4815 OP L28E USA 7708 6
  24 SPARK PLUG BR6ES-11 22401-N4816 OP L28E USA 7708 6
  24 SPARK PLUG BR7ES-11 22401-N4817 OP L28E USA 7708 6
  25 SET-CABLE HIGHTENSIO 22450-E4126 L24 L26 1
  25 SET-CABLE HIGHTENSIO 22450-N3625 L26 7409 7411 1 Yes Yes 22450-E4126
  25 SET-CABLE HIGHTENSIO 22450-N4325 L28 7412 1
  26 CABLE-HIGHTENSION CO 22450-E4101 L24 L26 1
  26 CABLE-HIGHTENSION CO 22450-N4305 L26 7409 7411 1 Yes Yes 22450-E4101
  26 CABLE-HIGHTENSION CO 22450-N4301 L28E 7412 7504 1
  26 CABLE-HIGHTENSION CO 22450-N4302 L28E 7505 1 Yes Yes 22450-N4301
  26 CABLE-HIGHTENSION CO 22450-E4105 OP.L24 L26 1
  27 ASSY-CABLE HIGHTENSI 22451-E3001 L24 L26 1
  27 ASSY-CABLE HIGHTENSI 22451-N4300 L26 L28E 7409 1 Yes Yes
  27 ASSY-CABLE HIGHTENSI 22451-E3005 OP.L24 L26 1
  28 ASSY-CABLE HIGH TENS 22452-N0700 OP L24 L26 1
  28 ASSY-CABLE HIGHTENSI 22452-21001 L24 L26 1
  28 ASSY-CABLE HIGHTENSI 22452-N4305 L26 7409 7411 1 Yes Yes 22452-21001
  28 ASSY-CABLE HIGHTENSI 22452-N4300 L28E 7412 1
  29 ASSY-CABLE HIG TENSI 22453-N4300 L28E 7412 1
  29 ASSY-CABLE HIGH TENS 22453-21000 L24 7307 1
  29 ASSY-CABLE HIGH TENS 22453-21001 L26 7308 1 No No 22453-21001
  29 ASSY-CABLE HIGH TENS 22453-N4305 L26 7409 7411 1 Yes Yes 22453-21001
  29 ASSY-CABLE HIGH TENS 22453-N0700 OP L24 L26 1
  30 ASSY-CABLE HIGH TENS 22454-E3001 L24 L26 1
  30 ASSY-CABLE HIGH TENS 22454-S6000 L24 L26 1 Yes Yes
  30 ASSY-CABLE HIGH TENS 22454-N4300 L26 L28E 7409 1
  30 ASSY-CABLE HIGH TENS 22454-E3005 OP L24 L26 1
  31 ASSY-CABLE HIGH TENS 22455-E3001 L24 L26 1
  31 ASSY-CABLE HIGH TENS 22455-N4300 L26 L28E 7409 1 Yes Yes
  31 ASSY-CABLE HIGH TENS 22455-E3005 OP L24 L26 1
  32 ASSY-CABLE HIGH TENS 22456-E3001 L24 7307 1
  32 ASSY-CABLE HIGH TENS 22456-E3002 L26 7308 1 No No 22456-E3001
  32 ASSY-CABLE HIGH TENS 22456-N4305 L26 7409 7411 1 Yes Yes 22456-E3002
  32 ASSY-CABLE HIGH TENS 22456-N4300 L28E 7412 1
  32 ASSY-CABLE HIGH TENS 22456-E3005 OP L24 L26 1
  33 CLAMP-HIGH TENSION C 22472-E3000 L24 L26 L28E 1
  34 HOLDER-HIGH TENSION 22473-E3000 L24 7307 1
  34 HOLDER-HIGH TENSION 22473-Y4000 L24 7307 1 Yes Yes 22473-E3000
  34 HOLDER-HIGH TENSION 22473-N3000 L26 7308 1
  35 CLAMP-HIGH TENSION C 22472-E3001 L24 L26 L28E 1
  36 CLAMP-HIGH TENSION C 22472-E3002 L24 L26 L28E 1
  37 CLAMP-HIGH TENSION C 22472-E3003 L24 L26 L28E 1
  38 BRACKET-HIGH TENSION 13241-65000 L24 L26 2
  39 BOLT-HEX M6 08110-61010 L24 7307 2
  39 BOLT-HEX M6 08110-61210 L26 7308 2
  40 WASHER-LOCK 08915-13620 L26 7308 2
  41 BRACKET-HIGH TENSION 22473-N4201 L28E 7412 1
  42 CLAMP-HIGH TENSION 22472-N4200 L28E 7412 7504 1
  42 CLAMP-HIGH TENSION 22472-N4201 L28E 7505 1 No No 22472-N4200
  43 ASSY-ALTERNATOR 12V- 23100-A4800 L24 7108 1
  43 ASSY-ALTERNATOR 12V- 23100-P0102 L24 7109 7206 1
  43 ASSY-ALTERNATOR 12V- 23100-U0702 L24 COLD AREA 7207 7207 1
  43 ASSY-ALTERNATOR 12V- 23100-P0103 L24 L26 7207 1
  43 ASSY-ALTERNATOR 12V- 23100-N3300 L24 L26 COLD AREA 7208 1 Yes Yes
  43 ASSY-ALTERNATOR 12V- 23100-N3300 L28E 7412 7502 1
  43 ASSY-ALTERNATOR 12V- 23100-N3301 L28E 7503 7510 1 Yes Yes 23100-N3300
  43 ASSY-ALTERNATOR 12V- 23100-N3302 L28E 7511 7702 1 Yes Yes 23100-N3301
  43 ASSY-ALTERNATOR 12V- 23100-N3303 L28E 7703 1 23100-N3302
  44 BRACKET-ALTERNATOR 11710-E3000 L24 L26 L28E 1
  45 BRACKET-CLAMP HOSE 11115-E7900 L26 AUTOMATIC 7308 1
  45 BRACKET-CLAMP HOSE 11115-U3500 L28 AUTOMATIC 7412 7507 1
  45 BRACKET-CLAMP HOSE 11115-Y4000 L28 AUTOMATIC 7508 1 No No 11115-U3500
  46 BOLT-ALTERNATOR FIXI 11716-E3000 L24 7307 2
  46 BOLT-ALTERNATOR FIXI 08131-03010 L26 L28E 7308 2
  47 WASHER-SPRING FIXING 08915-14010 L24 L26 L28E 3
  48 NUT-HEX M10 FIXING T 08911-24010 L24 L26 L28E 1
  49 SHIM-ALTERNATOR 11713-21000 L24 L26 L28E 0
  49 SHIM-ALTERNATOR 11713-21001 L24 L26 L28E 0
  50 BOLT-HEX M8X1.25 11716-21000 L24 L26 L28E 2
  51 WASHER-SPRING 08915-13810 L24 L26 L28E 2
  52 WASHER-PLAIN 08915-43810 L24 L26 L28E 2
  53 BAR-ADJUSTING ALTERN 11715-E3000 L24 L26 L28E 1
  54 CLAMP-H/T L/T CABLE 22472-E8000 L24 AUTOMATIC 7307 1
  55 partNumber BELT-FAN L=845
  55 partNumber 11720-E4600 L24 1
  55 partNumber 11720-E4615 L24 7206 1 Yes Yes 11720-E4600
  55 partNumber BELT-FAN L=860
  55 partNumber 11720-E8700 L24 7207 1 11720-E4615
  55 partNumber BELT-FAN L=885
  55 partNumber 11720-P0305 L24 L26 7303 7411 1
  55 partNumber 11720-Y4005 L28E 7412 1 Yes Yes 11720-P0305
  56 ASSY-STARTER MOTOR ( 23300-N5901 L28E MANUAL 1 Yes Yes 23300-N5900
  56 ASSY-STARTER MOTOR ( 23300-N5903 L28E MANUAL CANAD A 1 Yes Yes 23300-N5902
  56 ASSY-STARTER MOTOR(H 23300-E3100 L24 7010 1
  56 ASSY-STARTER MOTOR(H 23300-N3300 L24 AUTO 7207 7207 1
  56 ASSY-STARTER MOTOR(H 23300-N3301 L24 L26 28E AUTO 7208 7507 1
  56 ASSY-STARTER MOTOR(H 23300-E3101 L24 L26 L28E MANU AL 7011 7509 1 Yes
  56 ASSY-STARTER MOTOR(H 23300-N3303 L28E AUTO 1 Yes Yes 23300-N3302
  56 ASSY-STARTER MOTOR(H 23300-N3304 L28E AUTO 1 Yes Yes 23300-N3303
  56 ASSY-STARTER MOTOR(H 23300-N5901 L28E AUTO 1 Yes Yes 23300-N5900
  56 ASSY-STARTER MOTOR(H 23300-N5902 L28E AUTO 1 Yes Yes 23300-N5901
  56 ASSY-STARTER MOTOR(H 23300-N5903 L28E AUTO 1 Yes Yes 23300-N5902
  56 ASSY-STARTER MOTOR(H 23300-N3302 L28E AUTO 7508 1 Yes Yes 23300-N3301
  56 ASSY-STARTER MOTOR(H 23300-N5900 L28E AUTO 7708 1 No No 23300-N3304
  56 ASSY-STARTER MOTOR(H 23300-N5902 L28E MANUAL 1 Yes Yes 23300-N5901
  56 ASSY-STARTER MOTOR(H 23300-N5903 L28E MANUAL 1 Yes Yes 23300-N5902
  56 ASSY-STARTER MOTOR(H 23300-Y0700 L28E MANUAL 7510 7702 1 Yes Yes 23300-E3101
  56 ASSY-STARTER MOTOR(H 23300-Y0701 L28E MANUAL 7703 1 Yes Yes 23300-Y0700
  56 ASSY-STARTER MOTOR(H 23300-N5900 L28E MANUAL 7708 1 No No 23300-Y0701
  56 ASSY-STARTER MOTOR(H 23300-N5901 L28E MANUAL CANAD A 1 Yes Yes 23300-N5900
  56 ASSY-STARTER MOTOR(H 23300-N5902 L28E MANUAL CANAD A 1 Yes Yes 23300-N5901
  56 ASSY-STARTER MOTOR(H 23300-N5900 L28E MANUAL CANAD A 7704 1 No No 23300-Y0701
  57 BOLT-WITH WASHER M14 08121-04533 L24 L26 L28E 1
  58 BOLT-WITH WASHER M10 08121-03528 L24 L26 L28E 1
  58 BOLT-WITH WASHER M10 08121-03533 L24 L26 L28E 1
  59 ASSY REGULATOR VOLTA 23500-29911 L24 1
  59 ASSY REGULATOR VOLTA 23500-B8000 L28E 7412 7412 1
  59 ASSY REGULATOR VOLTA 23500-B8001 L28E 7501 7608 1 Yes Yes 23500-B8000
  59 ASSY REGULATOR VOLTA 23500-B8003 L28E 7609 7707 1 Yes Yes 23500-B8002
  59 ASSY-REGULATOR VOLTA 23500-29902 7104 1 Yes Yes 23500-29901
  59 ASSY-REGULATOR VOLTA 23500-29903 7104 1 Yes Yes 23500-29902
  59 ASSY-REGULATOR VOLTA 23500-29904 7104 1 Yes Yes 23500-29903
  59 ASSY-REGULATOR VOLTA 23500-29901 L24 7103 1
  59 ASSY-REGULATOR VOLTA 23500-N3300 L24 7210 1 Yes Yes 23500-29902
  59 ASSY-REGULATOR VOLTA 23500-N2200 L26 7308 7411 1
  59 ASSY-REGULATOR VOLTA 23500-B8002 L28E 7609 1 Yes Yes 23500-B8001
  60 SCREW M6X1.0 08513-61223 7307 2
  60 SCREW M6X1.0 08310-61214 7308 2
  61 CONDENSER RADIO 27984-B0700 7006 1
